Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 14 illustrations

Illustrations

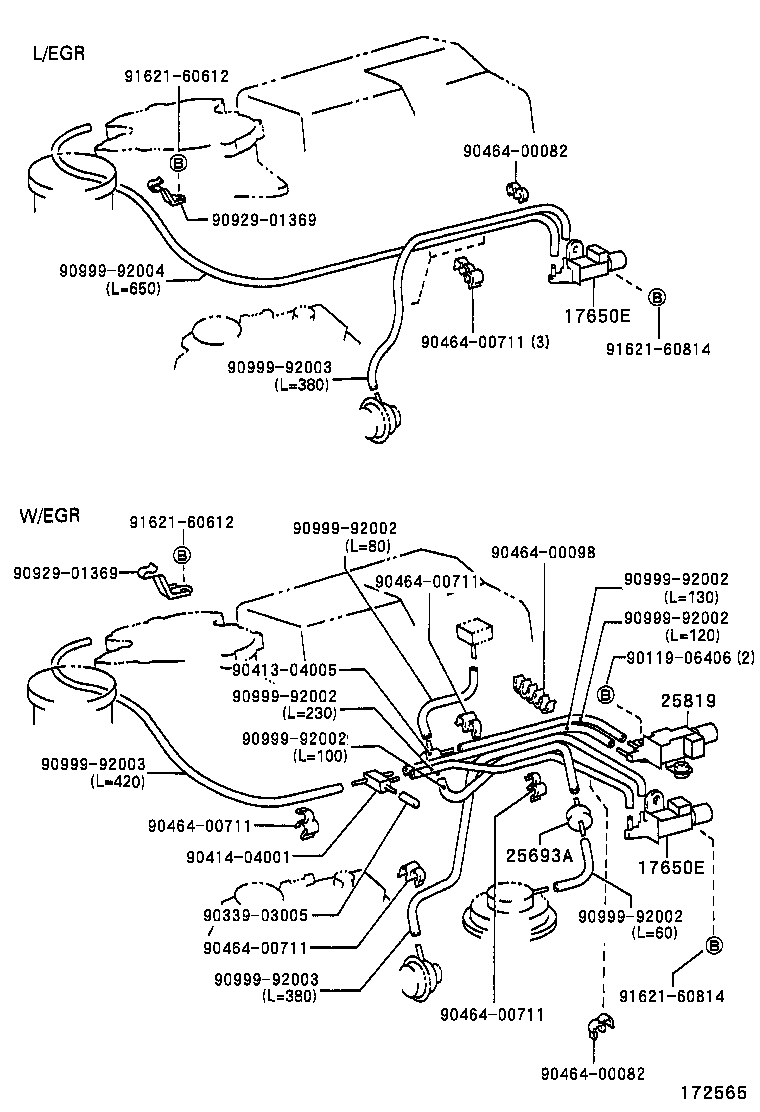

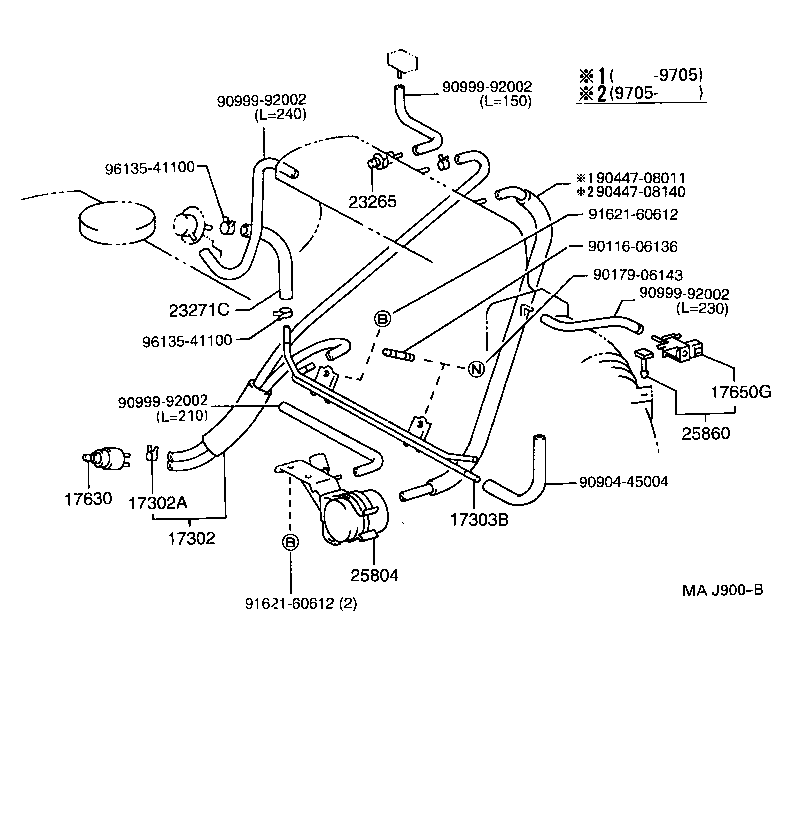

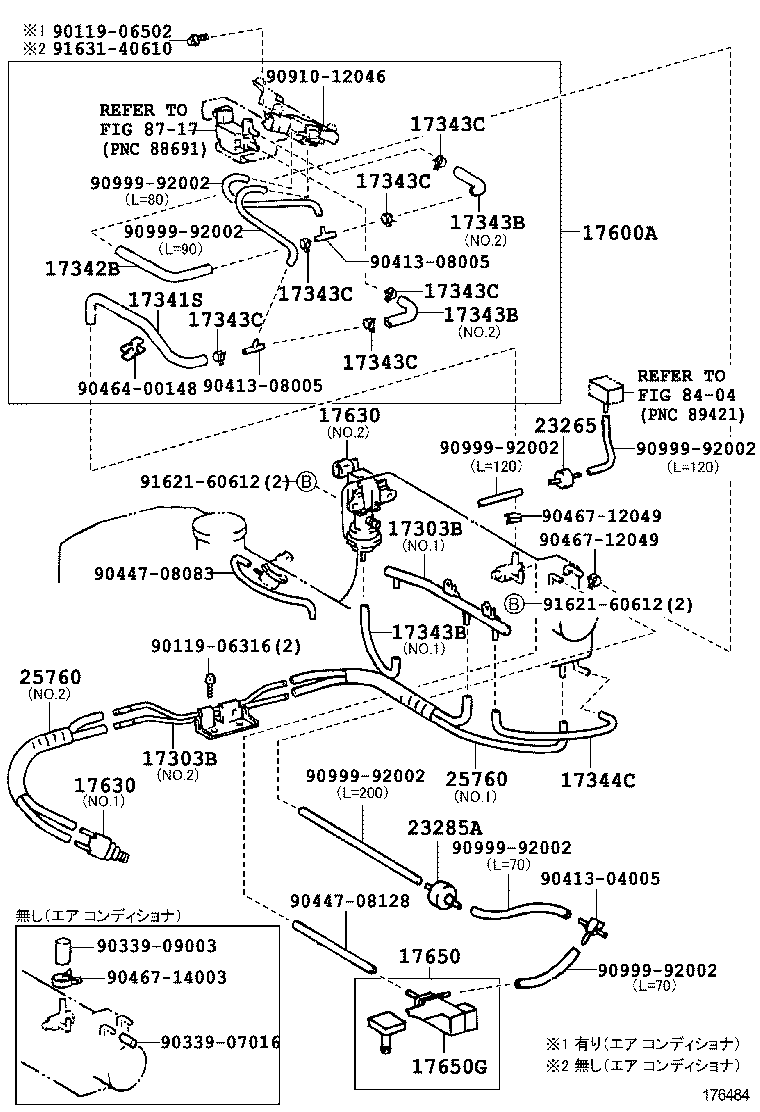

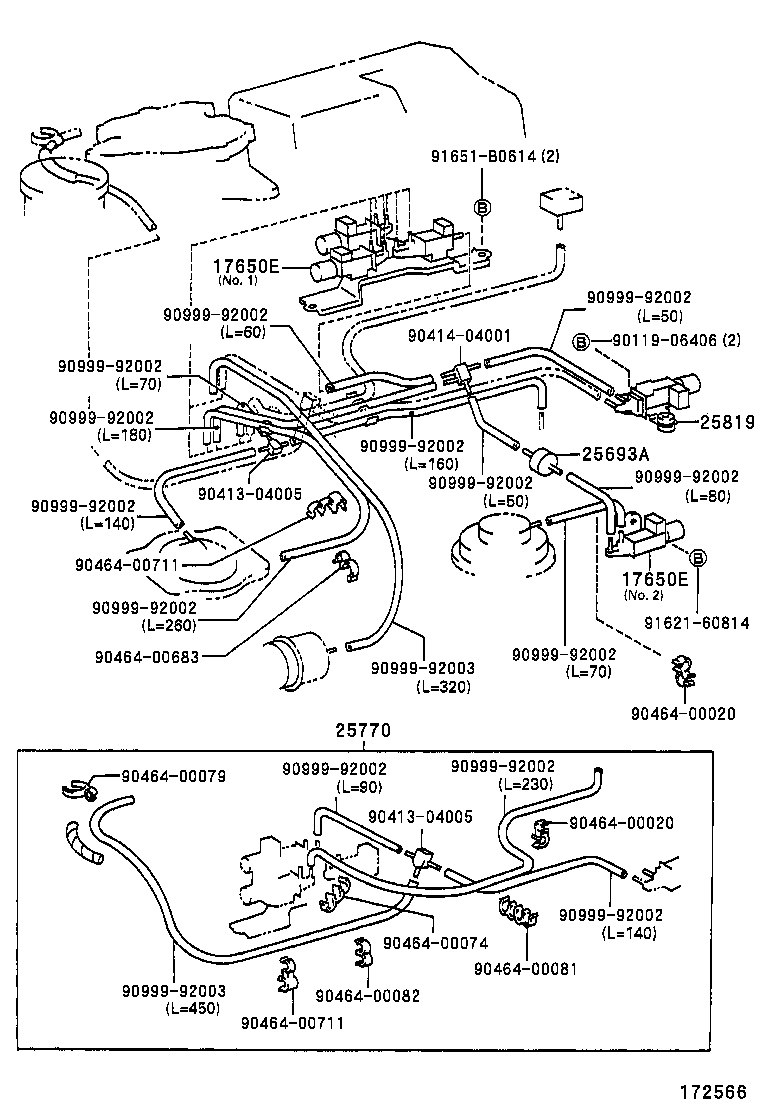

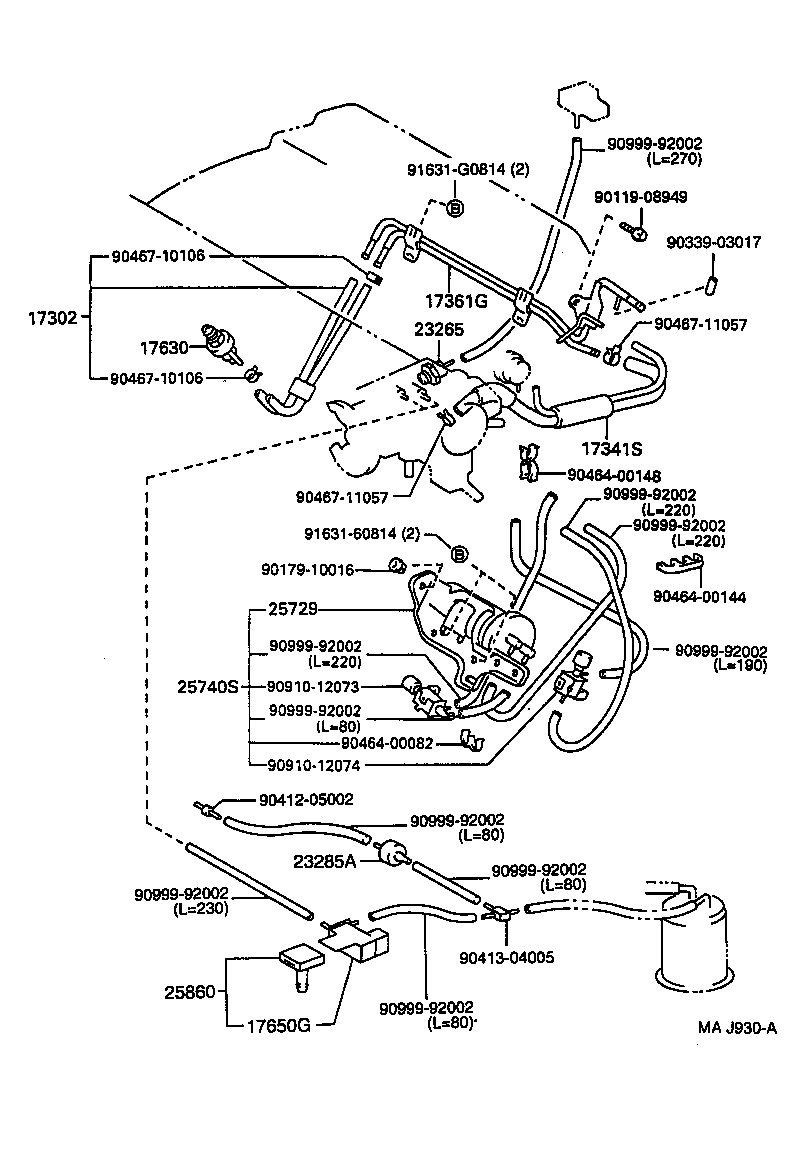

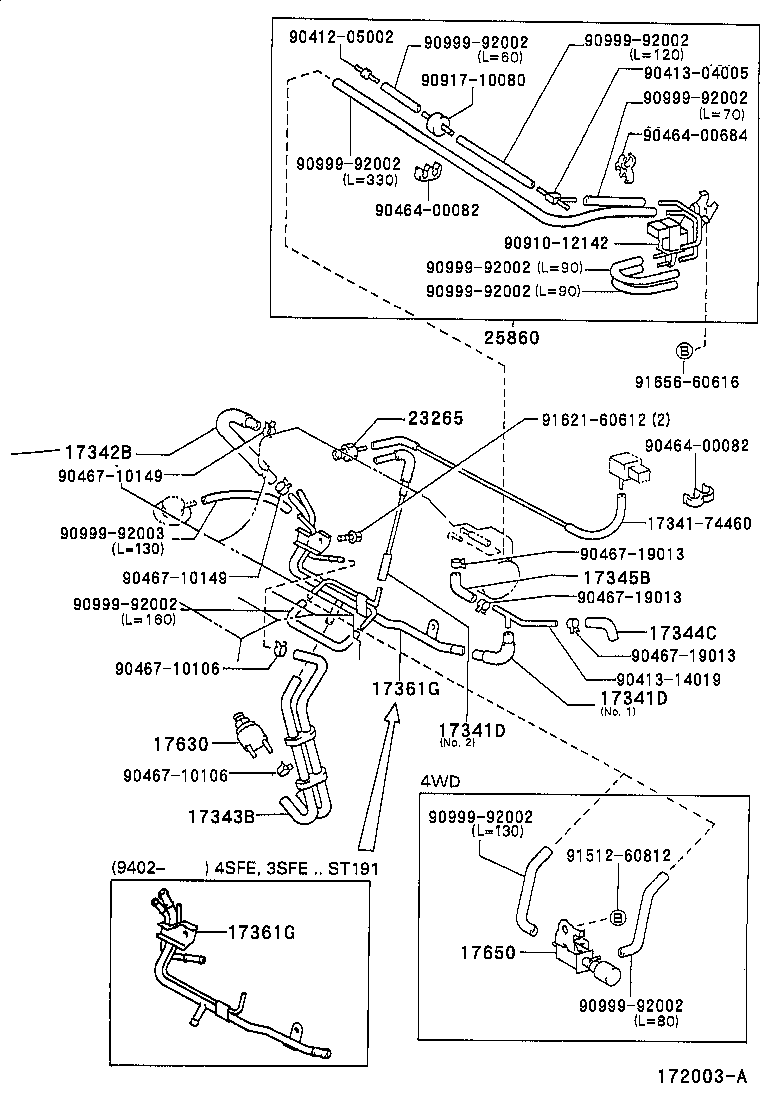

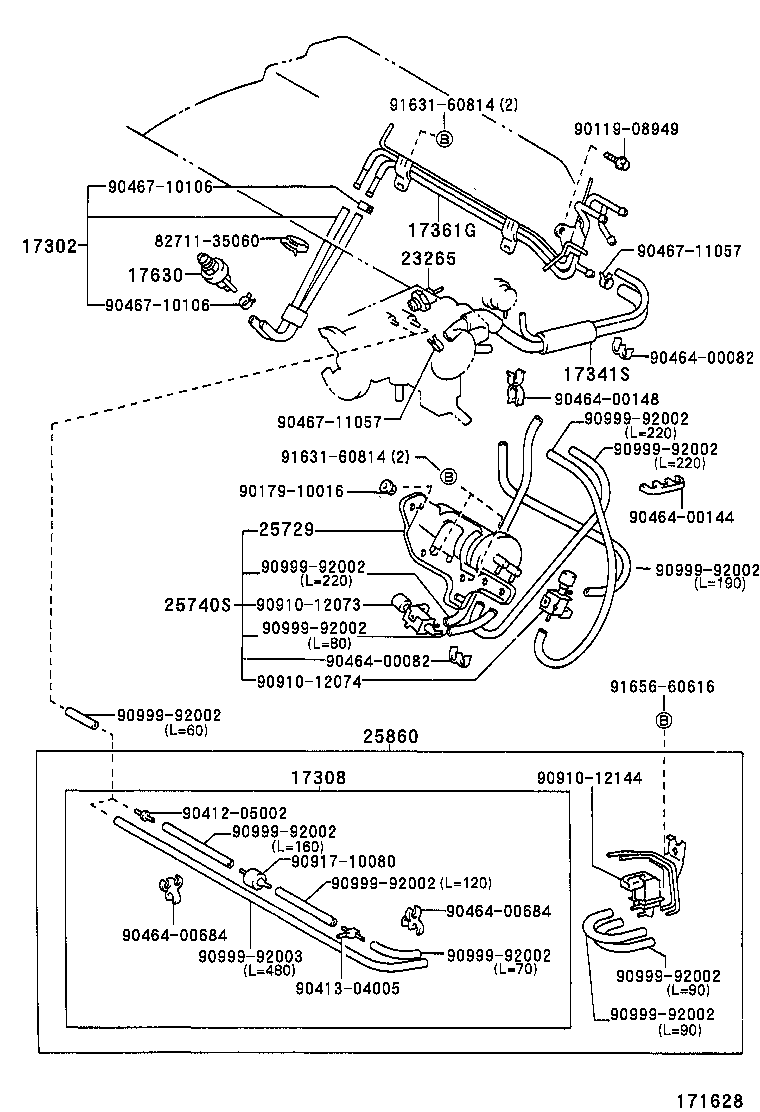

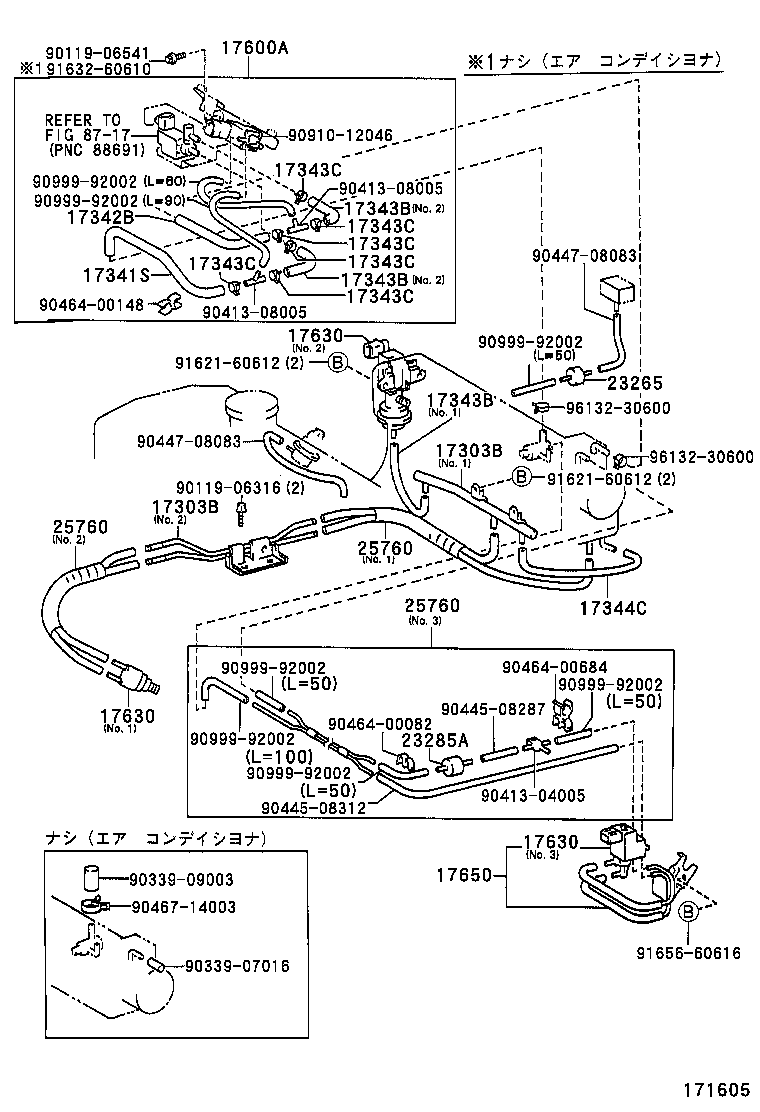

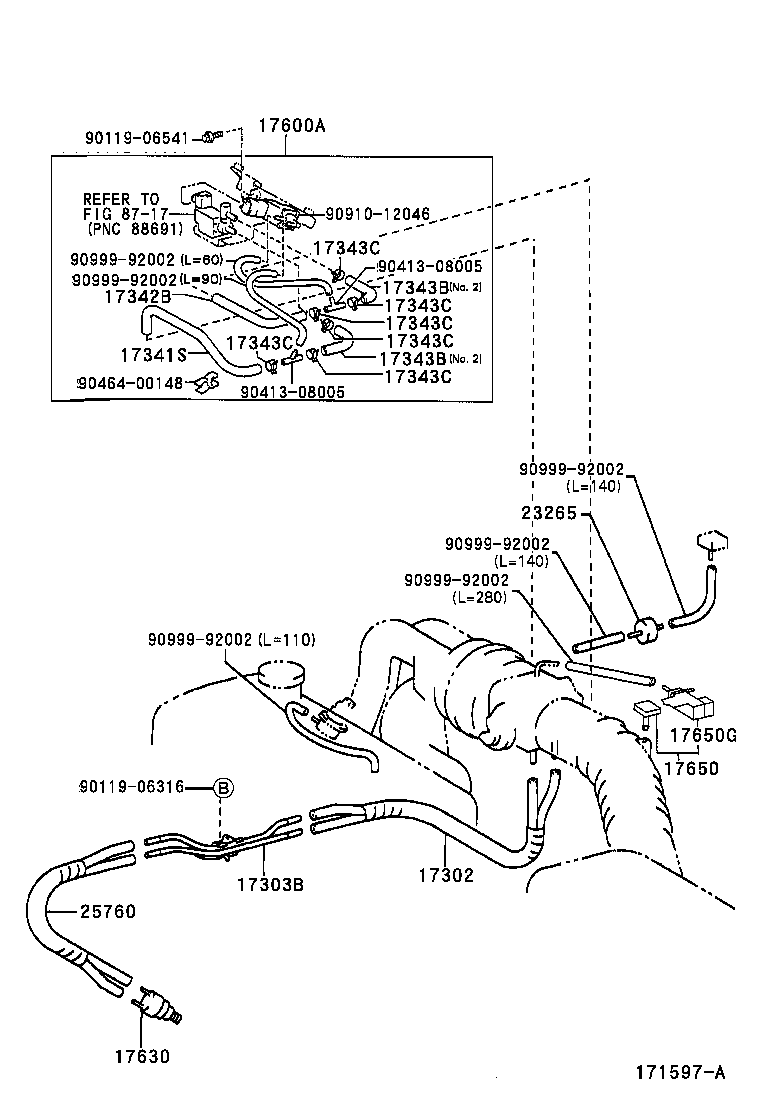

Figure 170020 170020 1992-11 → — Figure MAJ900B MAJ900B 1996-01 → 1997-08 Figure 171645 171645 1992-11 → 1996-01 Figure 172565 172565 1996-01 → 1998-05 Figure 172566 172566 1996-01 → 1997-08 Figure 171704B 171704B 1998-05 → — Figure 171605 171605 1992-11 → 1996-01 Figure 176484 176484 1996-01 → 1997-08 Figure 171597A 171597A 1997-08 → — Figure 172003A 172003A 1992-11 → 1996-01 Figure 173344 173344 1996-01 → 1996-07 Figure 173343 173343 1996-07 → — Figure 171628 171628 1995-02 → 1996-01 Figure MAJ930A MAJ930A 1996-01 → 1997-08

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17341S Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17345B Hose, NO.5(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23285A Valve, Check, NO.1
25693A Damper, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25729 Tank, Vacuum Surge W/Bracket
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
