Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 6 illustrations

Illustrations

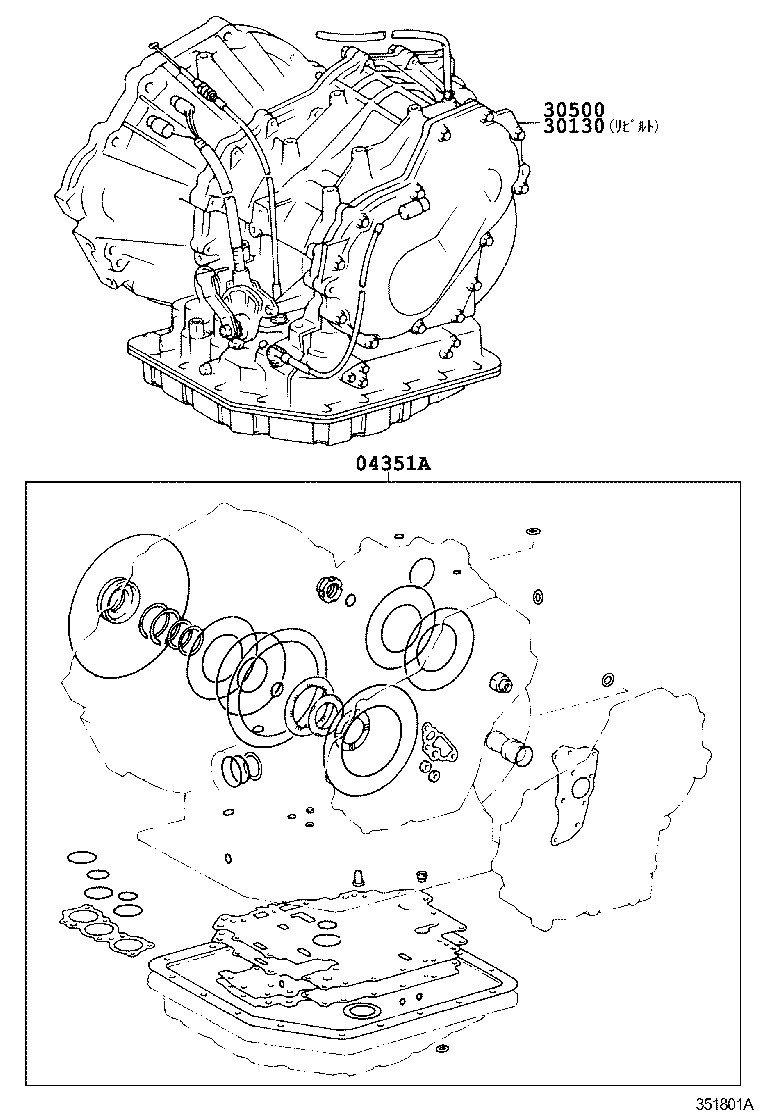

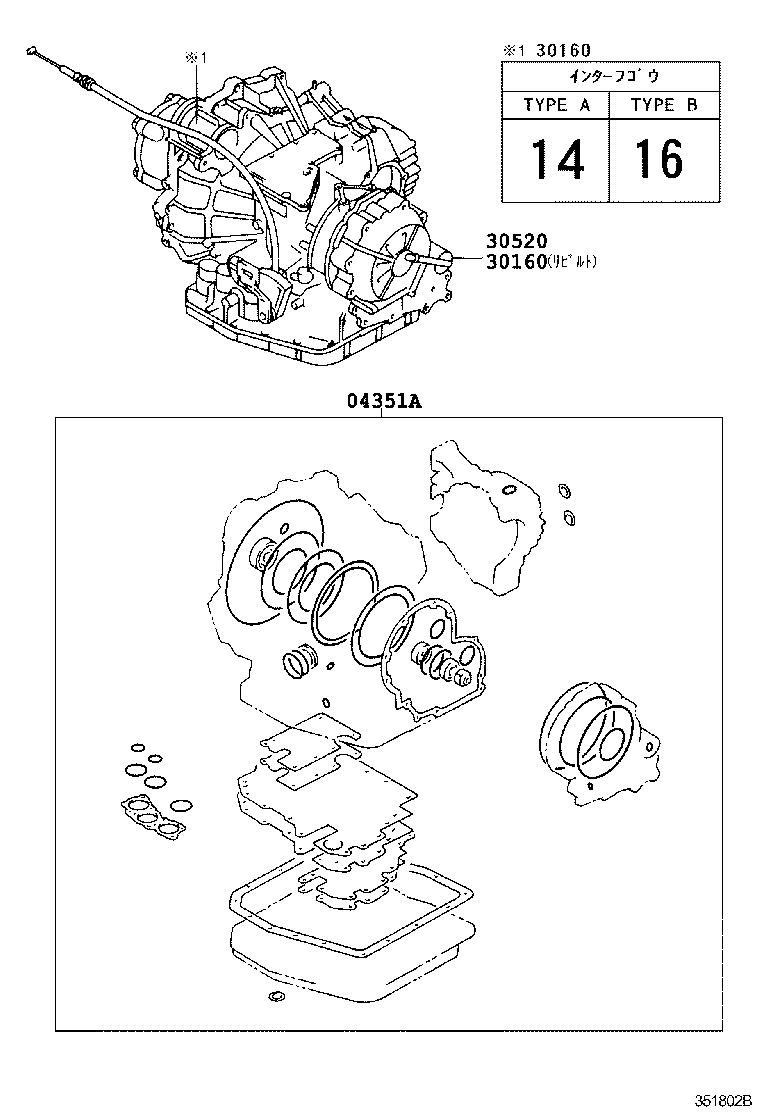

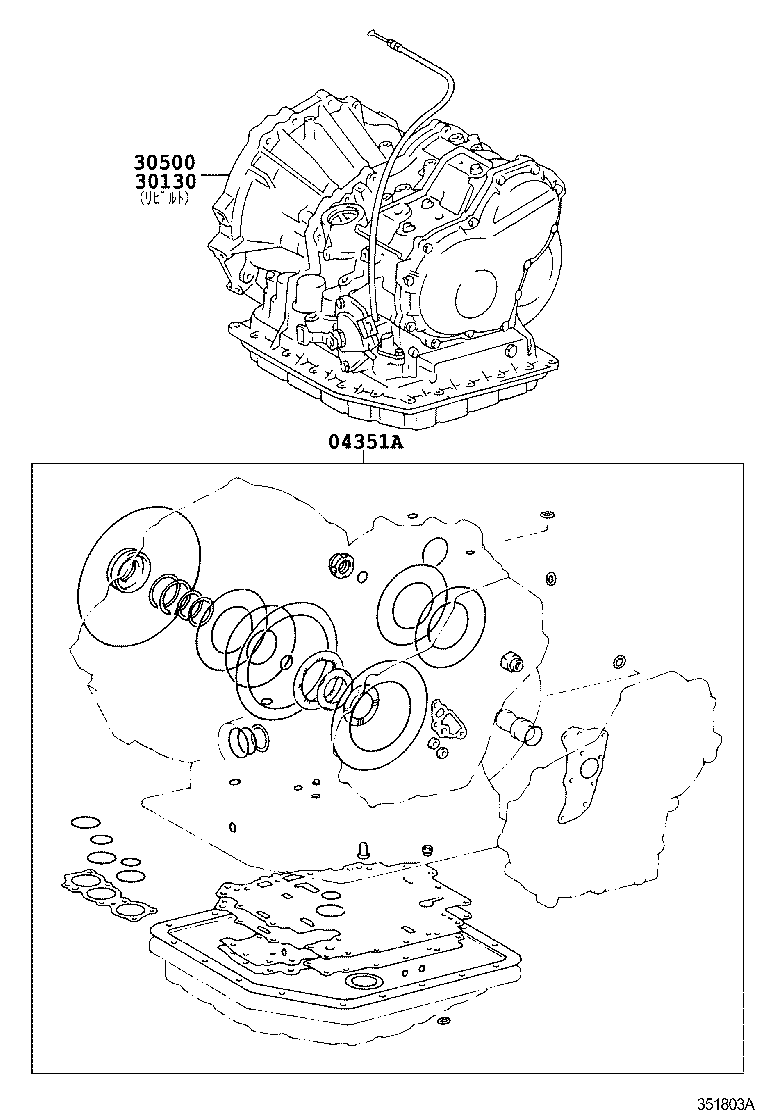

Figure 351800A 351800A 1992-11 → — Figure 351801A 351801A 1992-11 → 1996-01 Figure 351801A 351801A 1996-01 → — Figure 351802B 351802B 1992-11 → 1997-08 Figure 351802B 351802B 1999-08 → — Figure 351803A 351803A 1996-01 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30160 Transaxle Assy, Automatic W/Transfer, Rebuilt
30500 Transaxle Assy, Automatic
30520 Transaxle Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
