Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Valve Body & Valve Lever

20 part groups · 3 illustrations

Illustrations

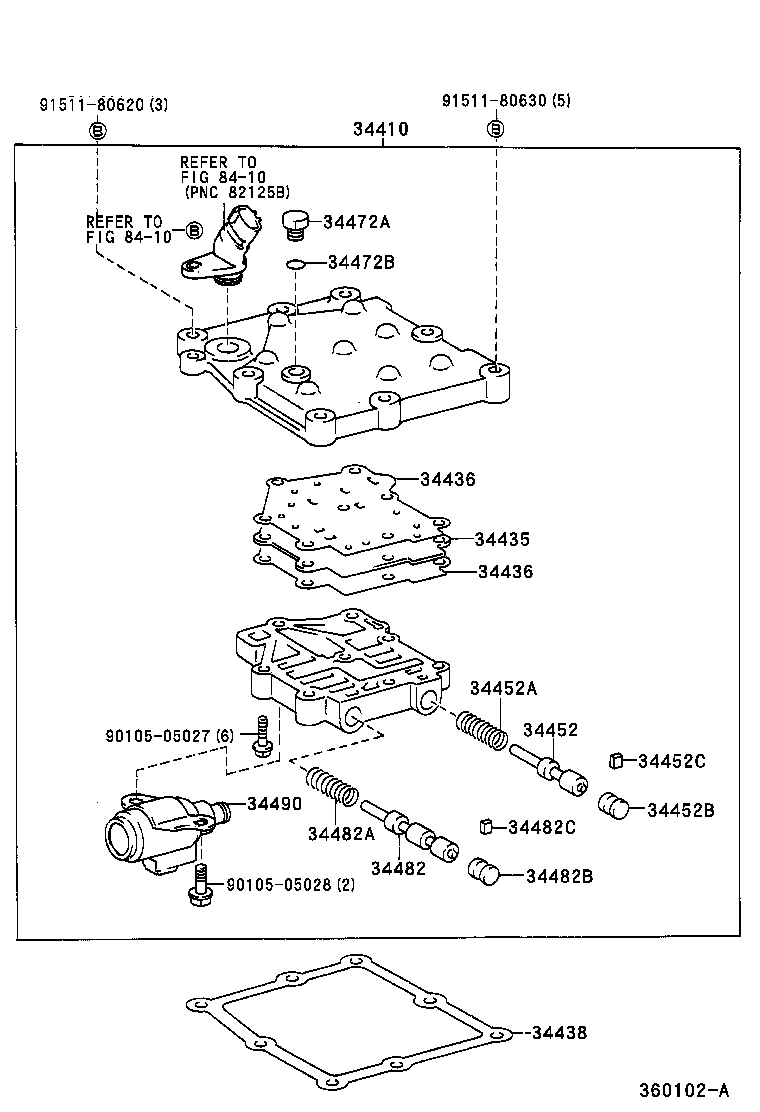

Figure 360371 360371 1992-11 → 1995-01 Figure 360102A 360102A 1995-01 → 1997-08 Figure 360102A 360102A 1999-08 → —

Part groups

PNCDescription
34410 Body Assy, Transfer Control Valve
34435 Plate, Transfer Valve Body, Lower
34436 Gasket, Transfer Lower Valve Body, NO.1
34438 Gasket, Transfer Valve Body
34442 Valve, Low-high Shift
34442A Spring, Compression(FOR LOW-HIGH SHIFT VALVE)
34442B Plug(FOR LOW-HIGH SHIFT VALVE)
34442C Key, Straight(FOR LOW-HIGH SHIFT VALVE)
34452 Valve, Transfer Direct Clutch Modulator
34452A Spring (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
34452B Plug (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
34452C Key, Straight(FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)
34472 Cover, Transfer Valve Body
34472A Plug (FOR TRANSFER VALVE BODY COVER)
34472B Ring, O (FOR TRANSFER VALVE BODY COVER PLUG)
34482 Valve, Center Differential Clutch Control
34482A Spring(FOR CENTER DIFFERENTIAL CONTROL VALVE)
34482B Seat(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE PLUG)
34482C Key(FOR CENTER DIFFERENTIAL CLUTCH CONTROL VALVE)
34490 Solenoid Assy, Transfer Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
