Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

58 part groups · 8 illustrations

Illustrations

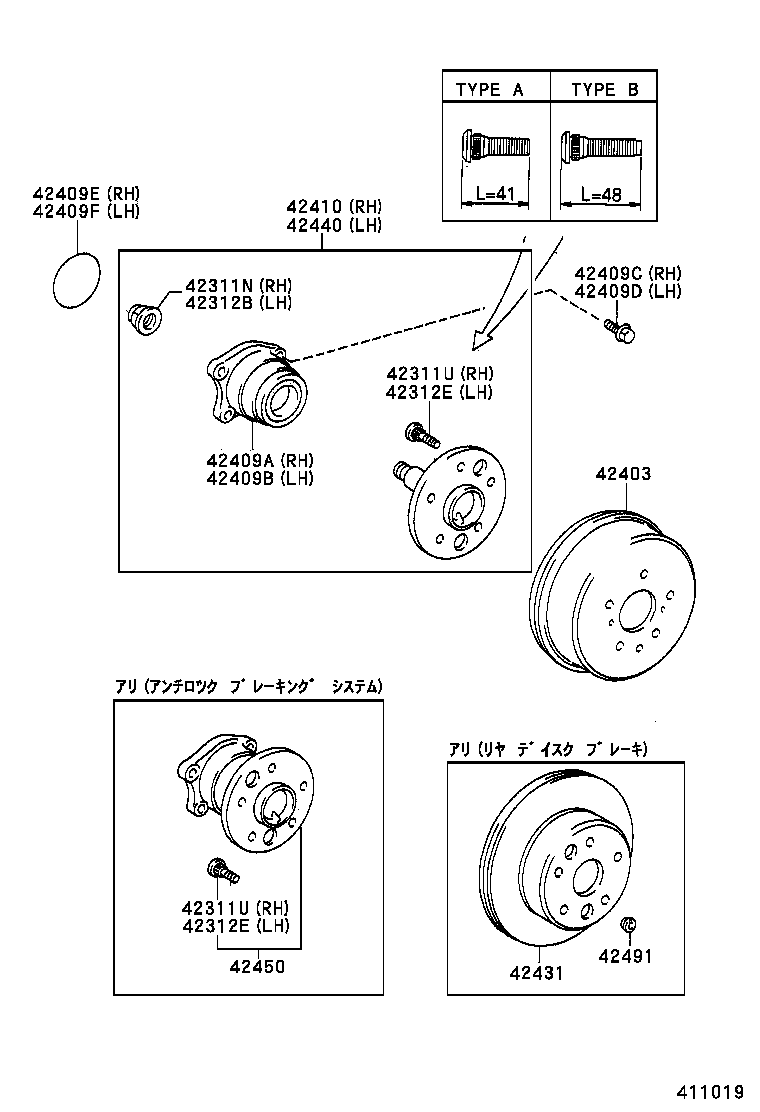

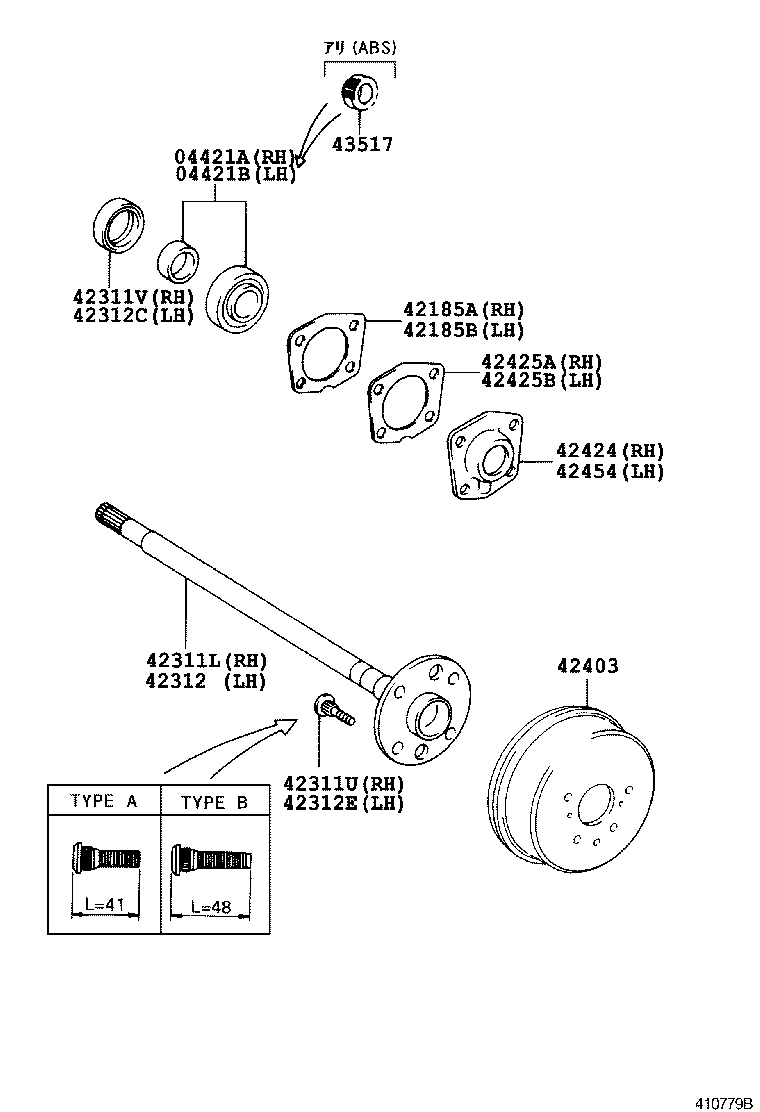

Figure 410034C 410034C 1992-11 → — Figure 411018B 411018B 1992-11 → 1996-01 Figure 411018B 411018B 1996-01 → — Figure 410745A 410745A 1996-01 → 1997-08 Figure 411019 411019 1992-11 → 1996-01 Figure 410746B 410746B 1996-01 → — Figure 411020D 411020D 1992-11 → — Figure 410779B 410779B 1992-11 → —

Part groups

PNCDescription
04421A Bearing Kit, Rear Axle Shaft, RH
04421B Bearing Kit, Rear Axle Shaft, LH
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
42185A Gasket, Rear Axle Housing End, RH
42185B Gasket, Rear Axle Housing End, LH
42311L Shaft, Rear Axle, RH
42311M Bearing(FOR REAR AXLE SHAFT RH)
42311N Nut(FOR REAR AXLE SHAFT RH)
42311T Ring, Snap(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42311V Seal, Oil(FOR REAR AXLE SHAFT RH)
42311W Bearing(FOR REAR AXLE SHAFT OUTER RH)
42311X Bearing(FOR REAR AXLE SHAFT INNER RH)
42311Y Washer, Claw(FOR REAR AXLE SHAFT RH)
42312 Shaft, Rear Axle, LH
42312A Bearing(FOR REAR AXLE SHAFT LH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312C Seal, Oil(FOR REAR AXLE SHAFT LH)
42312D Ring, Snap(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42312F Bearing(FOR REAR AXLE SHAFT OUTER LH)
42312G Bearing(FOR REAR AXLE SHAFT INNER LH)
42312H Washer, Claw(FOR REAR AXLE SHAFT LH)
42340 Shaft Assy, Rear Drive
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42343 Cover, Outboard Joint End
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42350 Joint Assy, Rear Drive Shaft Outboard
42370 Shaft Assy, Rear Drive Outboard Joint
42403 Drum Sub-assy, Rear Brake
42409A Bearing Sub-assy, Rear Axle, RH
42409B Bearing Sub-assy, Rear Axle, LH
42409C Bolt (FOR REAR AXLE BEARING RH)
42409D Bolt (FOR REAR AXLE BEARING LH)
42409E Ring, O (FOR REAR AXLE BEARING RH)
42409F Ring, O (FOR REAR AXLE BEARING LH)
42410 Hub & Bearing Assy, Rear Axle, RH
42418B Cap, Rear Hub Grease, RH
42418C Cap, Rear Hub Grease, LH
42424 Retainer, Rear Axle Bearing, Outer, RH
42425A Gasket, Rear Axle Bearing Retainer, RH
42425B Gasket, Rear Axle Bearing Retainer, LH
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450 Hub & Bearing Assy, Rear Axle
42451A Deflector, Rear Wheel Bearing Dust, NO.1 RH
42451B Deflector, Rear Wheel Bearing Dust, NO.1 LH
42452A Deflecter, Rear Wheel Bearing Dust, NO.2 RH
42452B Deflecter, Rear Wheel Bearing Dust, NO.2 LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
43517 Rotor, Skid Control, Rear
43525D Cap, Rear Wheel Adjusting Lock, RH
43525E Cap, Rear Wheel Adjusting Lock, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
