Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01

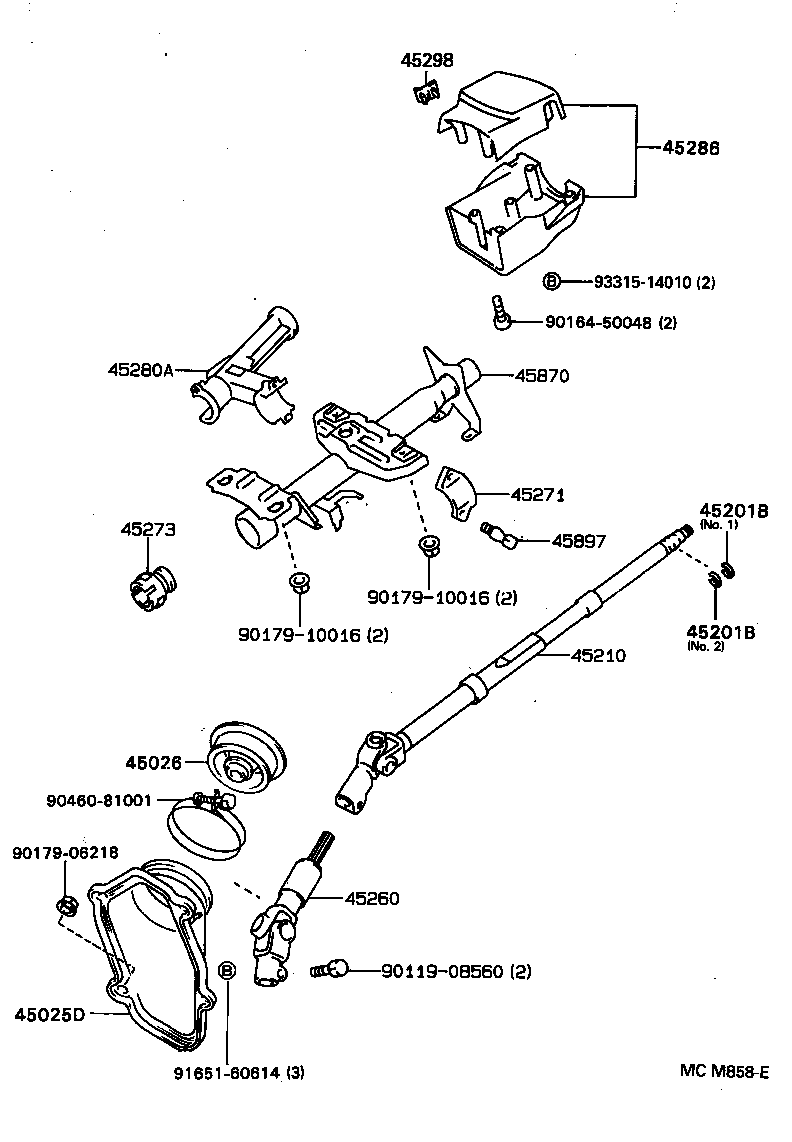

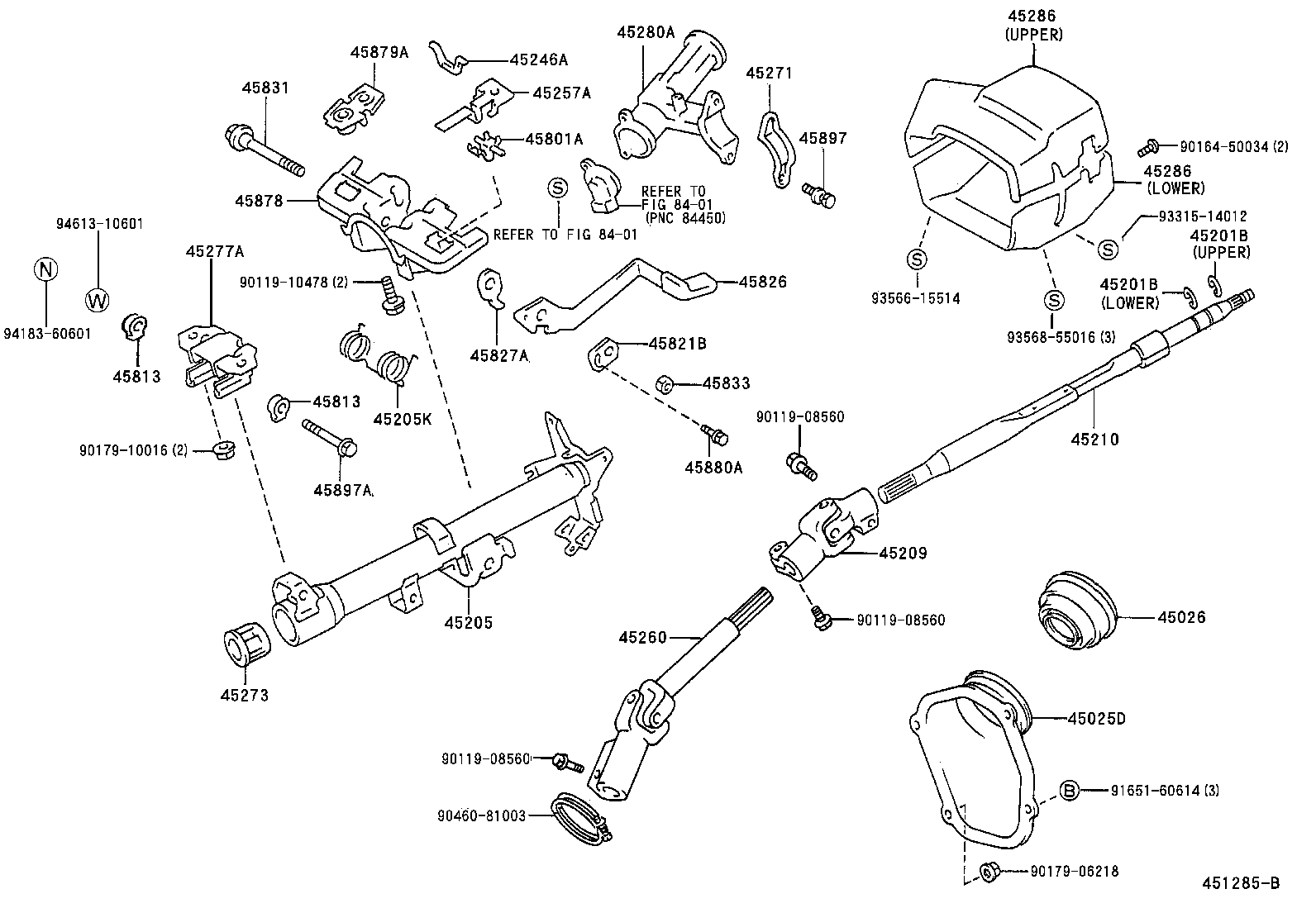

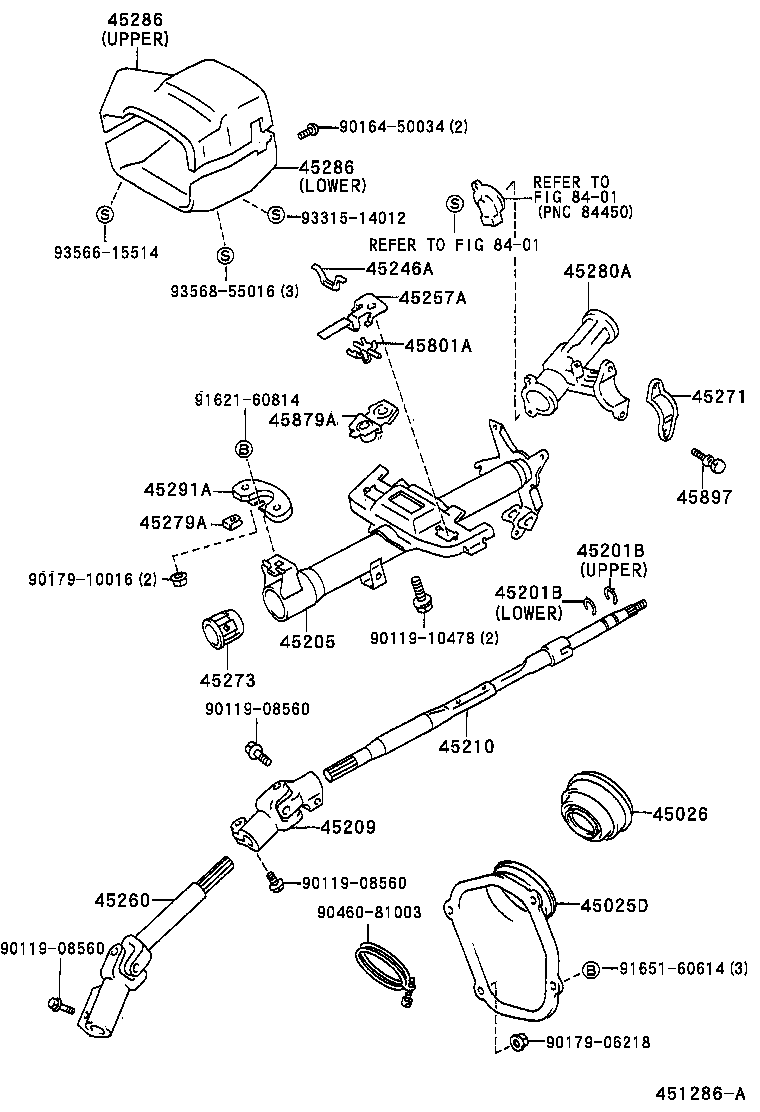

Steering Column & Shaft
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45026 | Cover Sub-assy, Steering Column Hole, NO.2 |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45204 | Tube Assy, Steering Column, Lower |
| 45205 | Tube Sub-assy, Steering Column |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45205K | Spring(FOR STEERING COLUMN TUBE) |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45246A | Guide, Steering Energy Absorbing Plate |
| 45257A | Plate, Steering Column Energy Absorbing |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45273 | Bush, Steering Main Shaft |
| 45277A | Support, Tilt Steering |
| 45279A | Attachment, Steering Column Tube, Lwr |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45291A | Support, Steering Column Tube |
| 45298 | Plug, Steering Column Cover |
| 45801A | Pin Sub-assy, Steering Energy Absorbing |
| 45804C | Washer, Plate(FOR STEERING TILT LEVER) |
| 45805A | Support Sub-assy, Tilt Steering |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45819 | Retainer, Tilt Lever |
| 45820 | Spring Assy, Tilt Steering Support |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45826 | Lever, Steering Tilt |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45827A | Lever, Steering Tilt Sub |
| 45831 | Bolt, Tilt Lever Lock, NO.1 |
| 45833 | Nut, Tilt Steering Adjusting, NO.1 |
| 45855 | Bolt, Tilt Steering, NO.1 |
| 45856 | Bolt, Tilt Steering, NO.2 |
| 45865 | Collar, Steering Main Shaft |
| 45870 | Tube Assy, Steering Column |
| 45878 | Bracket, Steering Column Upper Support |
| 45879A | Capsule, Break Away |
| 45880A | Bolt(FOR STEERING TILT LEVER) |
| 45890A | Pawl Assy, Tilt Steering |
| 45890C | Collar(FOR TILT STEERING PAWL) |
| 45893C | Stopper, Steering Pawl, RH |
| 45893D | Stopper, Steering Pawl, LH |
| 45897 | Bolt, Steering Lock Set |
| 45897A | Bolt, Tilt Steering Pawl Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
