Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

22 part groups · 3 illustrations

Illustrations

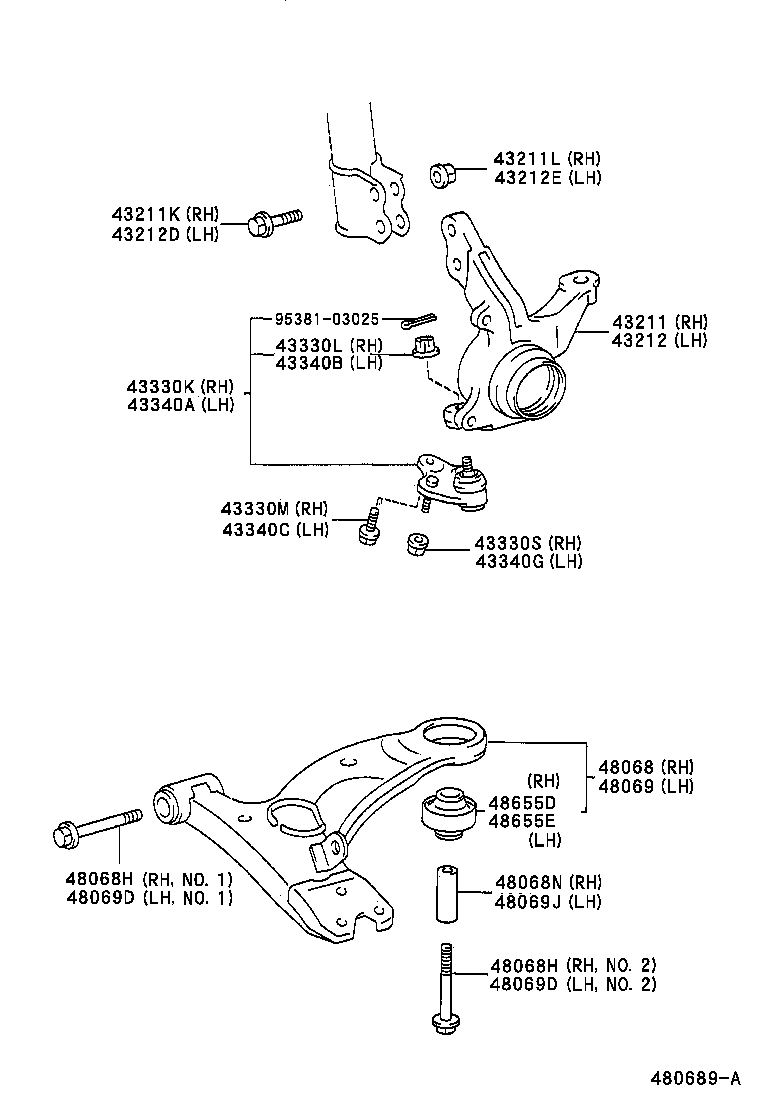

Figure 481006B 481006B 1992-11 → 1996-01 Figure 480689A 480689A 1996-01 → — Figure 480206B 480206B 1992-11 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43330K Joint Assy, Lower Ball, Front RH
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43330M Bolt (FOR FRONT LOWER BALL JOINT RH)
43330S Nut (FOR FRONT LOWER BALL JOINT RH)
43340A Joint Assy, Lower Ball, Front LH
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
43340C Bolt (FOR FRONT LOWER BALL JOINT LH)
43340G Nut (FOR FRONT LOWER BALL JOINT LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068N Collar(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069J Collar(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48655D Bush, Front Lower Arm, NO.2 RH
48655E Bush, Front Lower Arm, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
