Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01
Rear Spring & Shock Absorber
85 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483A | Shackle Kit, Rear Spring, RH |
| 04483B | Shackle Kit, Rear Spring, LH |

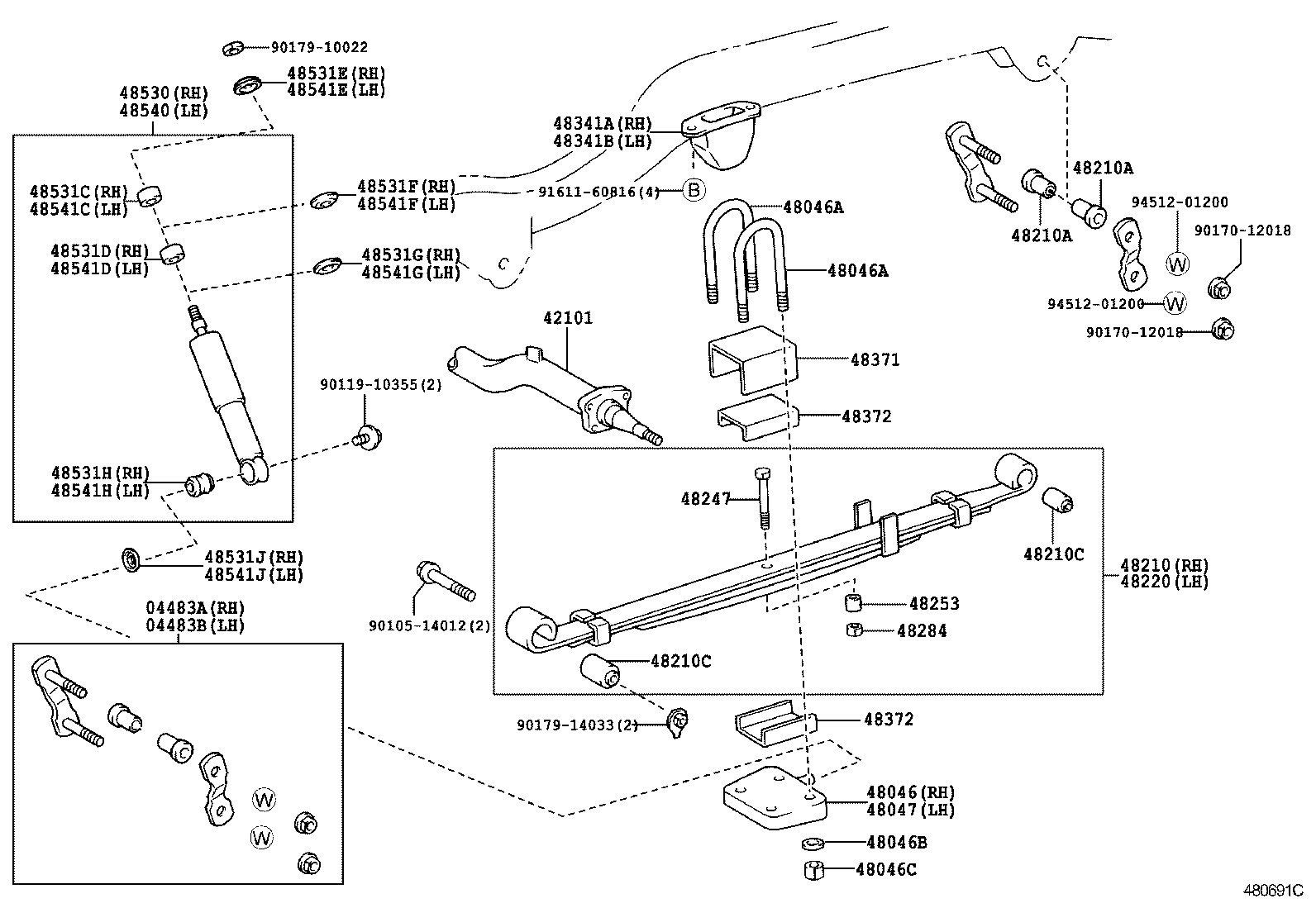

| 42101 | Tube Sub-assy, Rear Axle |
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42304D | Bolt (FOR REAR AXLE CARRIER RH) |
| 42304E | Nut (FOR REAR AXLE CARRIER RH) |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 42305A | Bolt (FOR REAR AXLE CARRIER LH) |
| 42305B | Nut (FOR REAR AXLE CARRIER LH) |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48046B | Washer(FOR REAR SPRING U BOLT) |
| 48046C | Nut(FOR REAR SPRING U BOLT) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |
| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48220 | Spring Assy, Rear LH |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48247 | Bolt, Rear Spring, Center |
| 48253 | Spacer, Rear Spring, NO.1 |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48284 | Nut, Rear Spring Center Bolt |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48351 | Bumper, Differential Carrier |

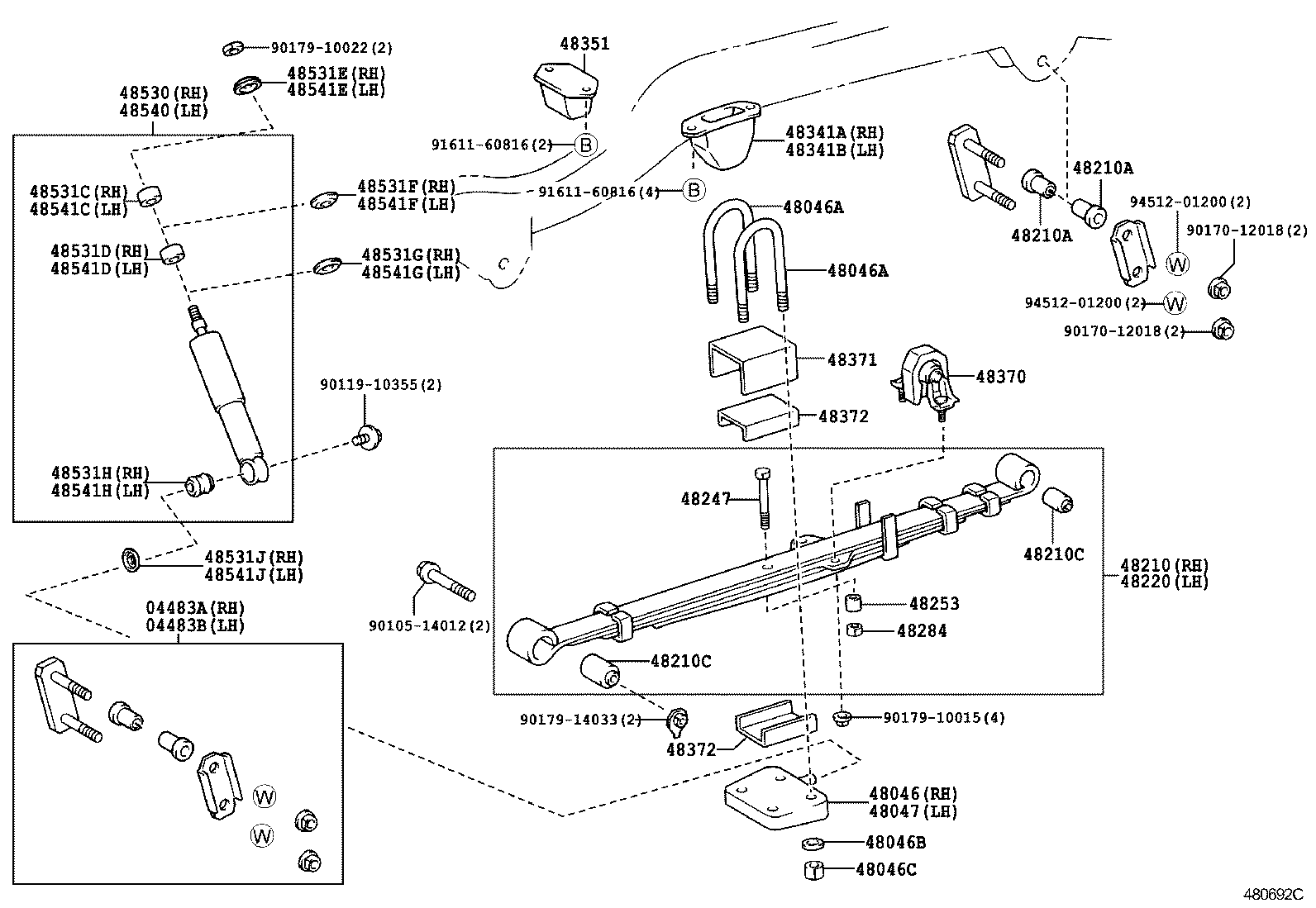

| 48370 | Damper Assy, Leaf Spring Dynamic |
| 48371 | Retainer, Rear Spring Pad |
| 48372 | Pad, Rear Spring |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48452R | Plate, Rear Suspension Toe Adjust, NO.2 |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48531C | Cushion, Rear Shock Absorber, NO.1 RH |
| 48531D | Cushion, Rear Shock Absorber, NO.2 RH |
| 48531E | Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER RH) |
| 48531F | Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER RH) |
| 48531G | Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER RH) |
| 48531H | Bush(FOR REAR SHOCK ABSORBER RH) |
| 48531J | Washer, Rear Shock Absorber Cushion, NO.1 RH |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48541C | Cushion, Rear Shock Absorber, NO.1 LH |
| 48541D | Cushion, Rear Shock Absorber, NO.2 LH |
| 48541E | Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER LH) |
| 48541F | Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER LH) |
| 48541G | Retainer, Cushion, NO.3(FOR REAR SHOCK ABSORBER LH) |
| 48541H | Bush(FOR REAR SHOCK ABSORBER LH) |
| 48541J | Washer, Rear Shock Absorber Cushion, NO.1 LH |
| 48559C | Cover, Rear Shock Absorber Dust, RH NO.1 |
| 48559D | Cover, Rear Shock Absorber Dust, LH NO.1 |
| 48703C | Nut(FOR REAR SUSPENSION ARM) |
| 48703E | Bolt(FOR REAR SUSPENSION ARM) |
| 48703H | Washer, NO.1(FOR REAR SUSPENSION ARM) |
| 48703J | Washer, NO.2(FOR REAR SUSPENSION ARM) |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48730G | Nut, NO.1(FOR REAR SUSPENSION ARM NO.2 RH) |
| 48730H | Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH) |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48740L | Nut, NO.1(FOR REAR SUSPENSION ARM NO.2 LH) |
| 48740M | Nut, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH) |
| 48750G | Nut(FOR REAR SUSPENSION SUPPORT) |
| 48750H | Support Assy, Rear Suspension, RH |
| 48750J | Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) |
| 48750K | Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) |
| 48753B | Cover, Rear Suspension Supoport, NO.1 RH |
| 48753C | Cover, Rear Suspension Supoport, NO.1 LH |
| 48753D | Cover, Rear Suspension Supoport, NO.2 RH |
| 48753E | Cover, Rear Suspension Supoport, NO.2 LH |
| 48760B | Support Assy Rear Suspension, LH |
| 48760C | Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) |
| 48760D | Collar(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) |
| 48780A | Rod Assy, Strut, Rear |
| 48780B | Bolt(FOR STRUT ROD) |
| 48780C | Nut(FOR STRUT ROD) |
| 48785A | Damper, Strud Rod Dynamic |

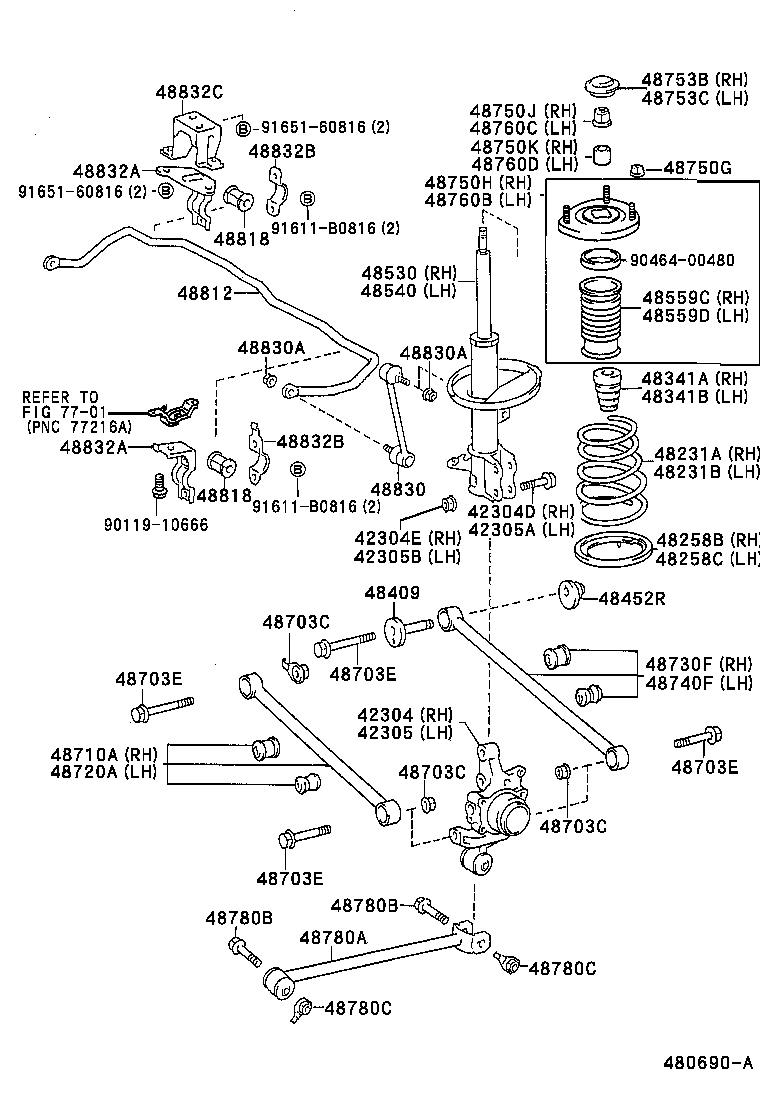

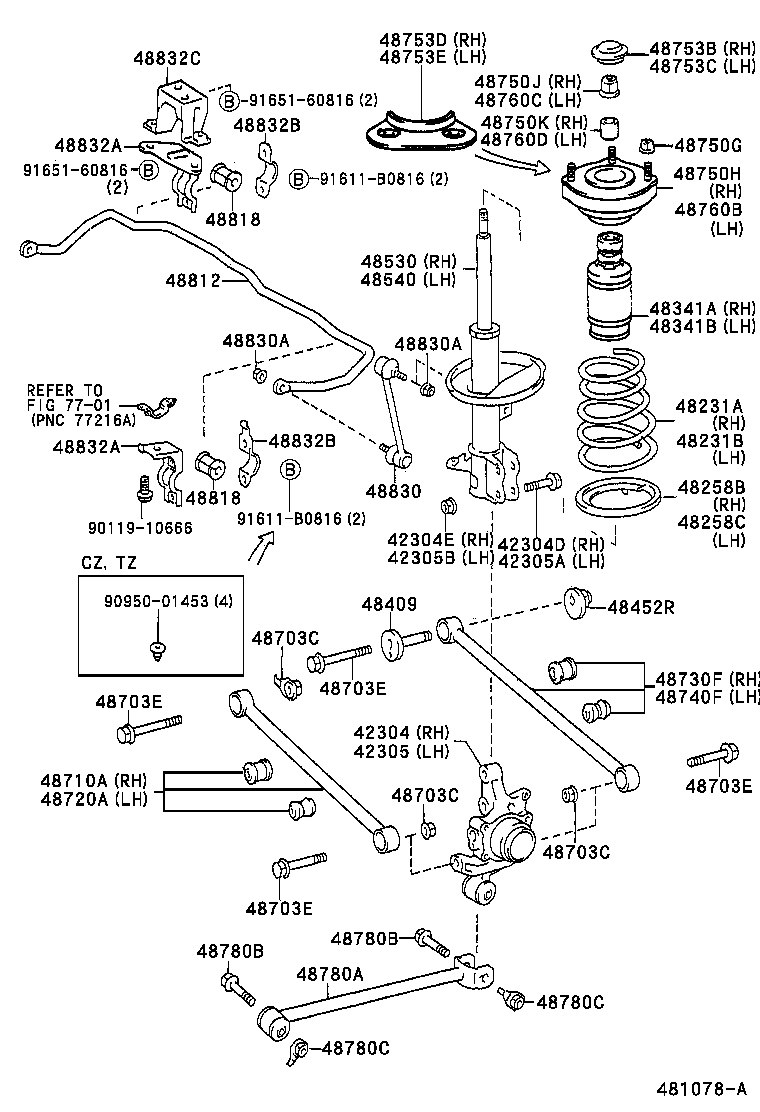

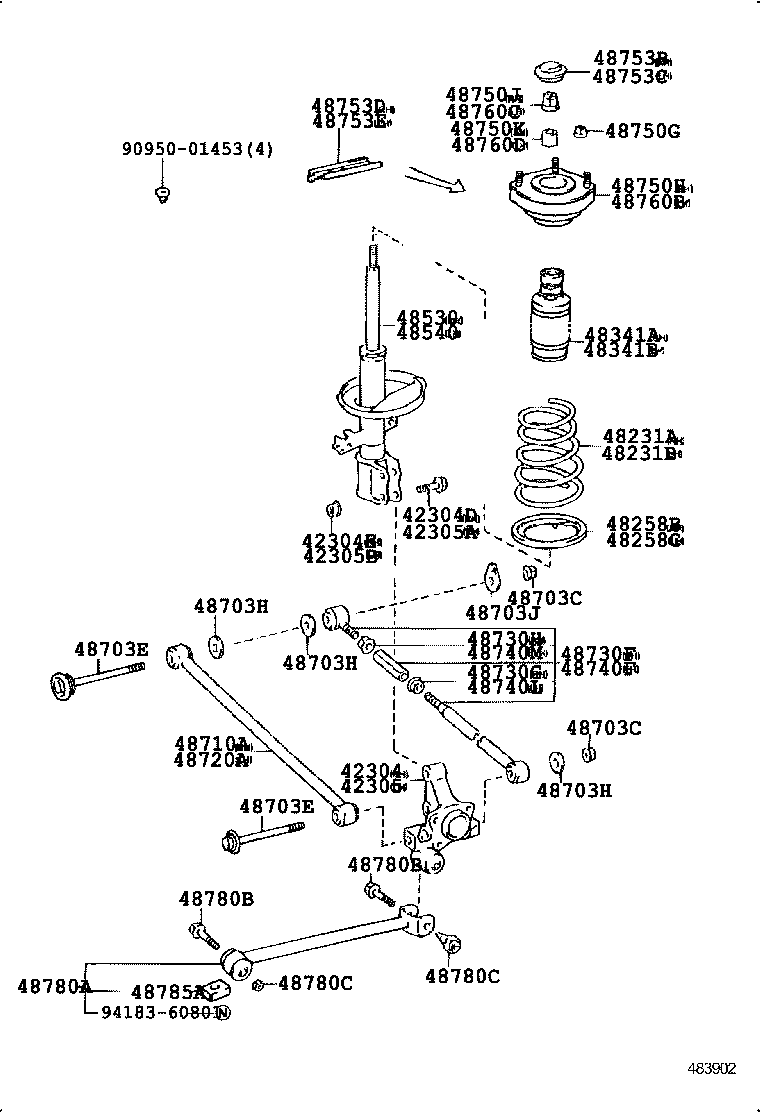

| 48812 | Bar, Stabilizer, Rear |
| 48818 | Bush, Stabilizer, Rear |
| 48830 | Link Assy, Rear Stabilizer |
| 48830A | Nut(FOR REAR STABILIZER LINK) |
| 48832A | Bracket, Rear Stabilizer Bar, NO.1 |
| 48832B | Bracket, Rear Stabilizer Bar, NO.2 |
| 48832C | Bracket, Rear Stabilizer Bar, NO.3 |
