Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

23 part groups · 3 illustrations

Illustrations

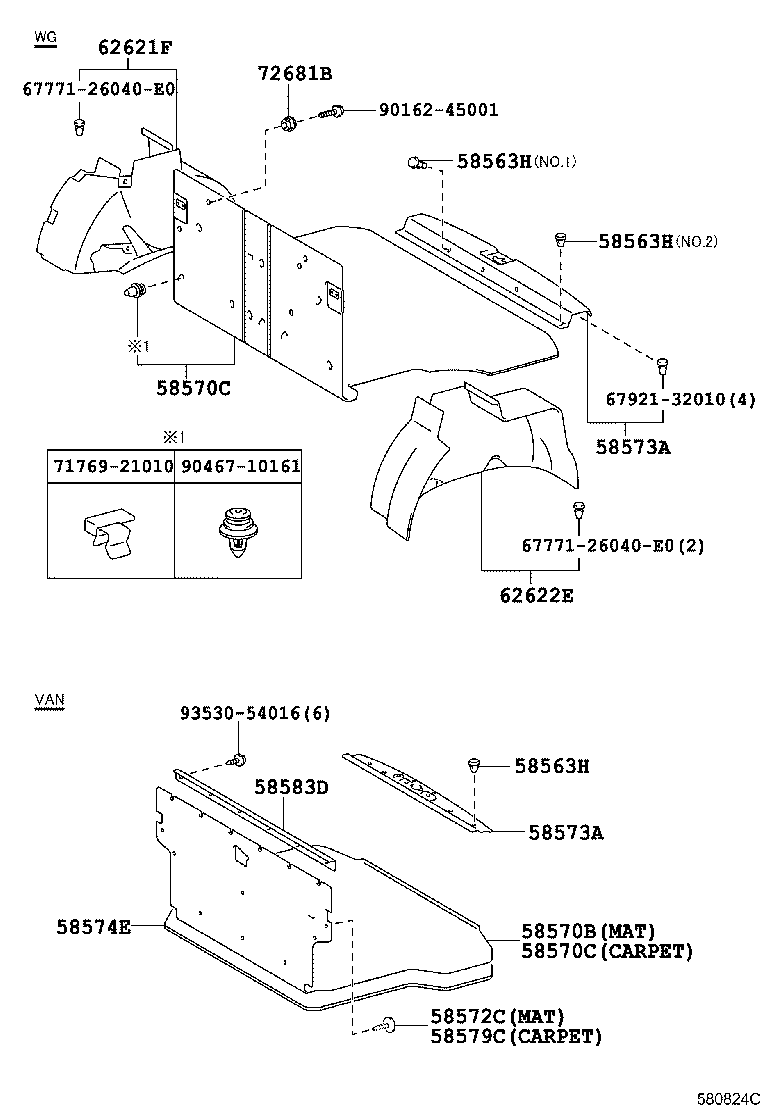

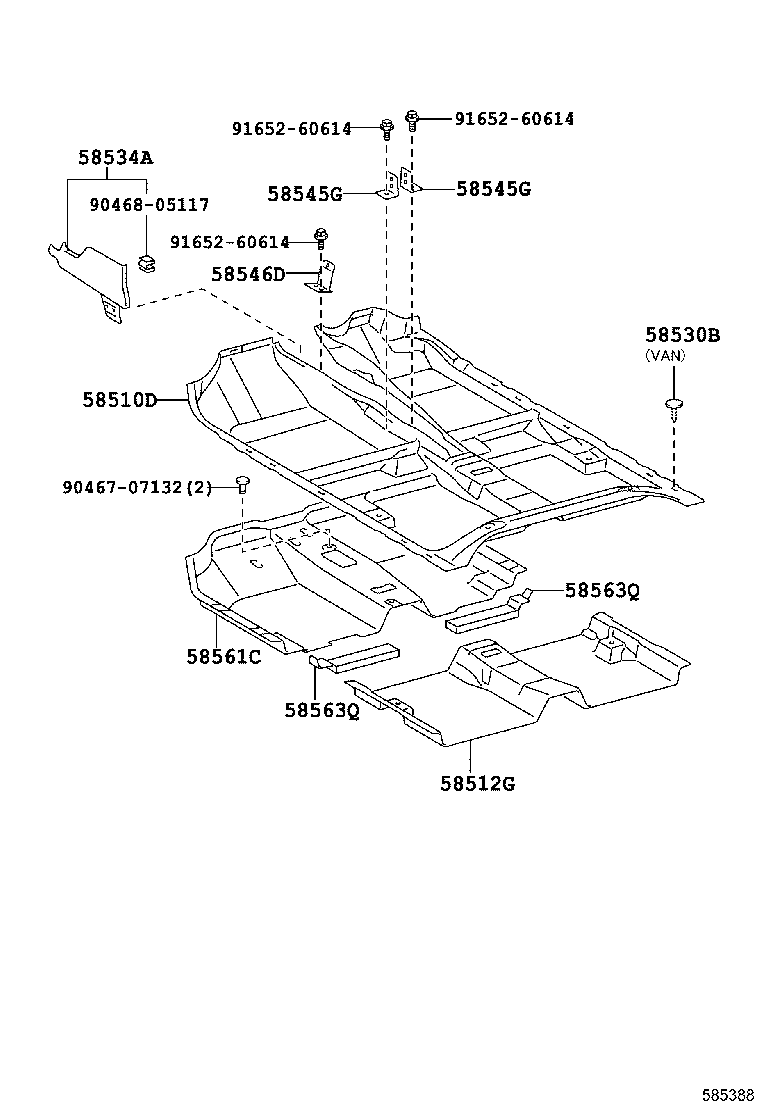

Figure 585387 585387 1992-11 → 1996-01 Figure 585388 585388 1996-01 → — Figure 580824C 580824C 1992-11 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58512G Silencer, Front Floor, NO.2
58520C Clip(FOR FRONT FLOOR CARPET)
58530B Clip(FOR FRONT FLOOR CARPET)
58534A Mat, Transmission Cover
58534B Clip(FOR FLOOR CARPET CENTER COVER)
58543B Bracket, Floor Carpet, RH
58544A Bracket, Floor Carpet, LH
58545G Bracket, Floor Carpet, NO.2 RH
58546D Bracket, Floor Carpet, NO.2 LH
58561C Silencer, Front Floor, NO.1
58563H Clip(FOR REAR FLOOR MAT)
58563Q Silencer, Front Floor, NO.3
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58572C Clip, Rear Floor Mat Set
58573A Plate, Rear Floor Mat Support
58574E Pad, Rear Floor Silencer, NO.1
58579C Clip, Rear Floor Carpet Set
58583D Plate, Rear Seatback Carpet Support
62621F Pad, Quarter Wheel House, Inner Front RH
62622E Pad, Quarter Wheel House, Inner Front LH
72681B Hook, Rear Seatback Lock, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
