Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01

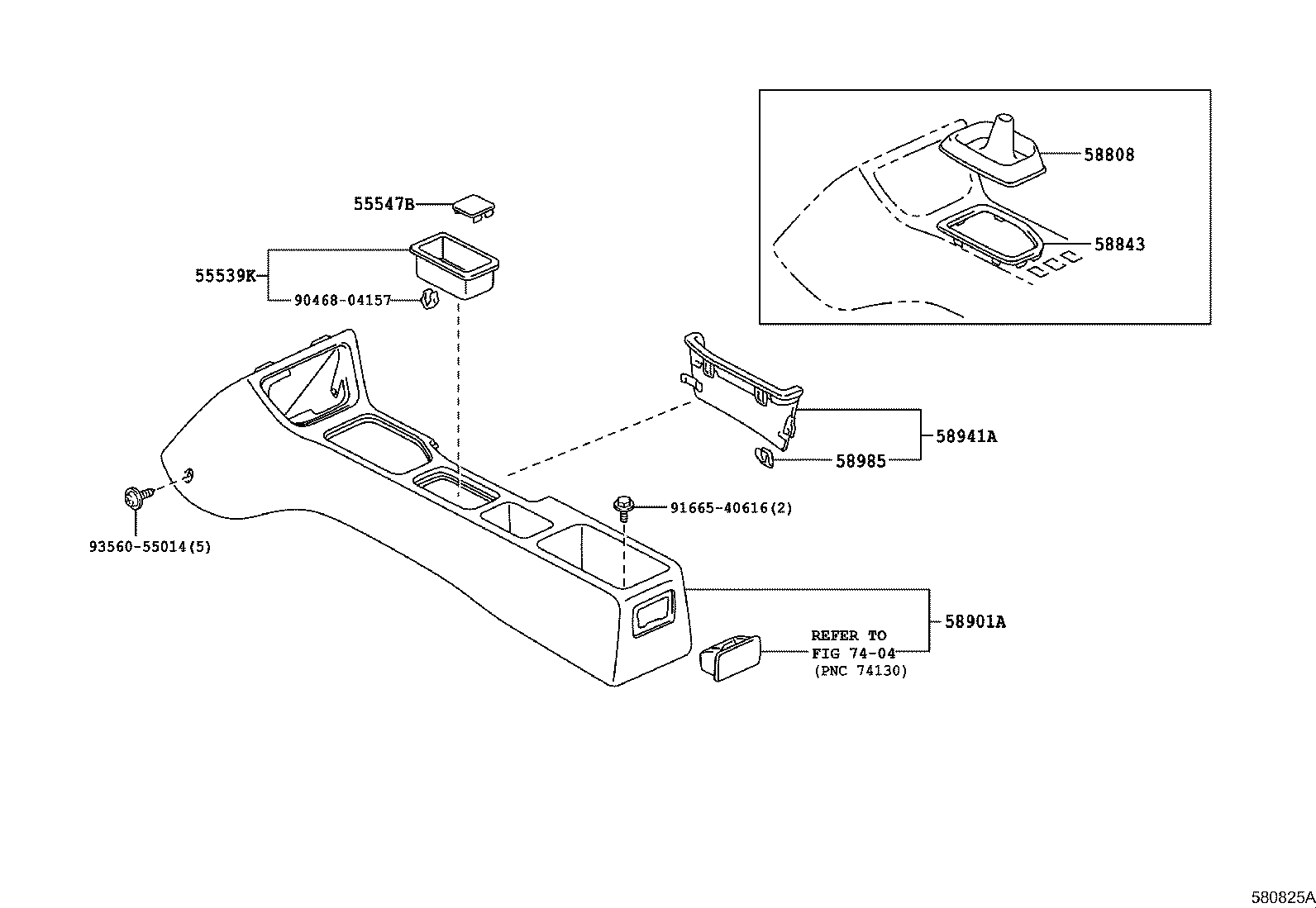

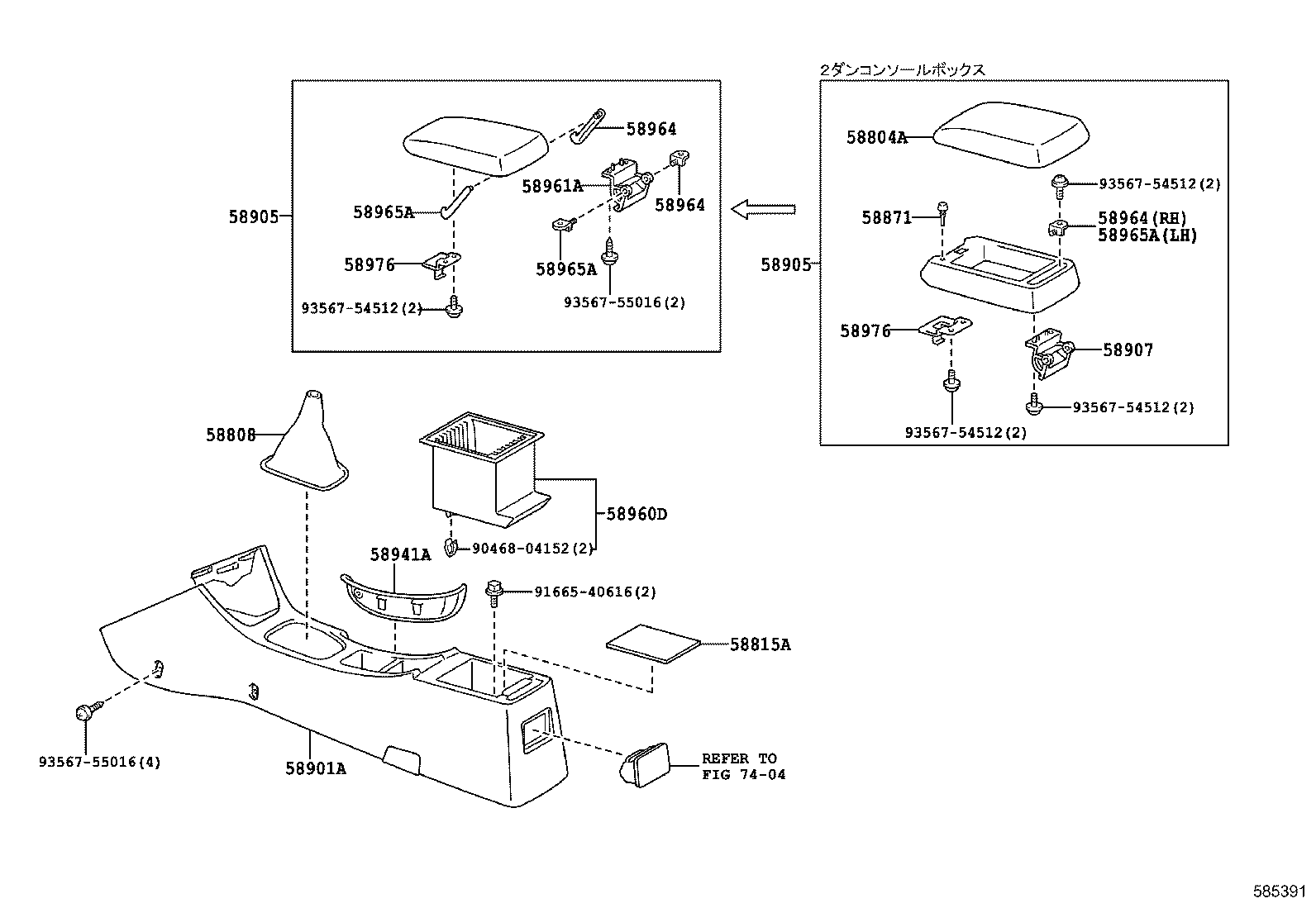

Console Box & Bracket
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55547B | Cover, Remote Control Mirror Hole |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58815A | Carpet, Console Box |
| 58843 | Bezel, Shifting Hole |
| 58871 | Cushion, Console Box |
| 58901A | Box Sub-assy, Console, Rear |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58909A | Stopper Sub-assy, Console Compartment Door |
| 58941A | Cover, Parking Brake Hole |
| 58960C | Holder Assy, Cassette Case |
| 58960D | Holder Assy, CD Case |
| 58961A | Hinge, Console Compartment Door Male |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58976 | Striker, Console Compartment Door Lock |
| 58985 | Retainer, Console Box |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
