Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01

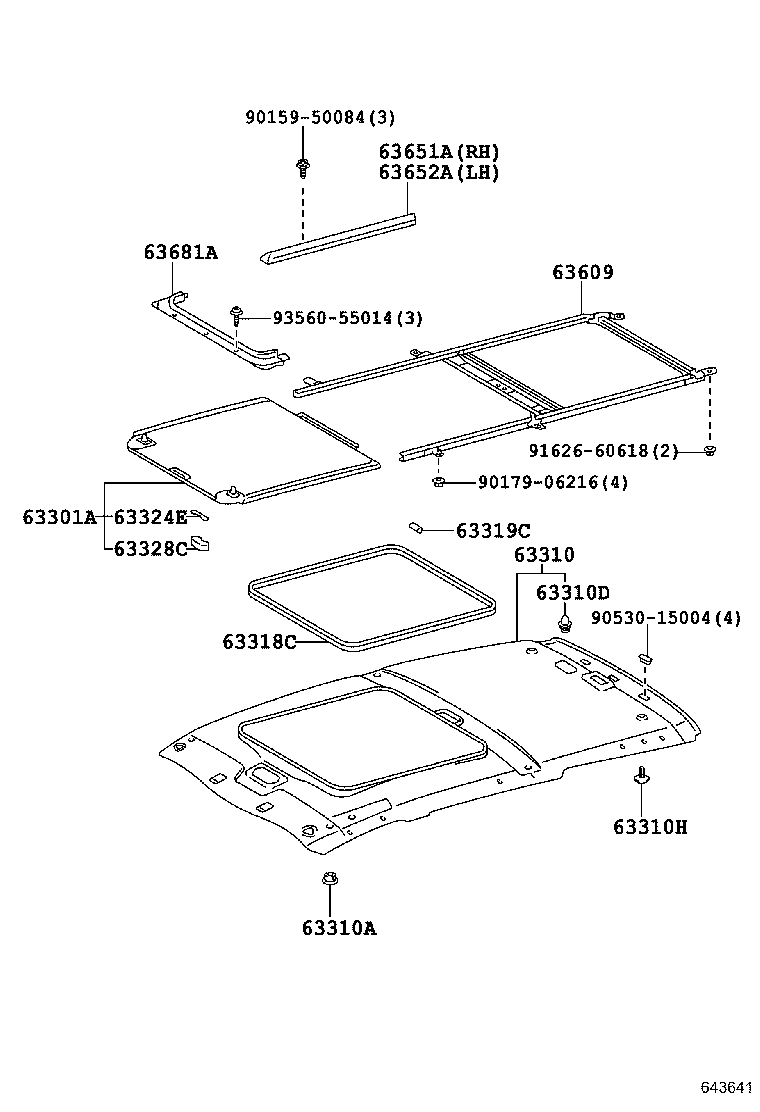

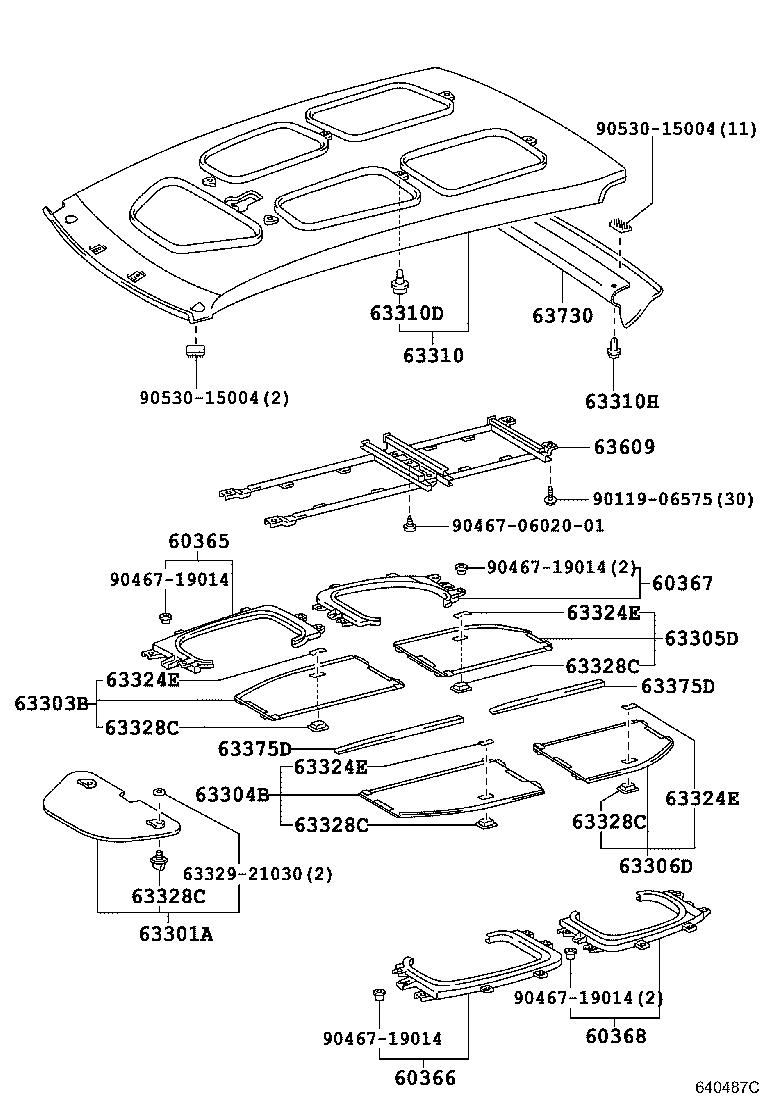

Roof Headlining & Silencer Pad
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 60365 | Garnish Sub-assy, Sunshade, NO.1 RH |
| 60366 | Garnish Sub-assy, Sunshade, NO.1 LH |
| 60367 | Garnish Sub-assy, Sunshade, NO.2 RH |
| 60368 | Garnish Sub-assy, Sunshade, NO.2 LH |
| 63301A | Trim Sub-assy, Sunshade, NO.1 RH |
| 63303B | Trim Sub-assy, Sunshade, NO.2 RH |
| 63304B | Trim Sub-assy, Sunshade, NO.2 LH |
| 63305D | Trim Sub-assy, Sunshade, NO.3 RH |
| 63306 | Trim Sub-assy, Sunshade |
| 63306D | Trim Sub-assy, Sunshade, NO.3 LH |
| 63310 | Headlining Assy, Roof |
| 63310A | Plug, Hole(FOR ROOF HEADLINING ASSY) |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63319C | Joint, Sun Roof Opening Trim |
| 63324E | Spring, Sunshade Lock |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63375D | Moulding, Roof Headlining |
| 63609 | Rail Sub-assy, Sunshade, NO.2 |
| 63651A | Garnish, Sunshade, NO.1 RH |
| 63652A | Garnish, Sunshade, NO.1 LH |
| 63681A | Rail, Sunshade, NO.1 Front |
| 63730 | Garnish Assy, Roof Header |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
