Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01

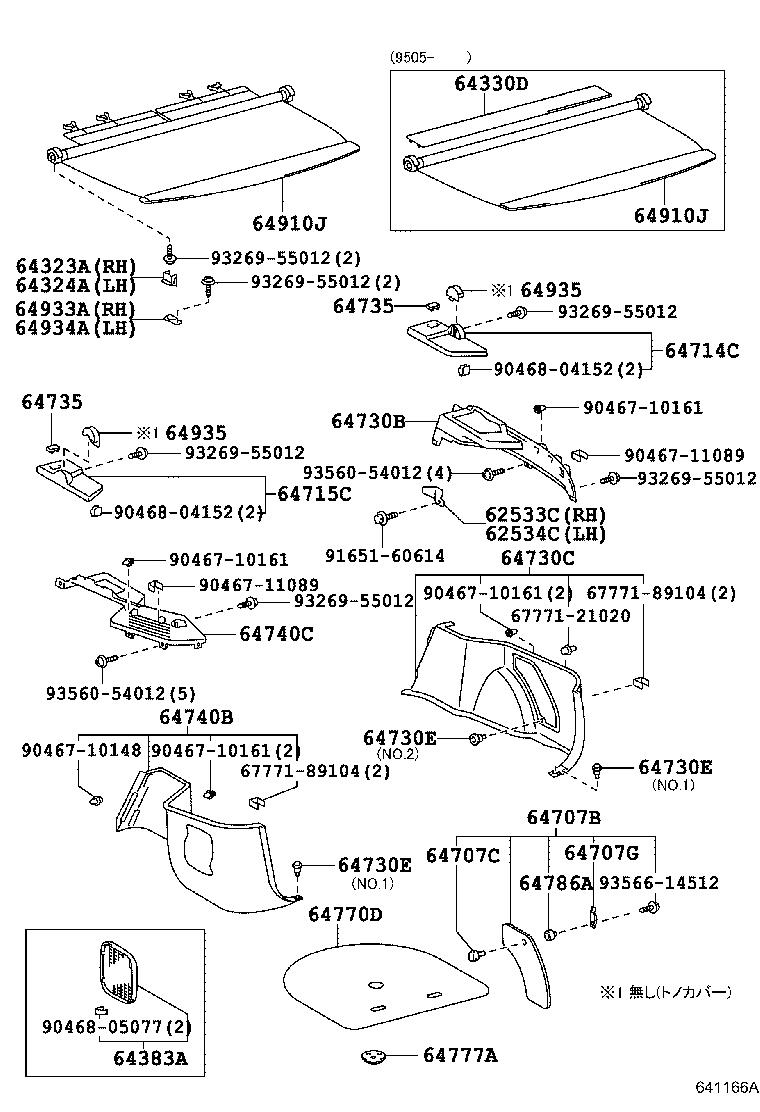

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62533C | Bracket, Deck Side Trim RH, Front |
| 62534C | Bracket, Deck Side Trim LH, Front |
| 64323A | Clamp, Package Tray Trim, RH |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64383A | Grille, Speaker, Rear(FOR DECK TRIM) |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64714C | Cover, Deck Side Trim, RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730C | Board, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740B | Board, Deck Trim Side, LH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64777A | Clamp, Spare Wheel Cover |
| 64786A | Plate, Jack Cover |
| 64910J | Cover Assy, Tonneau |
| 64933A | Bracket, Tonneau Cover Holder, RH |
| 64934A | Bracket, Tonneau Cover Holder, LH |
| 64935 | Holder, Tonneau Cover, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
