Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 2 illustrations

Illustrations

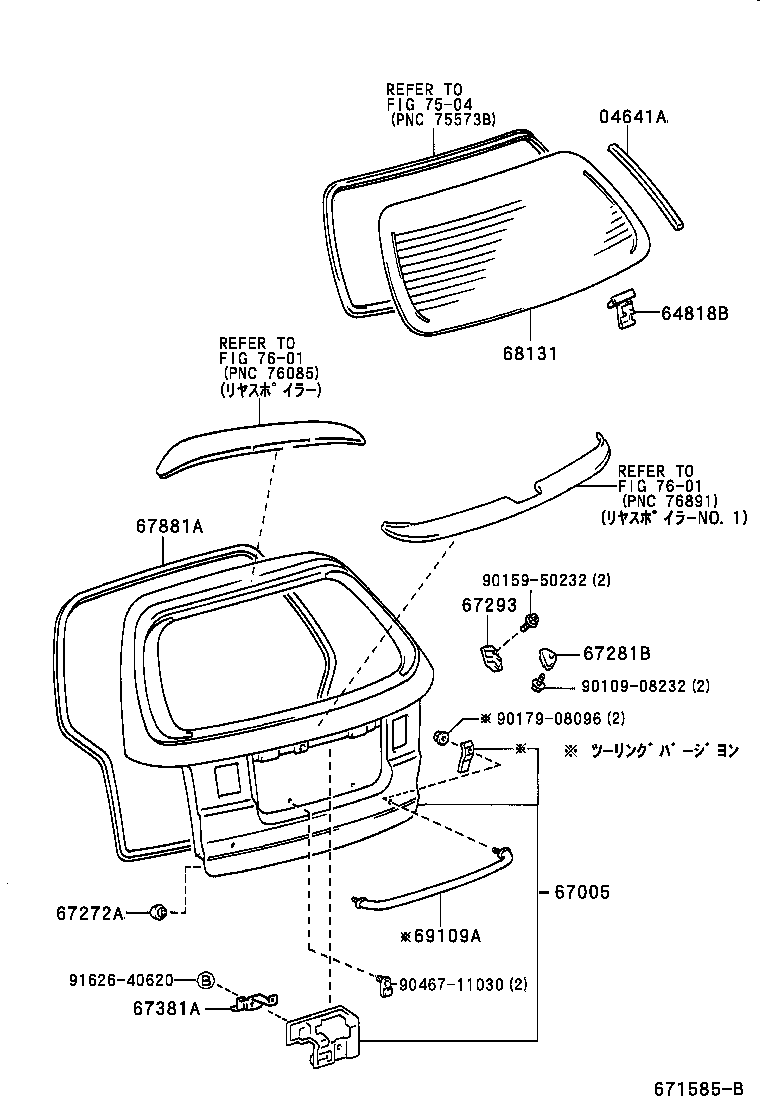

Figure 671336 671336 1992-11 → — Figure 671585B 671585B 1992-11 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64795A Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67272A Cushion, Back Door Stopper, NO.2
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67381A Bracket, Back Window Wiper Motor, NO.1
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
68131 Glass, Back Door
69109A Grip Sub-assy, Back Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
