Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

11 part groups · 2 illustrations

Illustrations

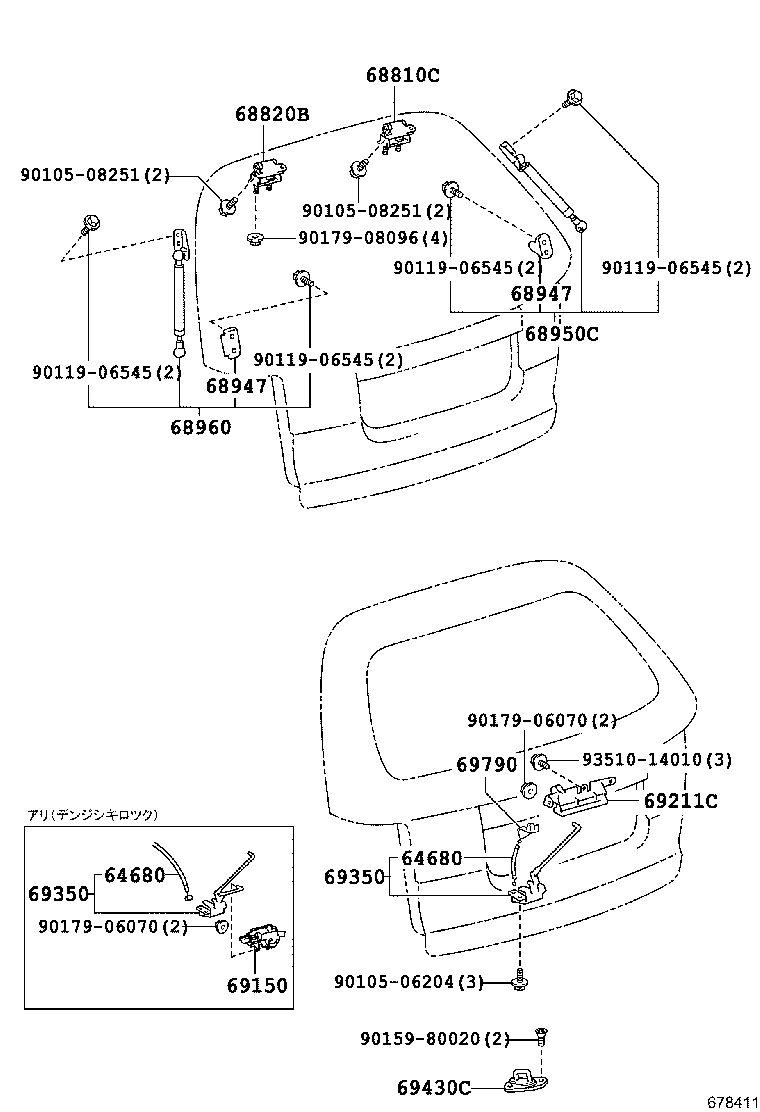

Figure 678410 678410 1992-11 → — Figure 678411 678411 1992-11 → —

Part groups

PNCDescription
64680 Cable Assy, Back Door Lock Control
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68947 Bracket, Back Door Damper Stay, Lower RH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69150 Actuator Assy, Back Door Lock
69211C Handle, Back Door Outside
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
