Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

61 part groups · 7 illustrations

Illustrations

711079B 1992-11 → 1996-01

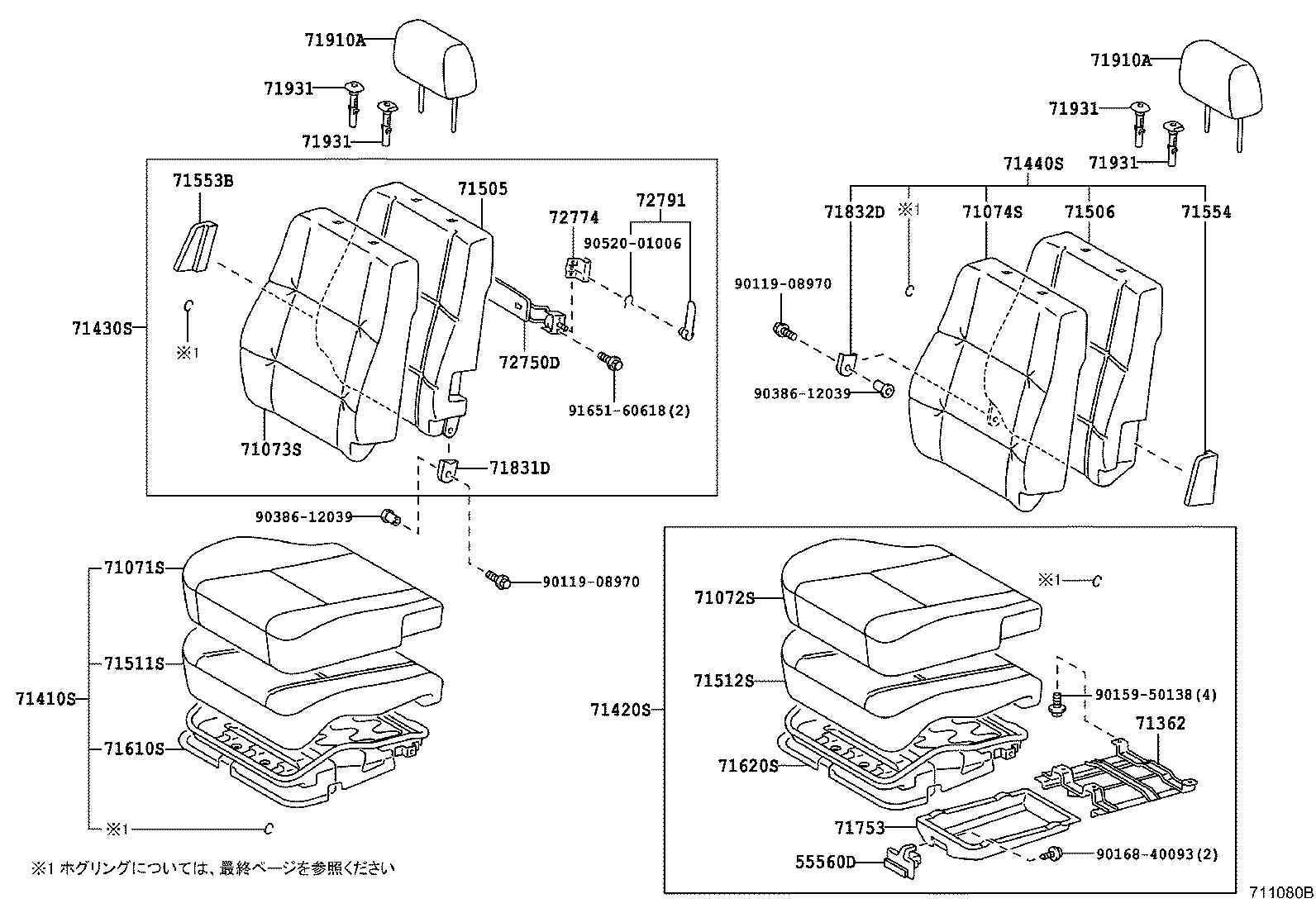

711080B 1992-11 → 1996-01

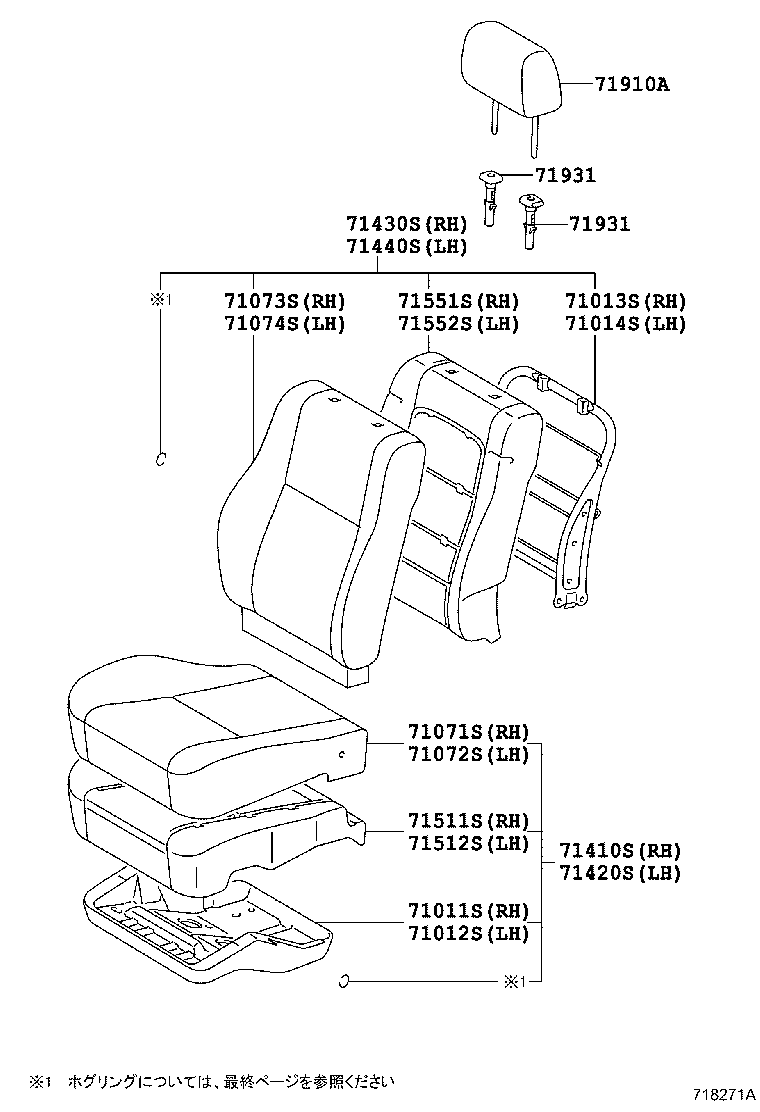

718271A 1996-01 → —

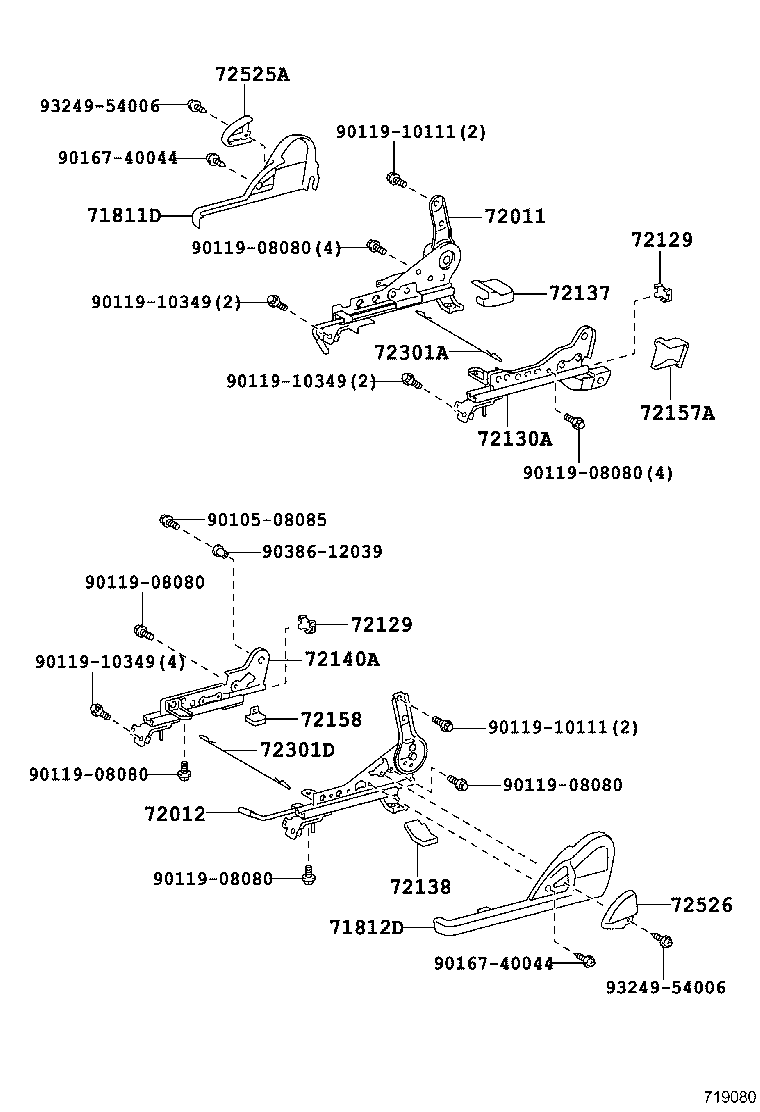

719080 1992-11 → 1996-01

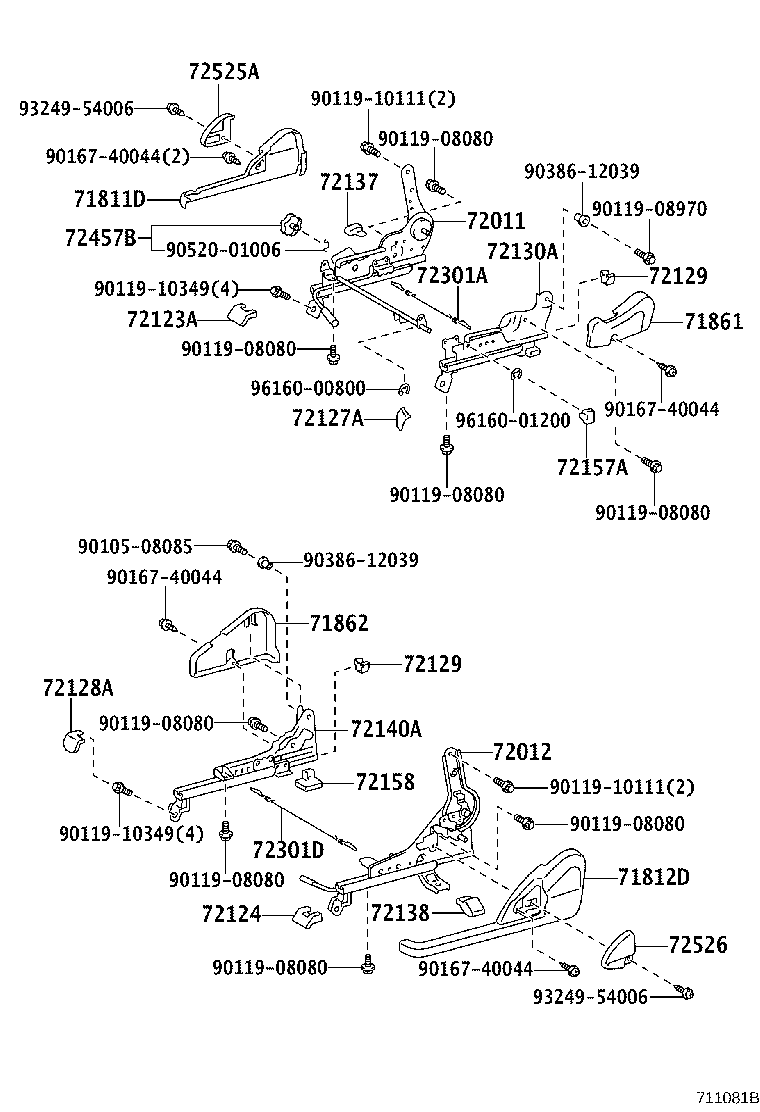

711081B 1992-11 → 1996-01

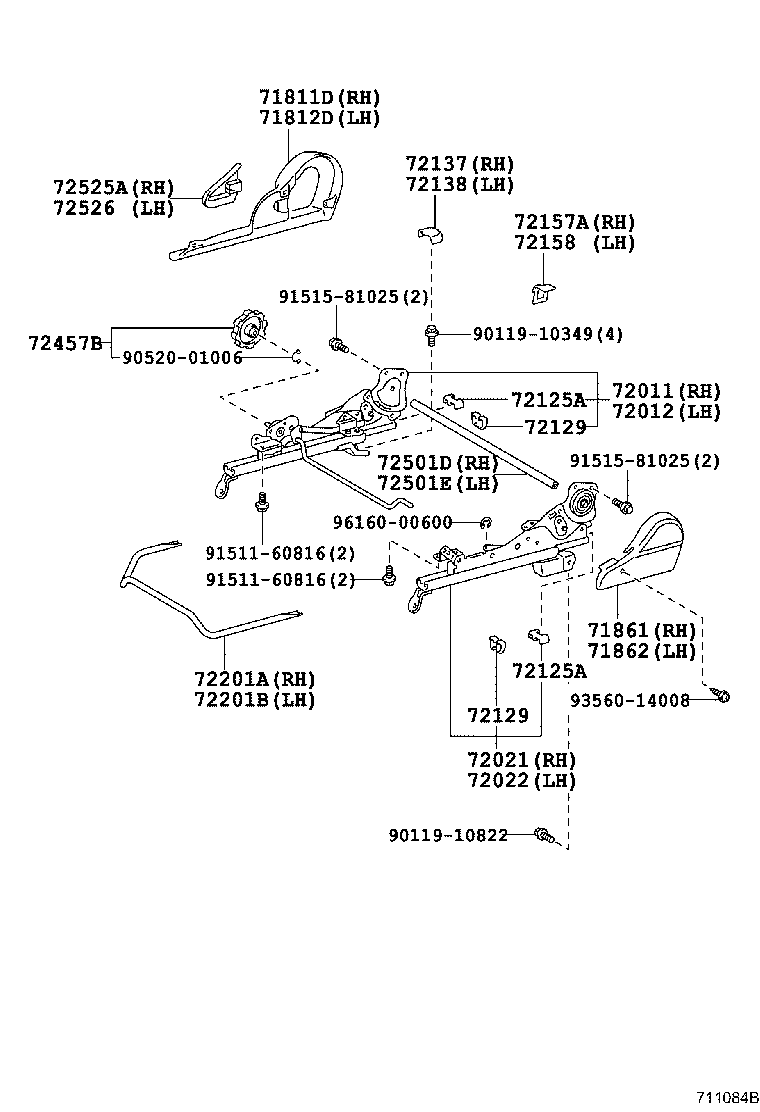

711084B 1996-01 → —

718165A 1992-11 → —

Part groups

PNC	Description
55560D	Lock Assy, Seat Under Tray
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71362	Bracket, Front Seat Set, NO.2
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71505	Pad Sub-assy, Front Seatback W/Frame, RH
71506	Pad Sub-assy, Front Seatback W/Frame, LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B	Pad, Front Seatback, B
71554	Pad, Front Seatback, C
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71753	Tray, Front Seat Under
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72125A	Cover, Seat Track, Upper Rear
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72130A	Track Assy, Front Seat, Inner RH
72137	Cover, Seat Track, Outer RH
72138	Cover, Seat Track, Outer LH
72140A	Track Assy, Front Seat,Inner LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72457B	Knob, Vertical Seat Adjuster, RH
72501D	Pipe Sub-assy, Reclining Connecting, RH
72501E	Pipe Sub-assy, Reclining Connecting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72750D	Adjuster Assy, Lumbar Support, RH
72774	Protector, Lumbar Support Spring
72791	Lever, Lumbar Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
