Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 3 illustrations

Illustrations

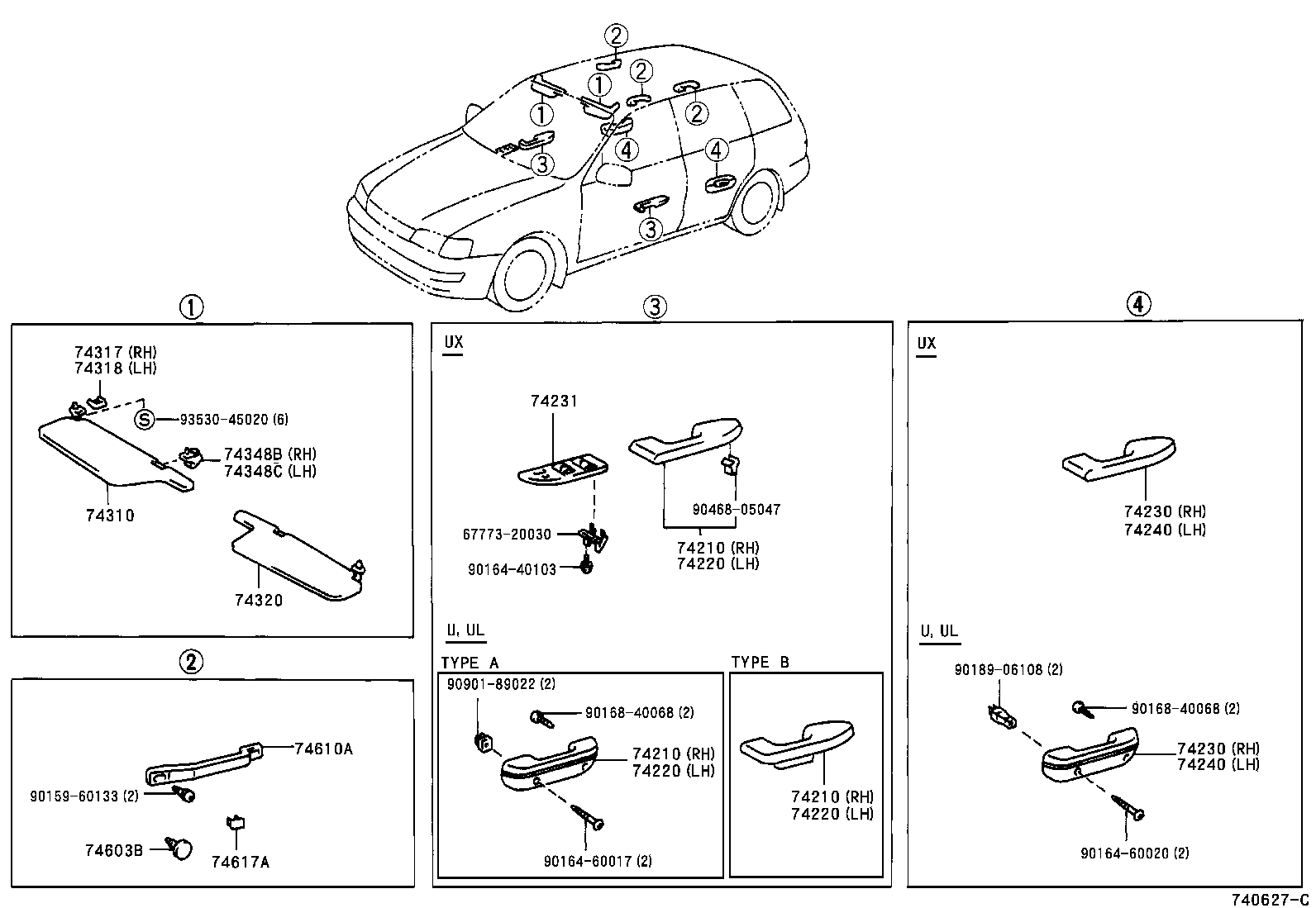

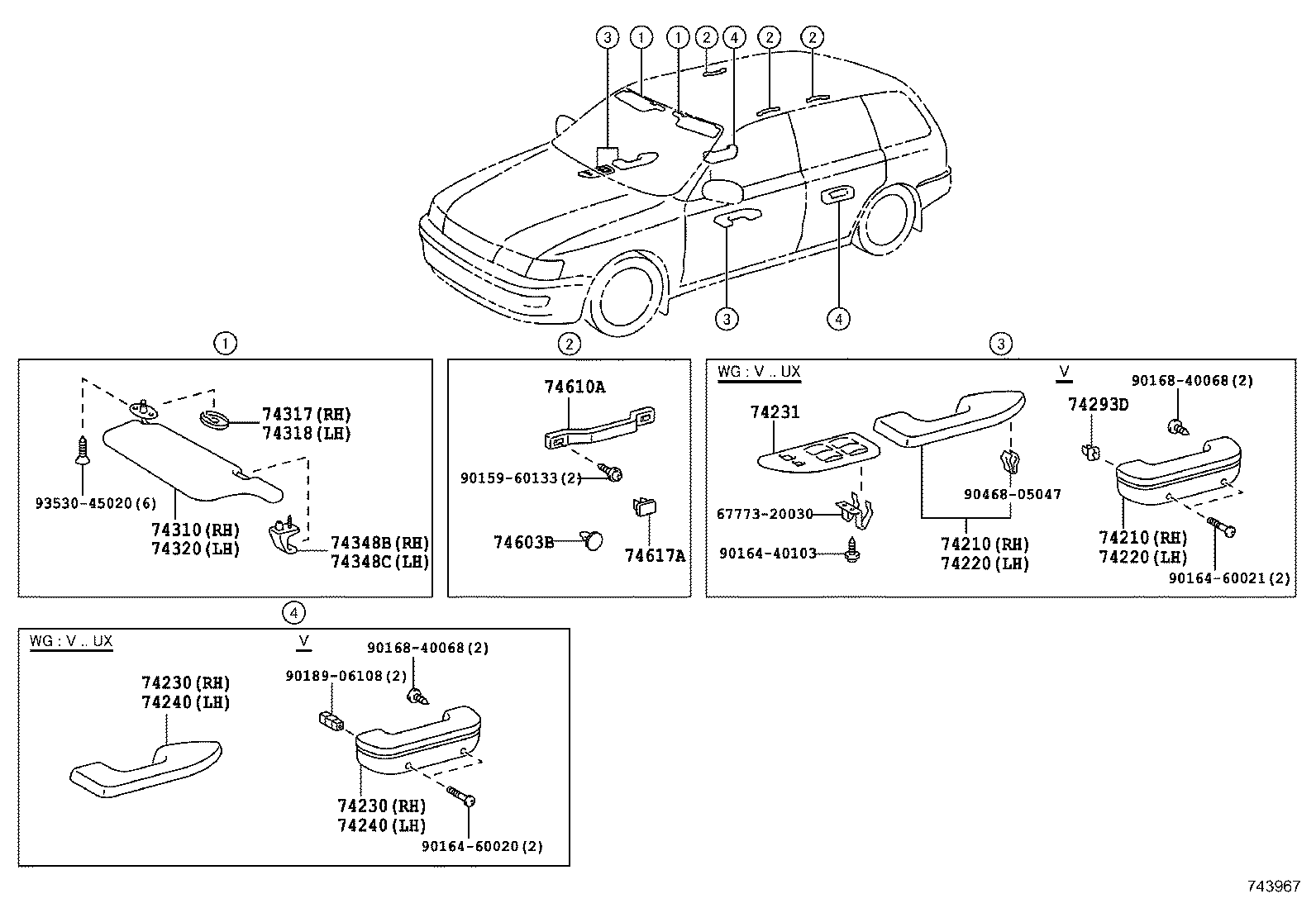

Figure 743966 743966 1992-11 → 1996-01 Figure 743967 743967 1996-01 → 1999-08 Figure 740627C 740627C 1999-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74240 Armrest Assy, Rear, LH
74266 Cap, Door Armrest, RH
74273A Panel, Rear Door Armrest Base, Lower RH
74274A Panel, Rear Door Armrest Base, Lower LH
74293D Plate, Front Door Armrest, NO.1
74293E Plate, Rear Door Armrest, NO.1
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348B Holder, Visor, RH
74348C Holder, Visor, LH
74603B Clip (FOR ASSIST GRIP)
74610A Grip Sub-assy, Assist
74617A Plug, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
