Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

26 part groups · 7 illustrations

Illustrations

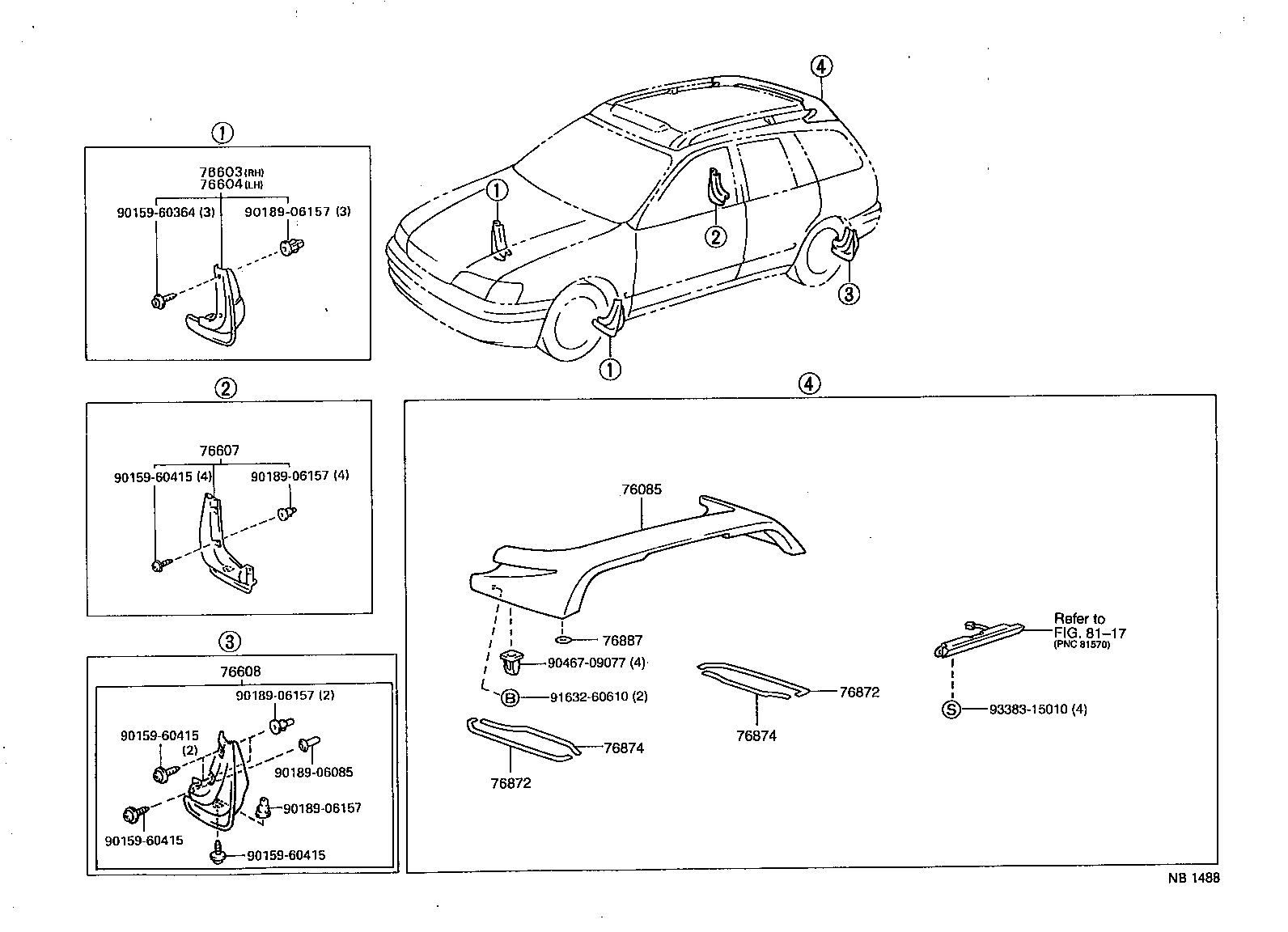

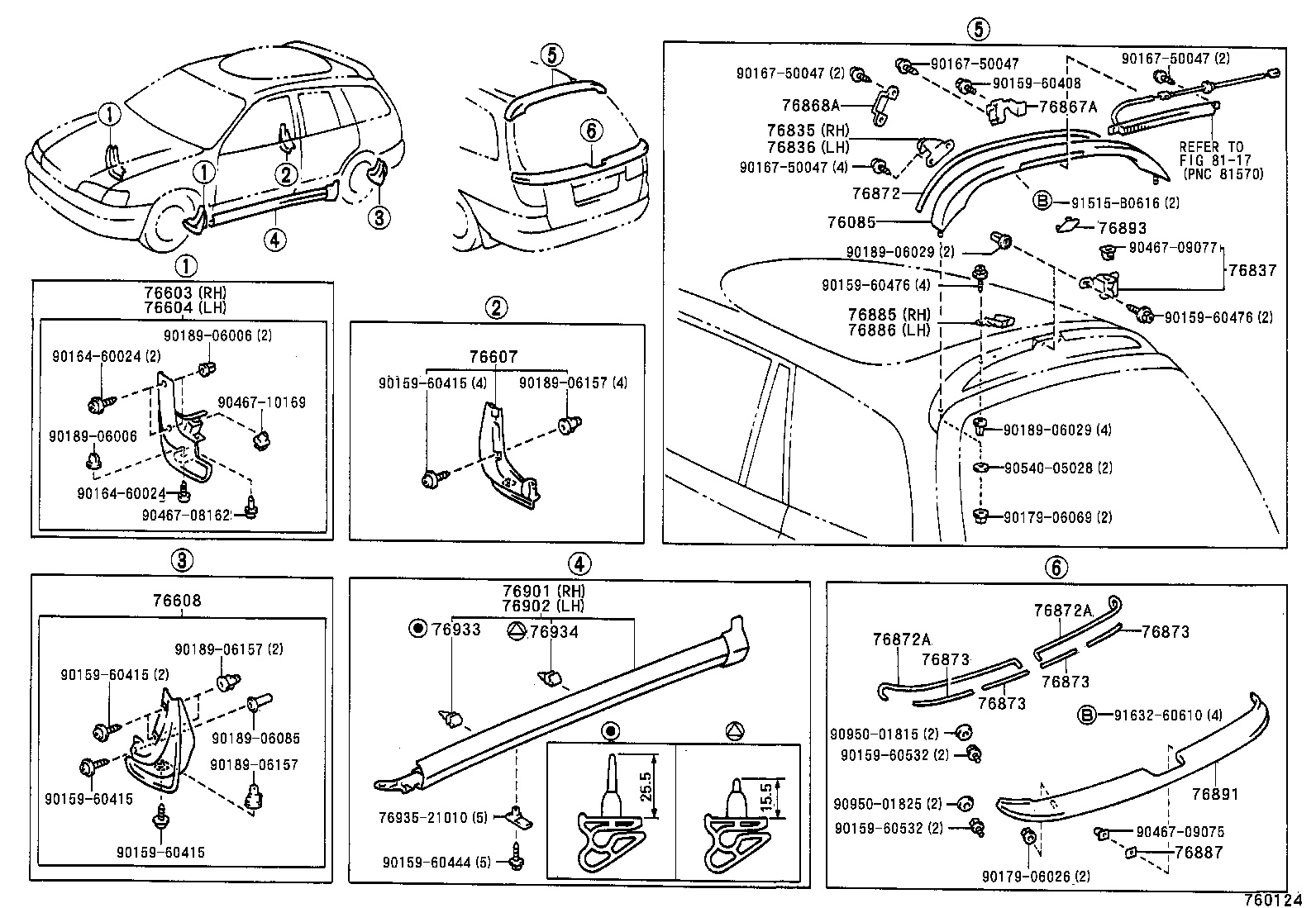

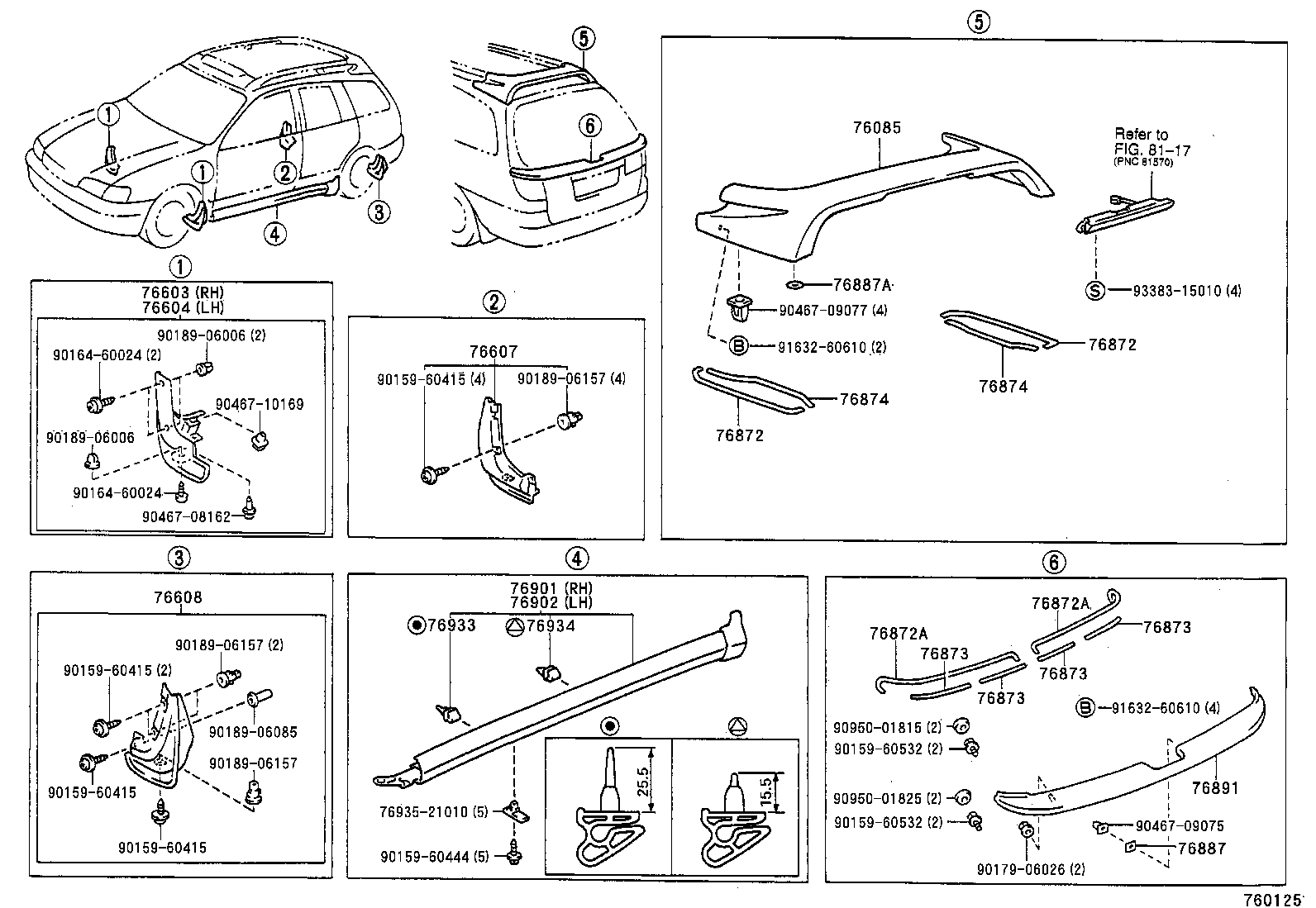

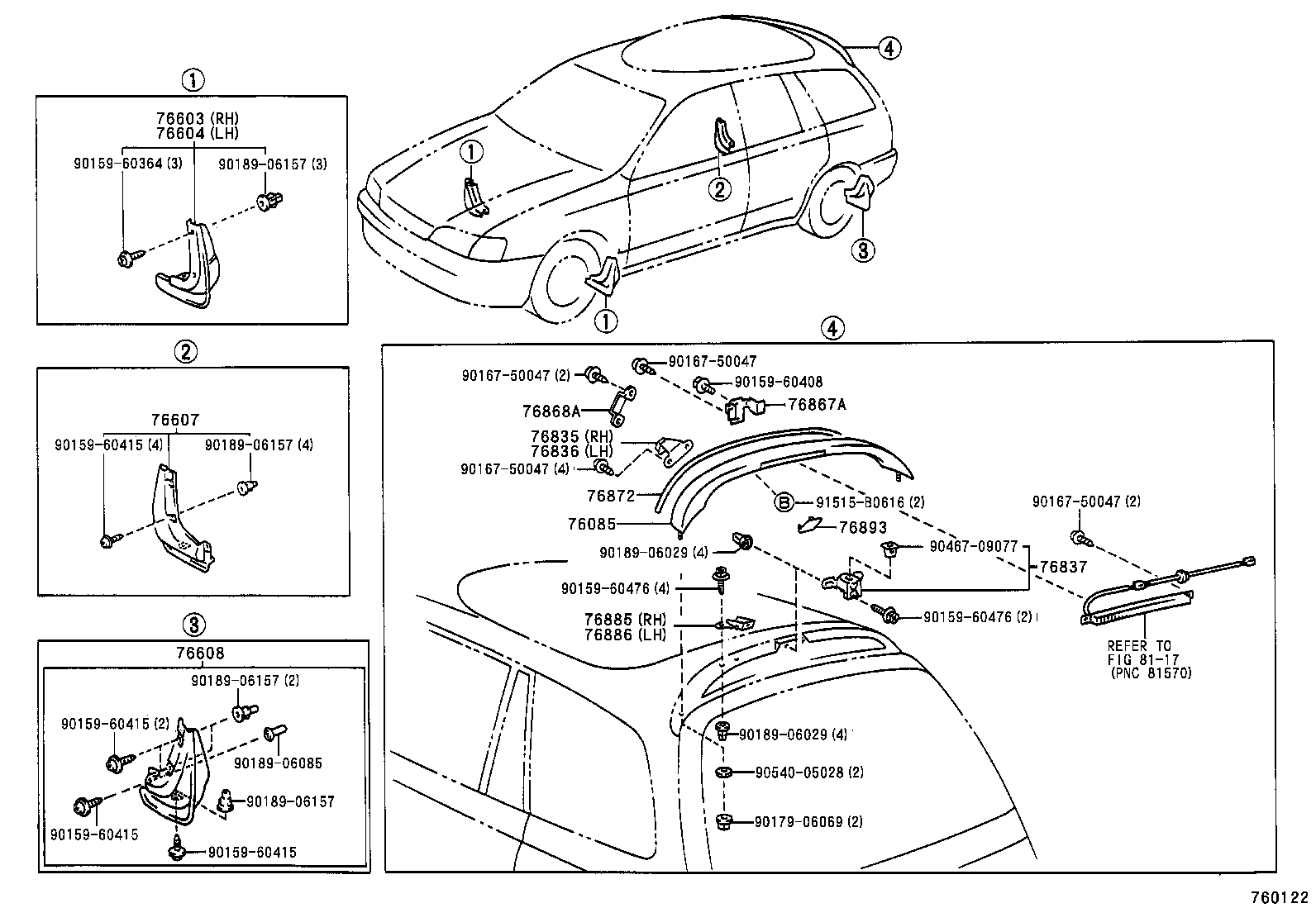

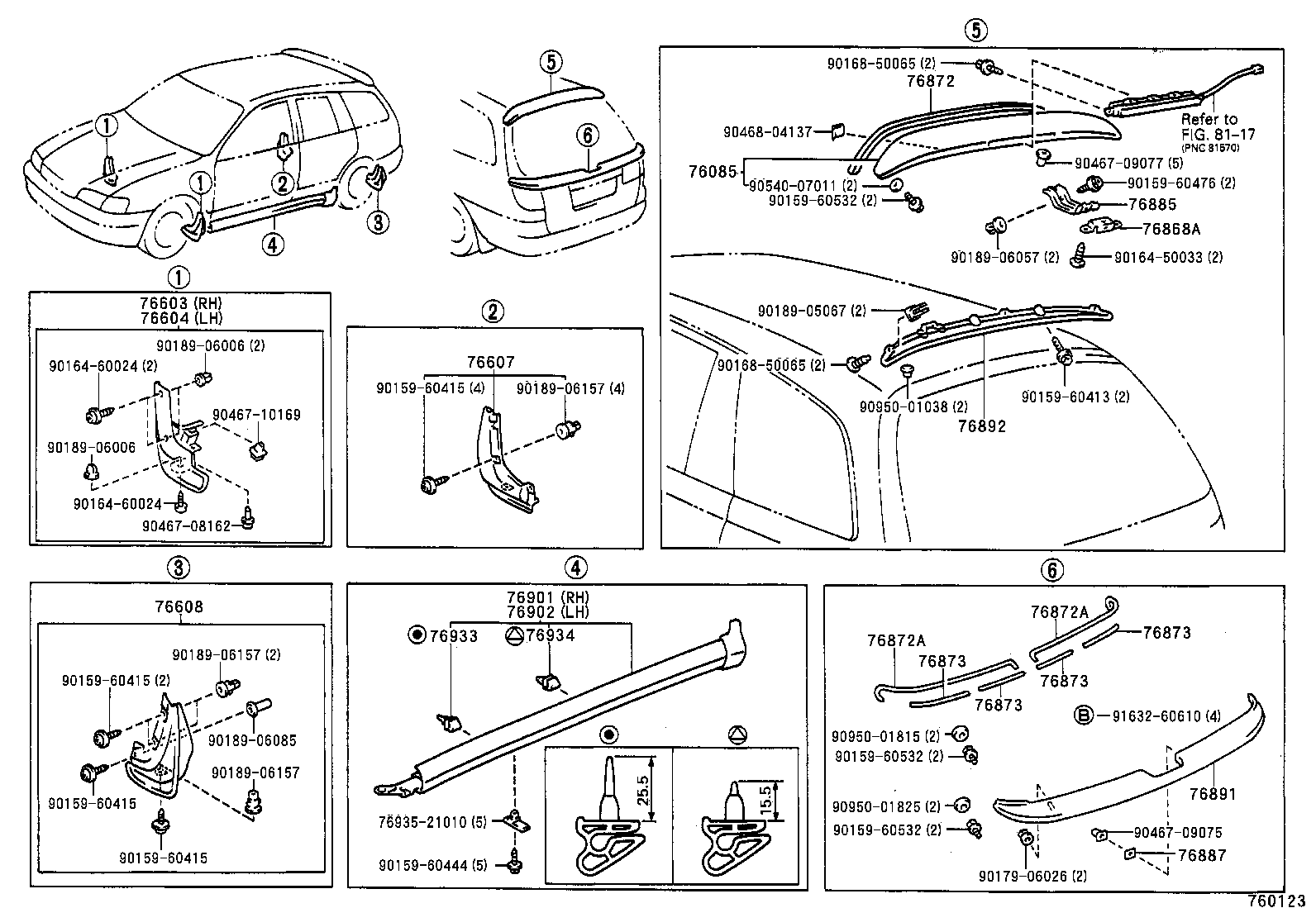

Figure 760121 760121 1992-11 → — Figure 760133 760133 1992-11 → — Figure 760122 760122 1993-02 → 1996-01 Figure NB1488 NB1488 1996-01 → — Figure 760123 760123 1995-01 → — Figure 760124 760124 1995-01 → 1996-01 Figure 760125 760125 1996-01 → —

Part groups

PNCDescription
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76835 Retainer, Rear Spoiler Side, NO.1
76836 Retainer, Rear Spoiler Side, NO.2
76837 Retainer, Rear Spoiler, NO.7
76865 Retainer, Rear Spoiler, NO.1
76867A Retainer, Rear Spoiler, NO.3
76868A Retainer, Rear Spoiler, NO.4
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76885 Retainer, Rear Spoiler, NO.5
76886 Retainer, Rear Spoiler, NO.6
76887 Seal, Rear Spoiler
76887A Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76893 Cover, Rear Spoiler, NO.1
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76933 Retainer, Side Mudguard, NO.5
76934 Retainer, Side Mudguard, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
