Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 21 illustrations

Illustrations

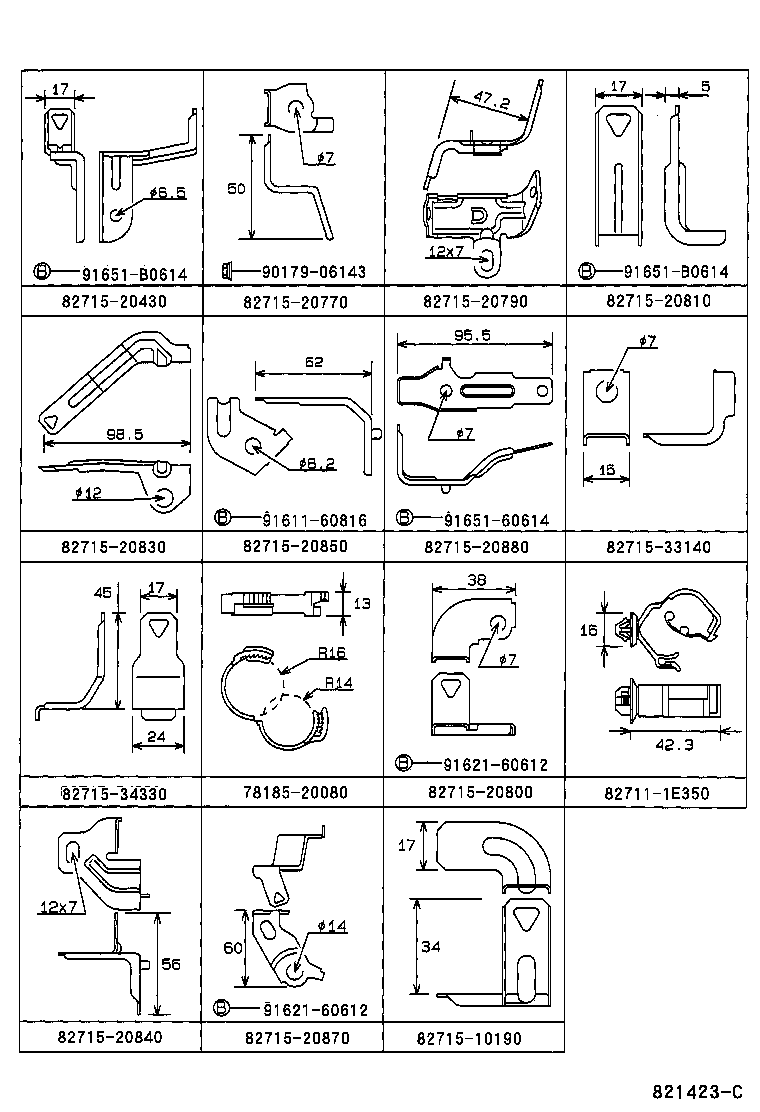

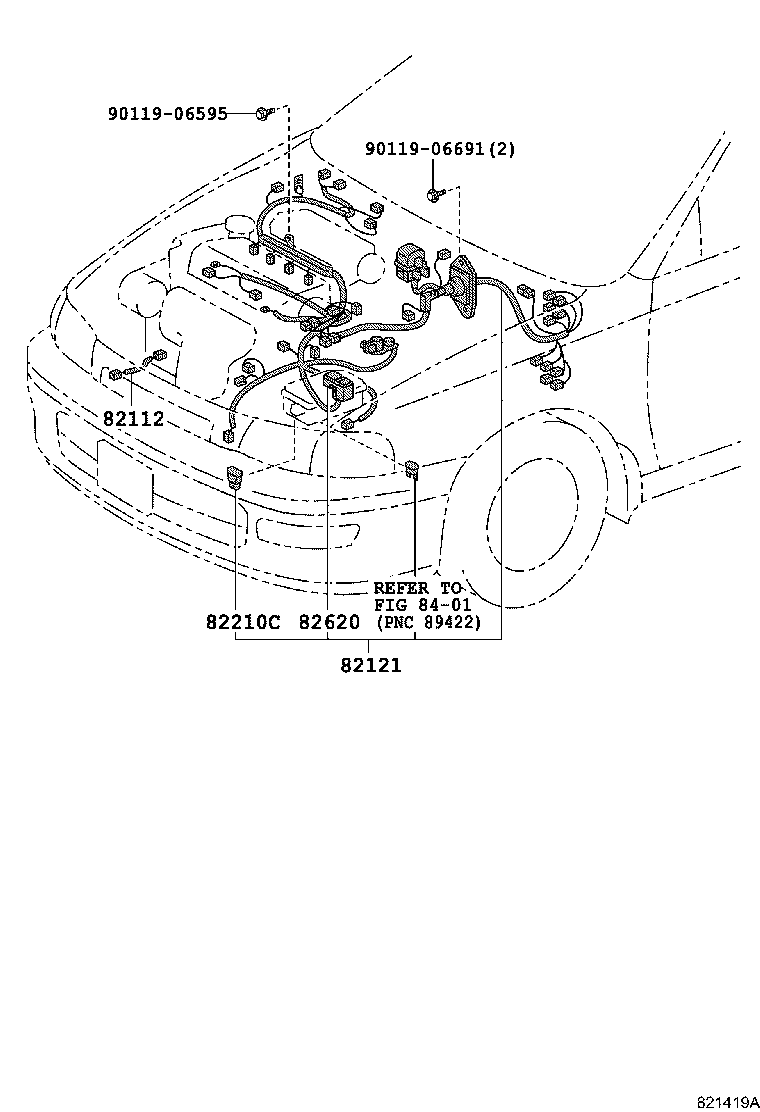

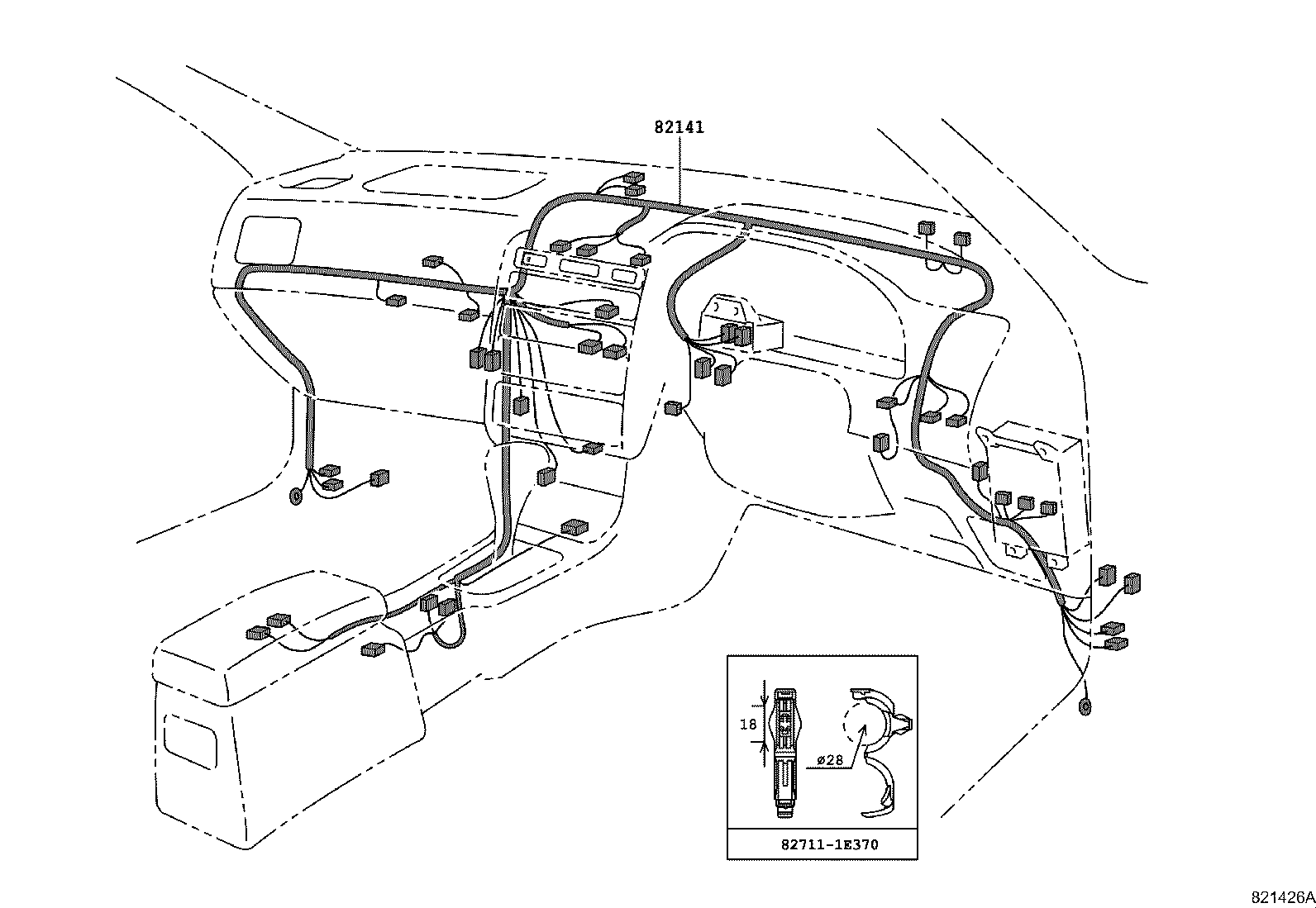

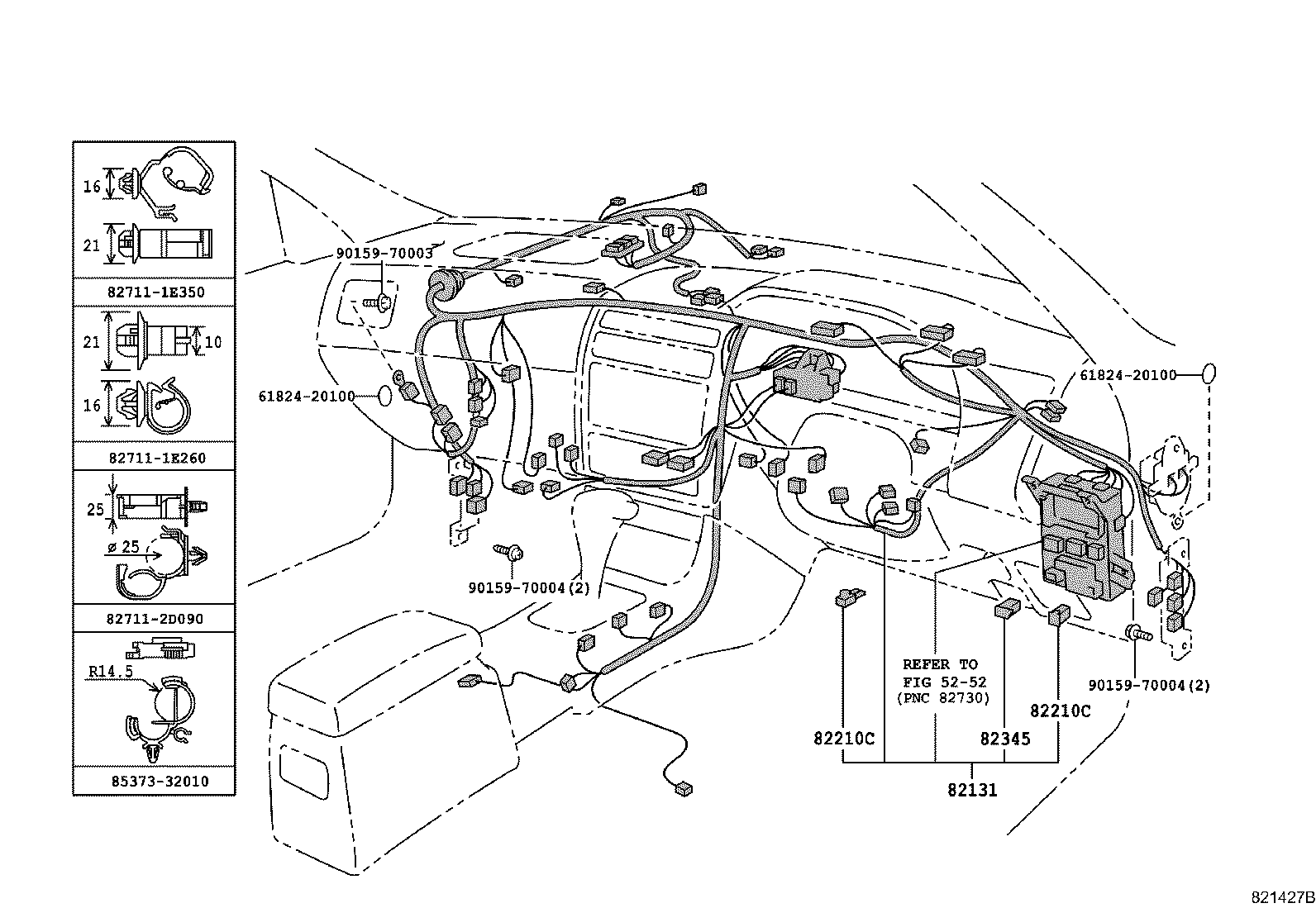

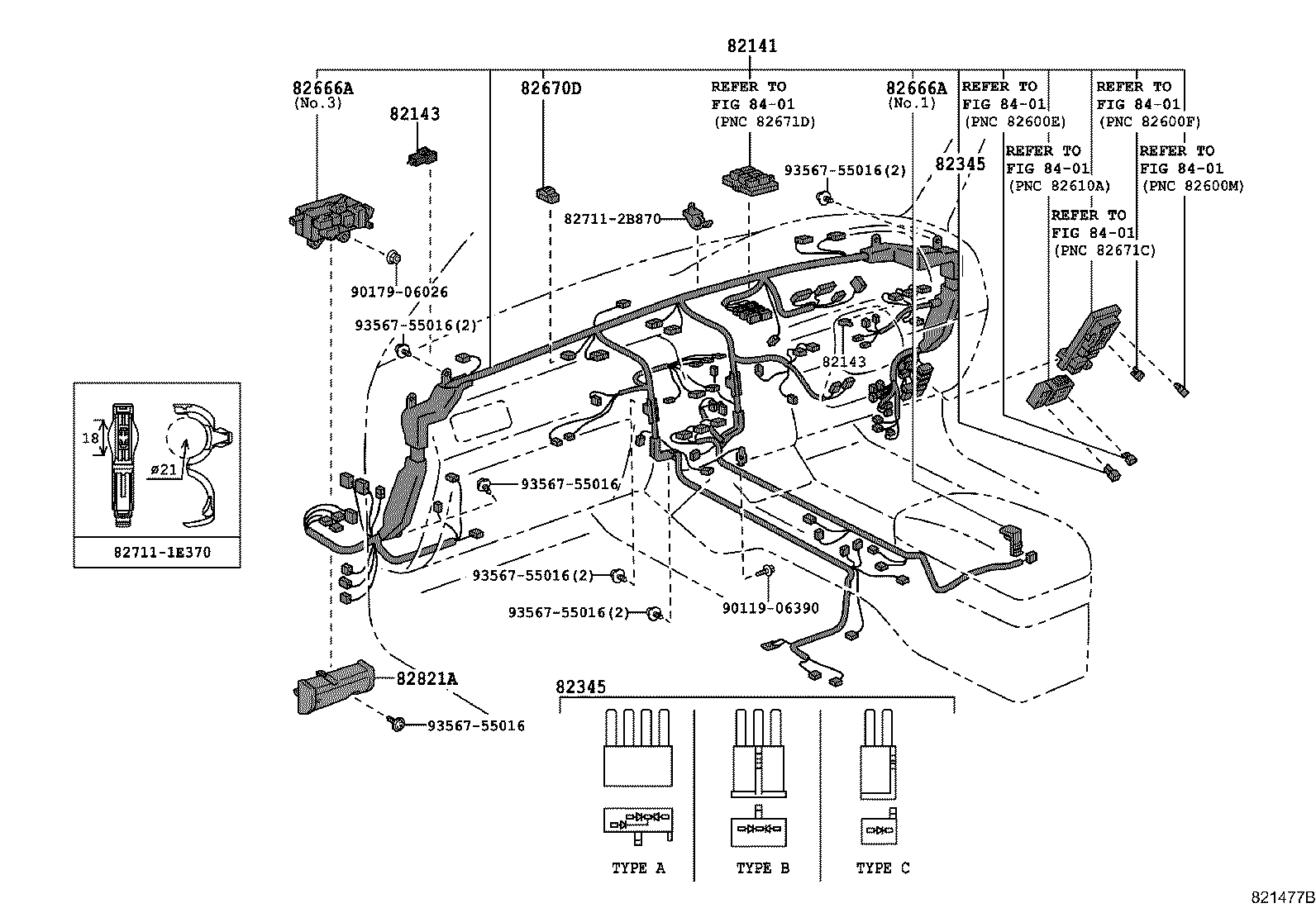

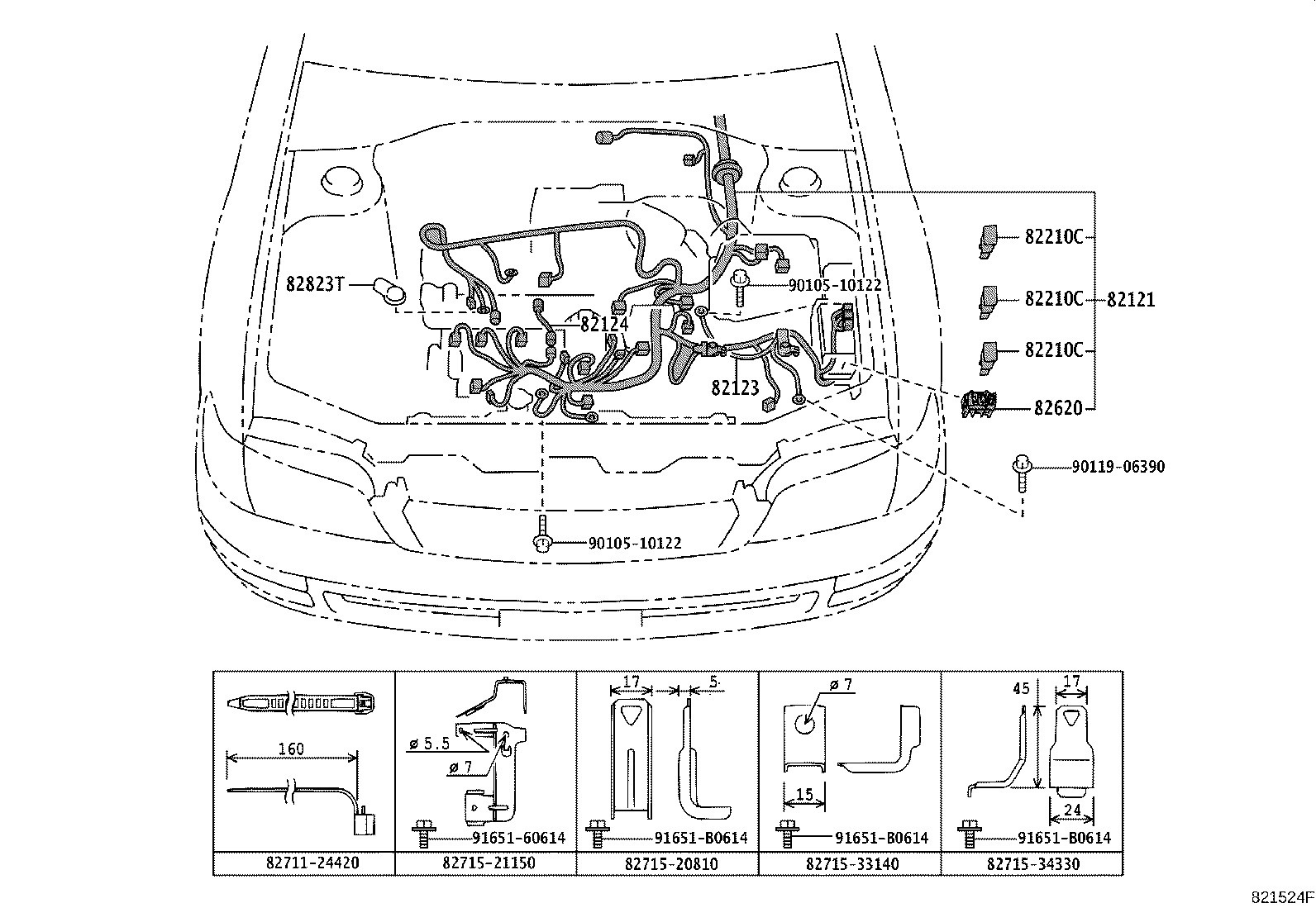

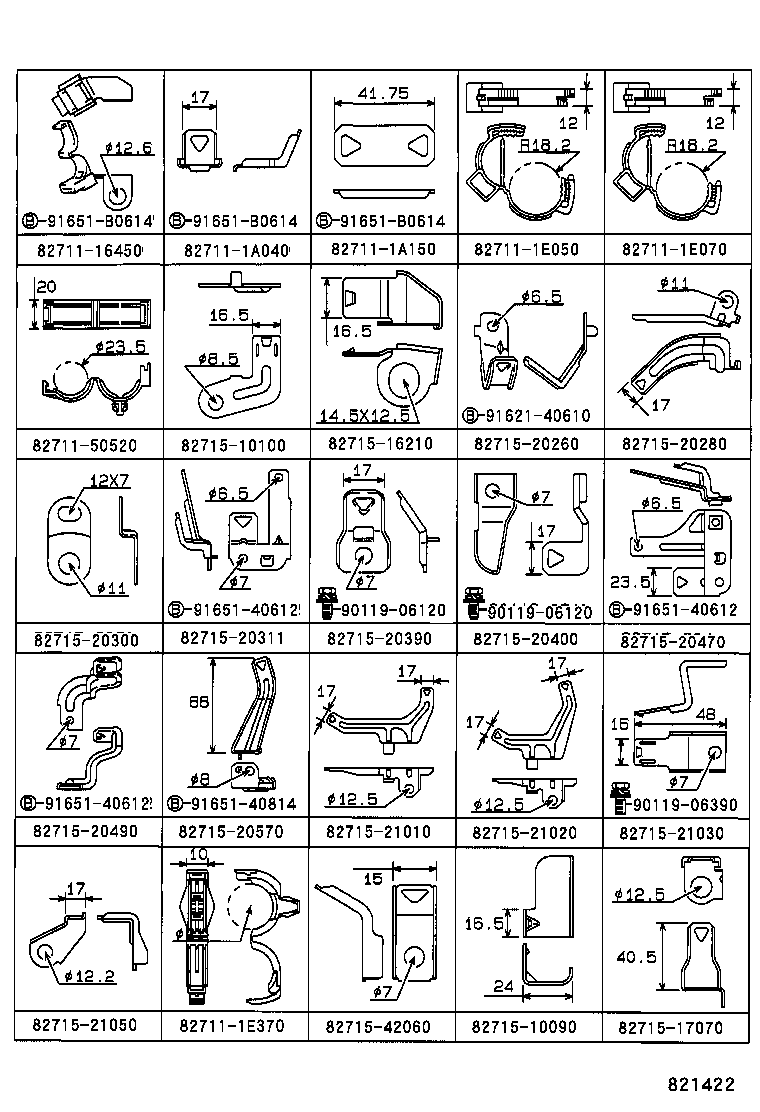

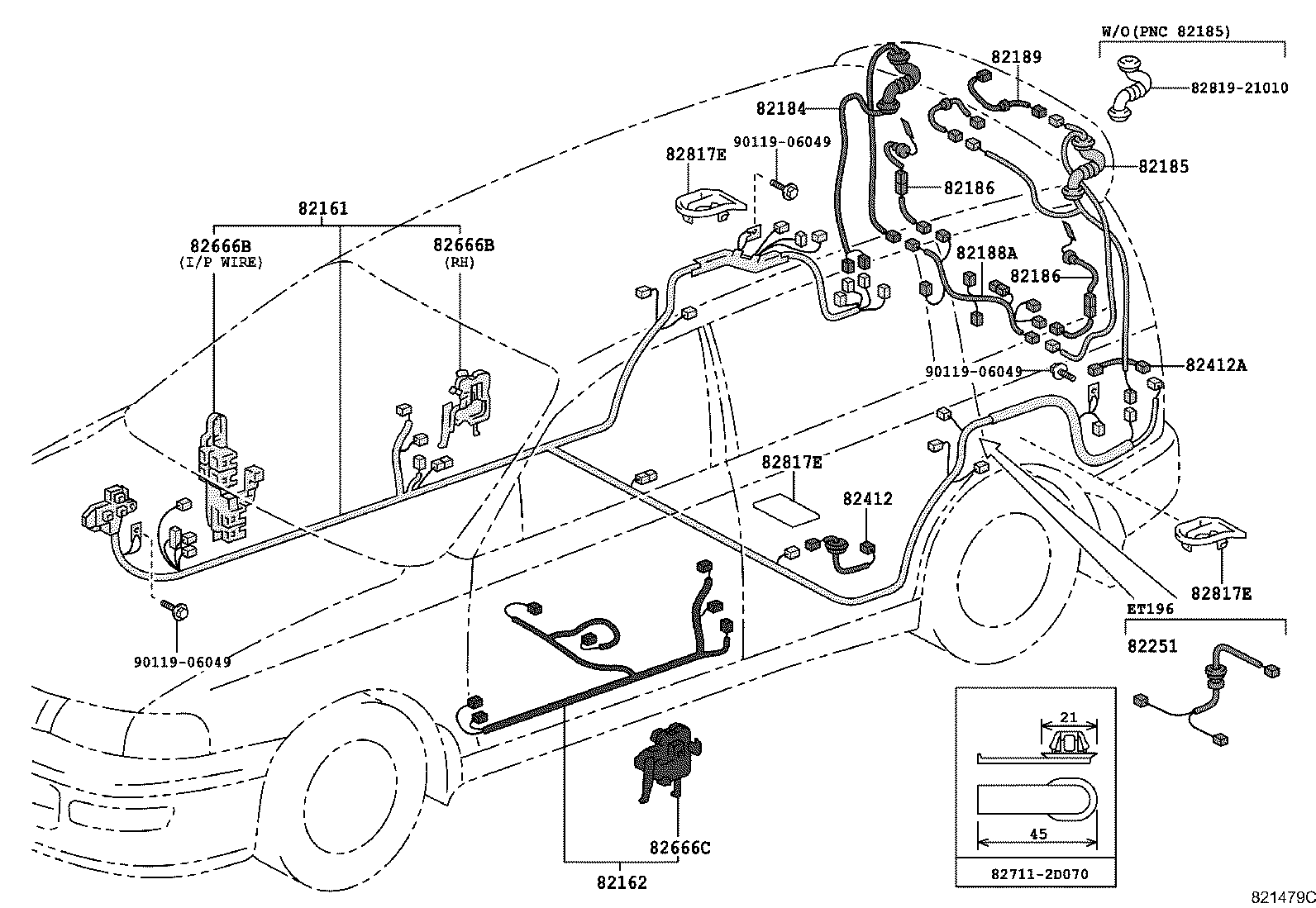

Figure 821416A 821416A 1992-11 → 1996-01 Figure 821417B 821417B 1996-01 → — Figure 821418A 821418A 1996-01 → — Figure 821419A 821419A 1992-11 → — Figure 821420C 821420C 1992-11 → 1998-05 Figure 821524F 821524F 1998-05 → — Figure 821421D 821421D 1992-11 → — Figure 821422 821422 1992-11 → — Figure 821423C 821423C 1996-01 → — Figure 821424A 821424A 1992-11 → — Figure 821477B 821477B 1992-11 → 1996-01 Figure 821426A 821426A 1996-01 → — Figure 821427B 821427B 1996-01 → — Figure 821478A 821478A 1992-11 → — Figure 821479C 821479C 1992-11 → — Figure 821429A 821429A 1992-11 → 1997-08 Figure 821429A 821429A 1997-08 → — Figure 822174A 822174A 1996-01 → — Figure 821950A 821950A 1999-08 → — Figure 821430 821430 1992-11 → — Figure 822079 822079 1992-11 → —

Part groups

PNCDescription

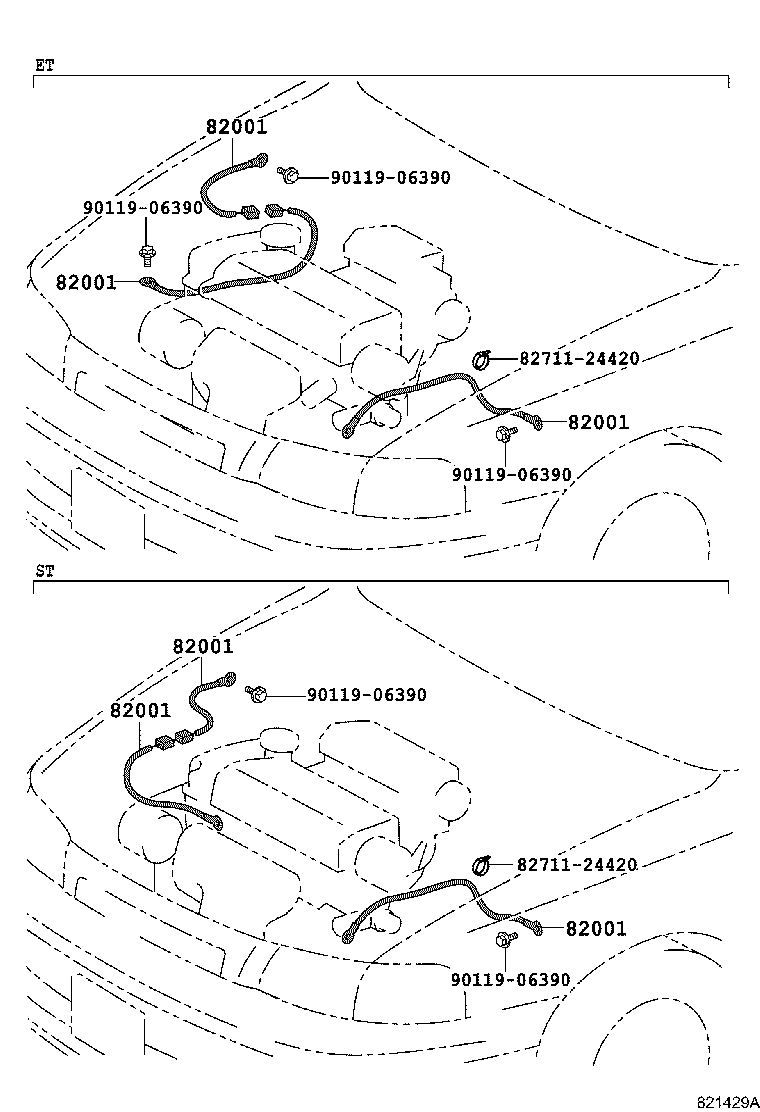

82001 Cable, Bond, NO.1

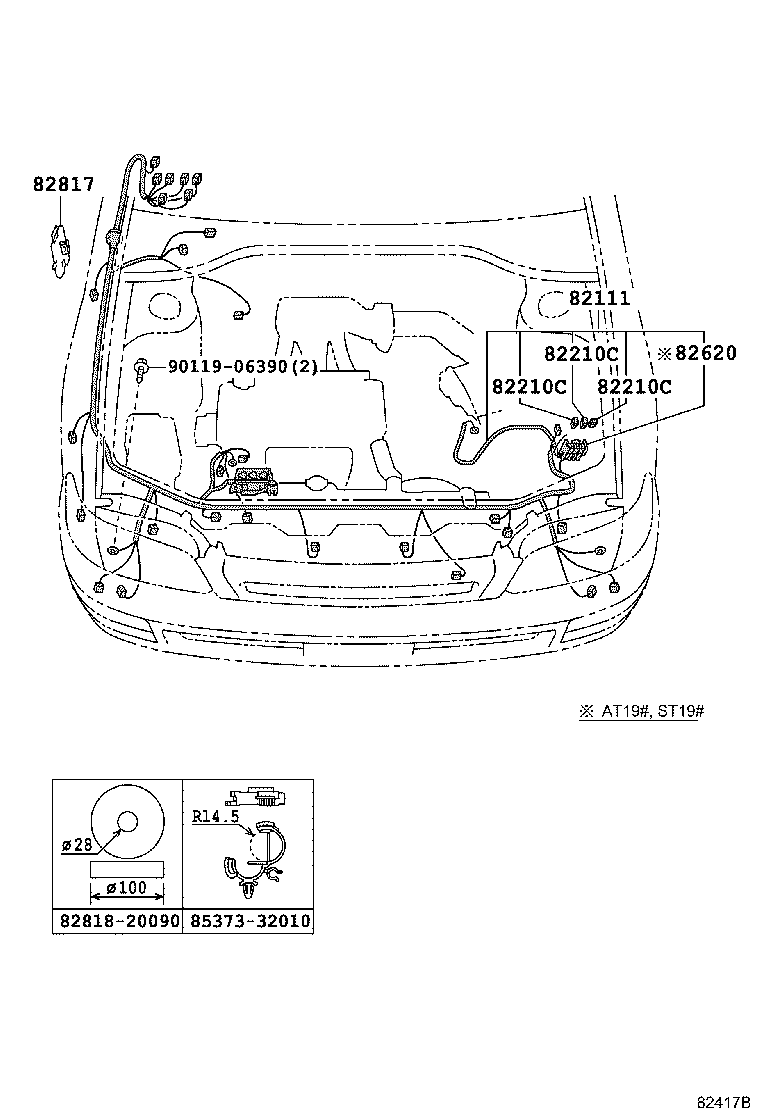

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine

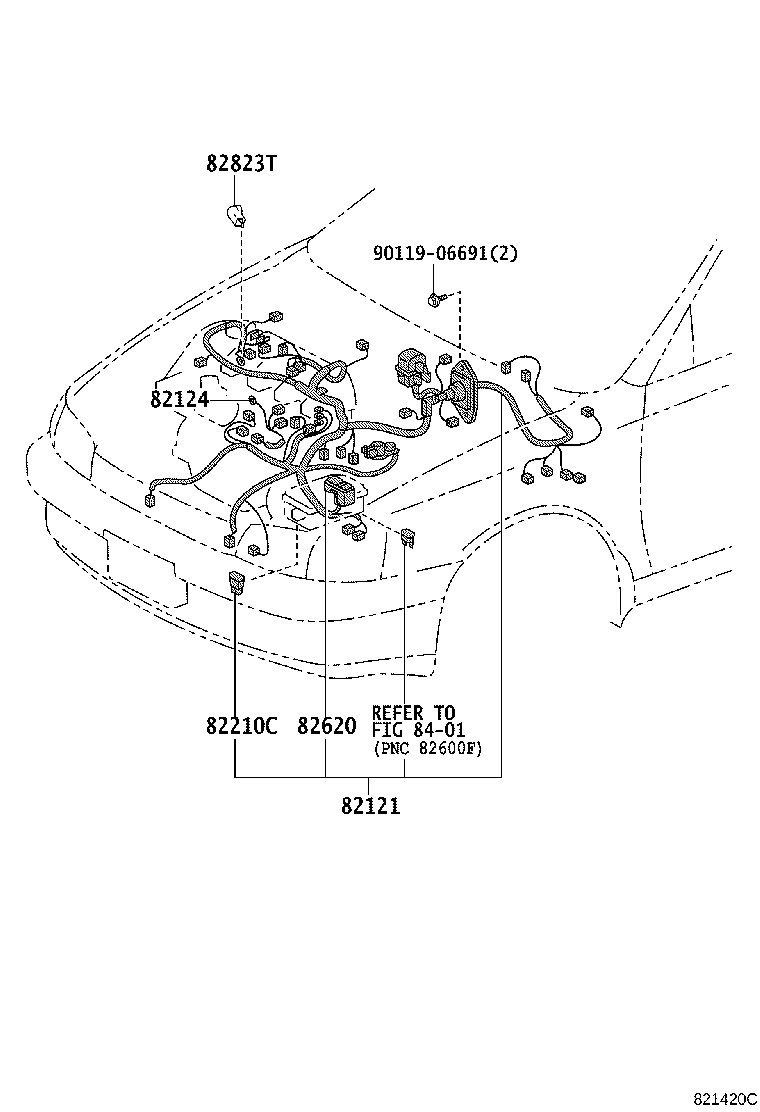

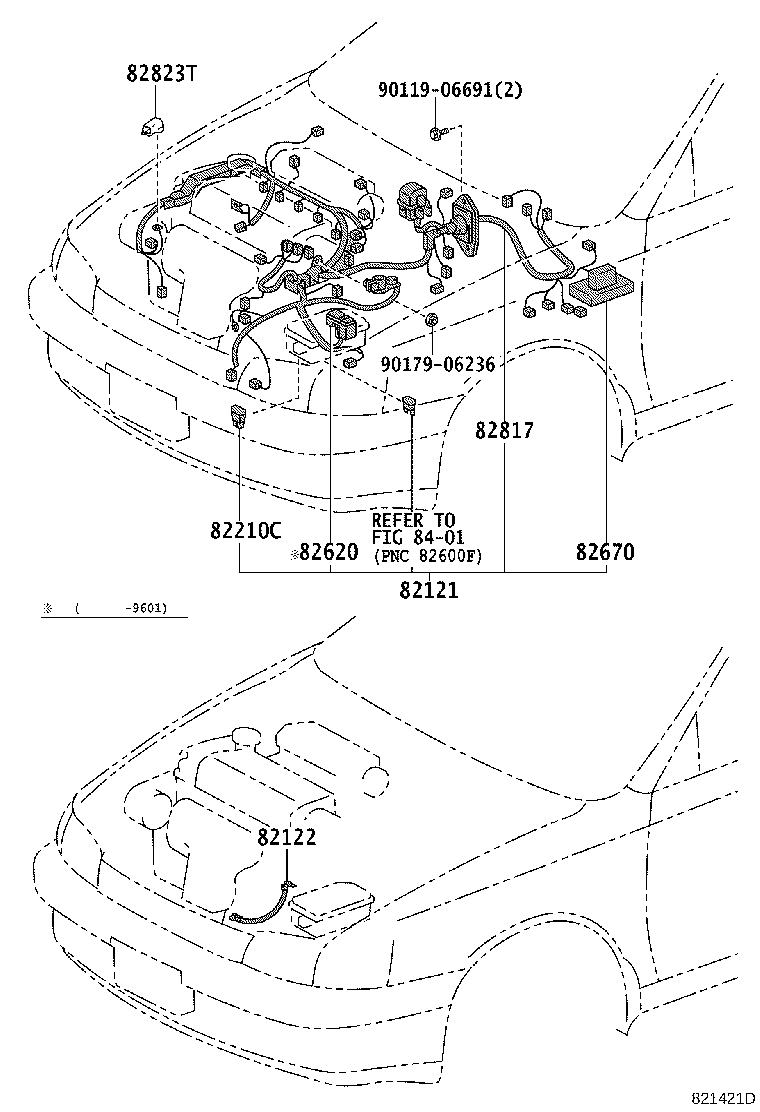

82122 Wire, Engine, NO.2

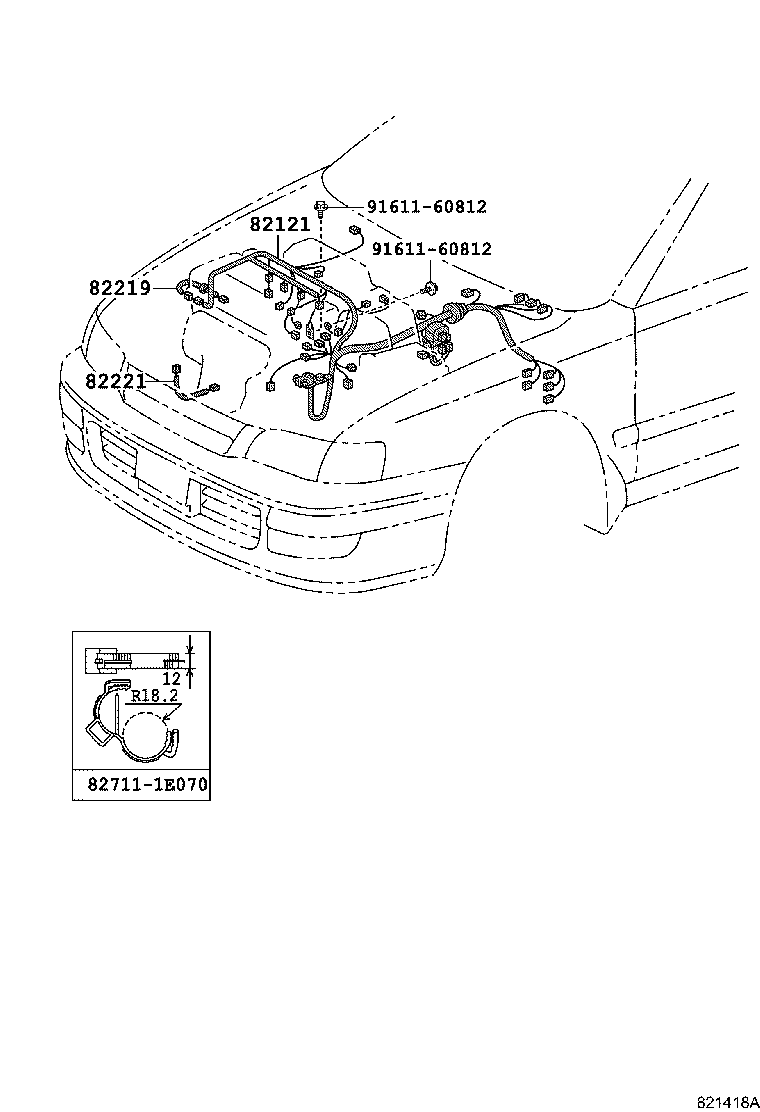

82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3

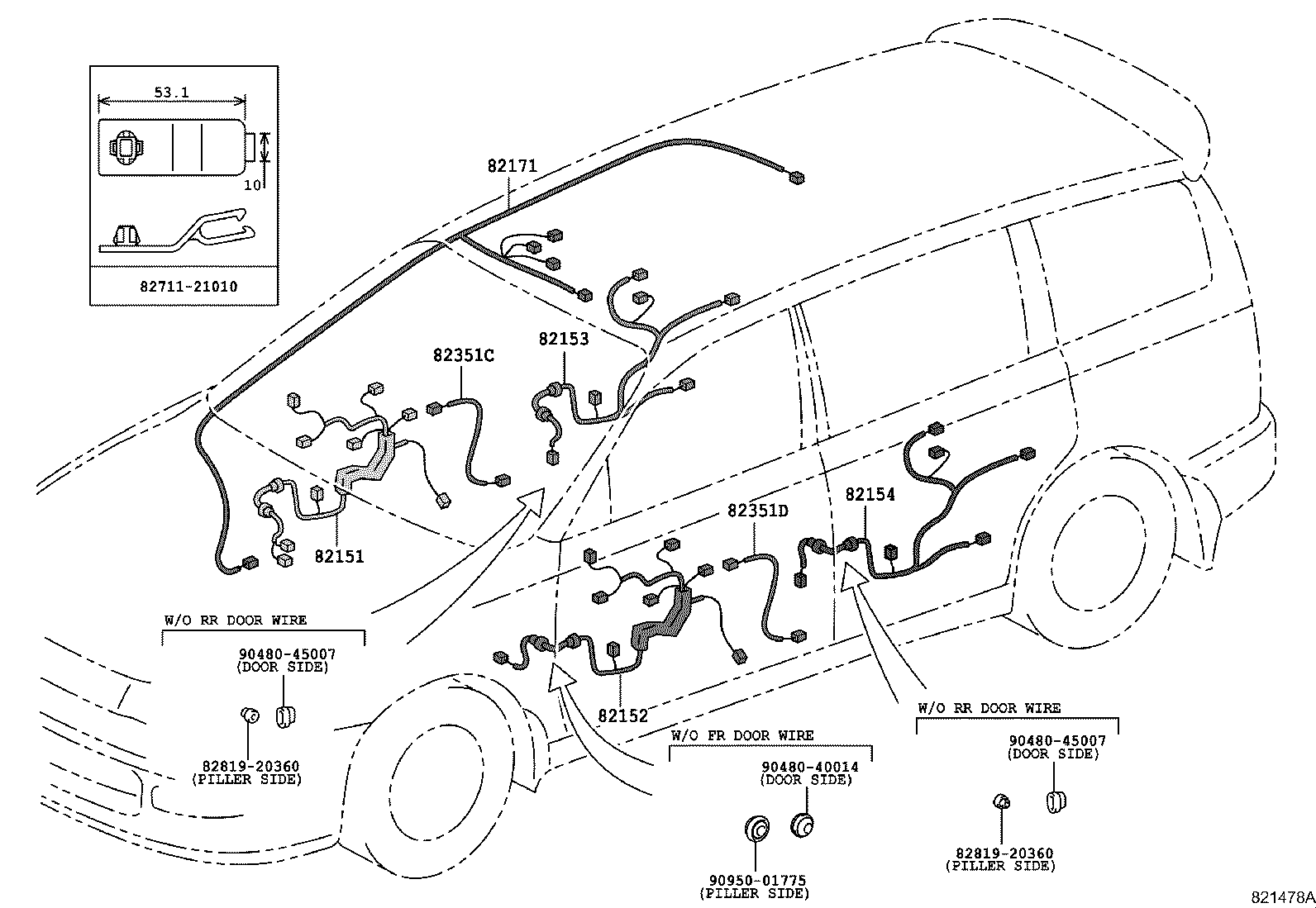

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82210C Fusible Link
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82251 Wire, Speed Sensor
82345 Diode
82351C Wire, Courtesy Lamp Switch (FOR FRONT RH DOOR)
82351D Wire, Courtesy Lamp Switch (FOR FRONT LH DOOR)
82412 Wire, Fuel Gage
82412A Wire, Fuel Gage, NO.2
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82817 Protector, Wiring Harness, NO.1
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82823T Cap, Alternator Terminal
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
