Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

31 part groups · 15 illustrations

Illustrations

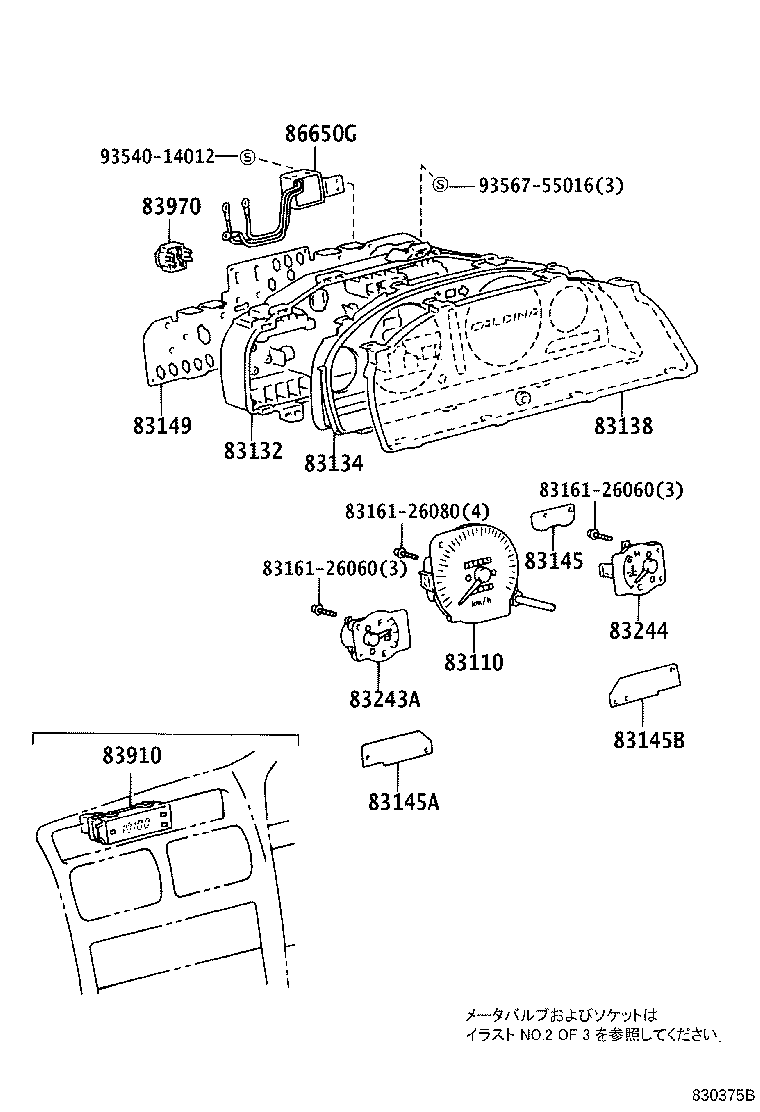

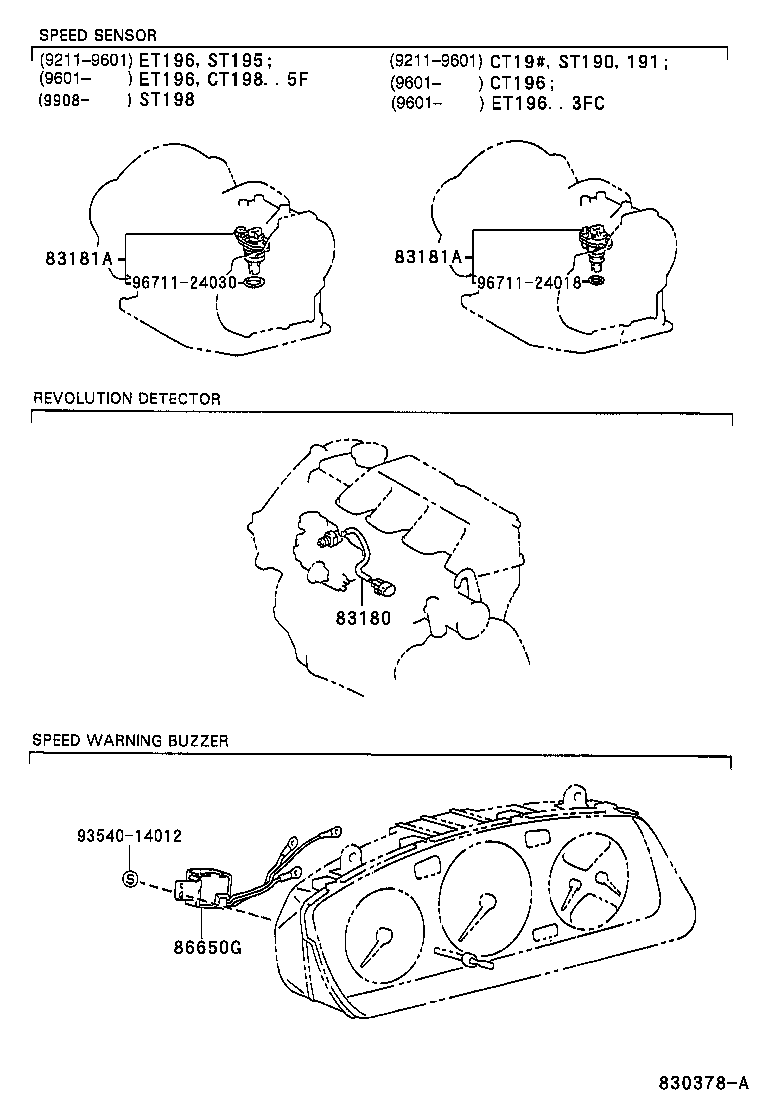

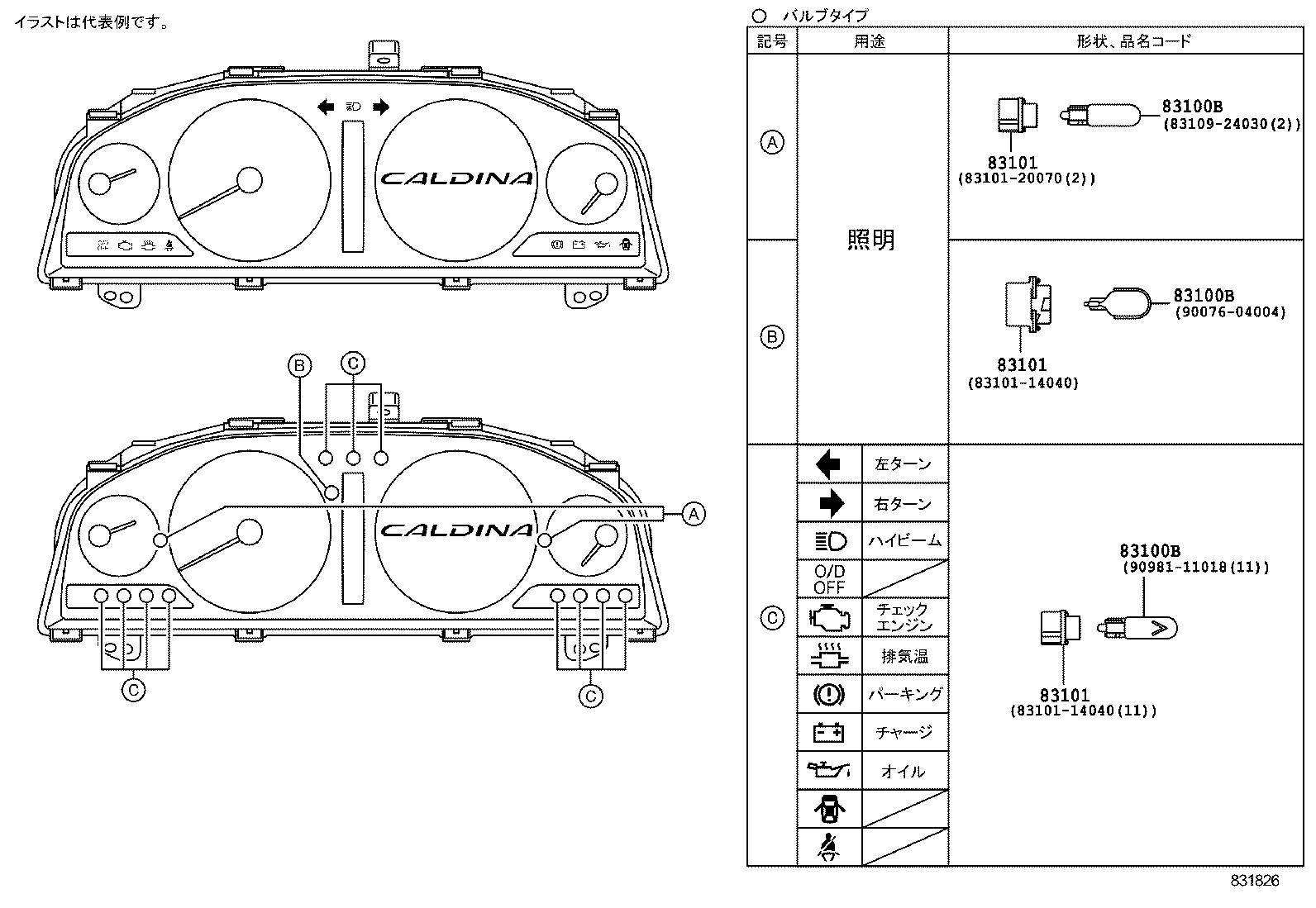

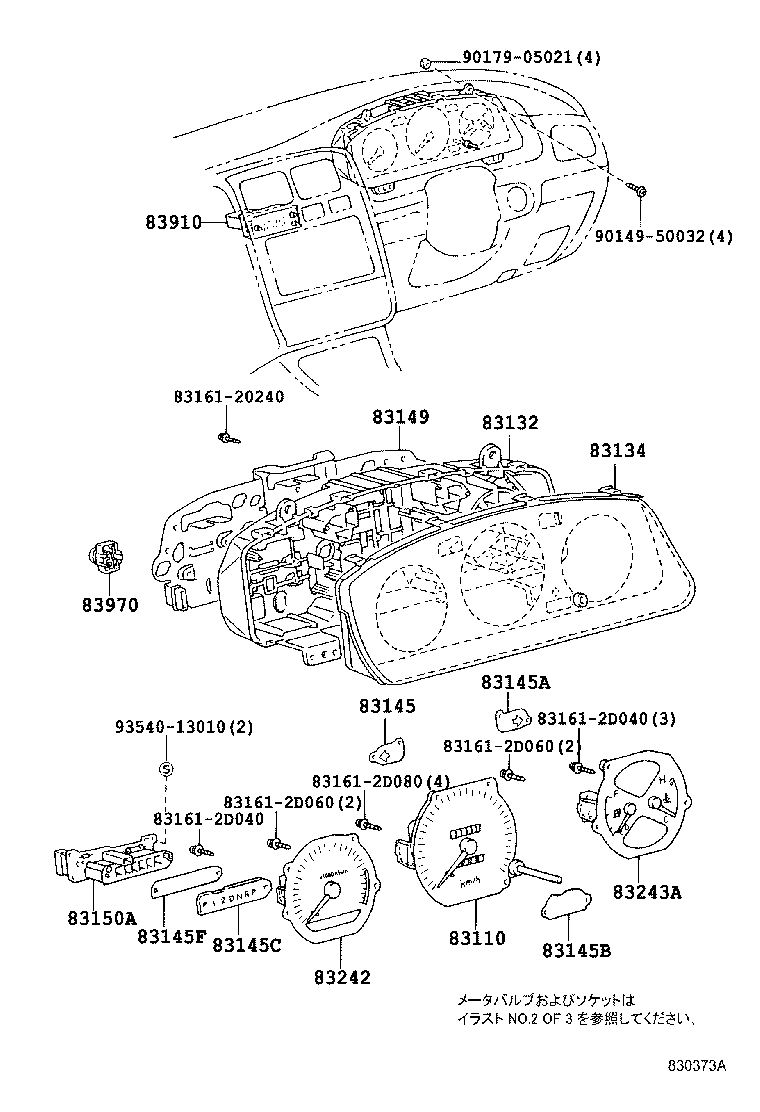

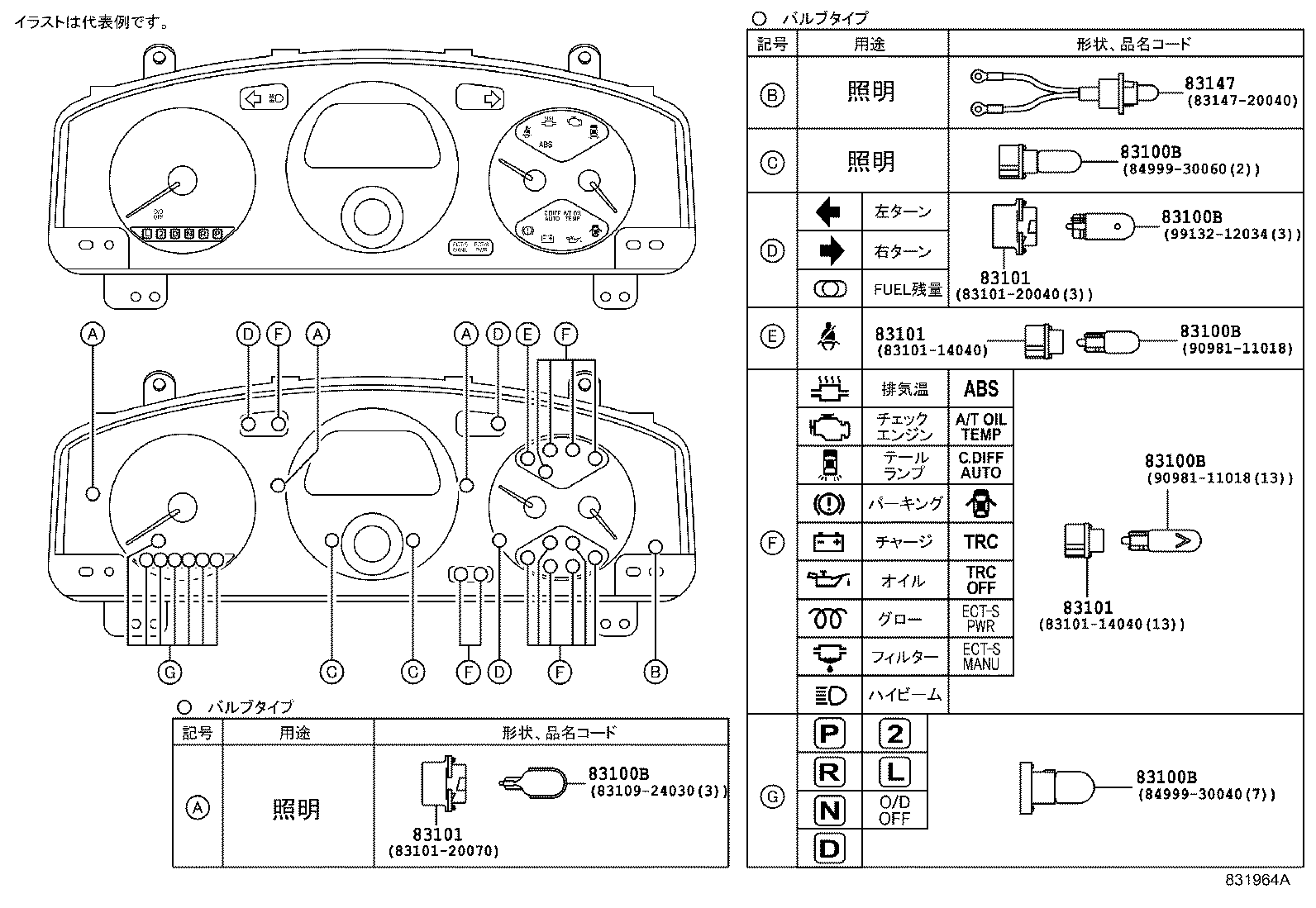

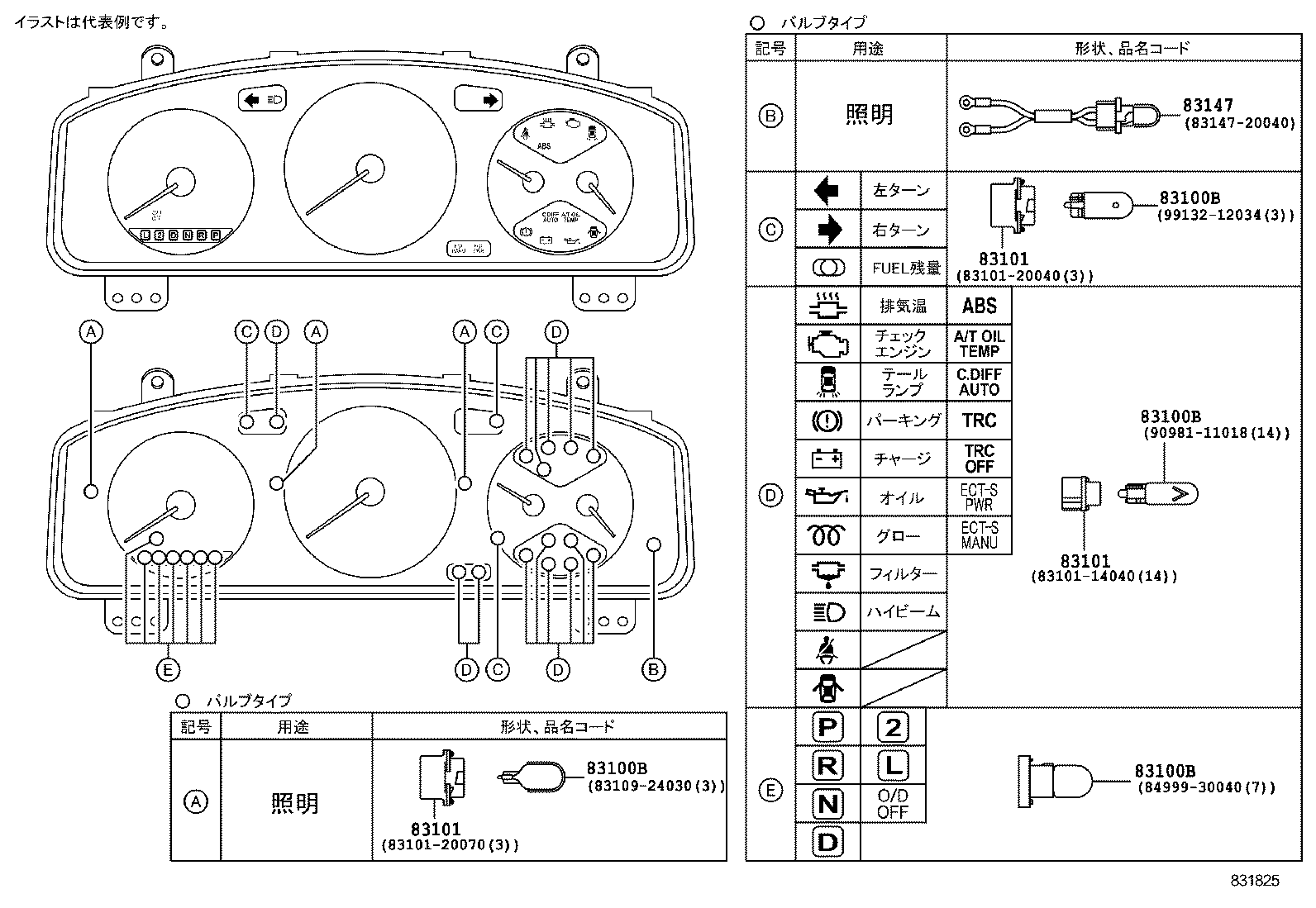

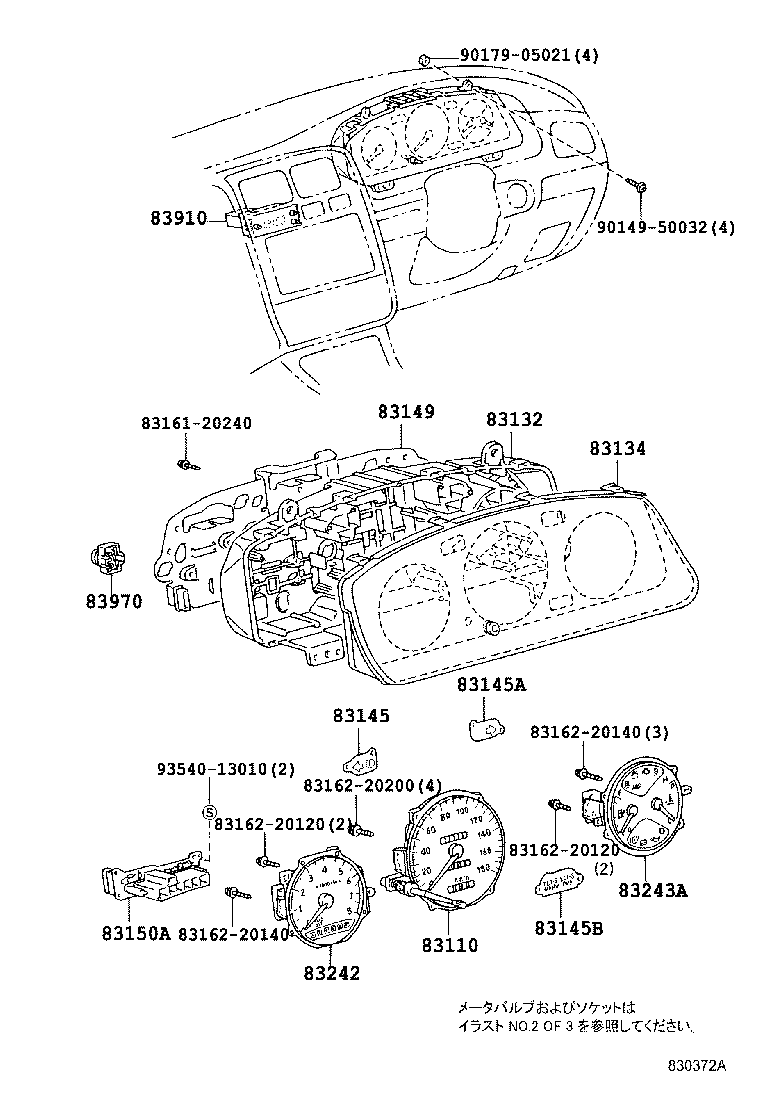

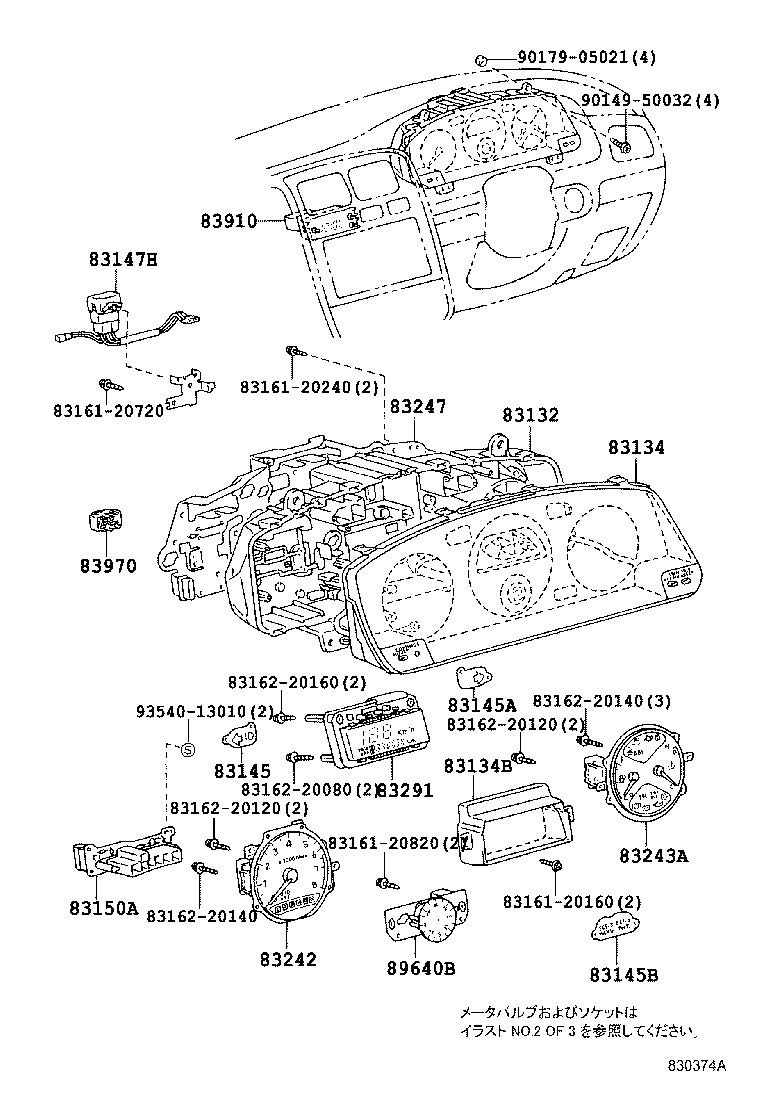

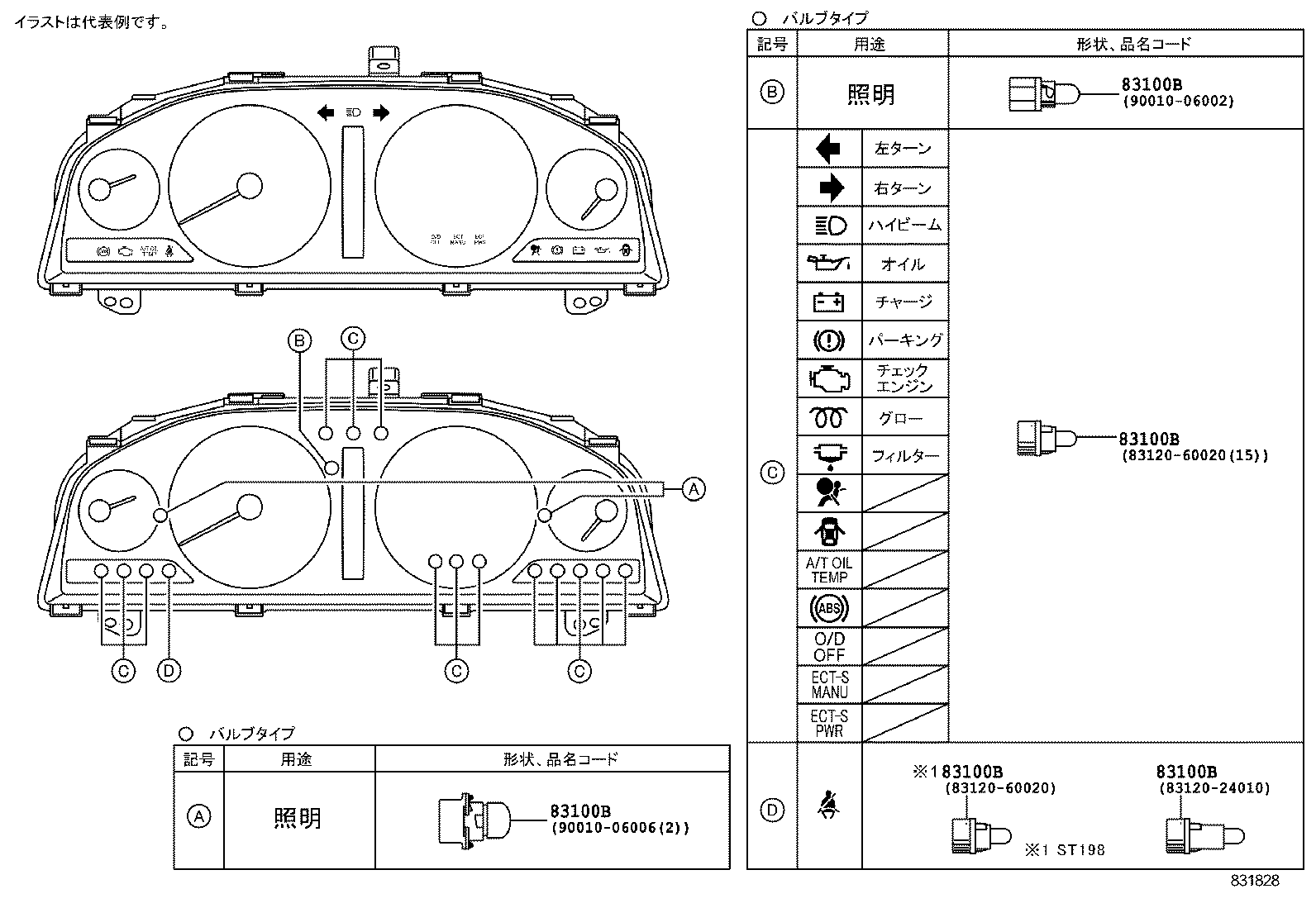

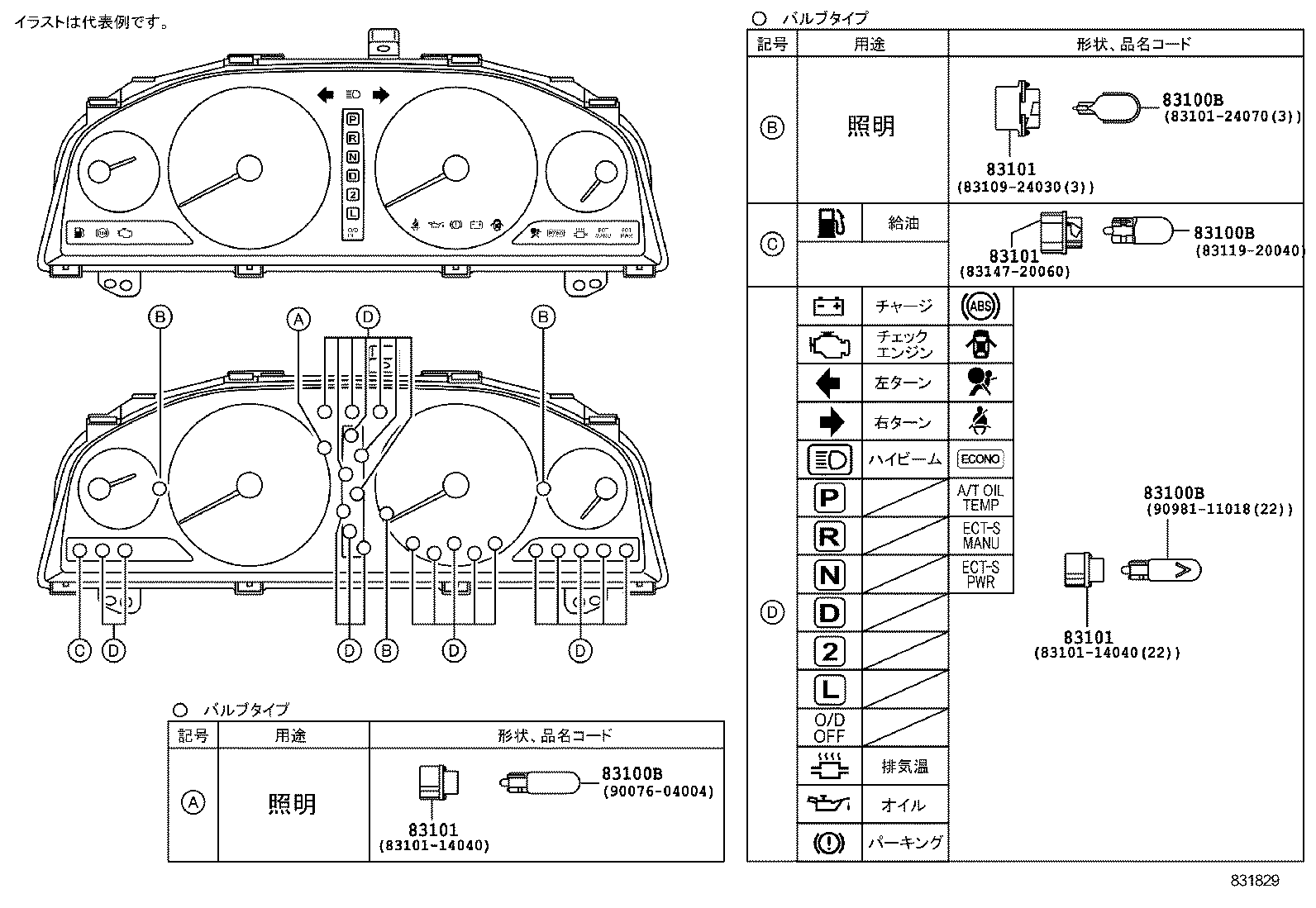

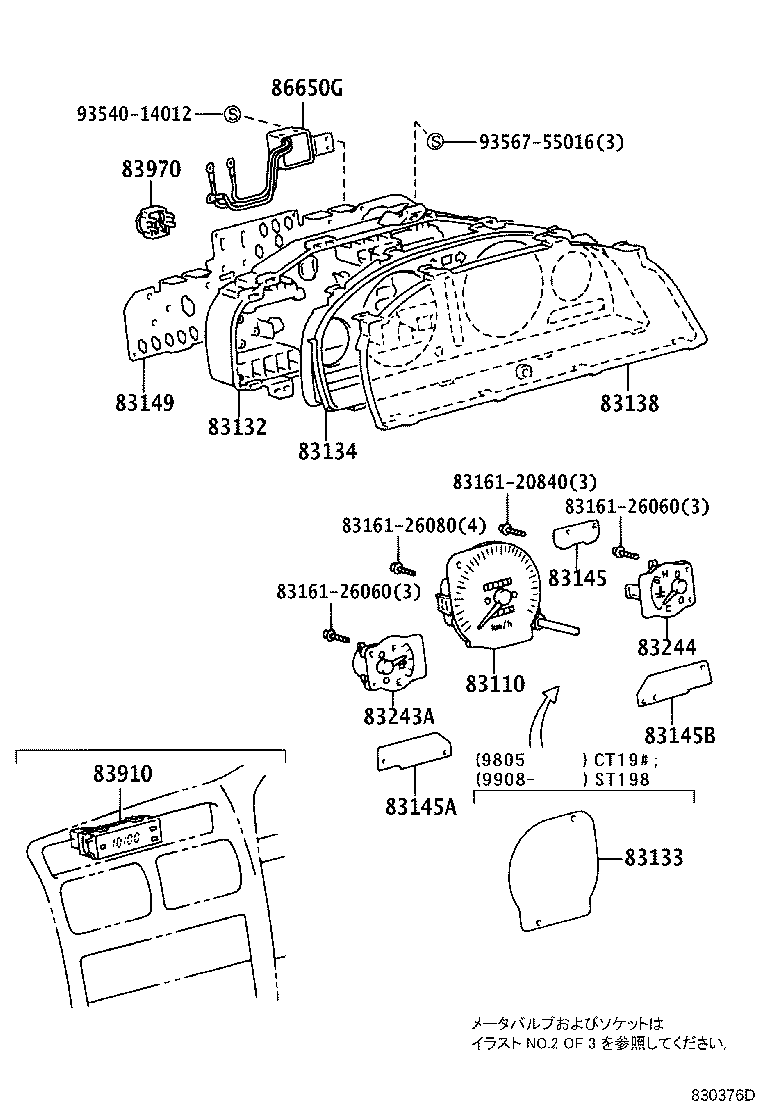

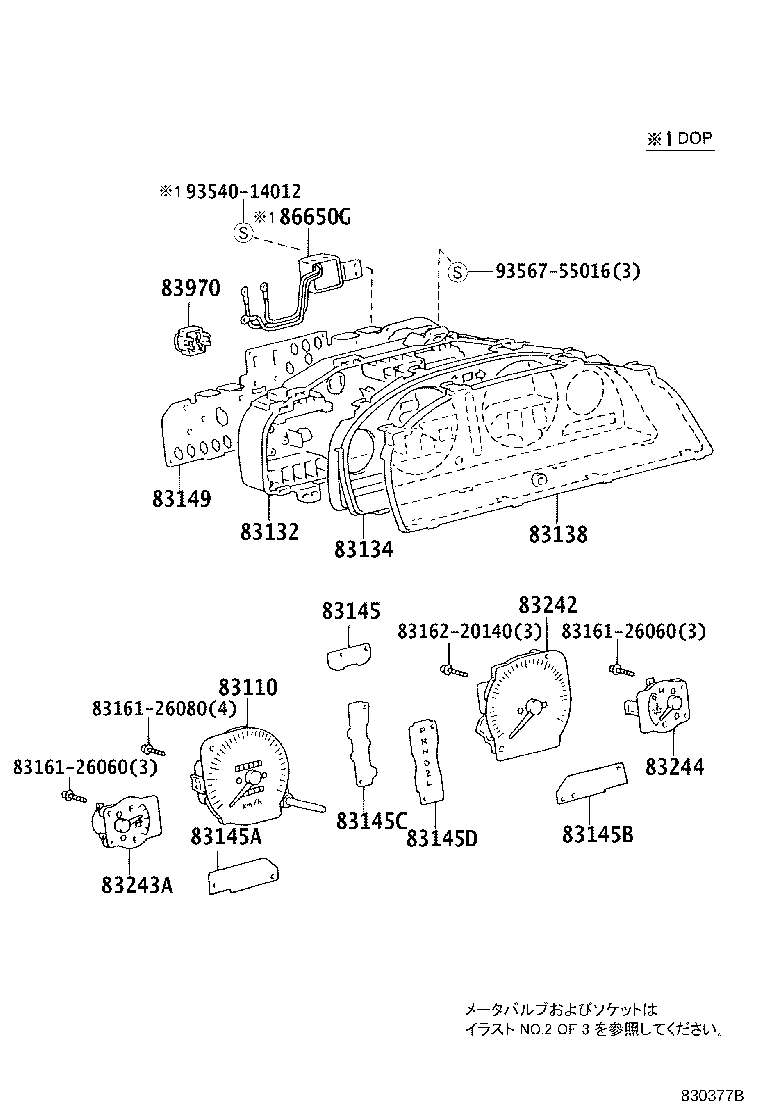

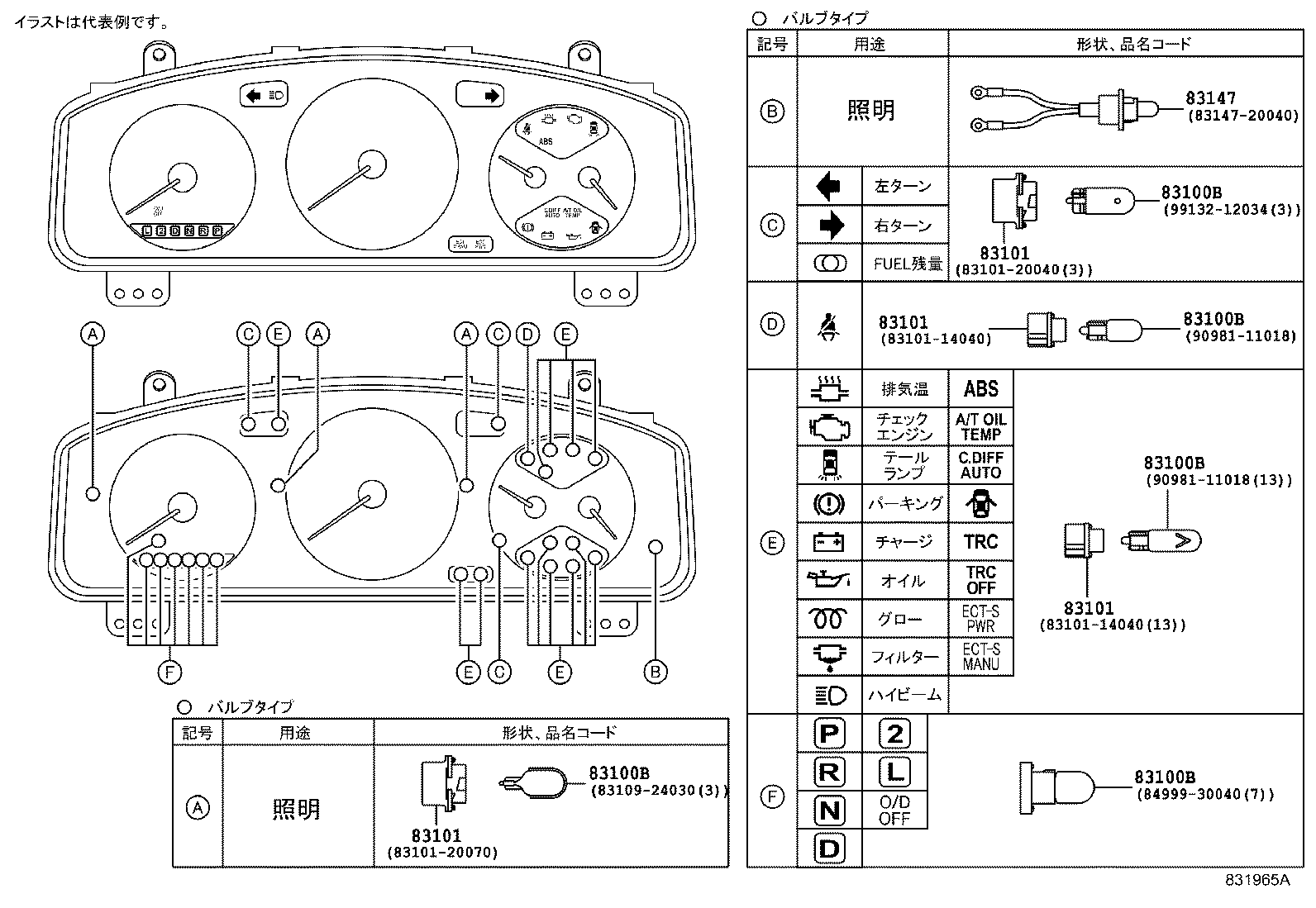

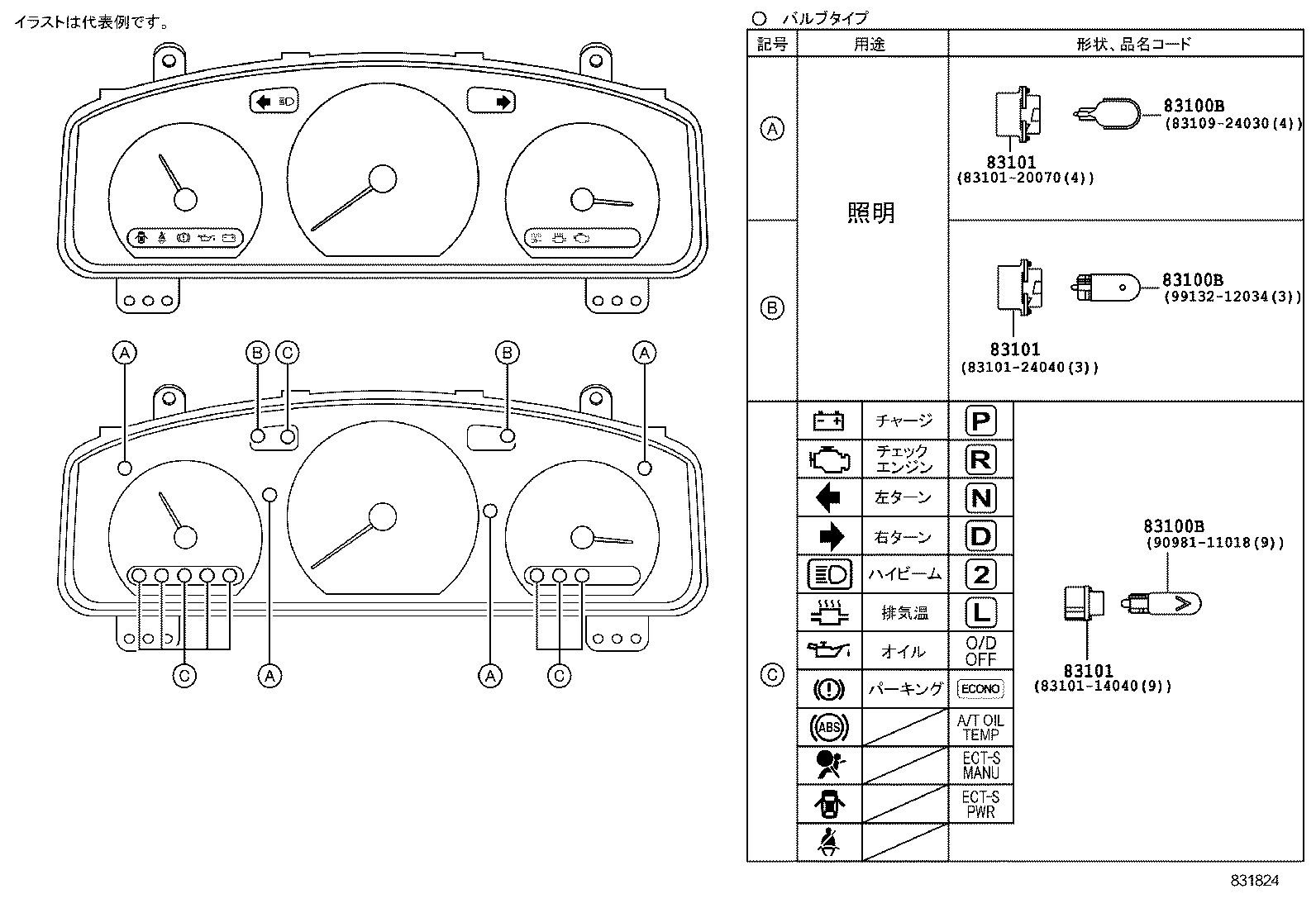

Figure 830371A 830371A 1992-11 → 1996-01 Figure 830372A 830372A 1992-11 → 1994-02 Figure 830374A 830374A 1992-11 → 1994-02 Figure 830373A 830373A 1994-02 → 1996-01 Figure 830375B 830375B 1996-01 → 1997-08 Figure 830376D 830376D 1997-08 → — Figure 830377B 830377B 1996-01 → — Figure 831824 831824 1992-11 → 1996-01 Figure 831825 831825 1992-11 → 1996-01 Figure 831964A 831964A 1992-01 → 1994-02 Figure 831965A 831965A 1994-02 → 1996-01 Figure 831826 831826 1996-01 → 1997-08 Figure 831828 831828 1997-08 → — Figure 831829 831829 1996-01 → — Figure 830378A 830378A 1992-11 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83134B Cover, Combination Meter, NO.2
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83145F Lens, Meter, NO.7
83145U Lens, Meter, NO.9
83145V Lens, Meter, NO.10
83147 Lamp, Meter NO.1
83147H Lamp, Meter NO.4
83149 Plate, Meter Circuit
83150A Indicator Assy
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83291 Computer, Combination Meter
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
86650G Buzzer Assy
89640B Compass Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
