Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01

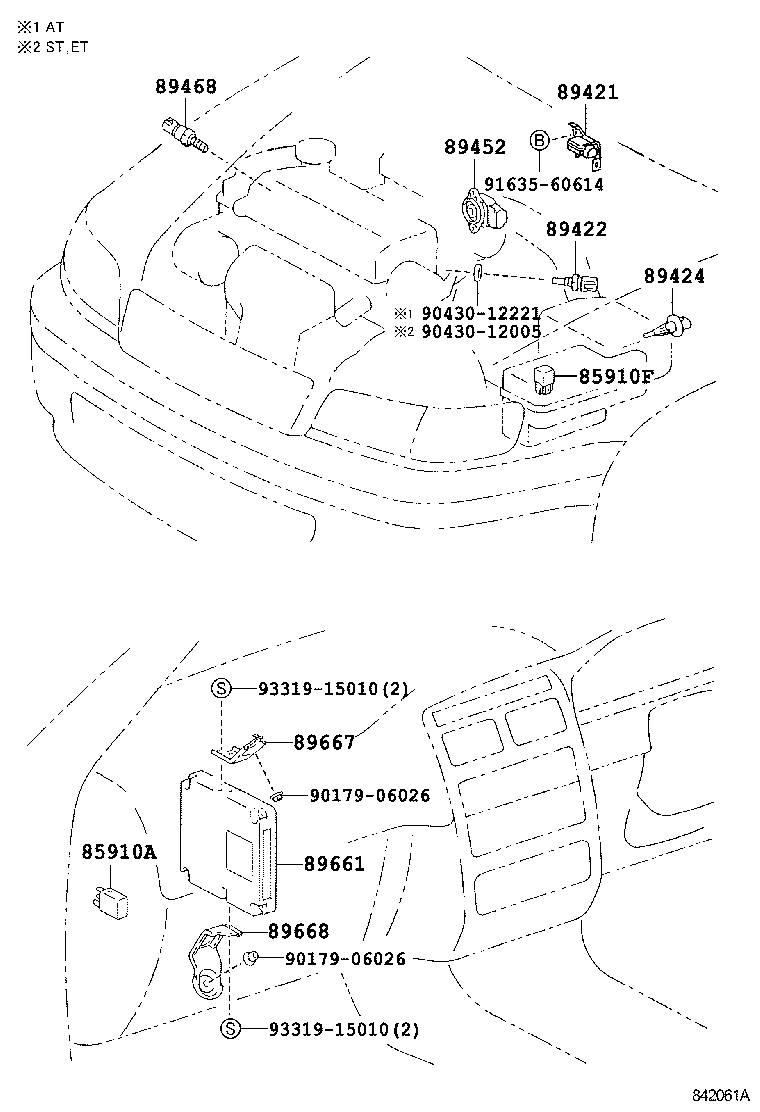

Electronic Fuel Injection System
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89468 | Sensor, Combustion Pressure |
| 89566 | Bracket, Fuel Injection Computer |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
