Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01
Overdrive & Electronic Controlled Transmission
14 part groups · 6 illustrations

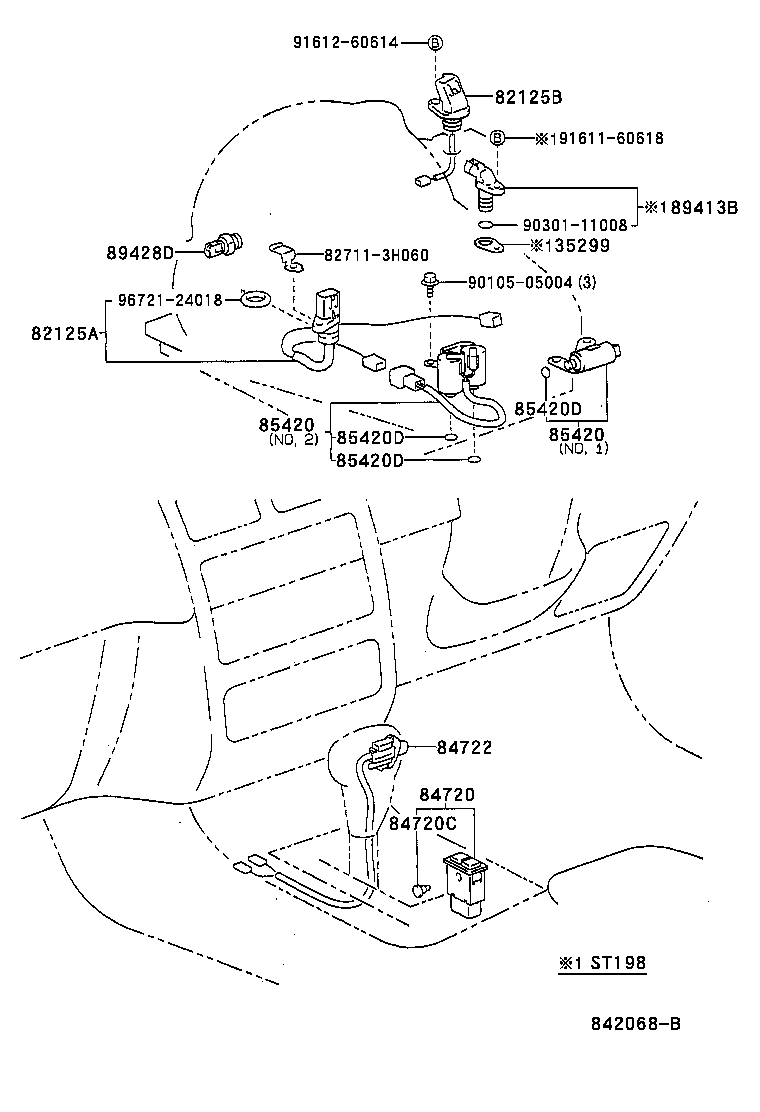

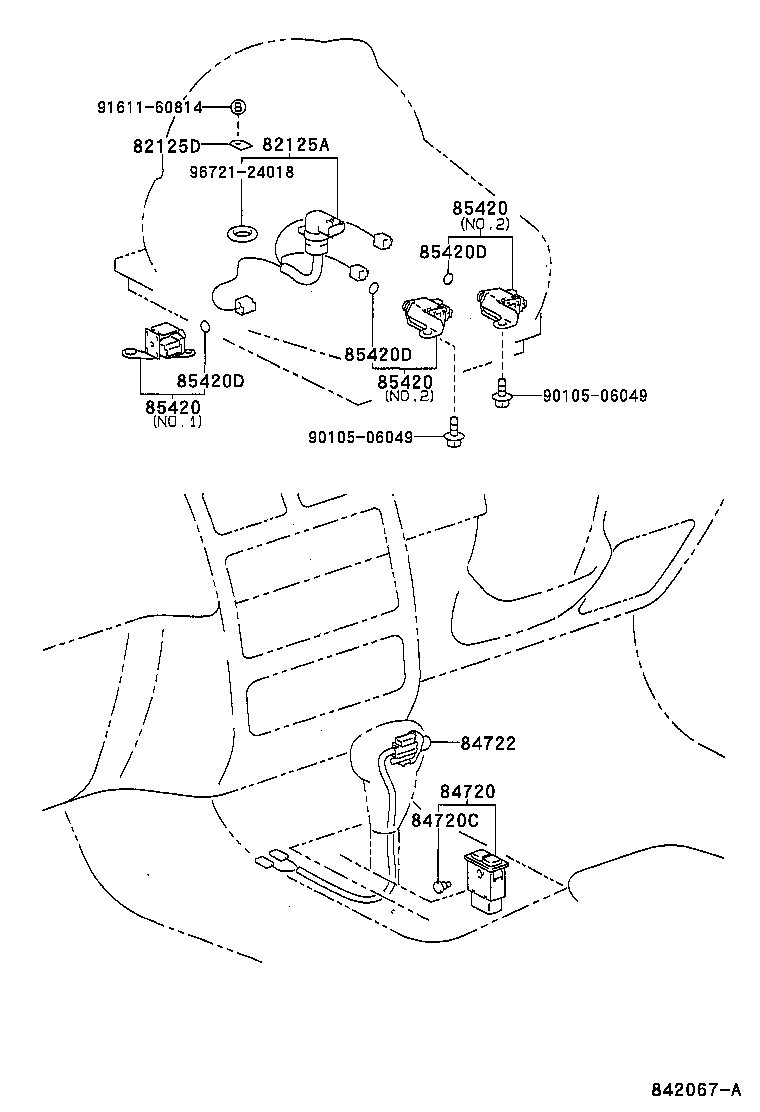

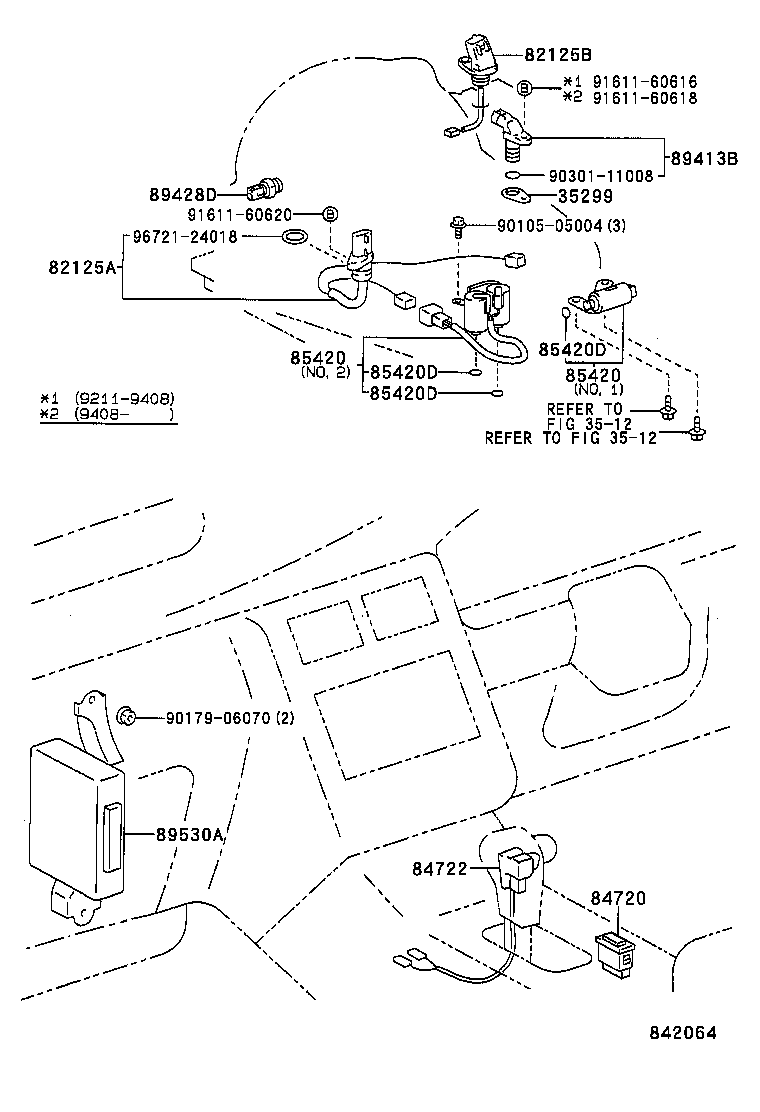

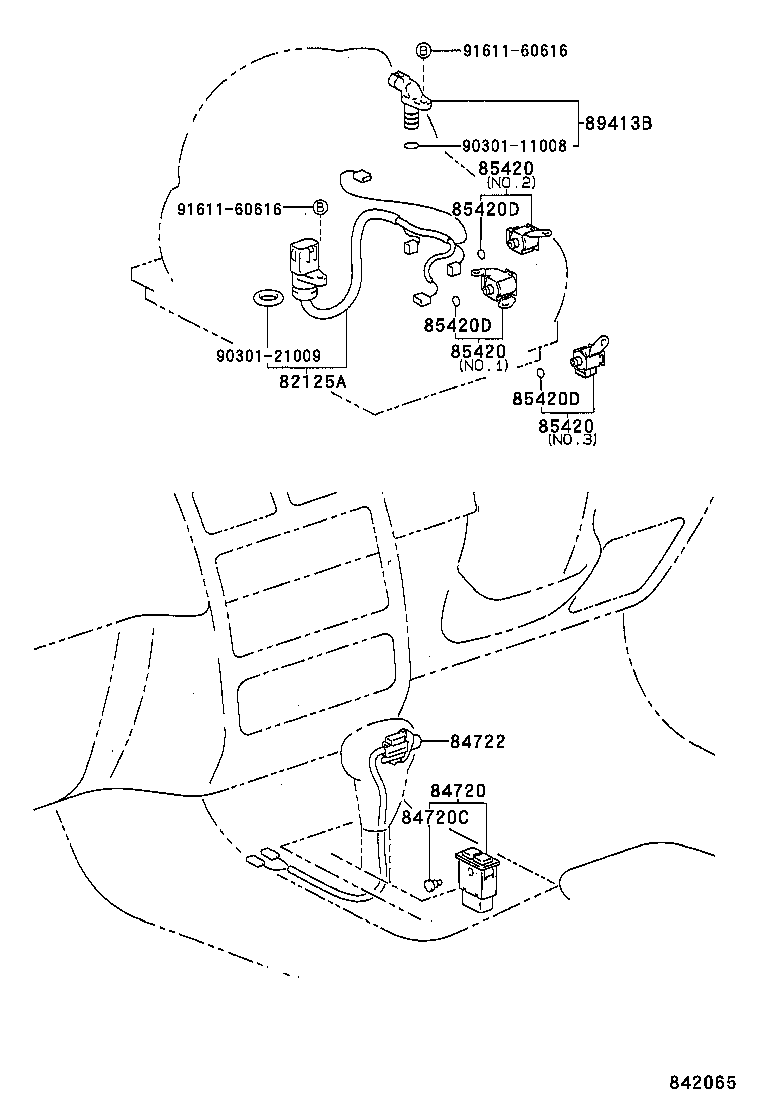

Part groups
| PNC | Description |
|---|---|
| 35299 | Spacer, Transmission Revolution Sensor |
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
| 89428D | Switch, Temperature, NO.2 |
| 89530A | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
