Toyota Caldina
1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan
Discontinued model
Data version 2003-01
Abs & Vsc
15 part groups · 5 illustrations
Part groups

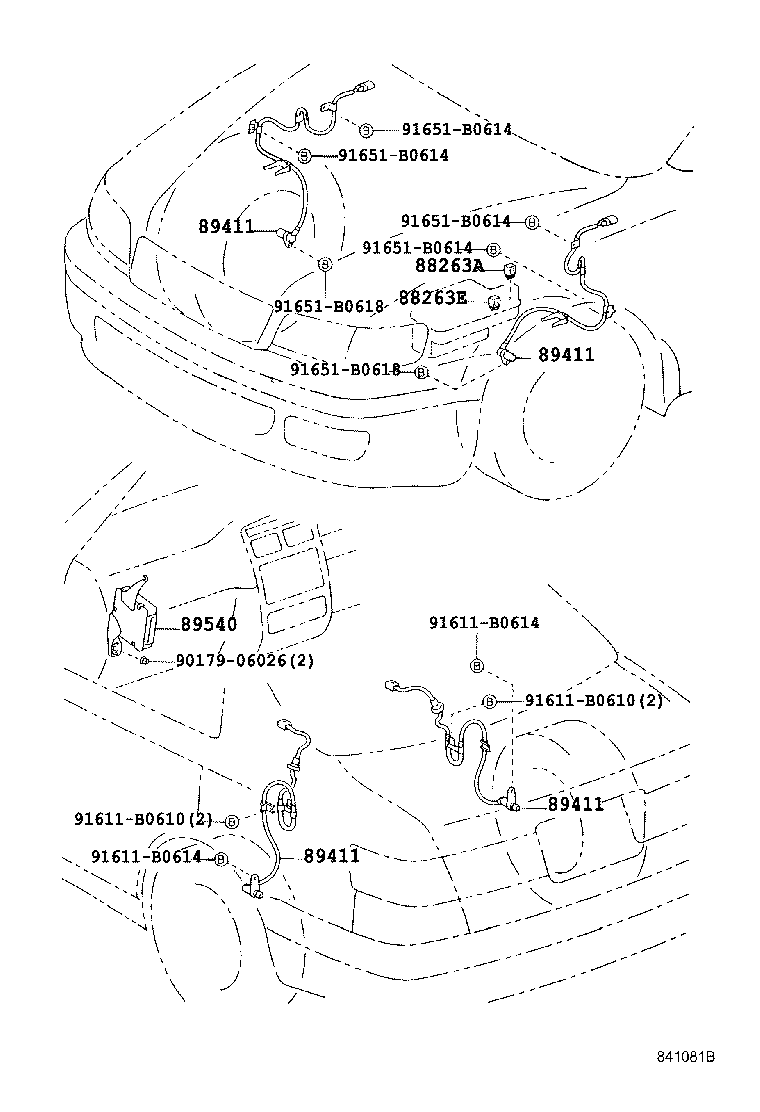

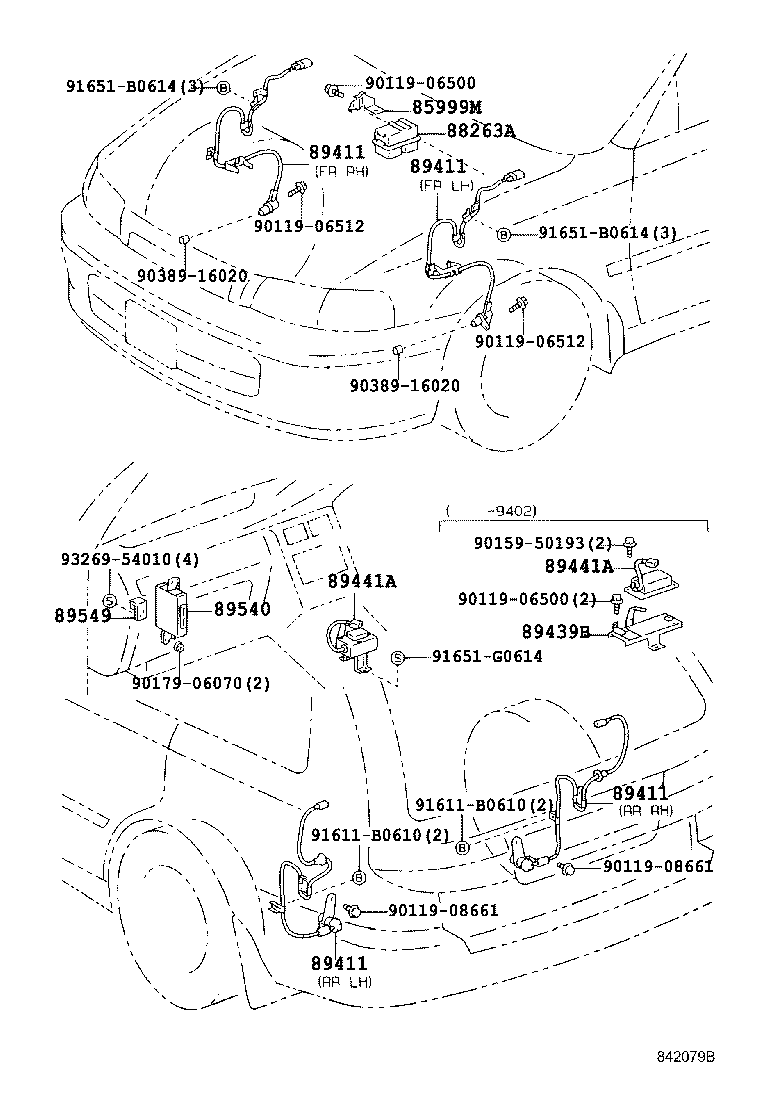

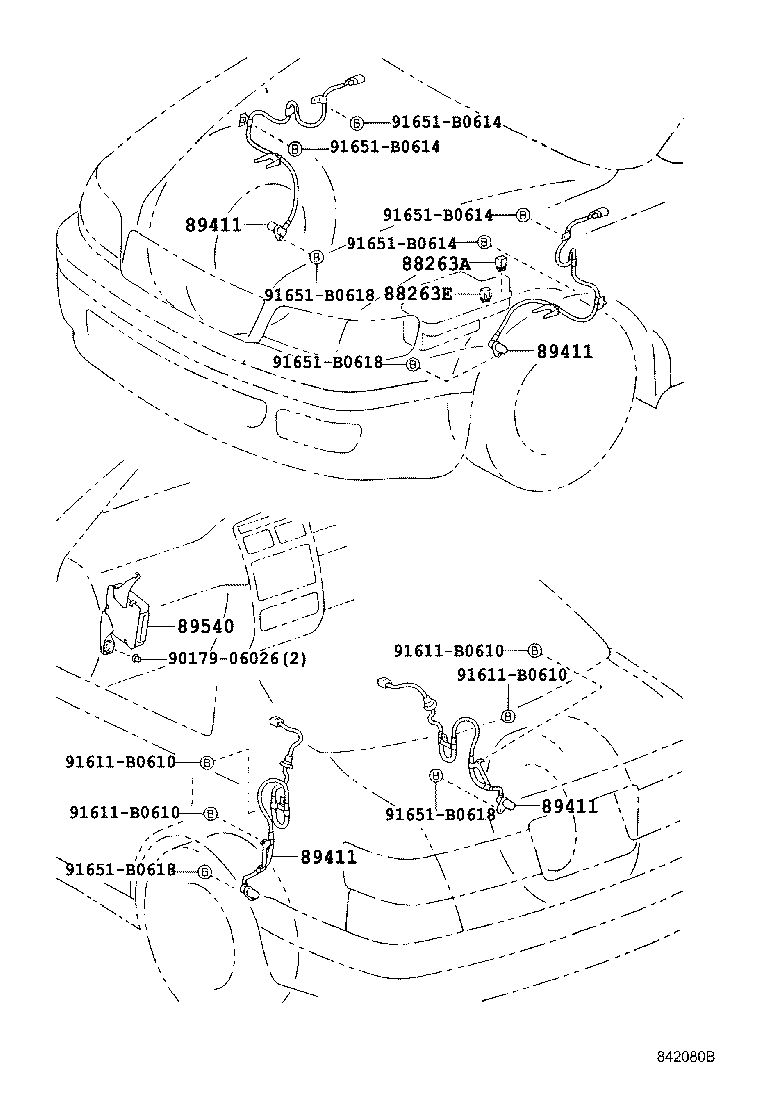

| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 88263E | Relay, Skid Control NO.2 |
| 89411 | Sensor, Speed |
| 89439B | Bracket, Sensor |
| 89441A | Sensor, Deceleration |
| 89540 | Computer Assy, Skid Control |
| 89541 | Computer, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549 | Bracket, Skid Control Computer |
| 89771 | Cover, Abs Relay Block, Upper |
| 89773 | Case, Abs Relay Block |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
