Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 3 illustrations

Illustrations

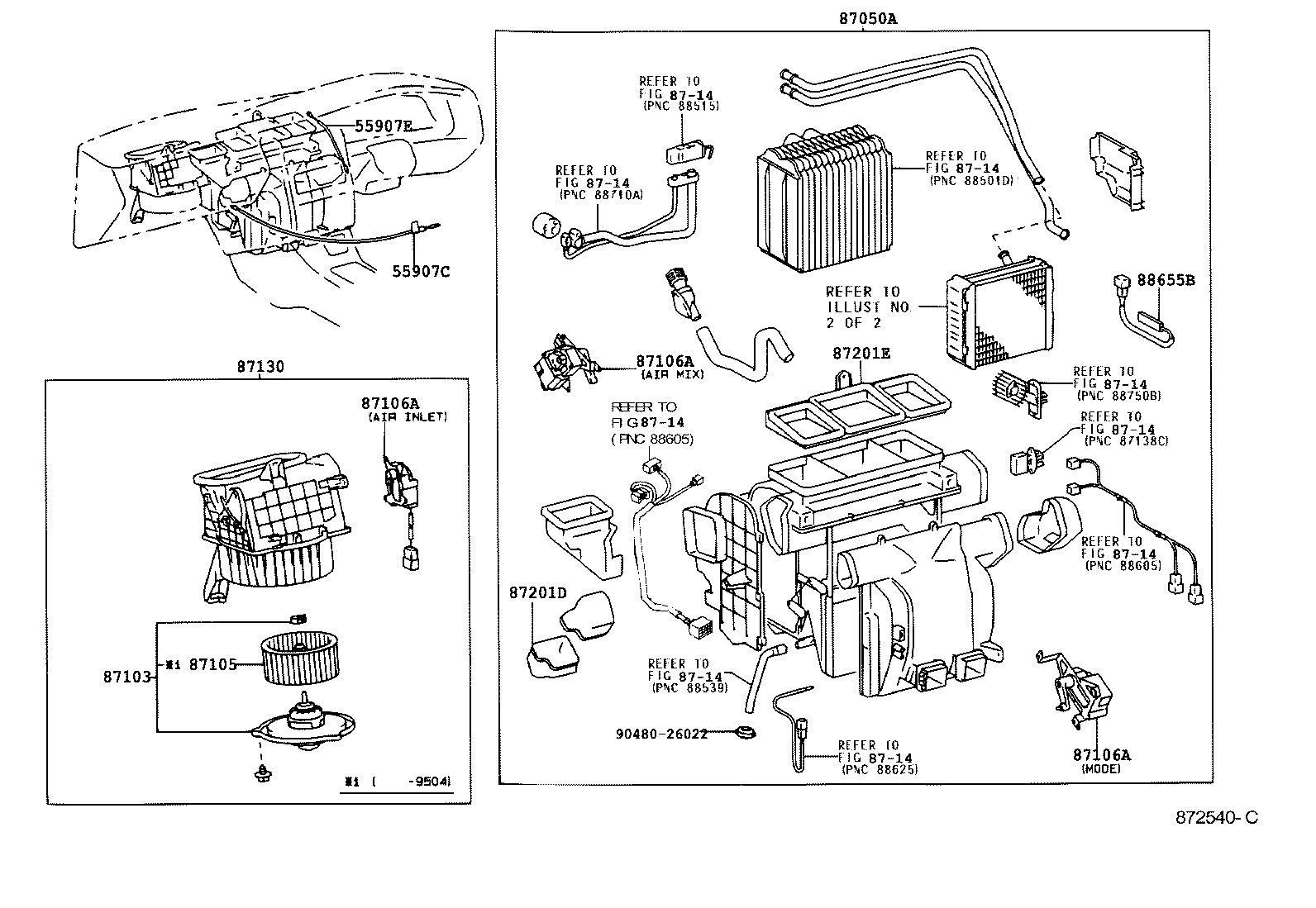

Figure 872539B 872539B 1992-11 → 1996-01 Figure 872540C 872540C 1992-11 → 1996-01 Figure 873939A 873939A 1992-11 → 1996-01

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
55907E Cable Sub-assy, Water Valve Control, NO.2
55908B Cable Sub-assy, Air Inlet Damper Control
87050A Radiator Assy, Air Conditioner
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87201D Duct Sub-assy, Air
87201E Duct Sub-assy, Air, NO.2
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
