Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

23 part groups · 3 illustrations

Illustrations

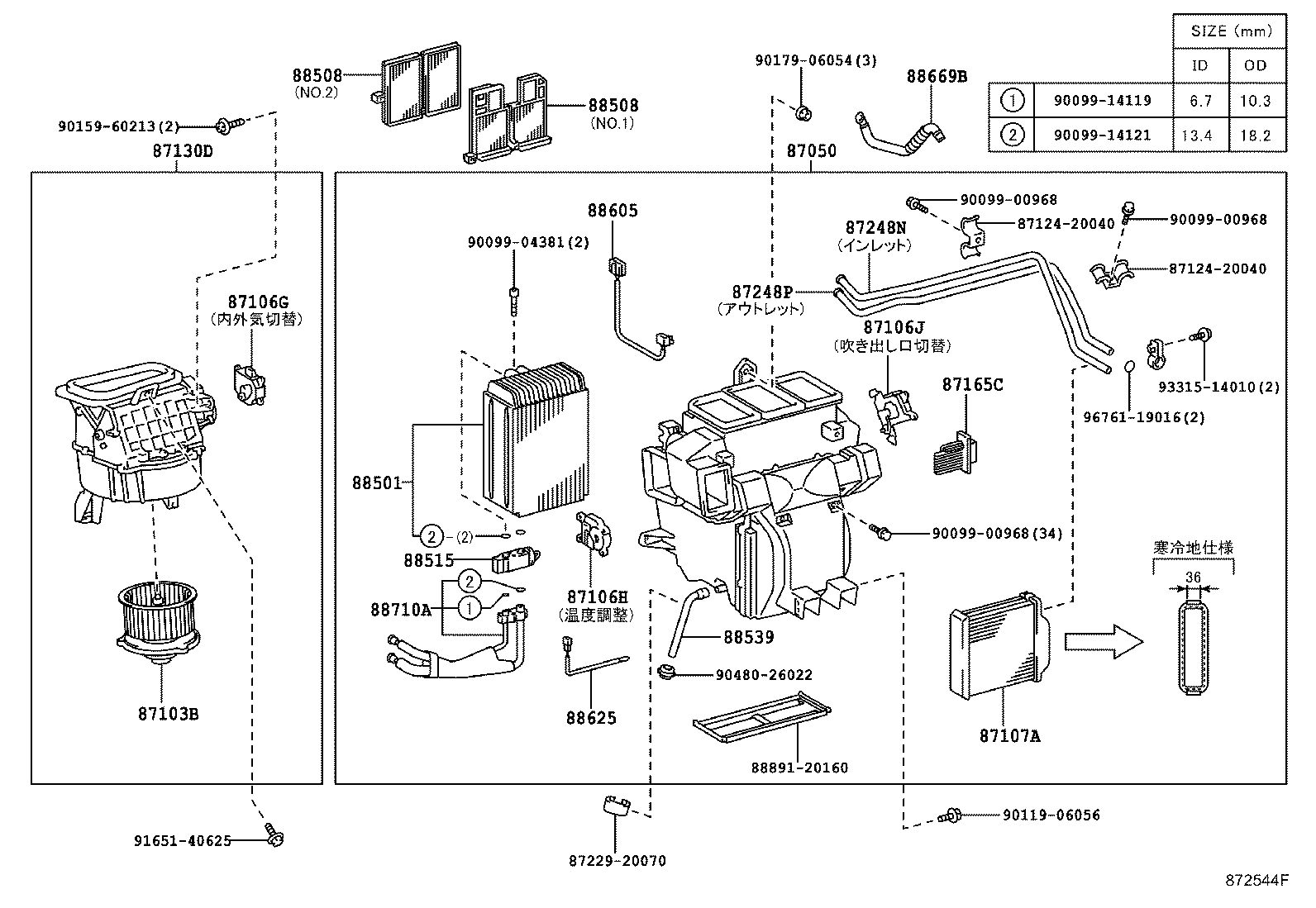

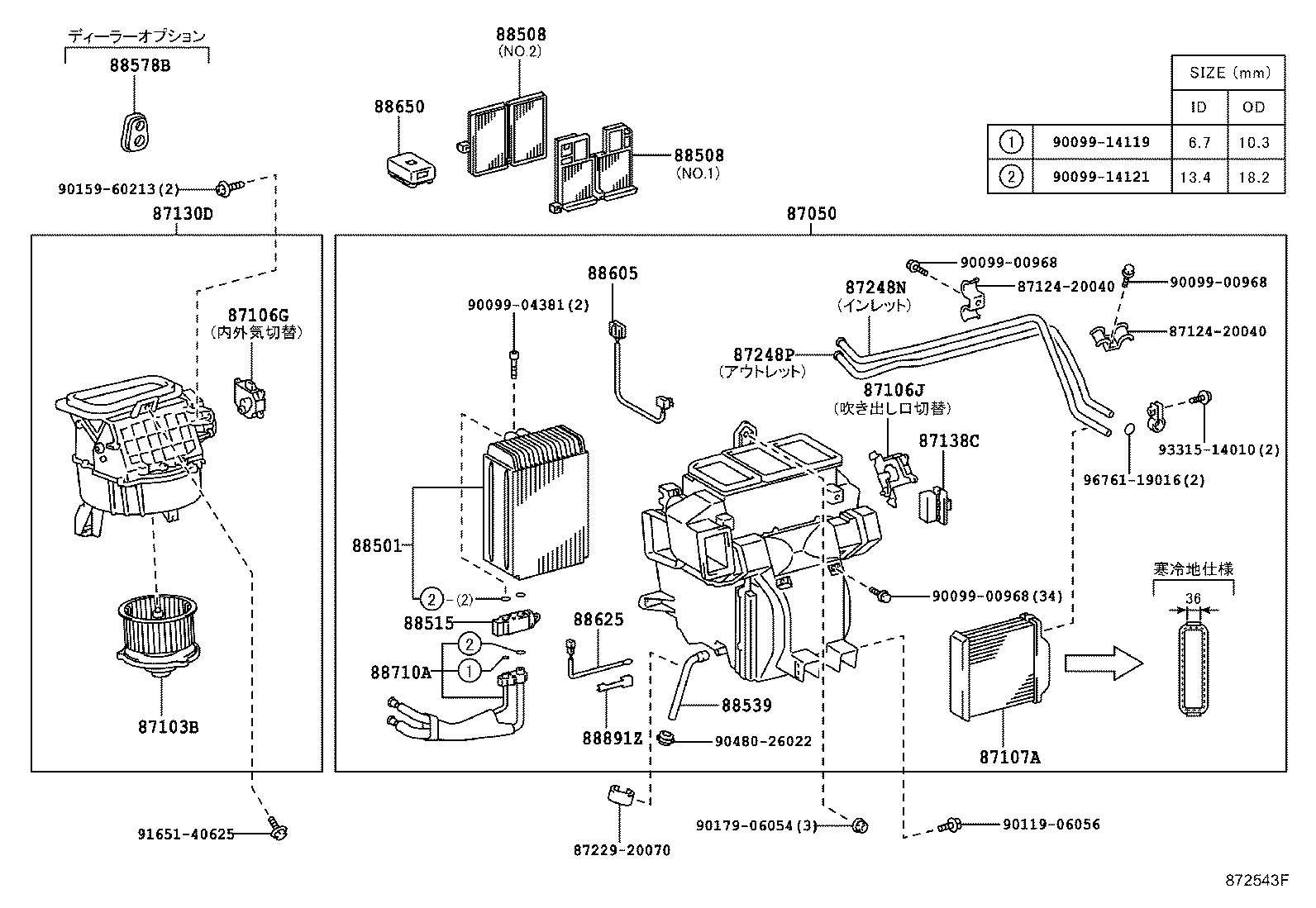

Figure 872542E 872542E 1992-11 → 1996-01 Figure 872543F 872543F 1996-01 → — Figure 872544F 872544F 1996-01 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106G Servo Sub-assy, Damper(FOR BLOWER)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87165C Control, Blower Motor
87248N Pipe, Heater Water Inlet
87248P Pipe, Heater Water Outlet
88501 Evaporator Sub-assy, Cooler, NO.1
88508 Filter Sub-assy, Clean Air
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88750B Transistor Assy, Blower Resistor
88891Z Bracket, Cooler Thermistor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
