Heating & Air Conditioning - Control & Air Duct

29 part groups · 8 illustrations

Illustrations

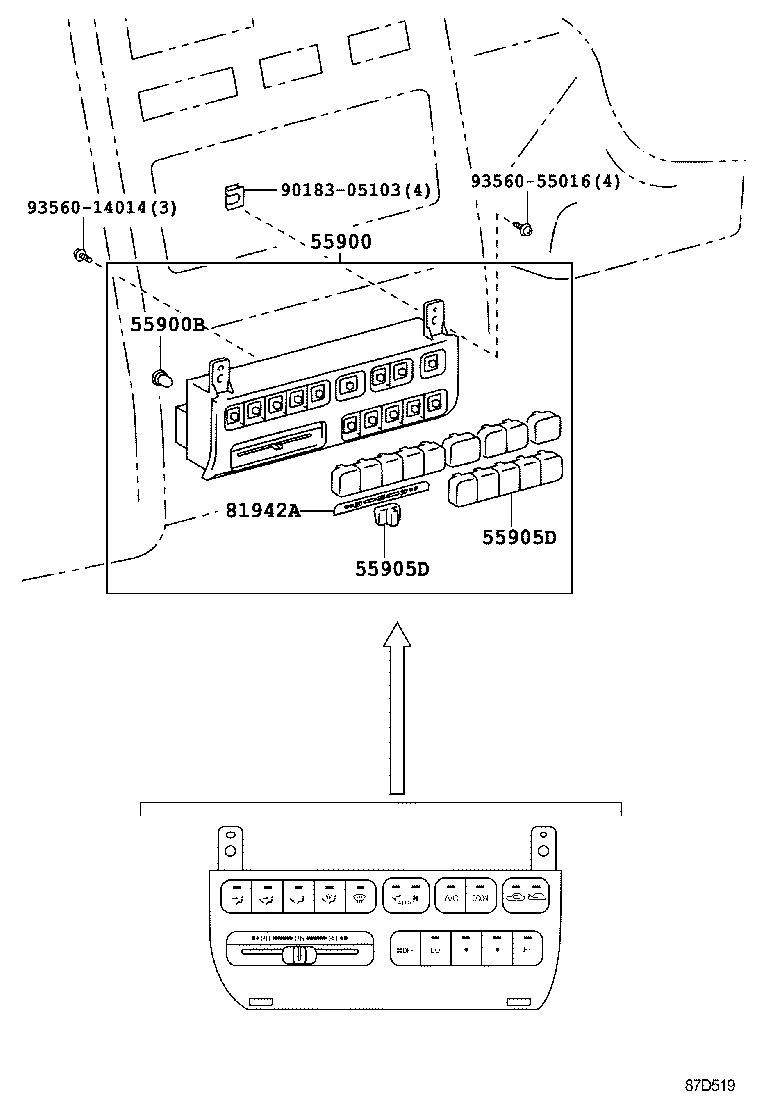

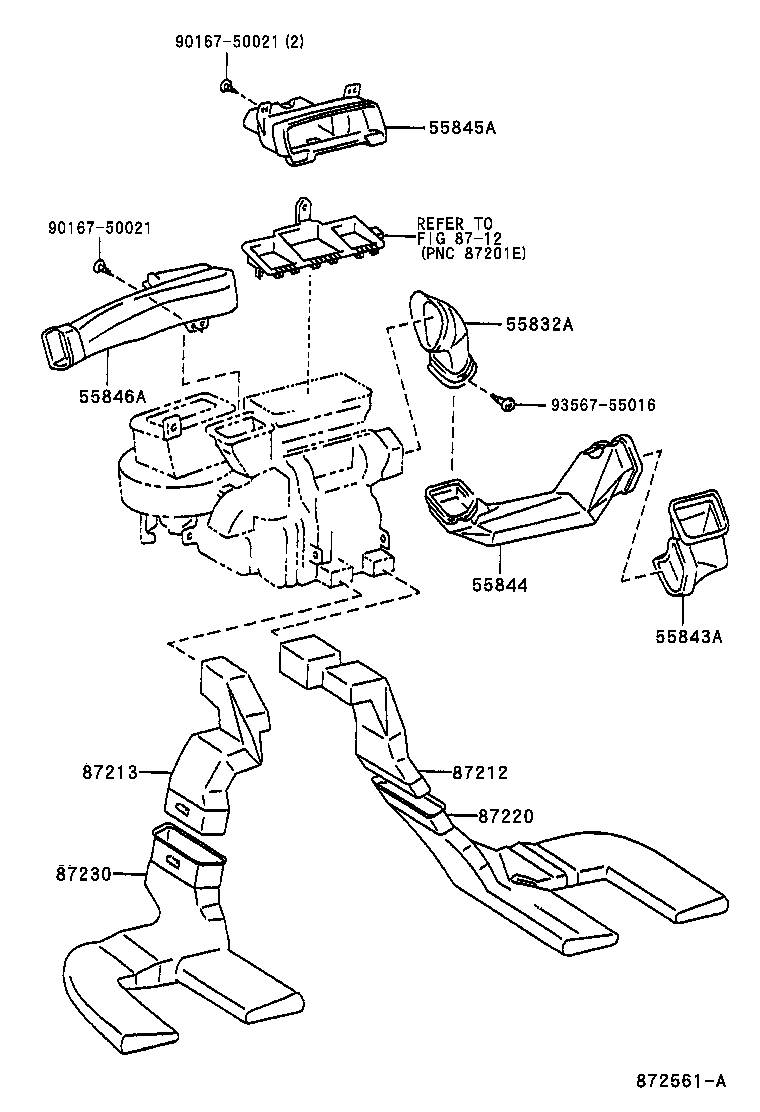

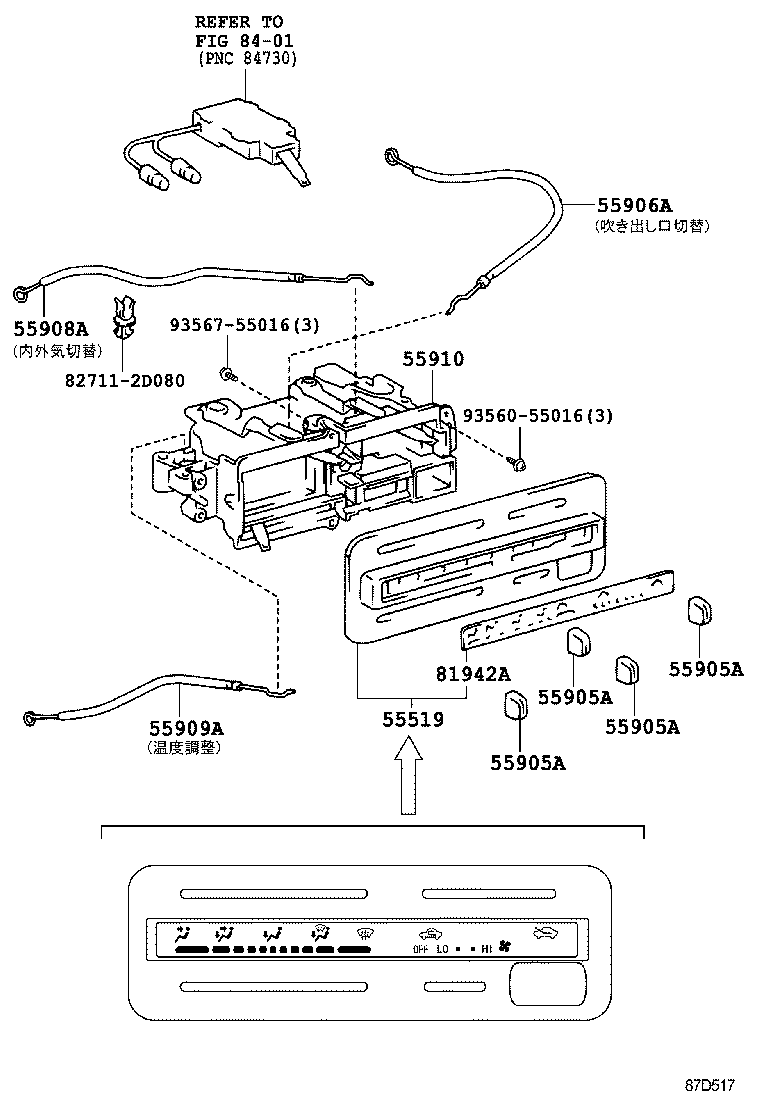

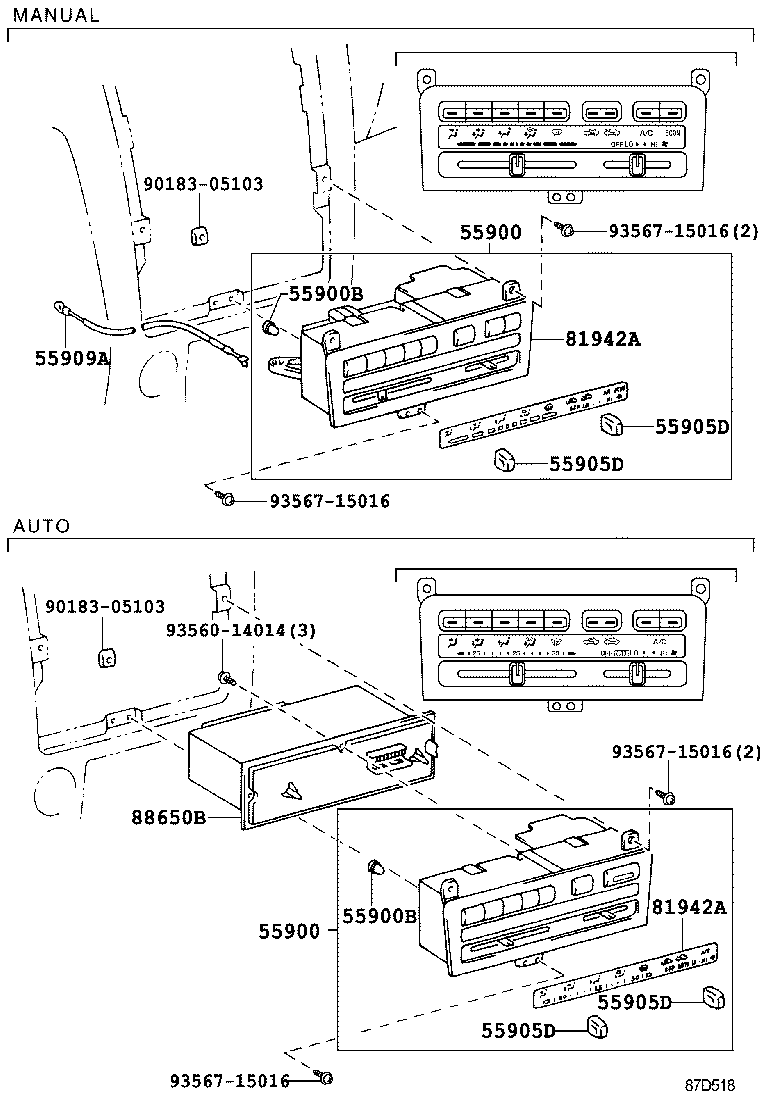

Figure 87D516 87D516 1992-11 → 1996-01 Figure 87D517 87D517 1996-01 → — Figure 87D519 87D519 1992-11 → 1996-01 Figure 87D518 87D518 1996-01 → — Figure 872561A 872561A 1992-11 → 1996-01 Figure 872545A 872545A 1996-01 → — Figure 872562 872562 1992-11 → 1996-01 Figure 873993 873993 1996-01 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55831B Connector, Instrument Panel Register, RH
55832A Connector, Instrument Panel Register, NO.2
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905D Knob Sub-assy, Control
55906 Cable Sub-assy, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81942A Sheet, Heater Control Name, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
87230 Duct Assy, Air, Heater
87275 Duct, Floor Heater Air, NO.1 RH
87276 Duct, Floor Heater Air, NO.1 LH
87277A Duct, Floor Heater Air, NO.2 RH
87278A Duct, Floor Heater Air, NO.2 LH
88625C Thermistor, Cooler
88650B Amplifier Assy, Airconditioner
88669A Hose (FOR COOLER THERMISTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
