Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

27 part groups · 7 illustrations

Illustrations

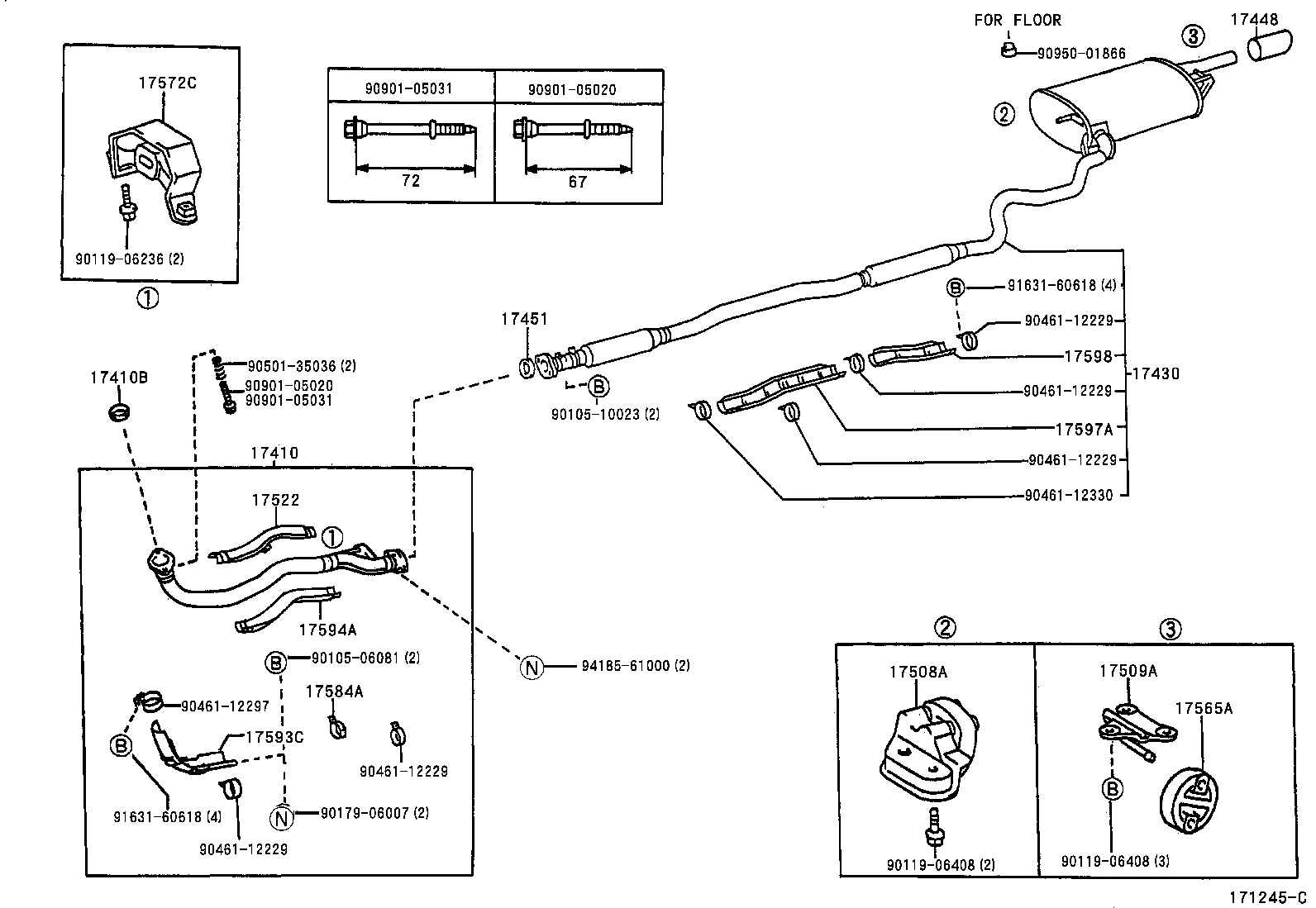

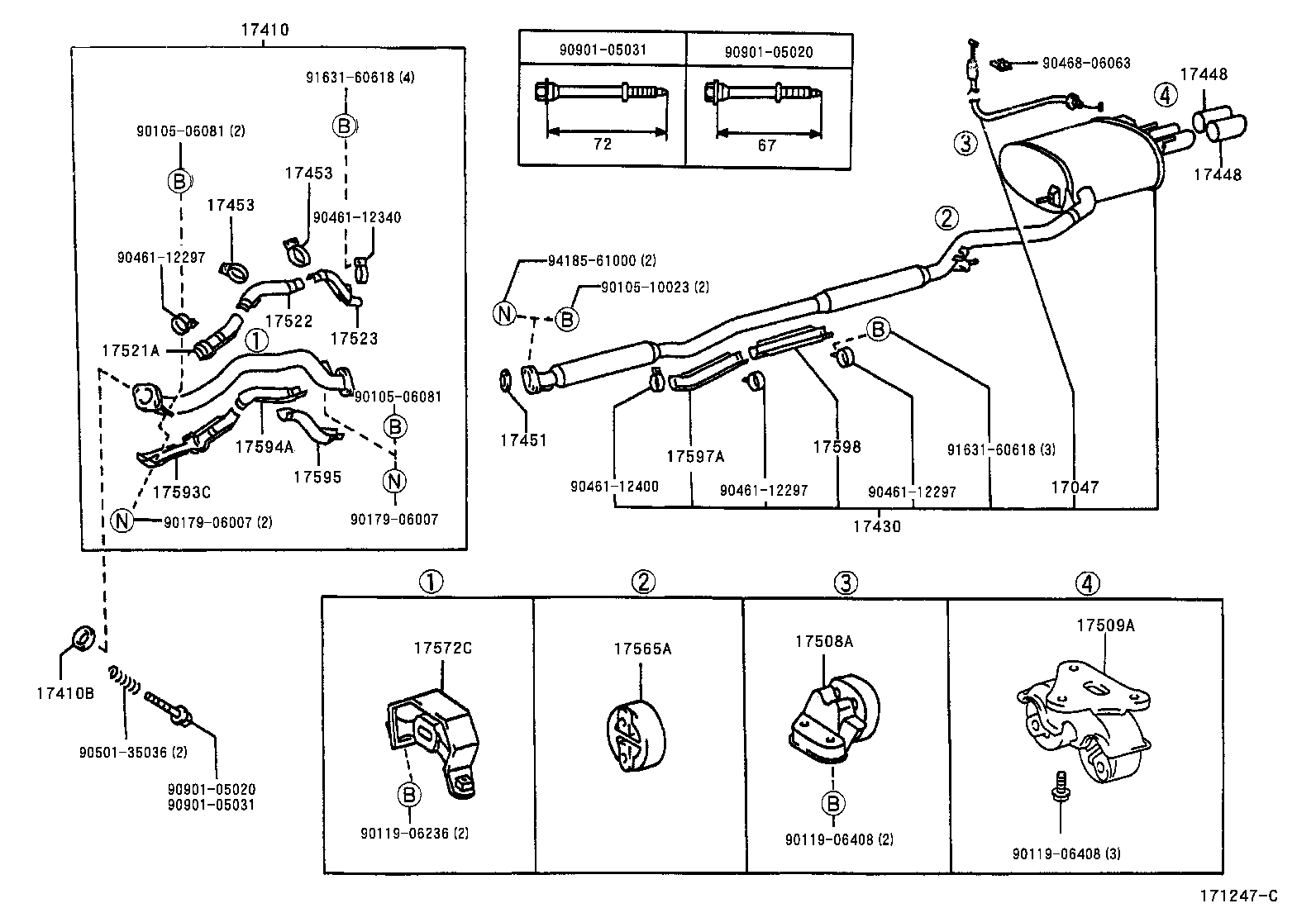

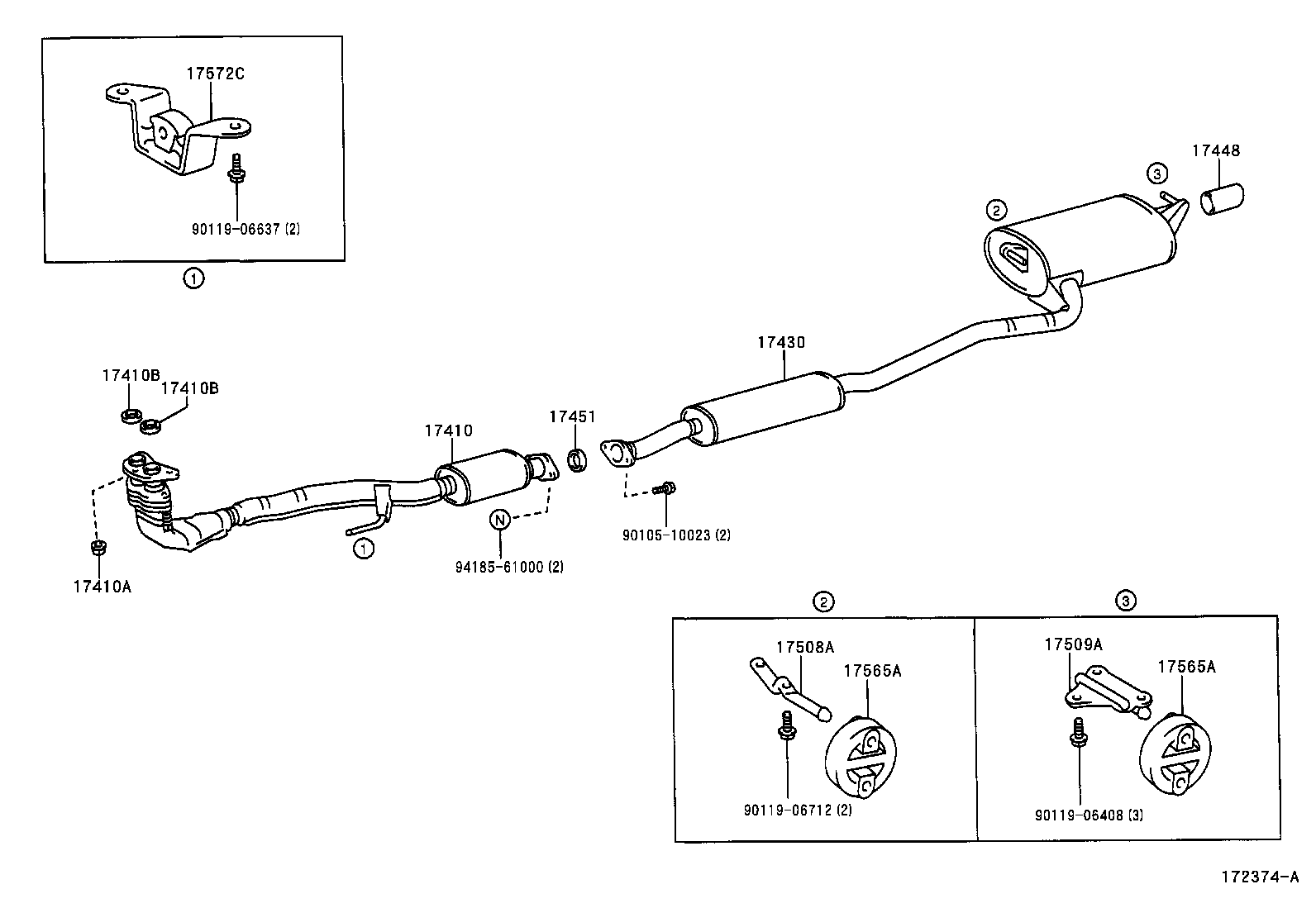

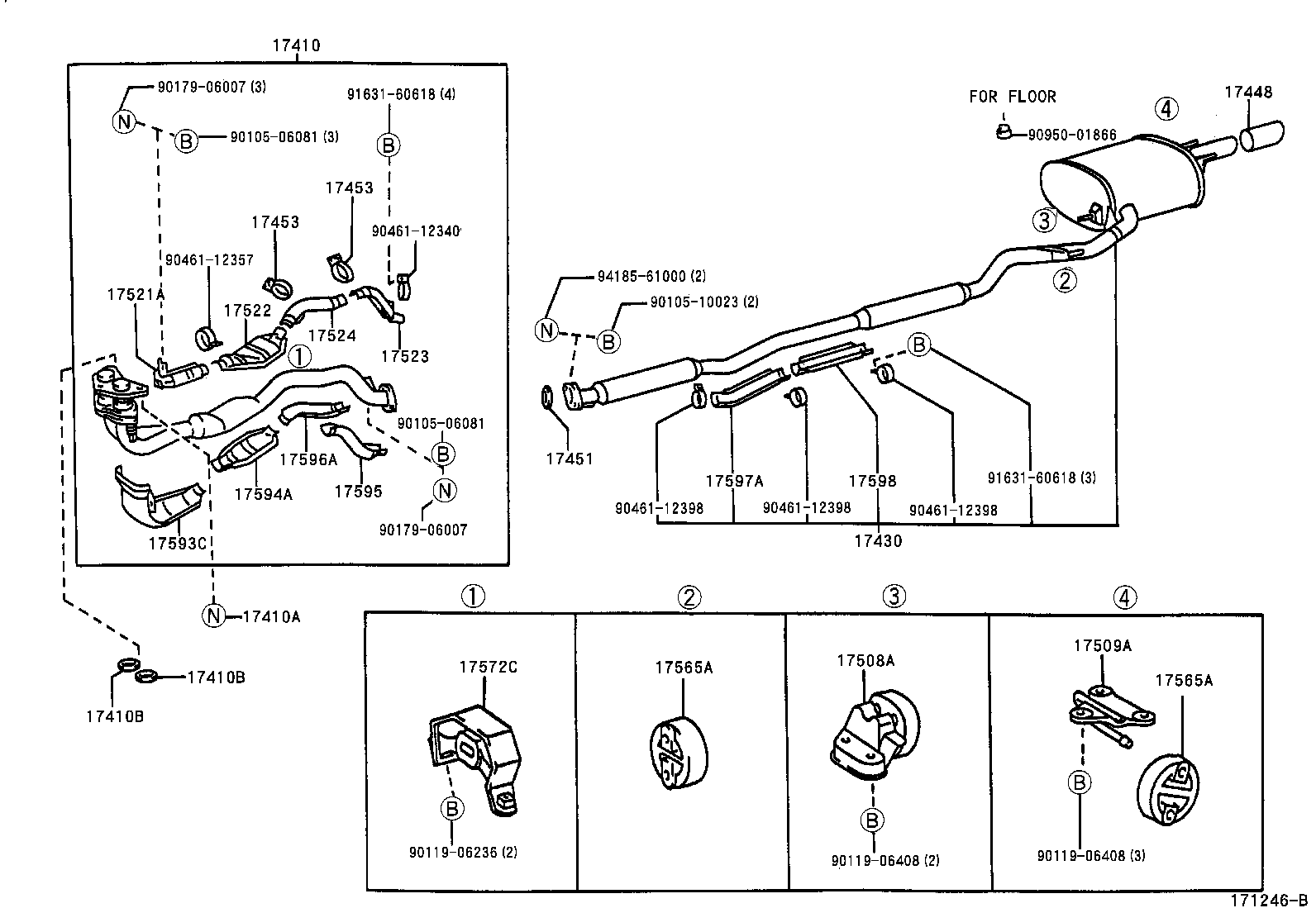

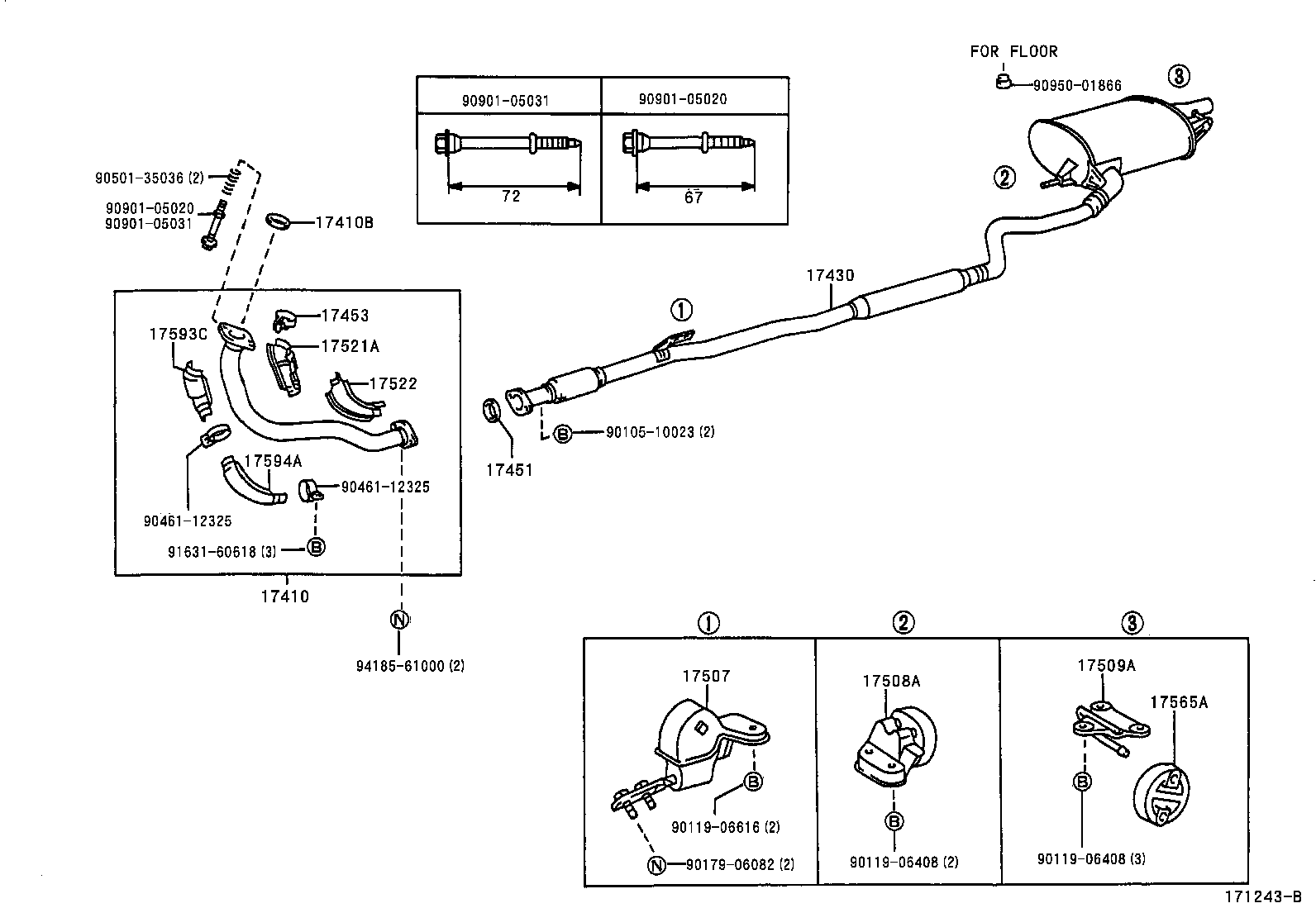

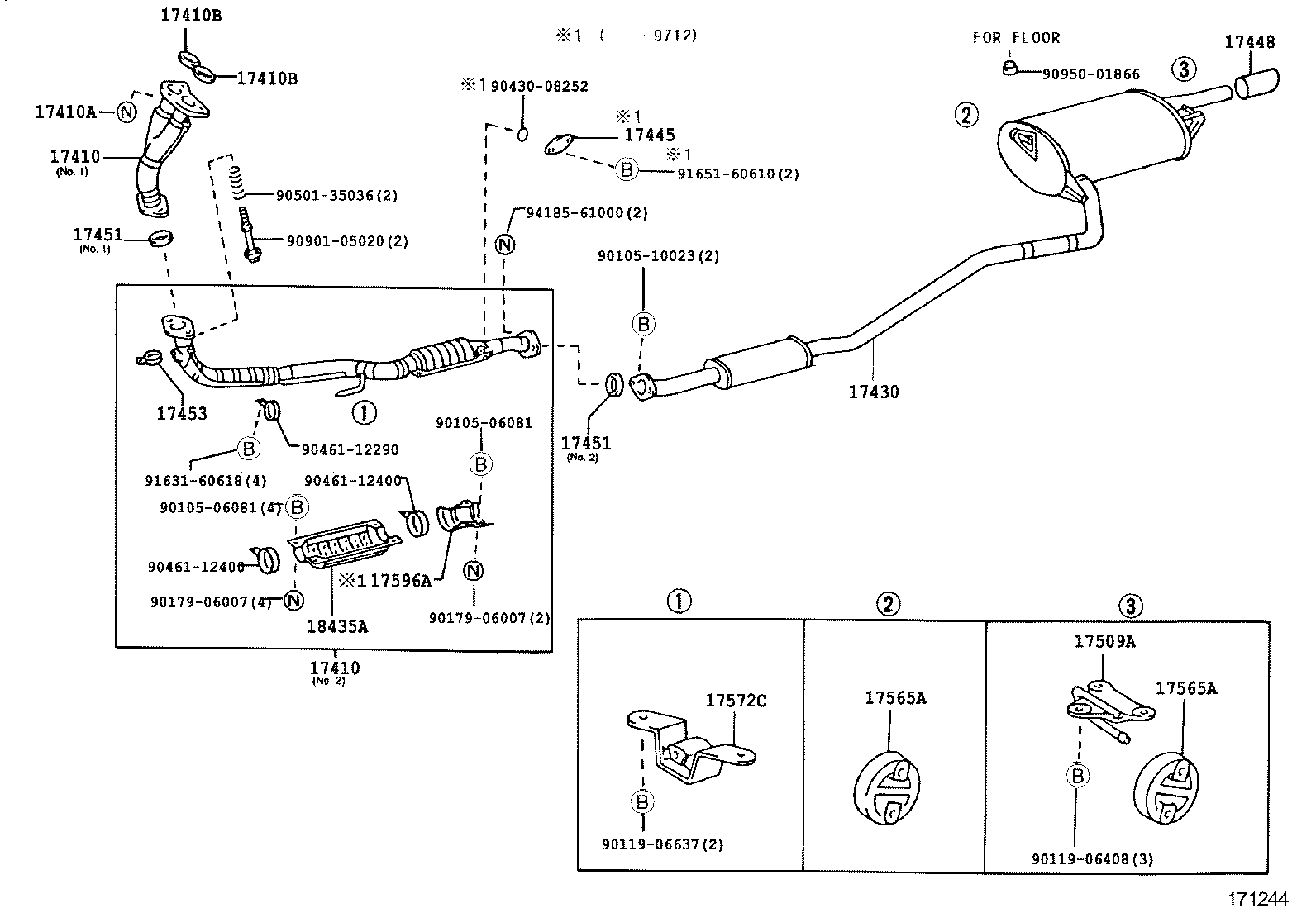

Figure 171242C 171242C 1997-08 → — Figure 171243B 171243B 1997-08 → — Figure 171244E 171244E 1997-08 → — Figure 171245C 171245C 1997-08 → — Figure 172374A 172374A 1997-08 → — Figure 171246B 171246B 1997-08 → — Figure 171247C 171247C 1997-08 → —

Part groups

PNCDescription
17047 Cable Sub-assy, Exhaust Pipe Gas Control
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17445 Collar, Exhaust Pipe
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17453 Clamp, Exhaust Pipe, NO.2
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508A Bracket Sub-assy, Exhaust Pipe NO.3 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17523 Protector, Exhaust Pipe, Upper NO.3
17524 Protector, Exhaust Pipe, Upper NO.4
17565A Support, Exhaust Pipe, NO.4
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17581A Damper, Exhaust Pipe
17584A Stopper, Exhust Pipe, NO.1
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
17595 Protector, Exhaust Pipe, Lower NO.3
17596A Protector, Exhaust Pipe, Lower NO.4
17597A Protector, Exhaust Pipe, Lower NO.5
17598 Protector, Exaust Pipe, Lower NO.6
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
