Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

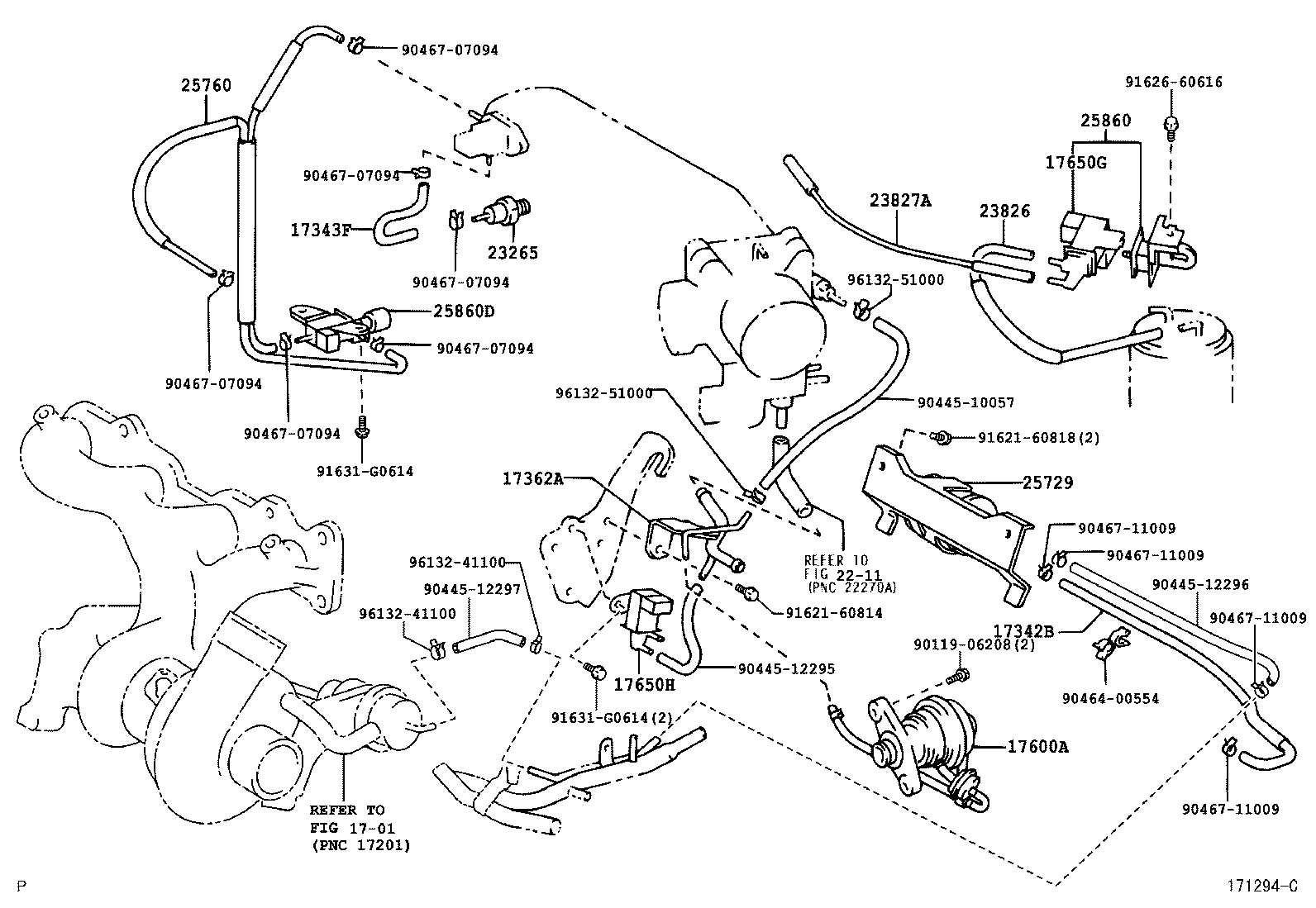

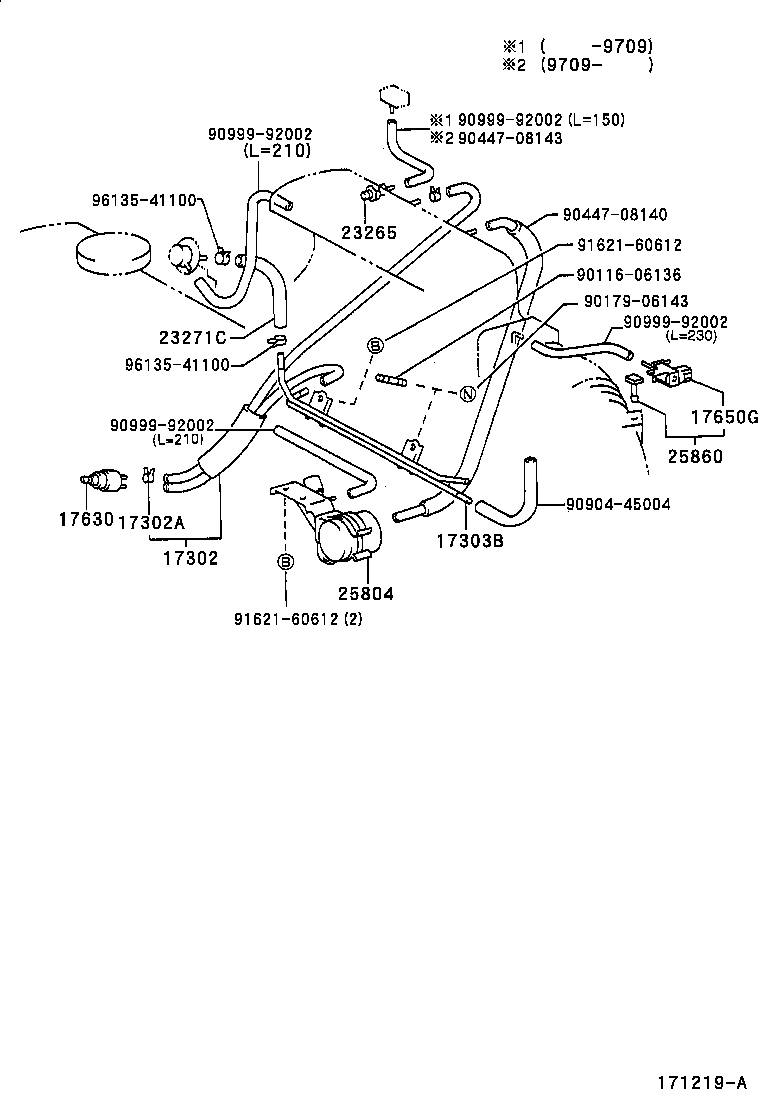

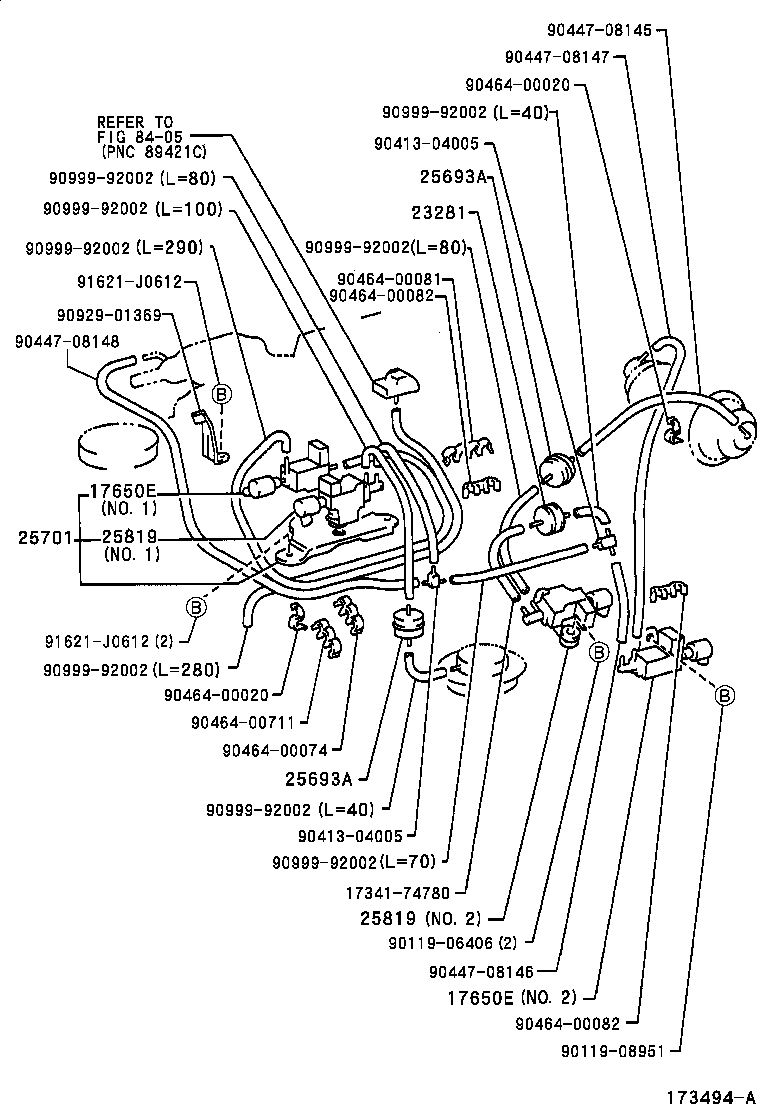

Vacuum Piping
25 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17302A | Clip, Hose |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17341P | Hose, Air |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17343F | Hose, Air, NO.3 |
| 17362A | Tube, Air, NO.2 |
| 17600A | Valve Assy, Air By-pass W/Hose |
| 17630 | Valve Assy, Air Control |
| 17650E | Valve, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 17650H | Valve, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23271C | Hose, Fuel |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 25693A | Damper, Egr Vacuum Modulator |
| 25701 | Valve Set, Emission Control |
| 25729 | Tank, Vacuum Surge W/Bracket |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25804 | Valve Set, Vacuum Control |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
