Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

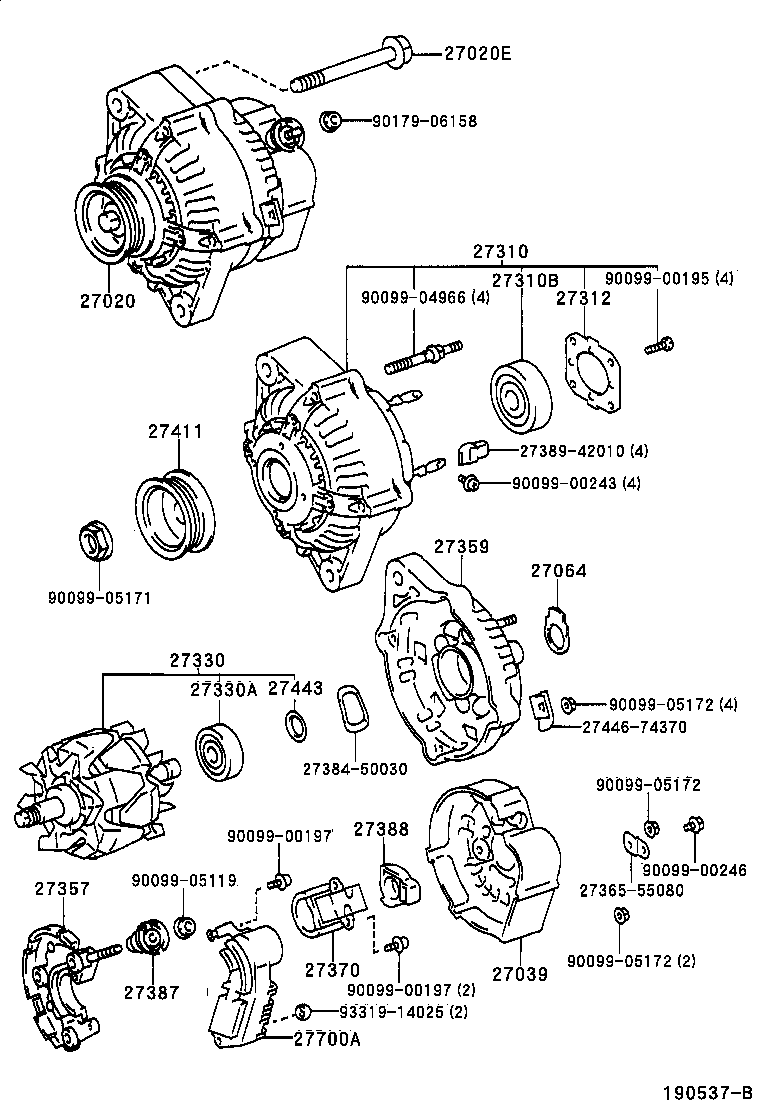

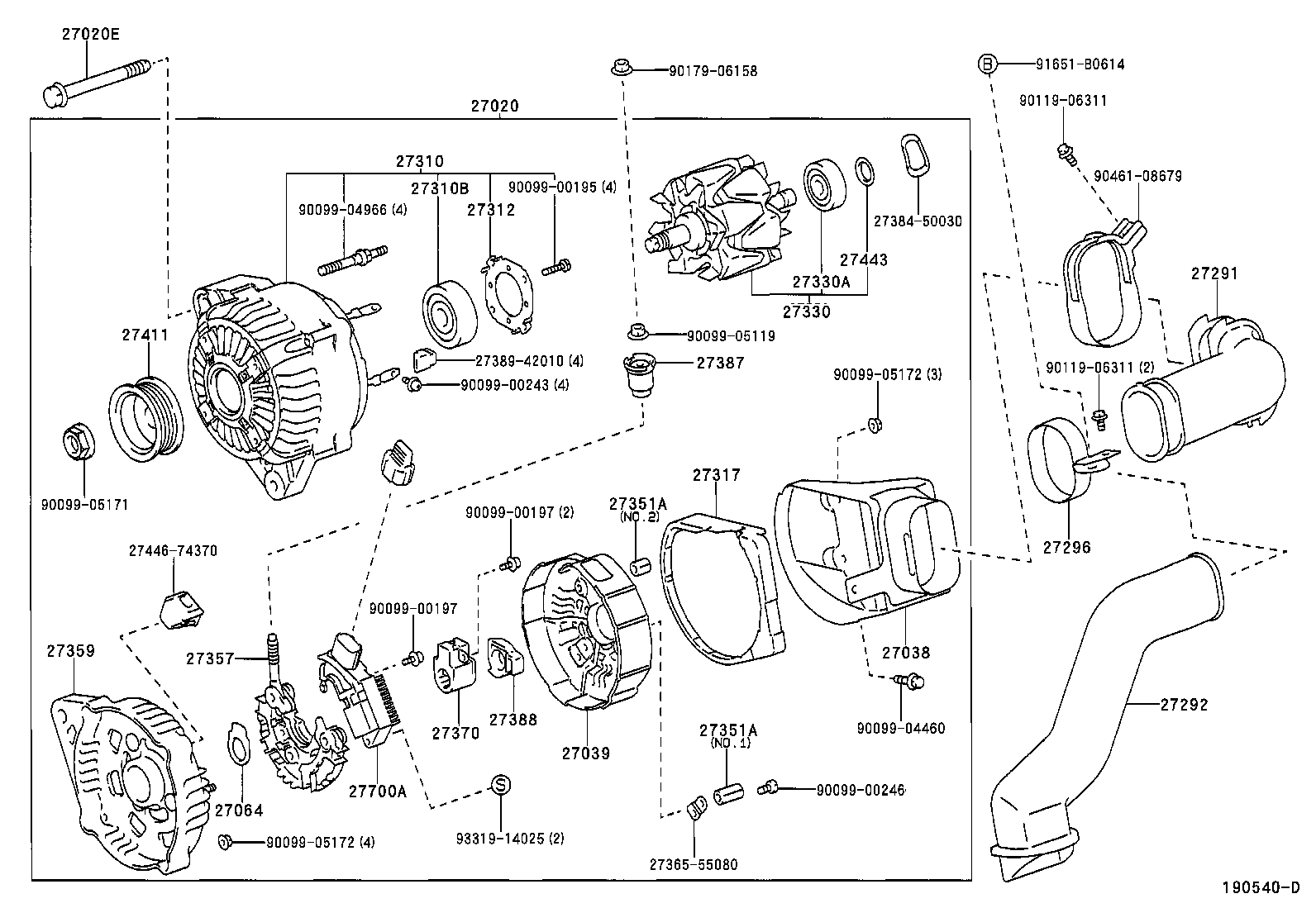

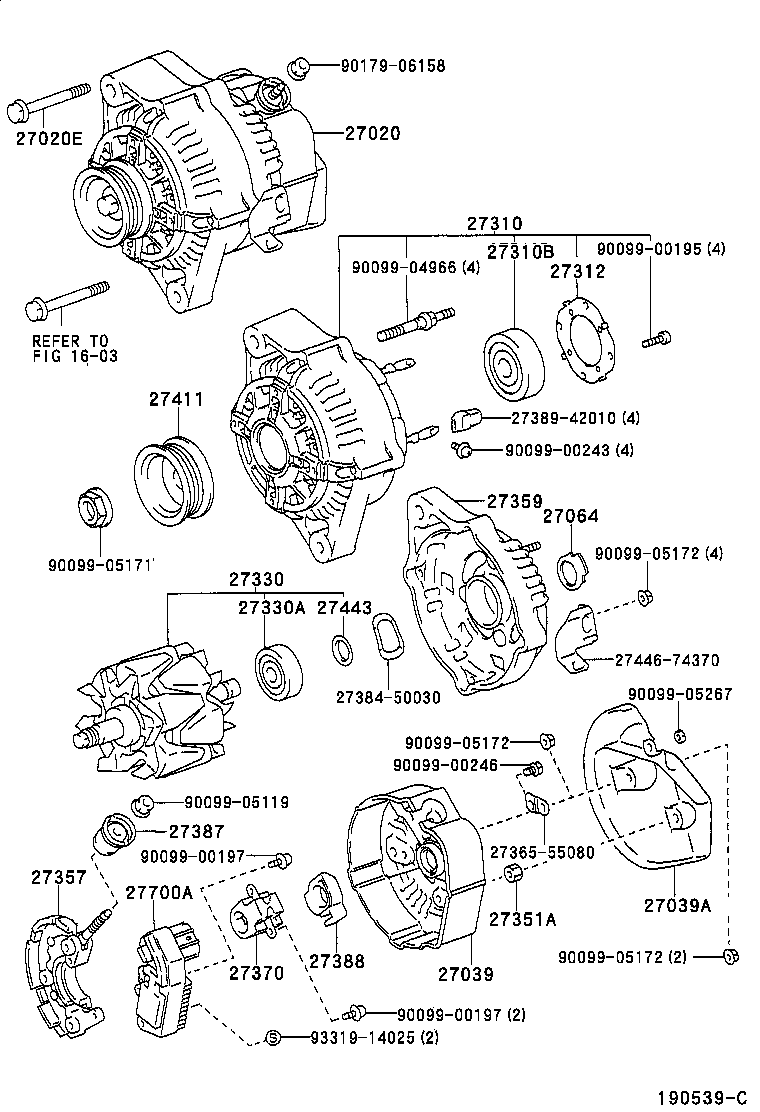

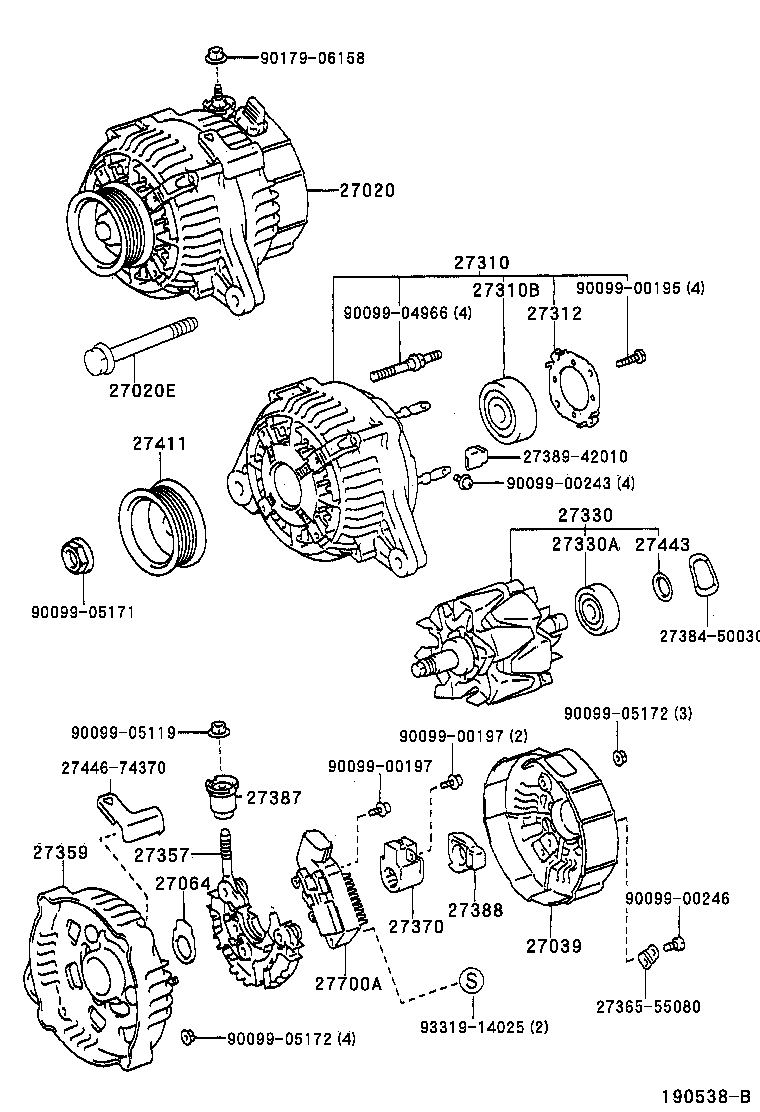

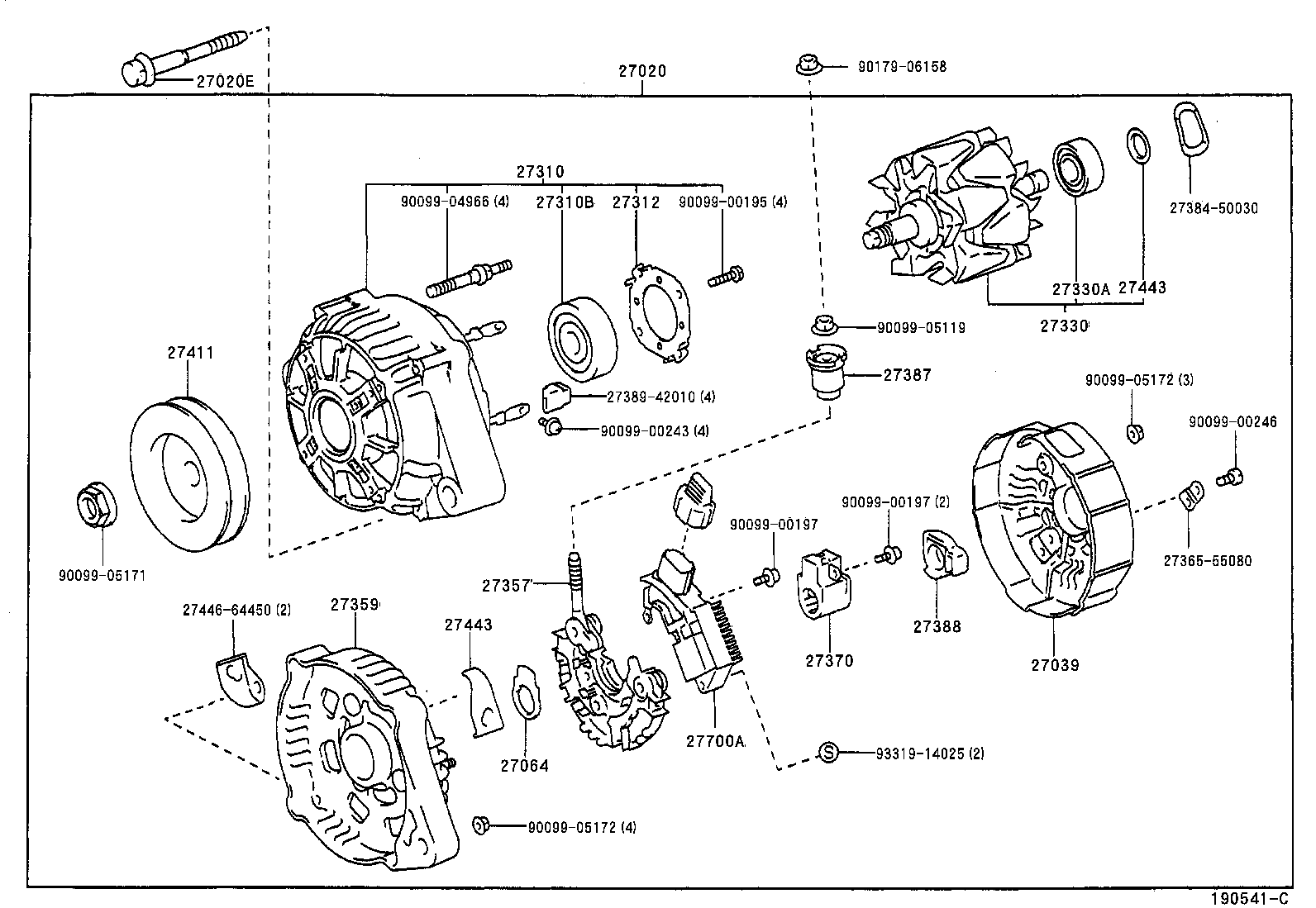

Alternator
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27038 | Duct Sub-assy, Alternator Air |
| 27039 | Cover, Alternator Rear End |
| 27039A | Cover, Alternator Rear End, NO.2 |
| 27064 | Seal, Alternator Plate |
| 27291 | Duct, Alternator, NO.1 |
| 27292 | Duct, Alternator, NO.2 |
| 27296 | Clamp, Alternator Duct |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27317 | Packing, Cover, Rear End |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27351A | Collar, Adjusting Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27370 | Holder Assy, Alternator Brush |
| 27387 | Insulator, Terminal |
| 27388 | Cover, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
