Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04
Fuel Injection System

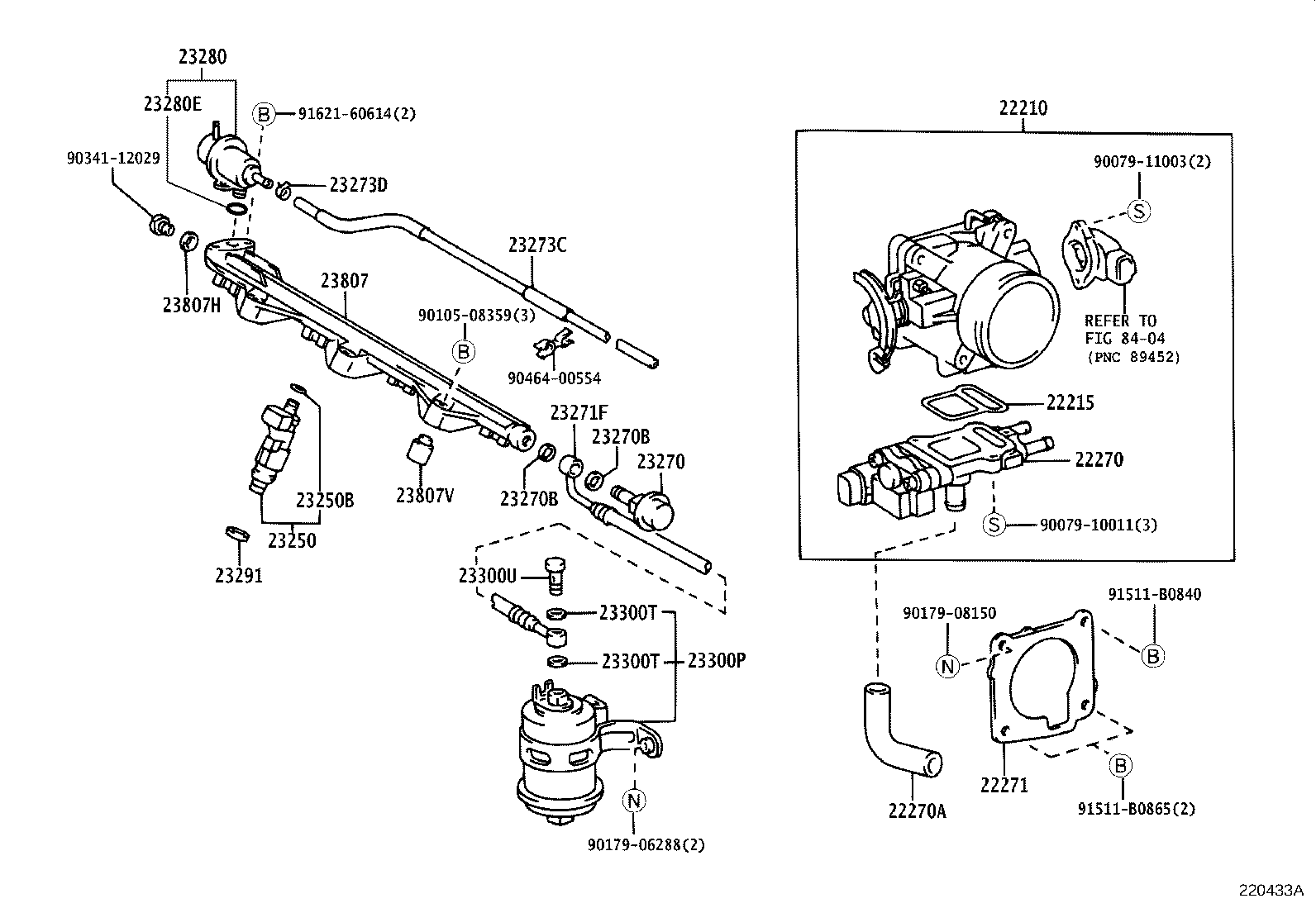

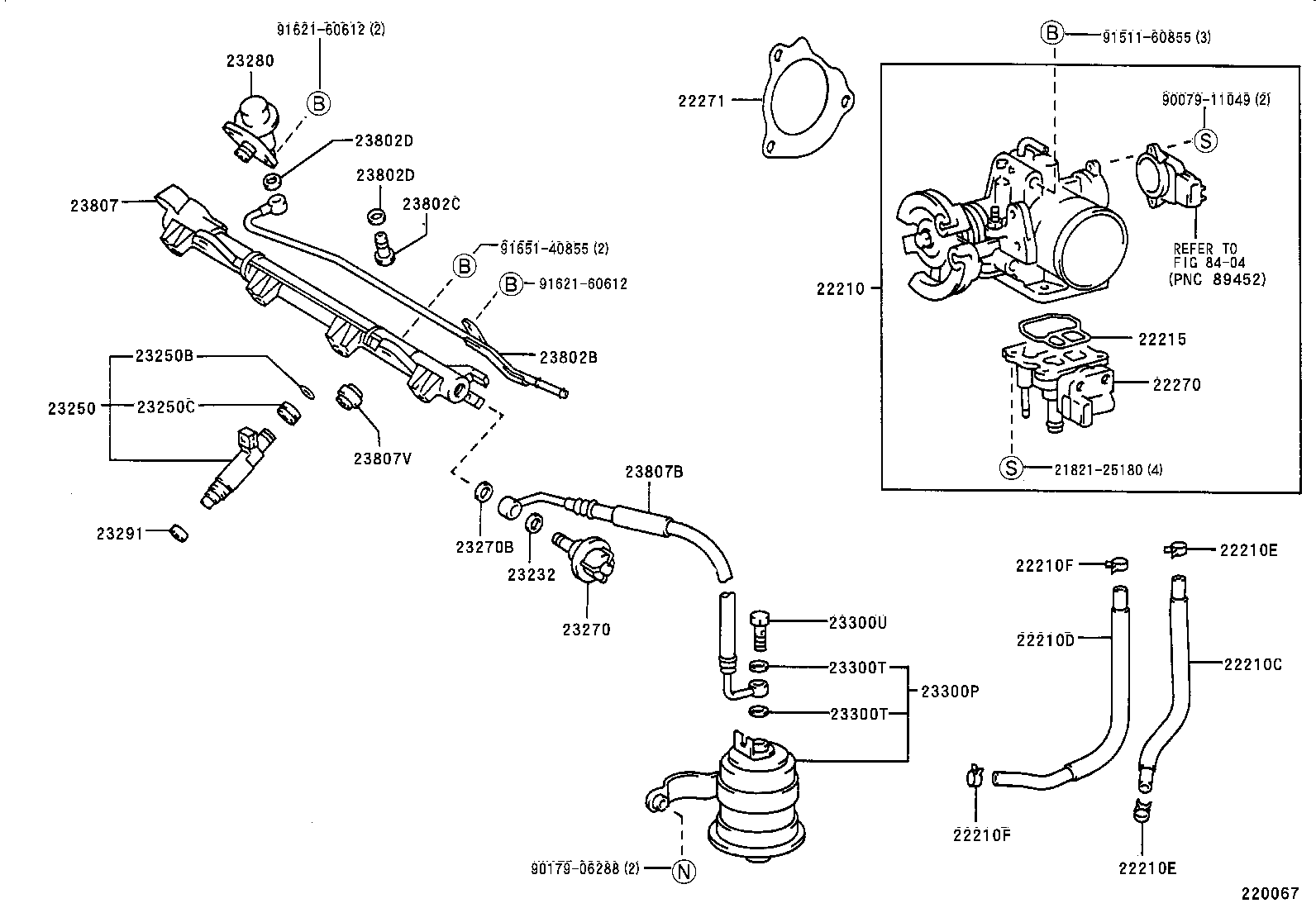

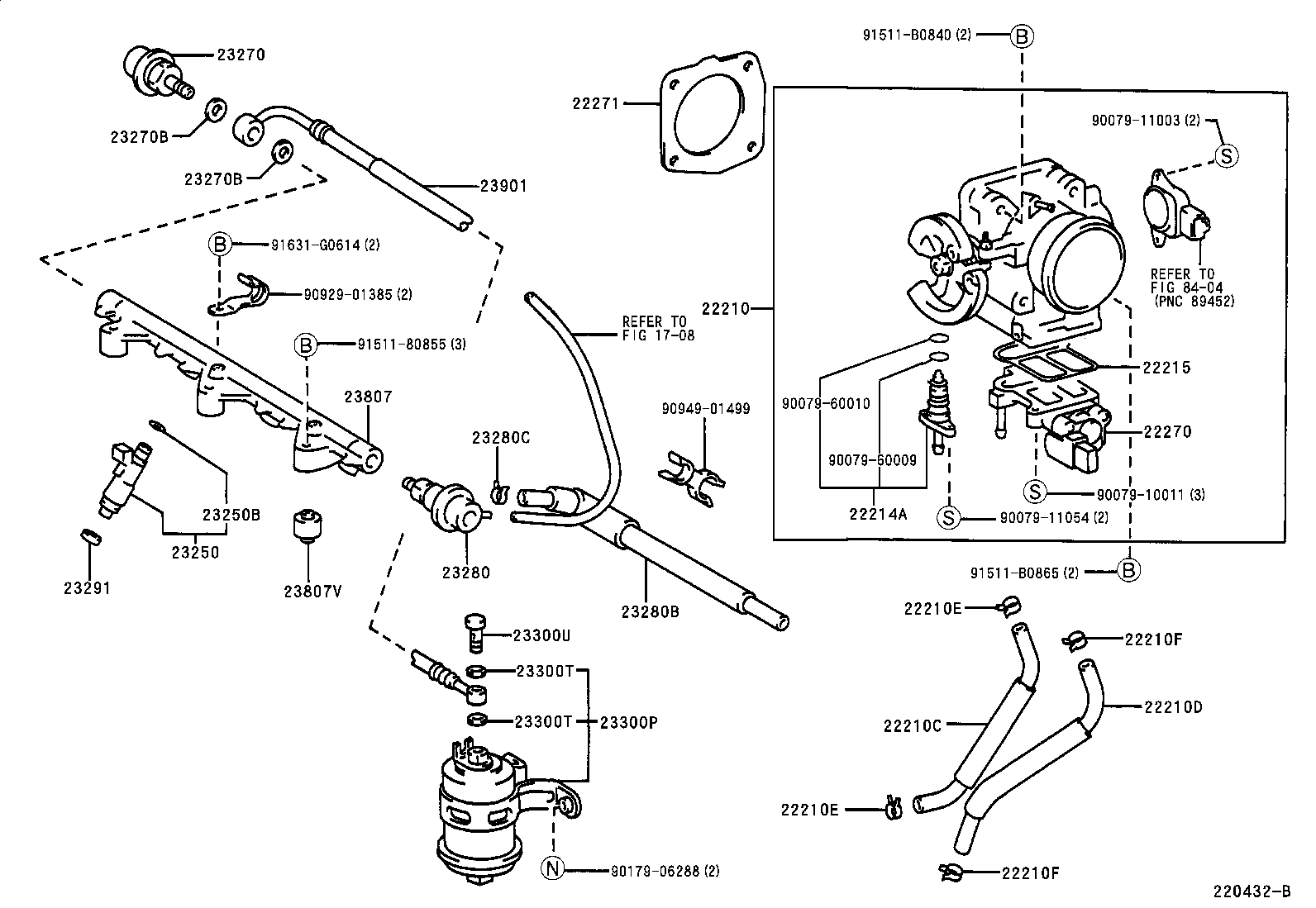

43 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 22210 | Body Assy, Throttle |
| 22210C | Hose, Water By-pass, NO.1 |
| 22210D | Hose, Water By-pass, NO.2 |
| 22210E | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1) |
| 22210F | Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2) |
| 22214A | Thermostat, Throttle Body |
| 22215 | Gasket, Throttle Body Cover |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22270A | Hose, Air, NO.1(FOR IDLE SPEED CONTROL VALVE) |
| 22271 | Gasket, Throttle Body |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23222 | Tube, Fuel Return Jet |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23232 | Gasket(FOR FUEL PUMP HOSE) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271F | Hose, Fuel |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280B | Hose, Fuel Pressure Regulator Return |
| 23280C | Clamp OR Clip(FOR FUEL PRESSURE REGULATOR RETURN HOSE) |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300P | Filter, Fuel(FOR EFI) |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23300U | Bolt, Union(FOR FUEL FILTER) |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23802C | Bolt, Union(FOR FUEL PIPE NO.2) |
| 23802D | Gasket(FOR FUEL PIPE NO.2) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807B | Hose, Fuel Delivery Pipe |
| 23807H | Gasket, Pipe Fuel Delivary Outlet |
| 23807J | Gasket, Pipe Fuel Delivary Inlet |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23901 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
