Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

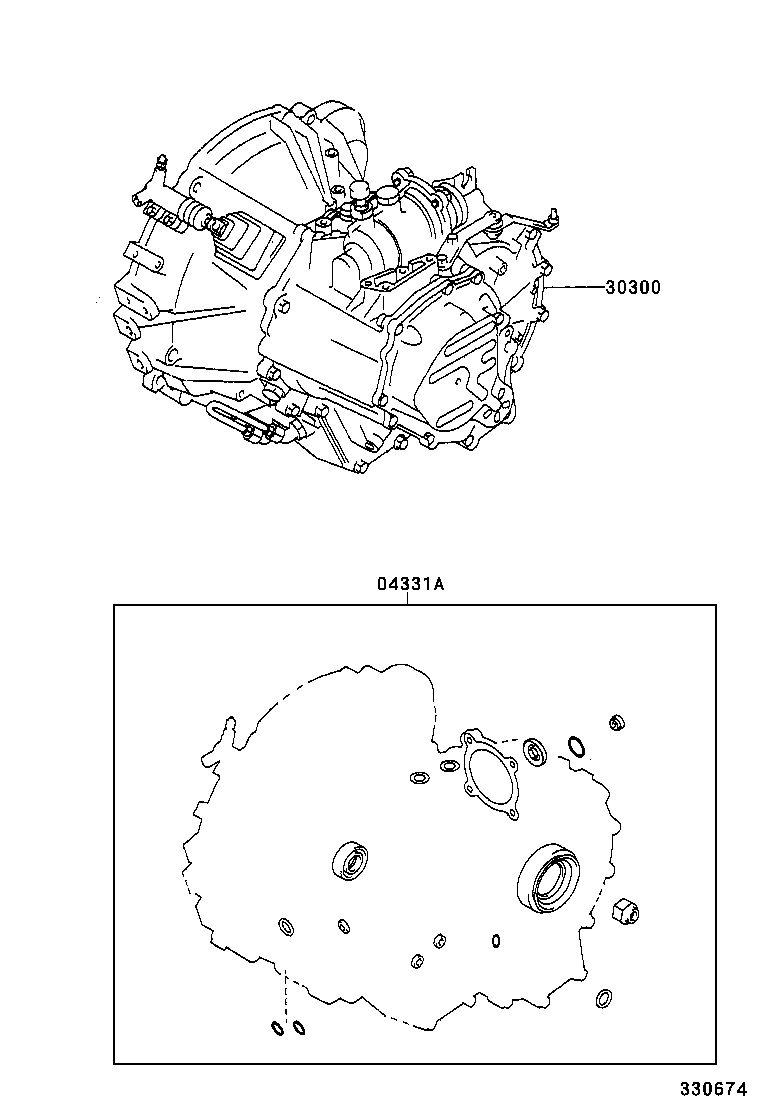

Figure 330672 330672 1997-08 → — Figure 330673 330673 1997-08 → — Figure 330674 330674 1997-08 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
