Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 4 illustrations

Illustrations

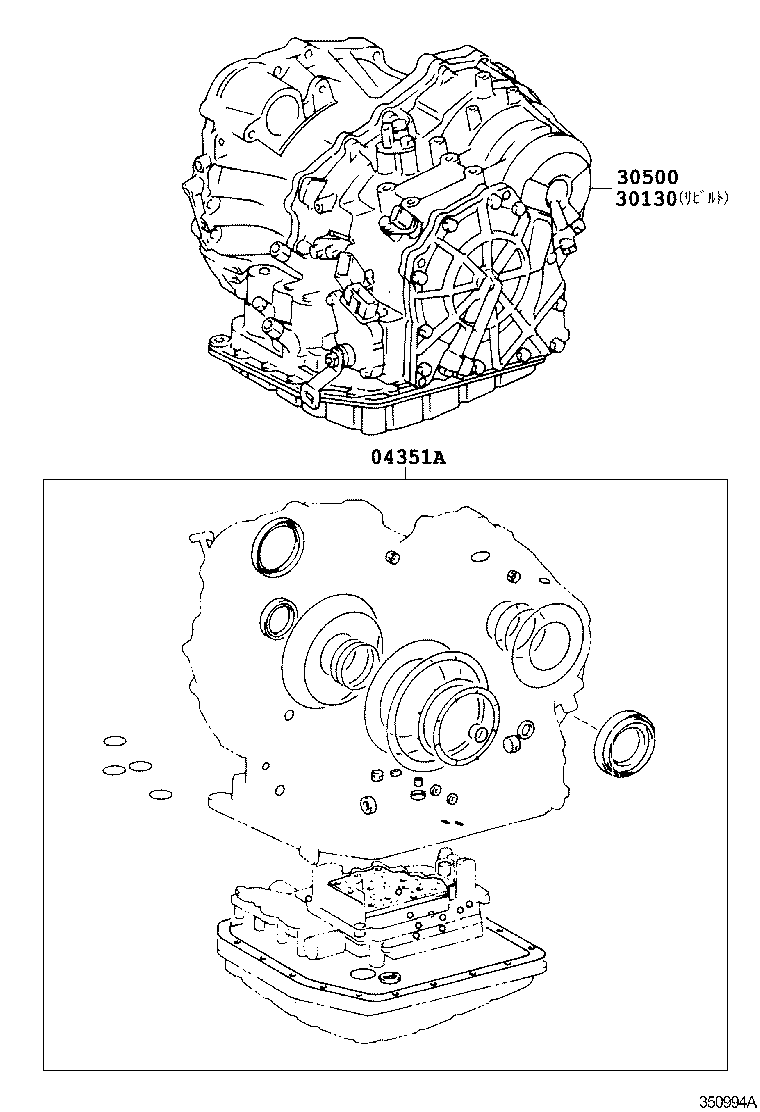

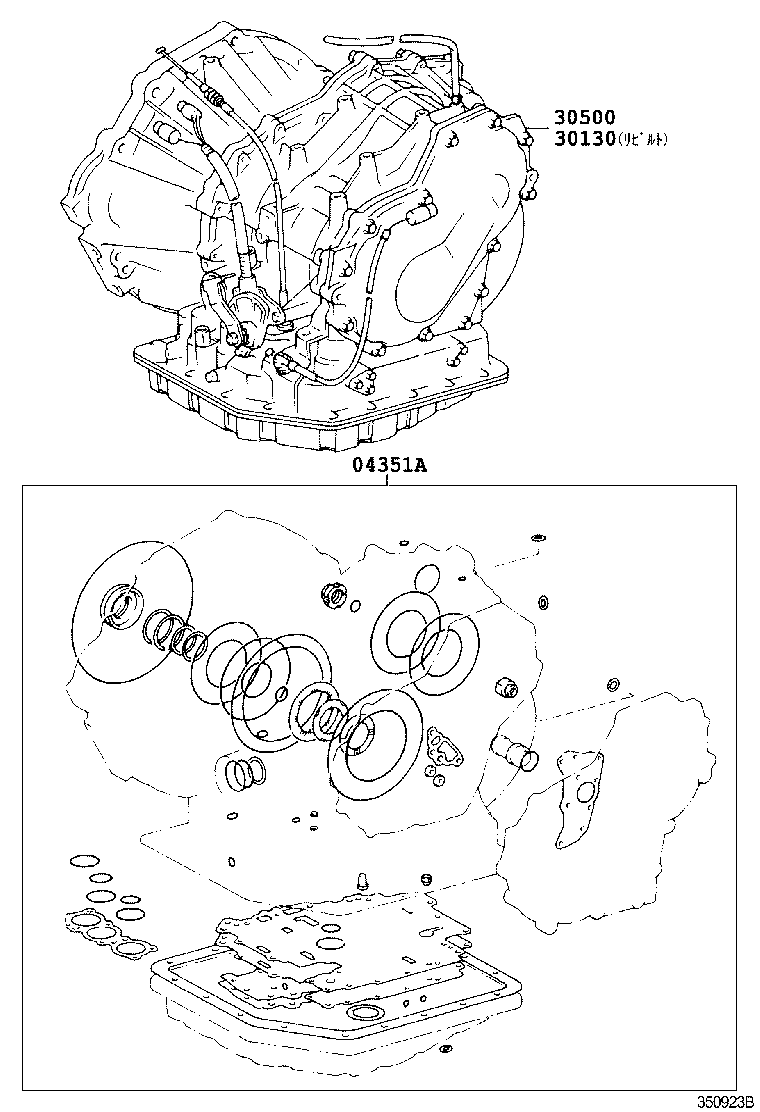

Figure 350922B 350922B 1997-08 → — Figure 350923B 350923B 1997-08 → — Figure 350923B 350923B 1999-12 → — Figure 350994A 350994A 1997-11 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
