Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

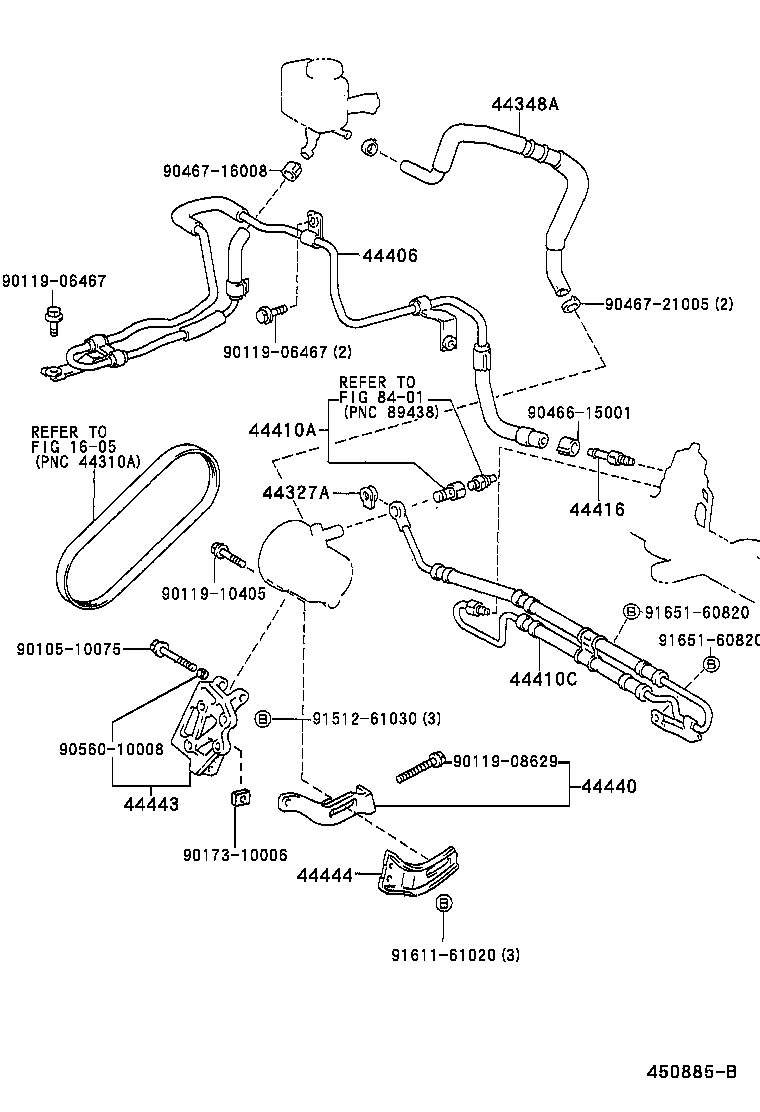

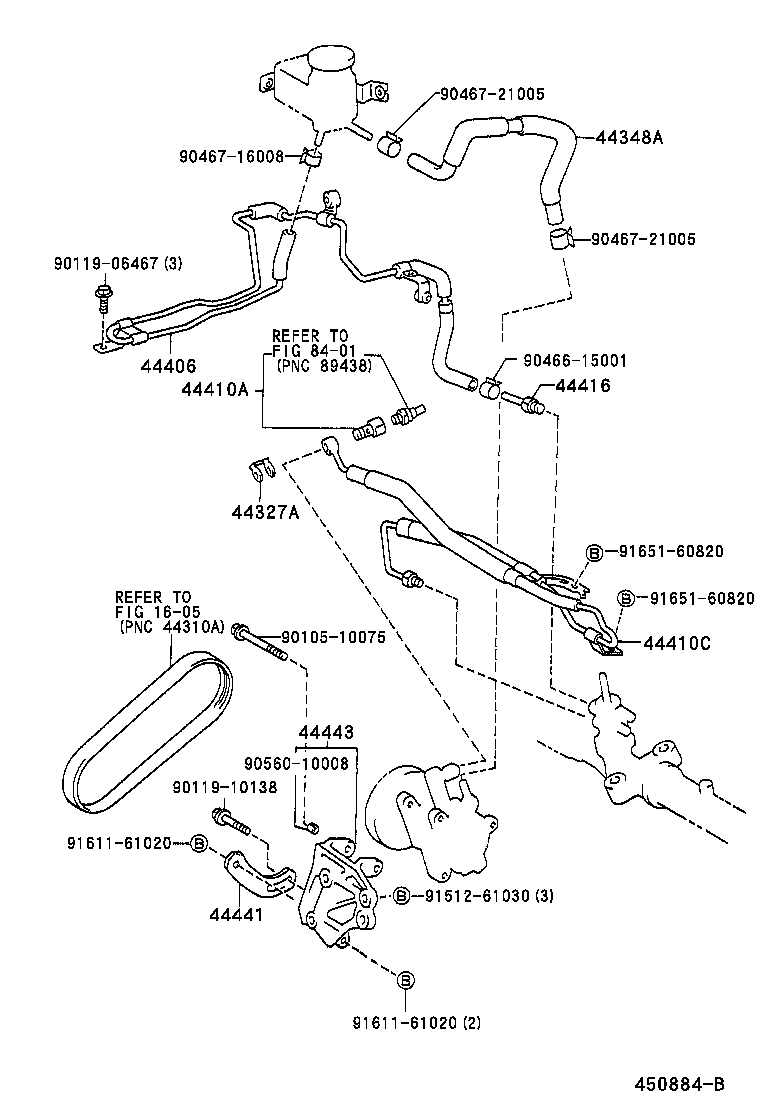

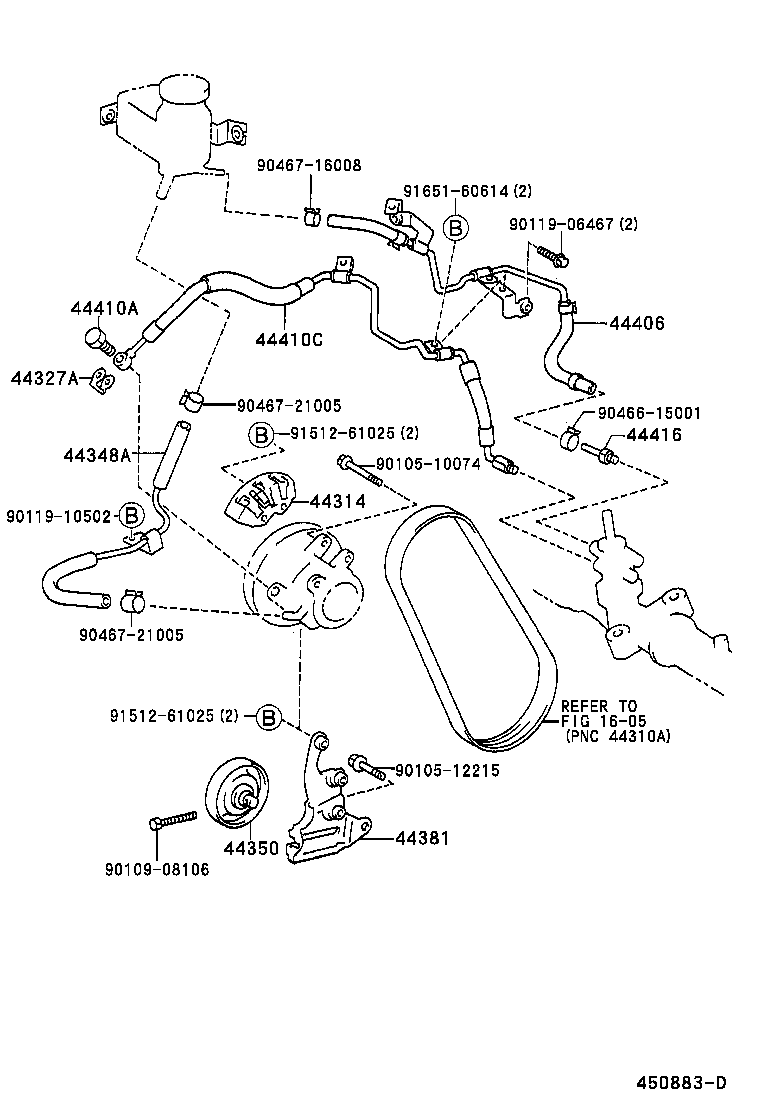

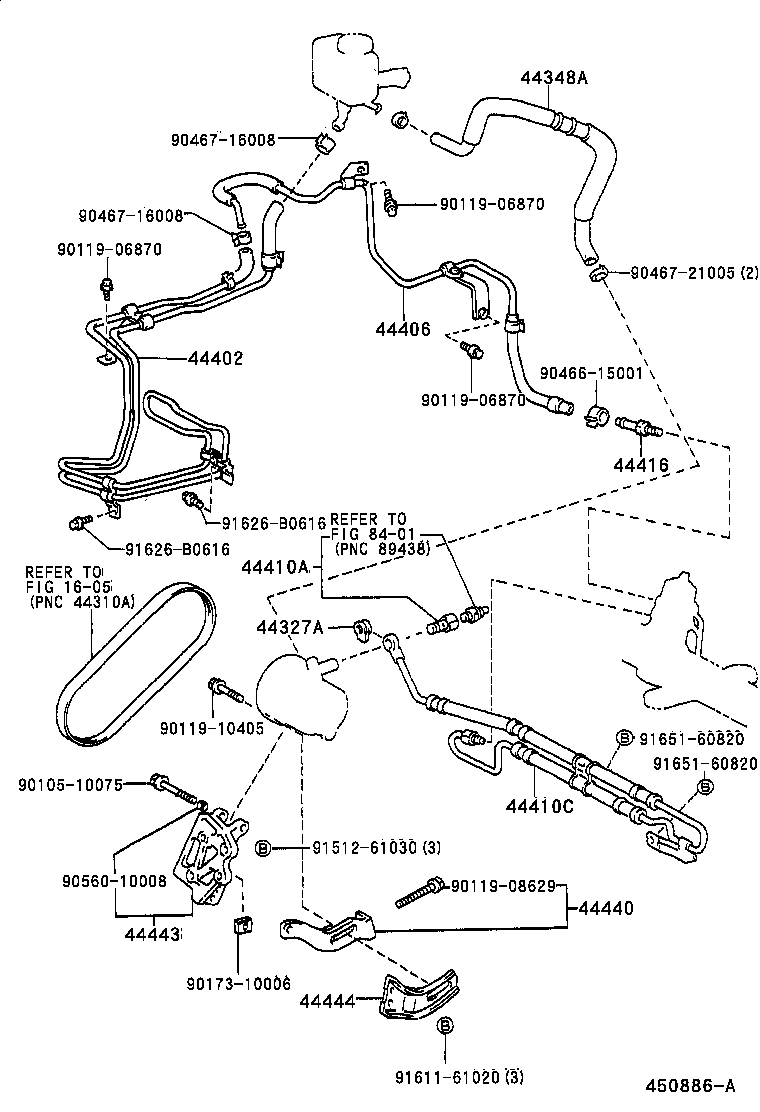

Power Steering Tube
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44314 | Cover, Pulley |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44381 | Bracket, Power Steering Idle Pulley |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406 | Tube Sub-assy, Return |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410C | Tube Assy, Pressure Feed, NO.1 |
| 44412D | Hose, Return, NO.1 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44440 | Bracket Assy, Pump |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
