Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

19 part groups · 2 illustrations

Illustrations

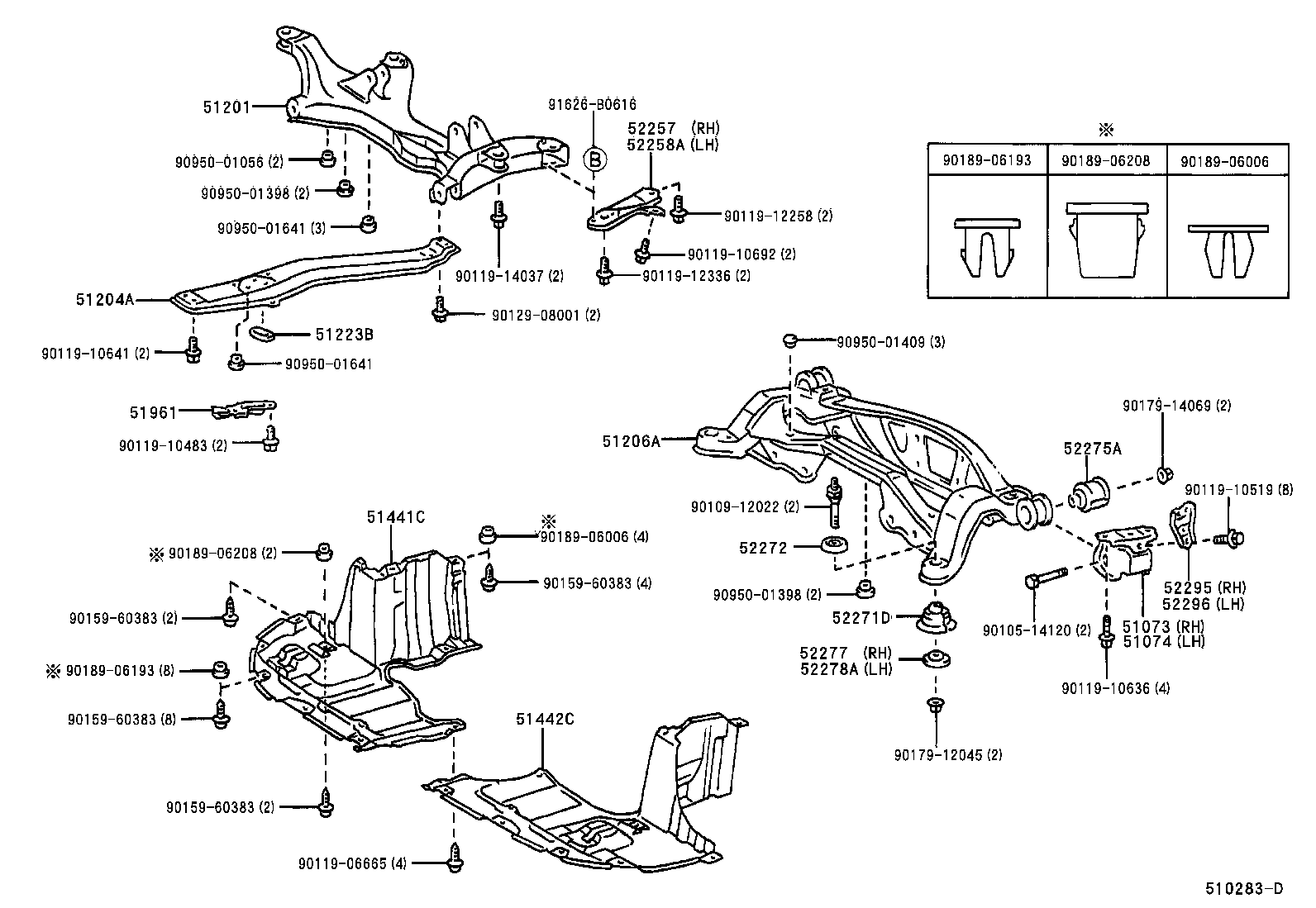

Figure 510282F 510282F 1997-08 → — Figure 510283D 510283D 1997-08 → —

Part groups

PNCDescription
51073 Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074 Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51223B Cover, Engine Mounting Hole
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51961 Hook, NO.1
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278A Retainer, Rear Suspension Menber Lower Stopper, LH
52295 Brace, Rear Suspension Member, RH
52295B Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
