Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

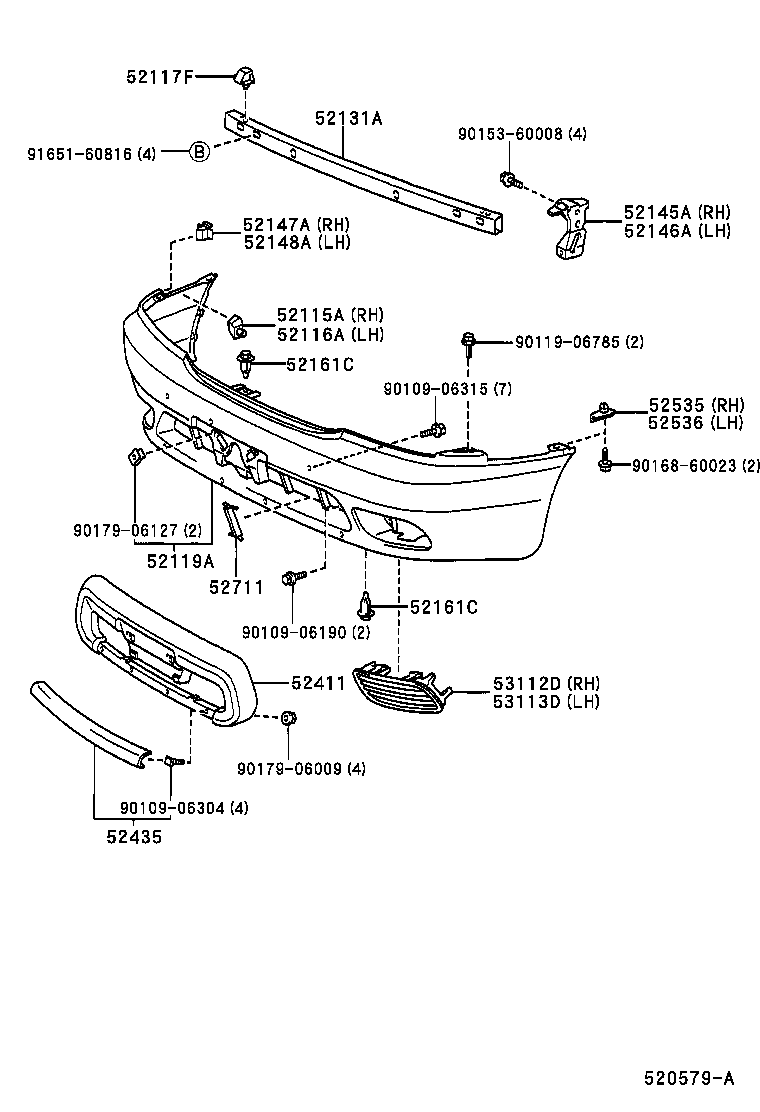

Figure 520299B 520299B 1997-08 → 1999-12 Figure 520579A 520579A 1999-12 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117F Support, Front Bumper, Upper
52119A Cover, Front Bumper
52125A Bracket, Fog Lamp Mounting, RH
52126A Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52147A Bracket, Front Bumper Stay, RH
52148A Bracket, Front Bumper Stay, LH
52161C Piece, Front Bumper
52411 Guard, Front Bumper
52435 Garnish, Front Bumper Guard
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52711 Moulding, Front Bumper
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
