Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

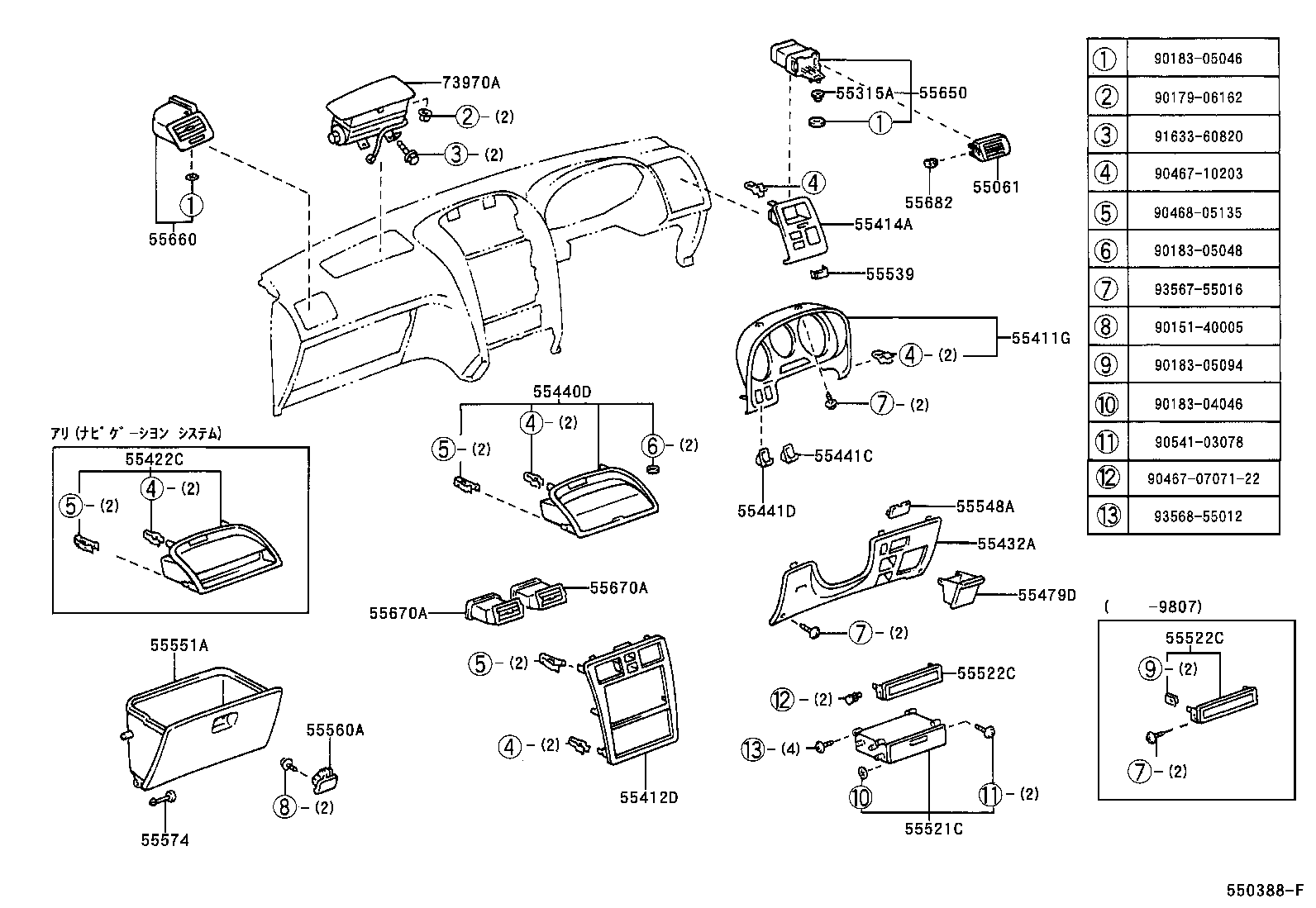

Instrument Panel & Glove Compartment
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55365C | Bracket, Radio Tuner Mounting, NO.1 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55422C | Panel, Instrument Cluster Finish, Center Upper |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55440D | Box Assy, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55441D | Box, Instrument Panel Coin |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55521C | Cover, Stereo Opening |
| 55522C | Cover, Radio Receiver Opening |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55560A | Lock Assy, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55682 | Spring, Instrument Panel Register Support |
| 55950A | Nozzle Assy, Defroster |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
