Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 2 illustrations

Illustrations

614570 1997-08 → —

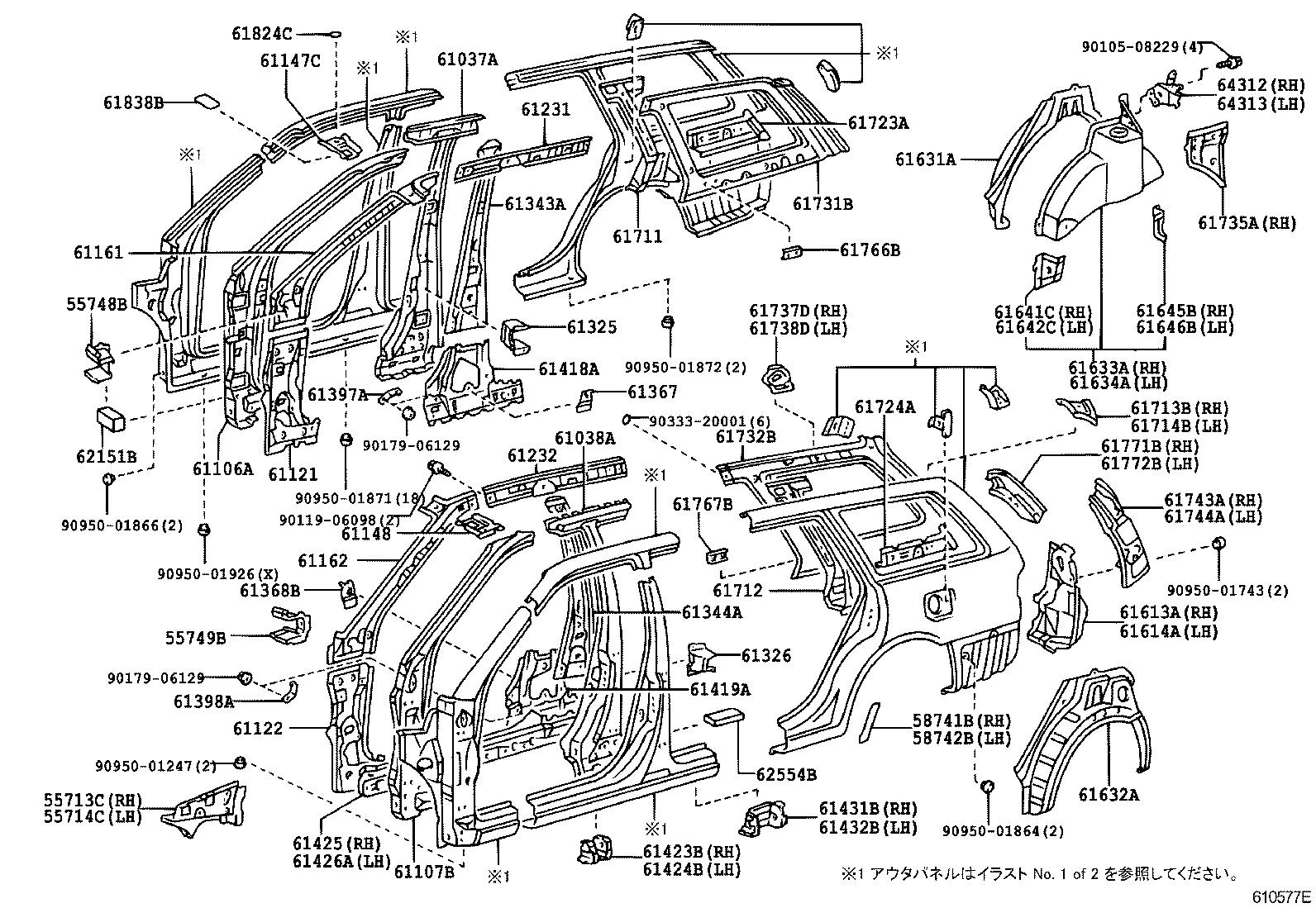

610577E 1997-08 → —

Part groups

PNC	Description
55713C	Panel, Cowl Top Side, RH
55714C	Panel, Cowl Top Side, LH
55748B	Brace, Cowl Top Inner TO Pillar, RH
55749B	Brace, Cowl Top Inner TO Pillar, LH
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61106A	Reinforce Sub-assy, Front Body Pillar, Upper RH
61107B	Reinforce Sub-assy, Front Body Pillar, Upper LH
61121	Panel, Cowl Side, Outer RH
61122	Panel, Cowl Side, Outer LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61147C	Extension, Front Body Pillar, Outer RH
61148	Extension, Front Body Pillar, Outer LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61325	Reinforcement, Center Body Piller, Center
61326	Reinforcement, Center Body Piller, Center LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61367	Reinforcement, Belt Anchor TO Center Pillar, Lower
61368B	Reinforcement, Belt Anchor TO Center Pillar, Lower LH
61397A	Patch, Center Body Pillar, Inner RH
61398A	Patch, Center Body Pillar, Inner LH
61418A	Reinforcement, Rocker Panel, RH
61419A	Reinforcement, Rocker Panel, LH
61423B	Reinforcement, Rocker Panel, NO.3 RH
61424B	Reinforcement, Rocker Panel, NO.3 LH
61425	Reinforcement, Rocker Panel, NO.4 RH
61426A	Reinforcement, Rocker Panel, NO.4 LH
61431B	Reinforcement, Rocker Panel, NO.6 RH
61432B	Reinforcement, Rocker Panel, NO.6 LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613A	Extension, Quarter Panel Rear, RH
61614A	Extension, Quarter Panel, Rear LH
61619D	Reinforcement, Quarter Panel, RH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61641C	Gusset, Quarter Wheel House, Front RH
61642C	Gusset, Quarter Wheel House, Front LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61723A	Reinforcement, Quarter Window Opening, RH NO.1
61724A	Reinforcement, Quarter Window Opening, LH NO.1
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
61824C	Pad, Noise Shutter, NO.1
61838B	Plate, Noise Control, NO.5
62151B	Pad, Cowl Side Silencer
62554B	Pad, Pillar, NO.4
64312	Bracket, Package Tray, RH
64313	Bracket, Package Tray, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
