Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

19 part groups · 2 illustrations

Illustrations

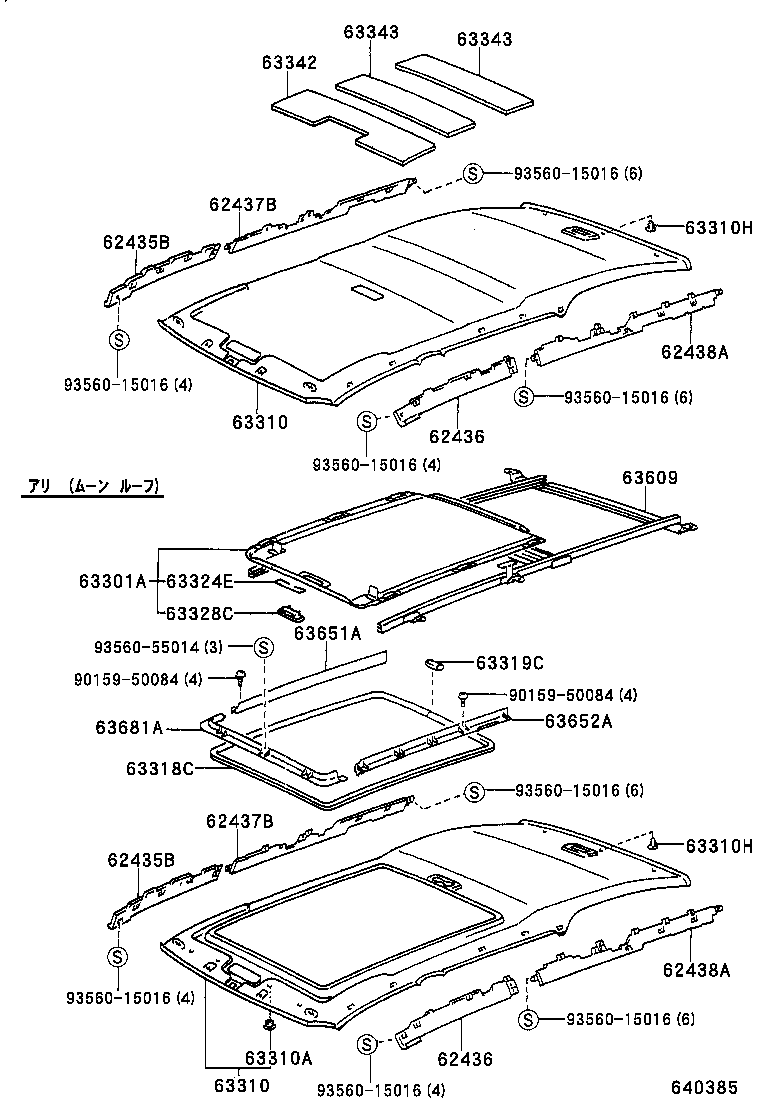

Figure 640384 640384 1997-08 → — Figure 640385 640385 1997-08 → —

Part groups

PNCDescription
62435B Pad, Roof Side Rail, Front RH
62436 Pad, Roof Side Rail, Front LH
62437B Pad, Roof Side Rail, Rear RH
62438A Pad, Roof Side Rail, Rear LH
63301A Trim Sub-assy, Sunshade, NO.1 RH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310A Plug, Hole(FOR ROOF HEADLINING ASSY)
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63319C Joint, Sun Roof Opening Trim
63324E Spring, Sunshade Lock
63328C Knob, Sunshade Trim
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63609 Rail Sub-assy, Sunshade, NO.2
63651A Garnish, Sunshade, NO.1 RH
63652A Garnish, Sunshade, NO.1 LH
63681A Rail, Sunshade, NO.1 Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
