Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

14 part groups · 2 illustrations

Illustrations

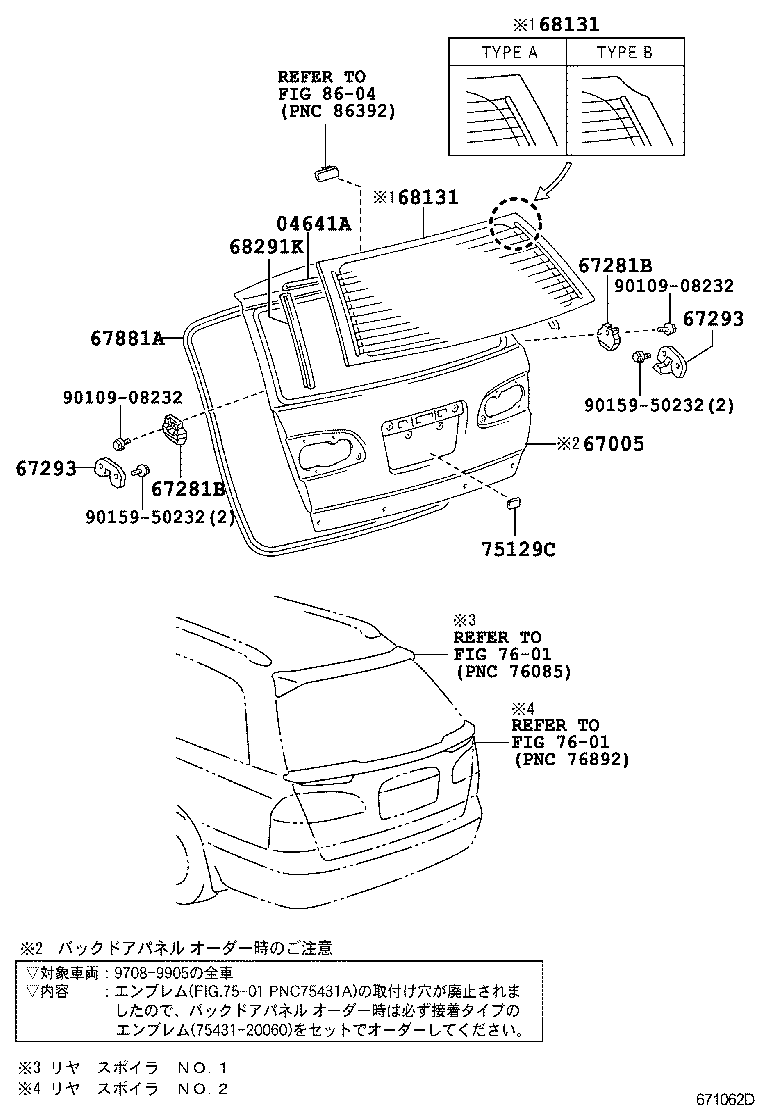

Figure 671086A 671086A 1997-08 → — Figure 671062D 671062D 1997-08 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64745J Cover, Rear Combination Lamp Service, RH
64746G Cover, Rear Combination Lamp Service, LH
64795A Trim, Back Window Opening
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67750 Board Assy, Back Door Trim
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68291K Dam Kit, Back Window Glass
75129C Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
