Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04
Mudguard & Spoiler

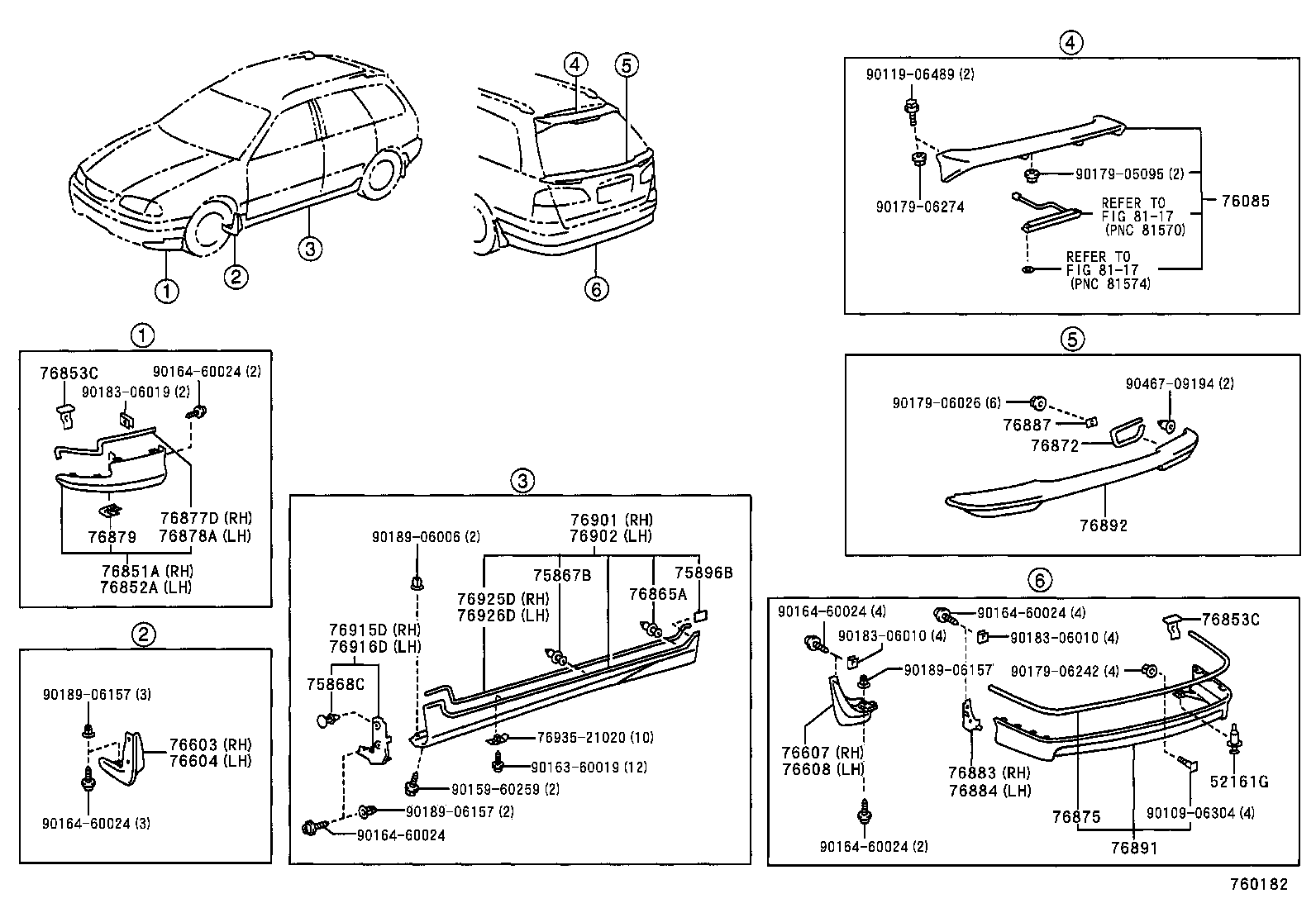

37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 75867B | Clip, Rocker Panel Moulding |
| 75868C | Clip, Rear Spoiler, NO.2 |
| 75896B | Tape, Moulding, NO.2 |
| 76085 | Spoiler Sub-assy, Rear |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
| 76851A | Cover, Front Spoiler, RH |
| 76852A | Cover, Front Spoiler, LH |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76865A | Retainer, Side Mudguard |
| 76867 | Retainer, Rear Spoiler Side, RH |
| 76868 | Retainer, Rear Spoiler Side, LH |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76883 | Protecter, Rear Spoiler, NO.7 RH |
| 76884 | Protecter, Rear Spoiler, NO.7 LH |
| 76887 | Seal, Rear Spoiler |
| 76891 | Spoiler, Rear NO.1 |
| 76892 | Spoiler, Rear NO.2 |
| 76893A | Cover, Rear Spoiler, RH |
| 76894 | Cover, Rear Spoiler, LH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76897A | Spoiler,Rear Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76898A | Spoiler,Rear Side LH |
| 76901 | Mudguard Sub-assy, Side, RH |
| 76902 | Mudguard Sub-assy, Side, LH |
| 76915D | Mudguard, Side, Front RH |
| 76916D | Mudguard, Side, Front LH |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
