Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 3 illustrations

Illustrations

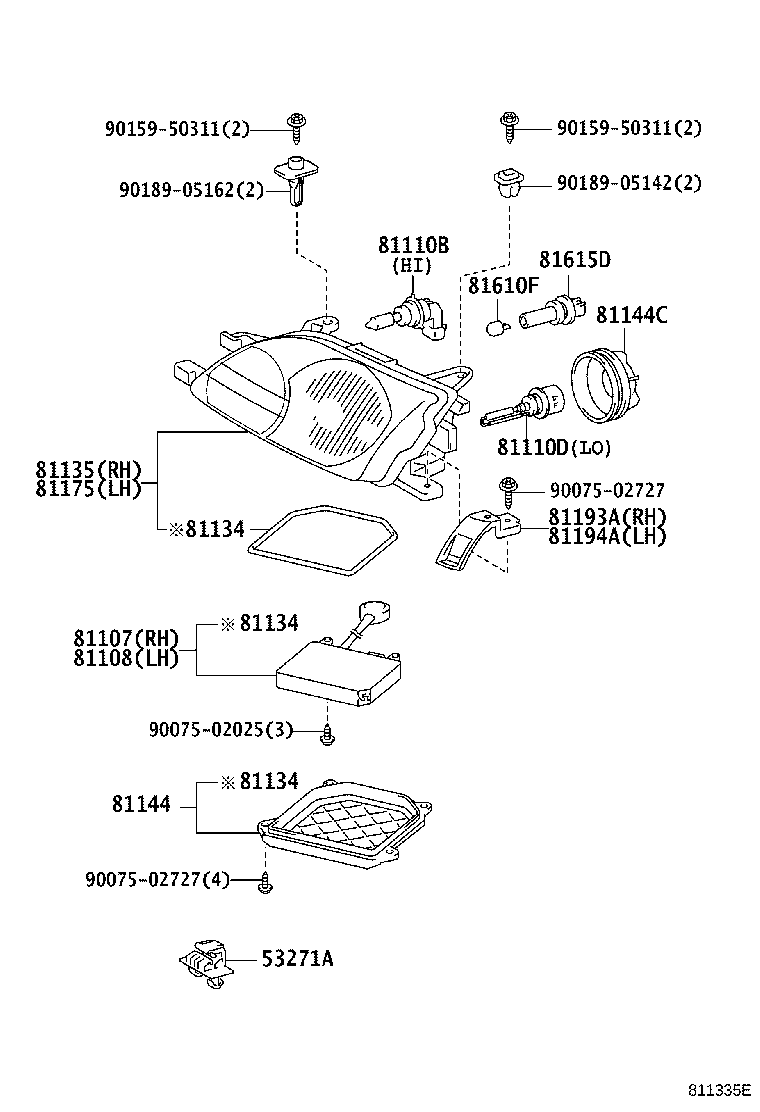

Figure 810683C 810683C 1997-08 → 1999-12 Figure 811348E 811348E 1999-12 → — Figure 811335E 811335E 1999-12 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81145A Adapter Assy
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81193A Protector, Headlamp, RH
81194A Protector, Headlamp, LH
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
