Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 15 illustrations

Illustrations

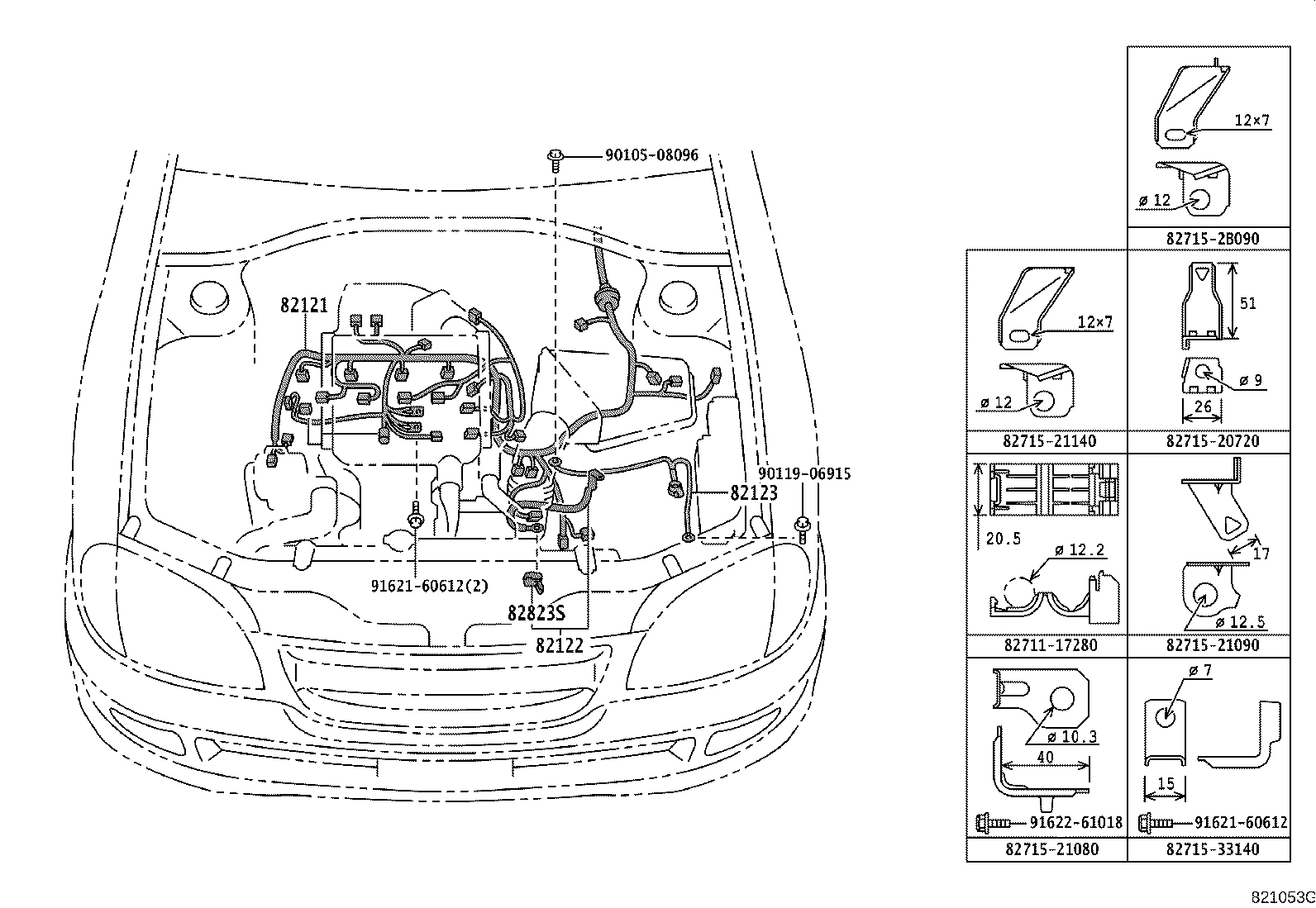

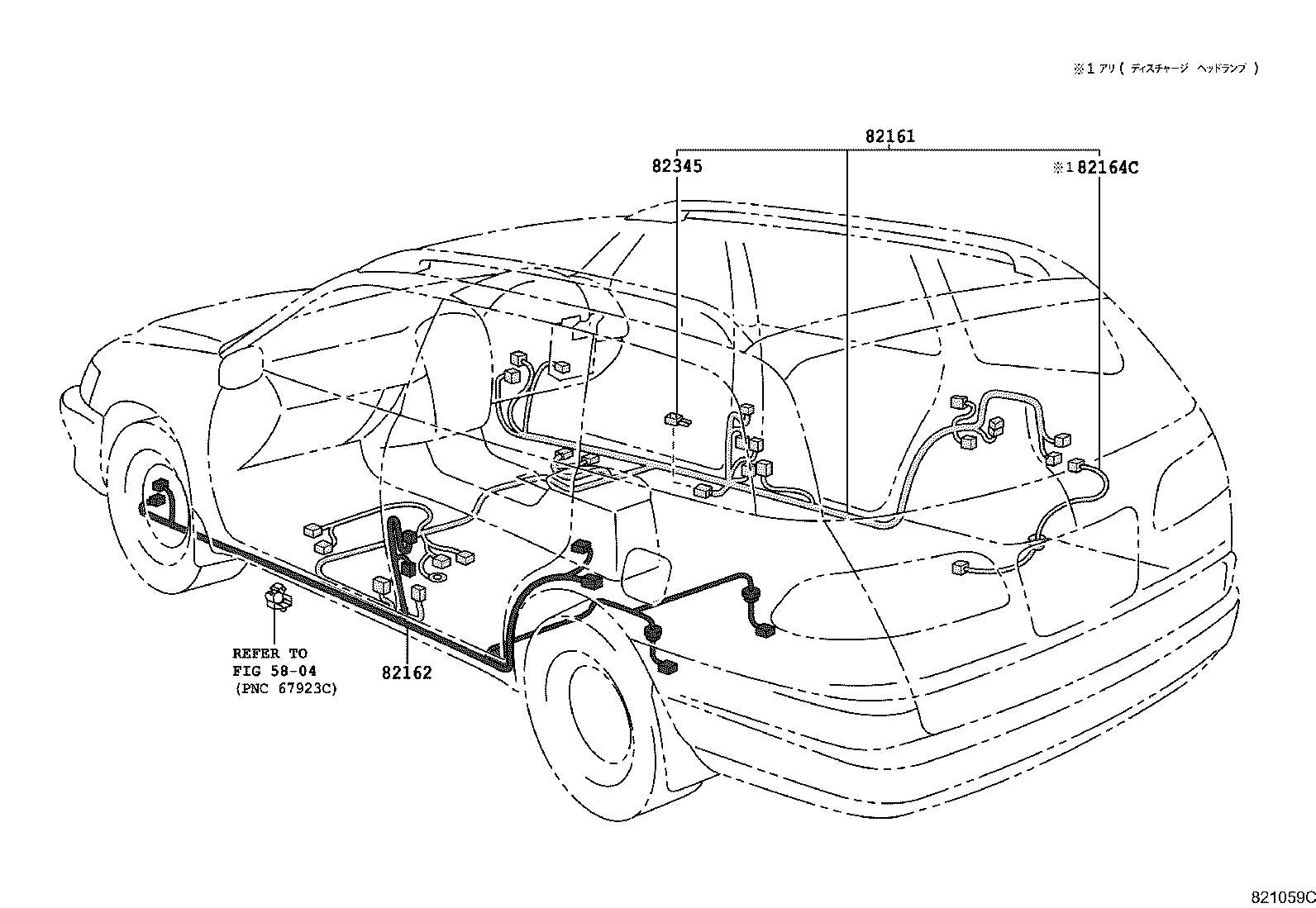

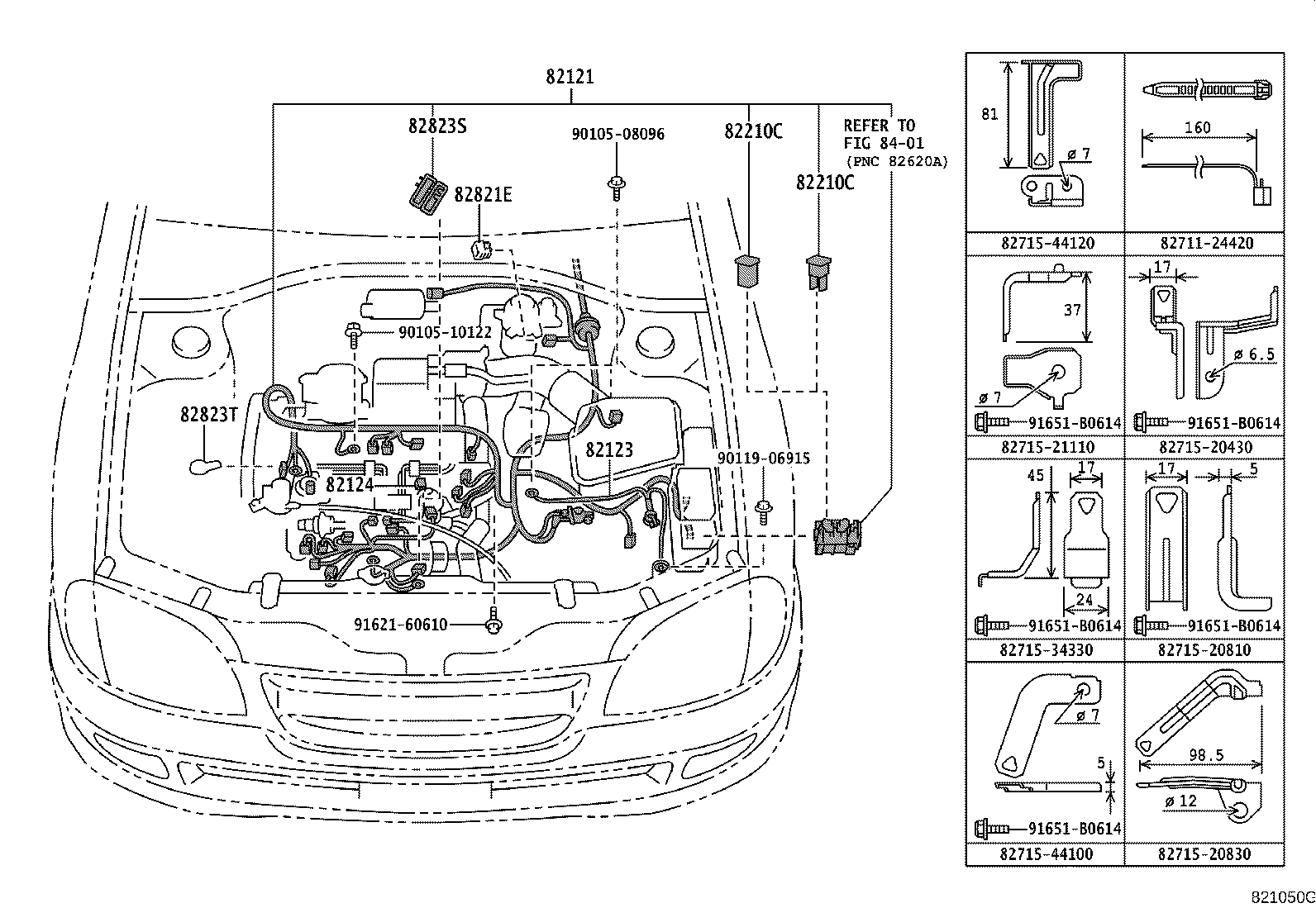

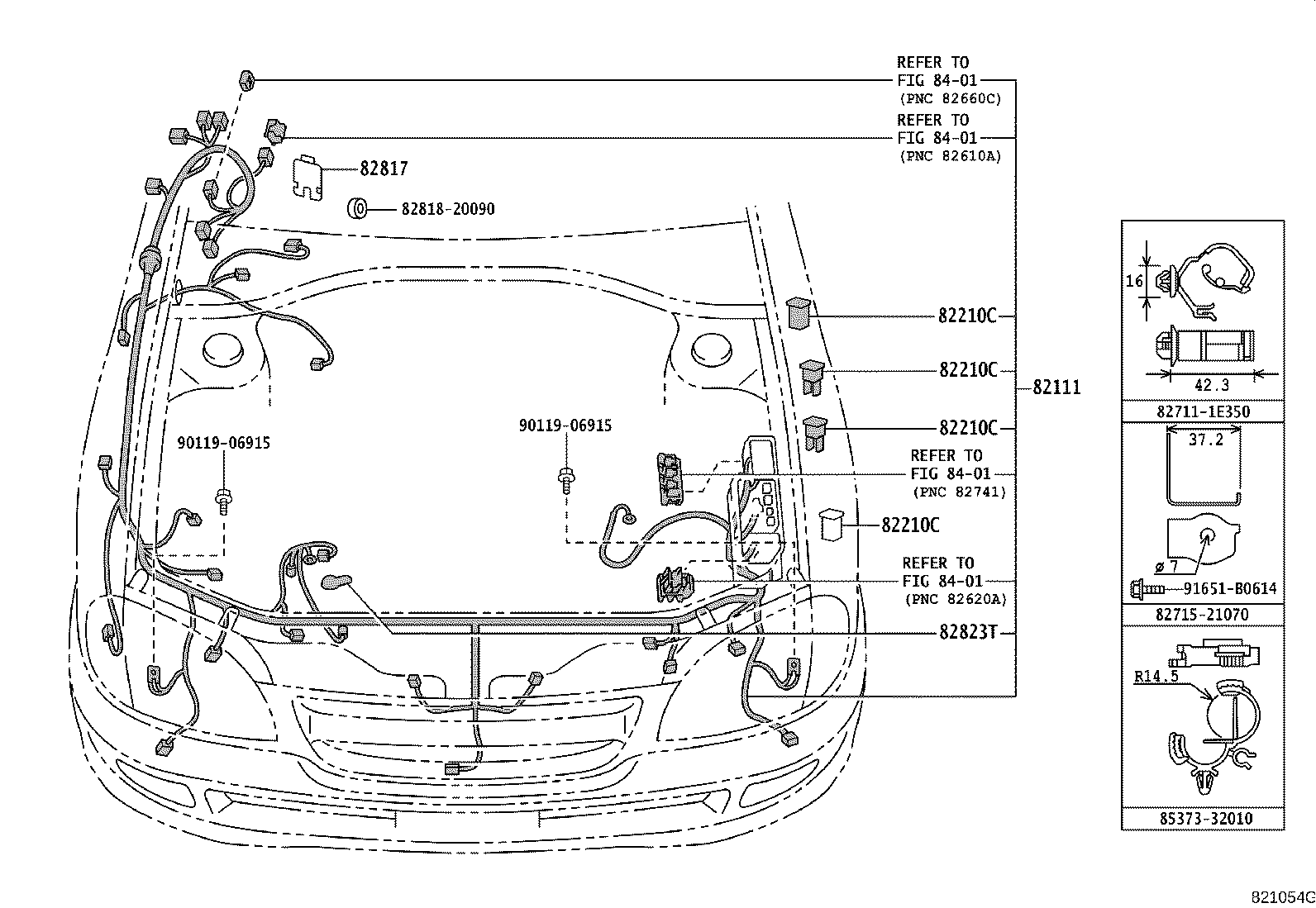

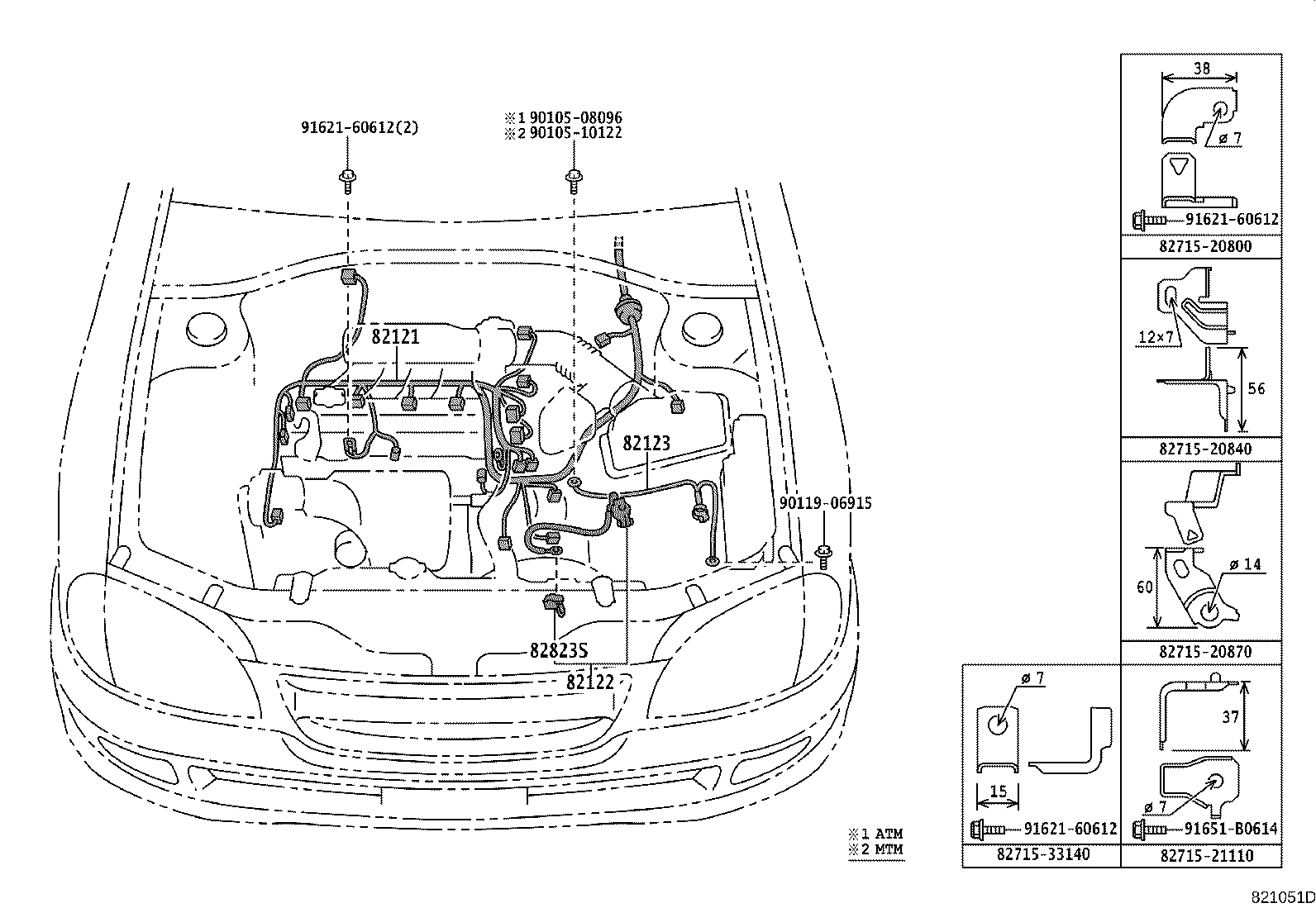

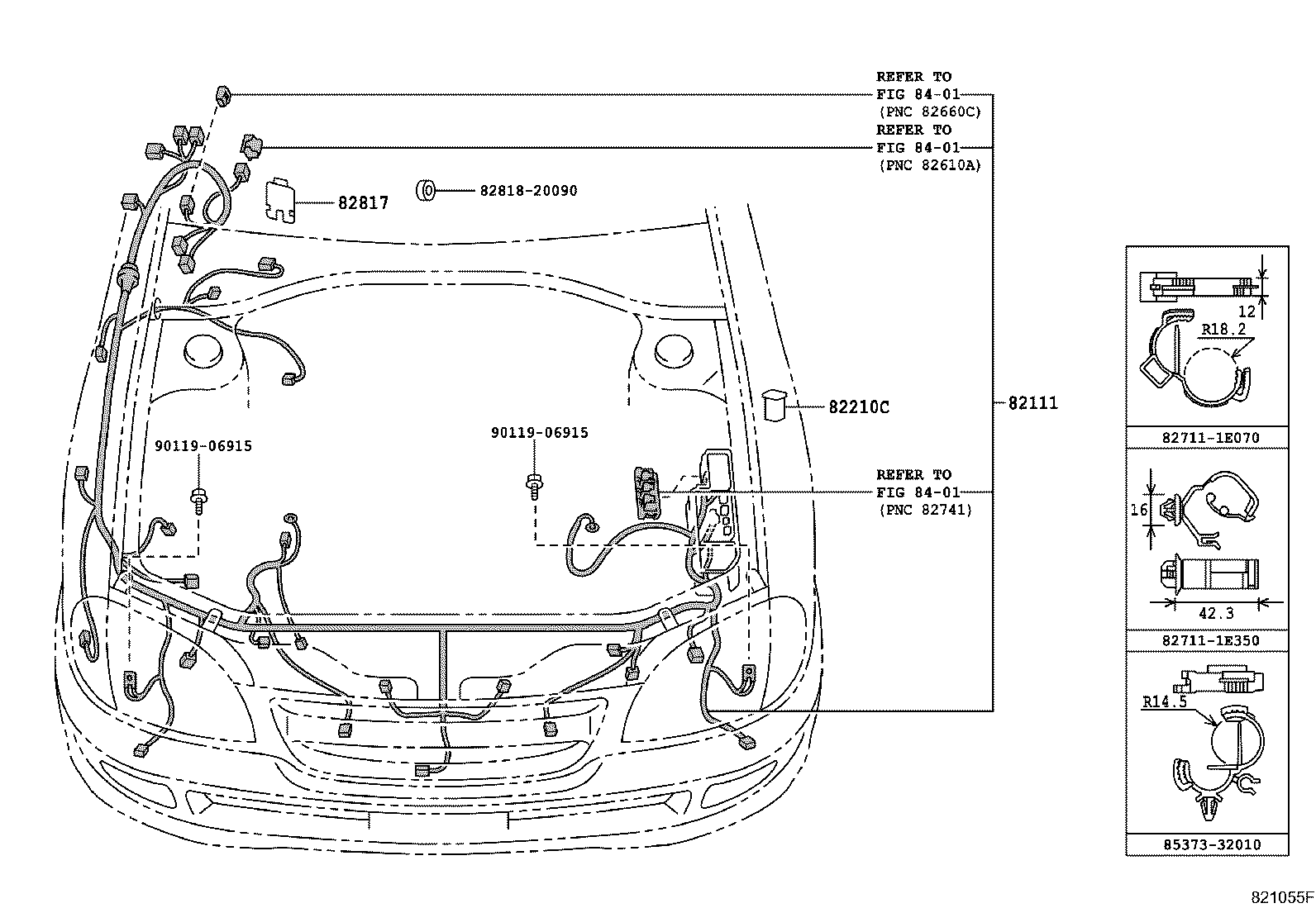

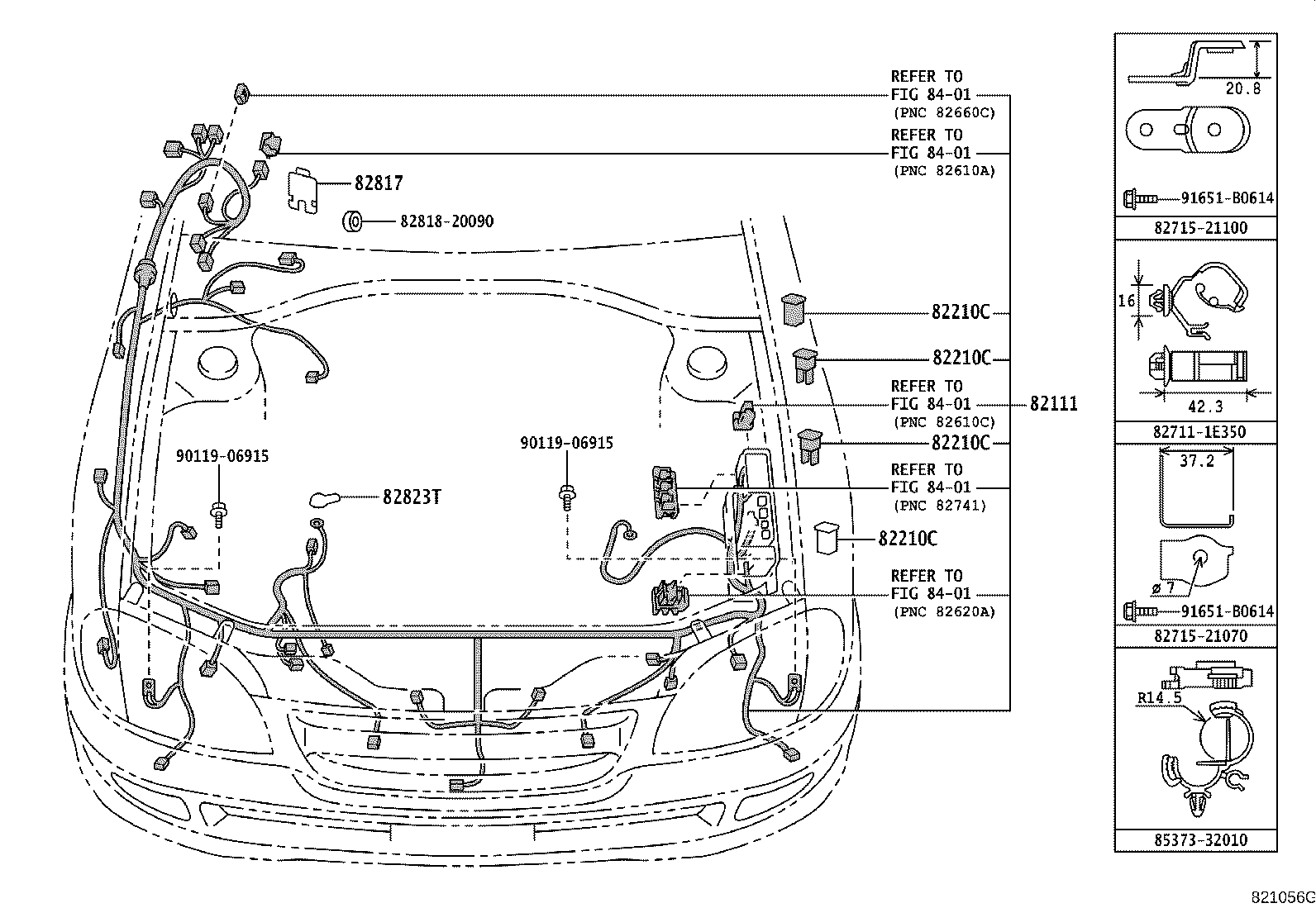

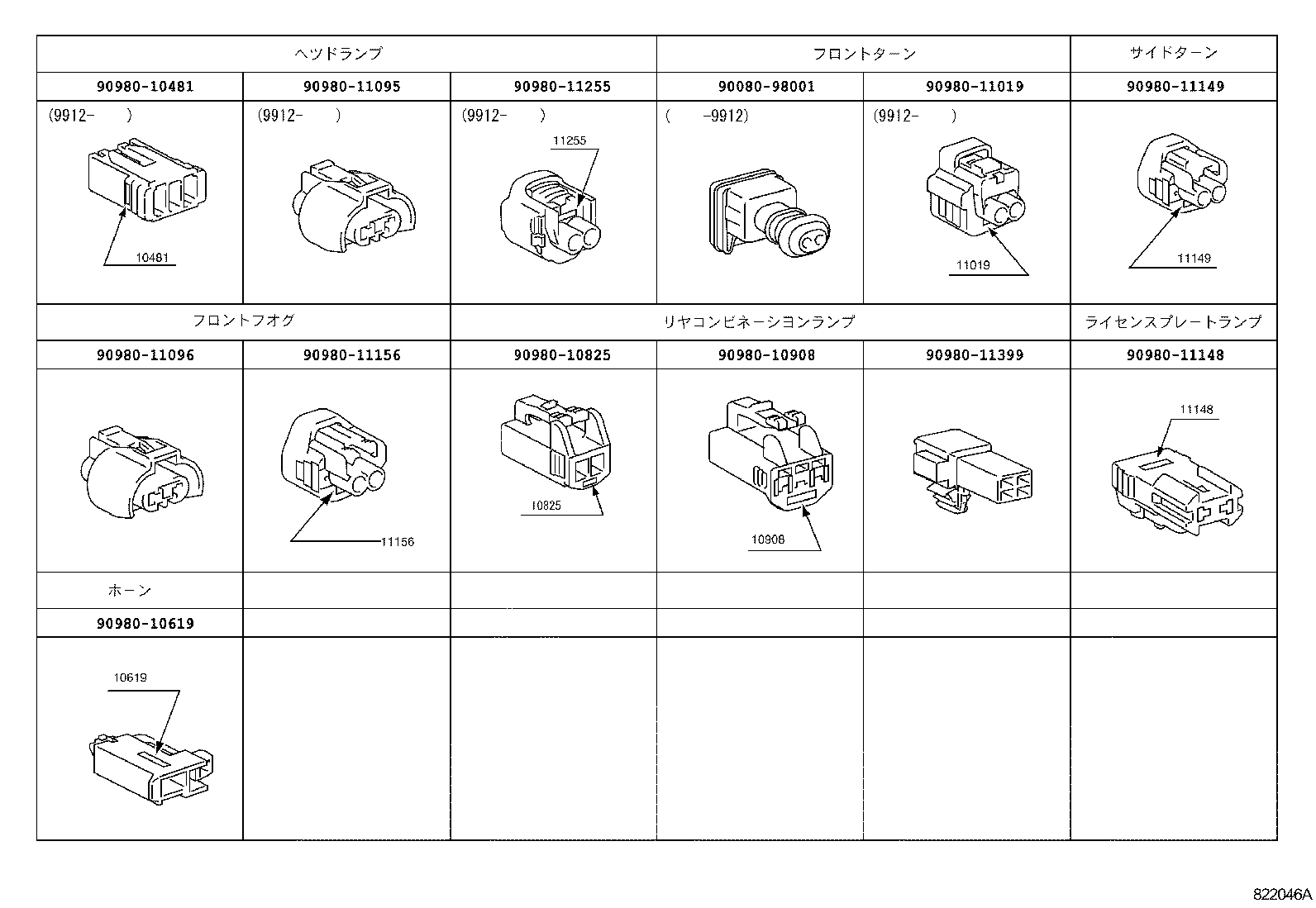

Figure 821049D 821049D 1997-08 → — Figure 821050G 821050G 1997-08 → — Figure 821051D 821051D 1997-08 → — Figure 821052D 821052D 1997-08 → — Figure 821053G 821053G 1997-08 → — Figure 821054G 821054G 1997-08 → — Figure 821055F 821055F 1997-08 → — Figure 821056G 821056G 1997-08 → — Figure 821057I 821057I 1997-08 → — Figure 821058C 821058C 1997-08 → — Figure 821059C 821059C 1997-08 → — Figure 821060A 821060A 1997-08 → — Figure 821061B 821061B 1997-08 → — Figure 821519C 821519C 1997-08 → — Figure 822046C 822046C 1997-08 → —

Part groups

PNCDescription

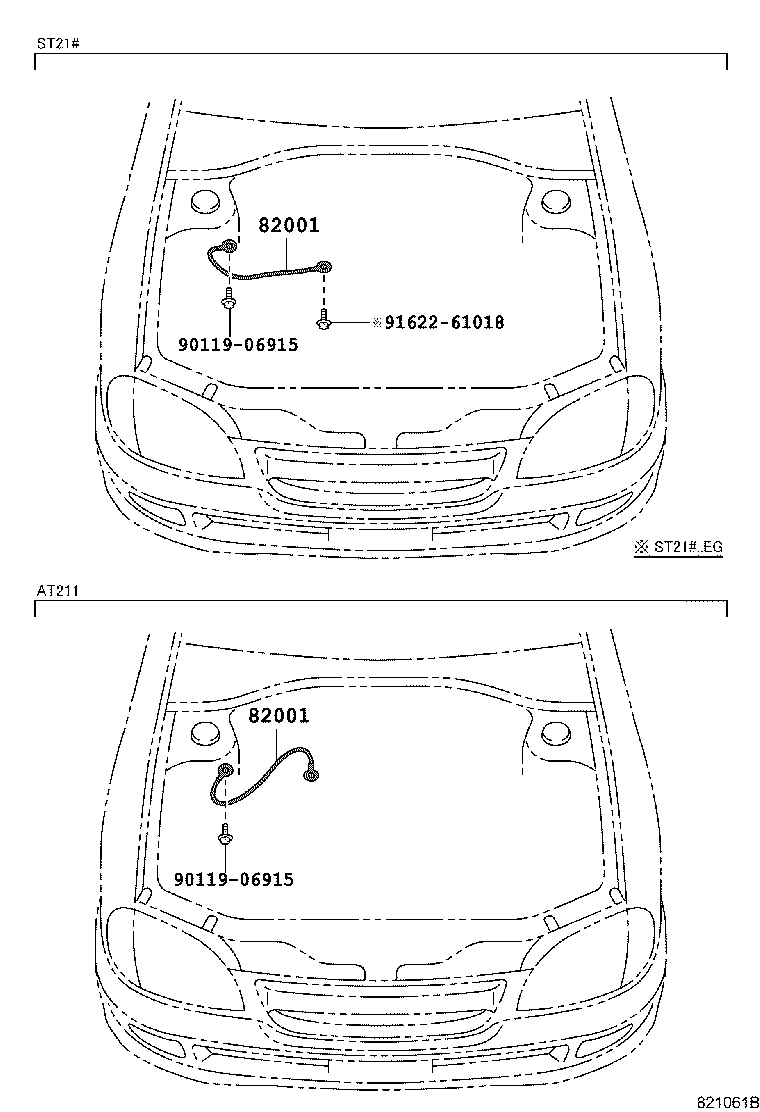

82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main

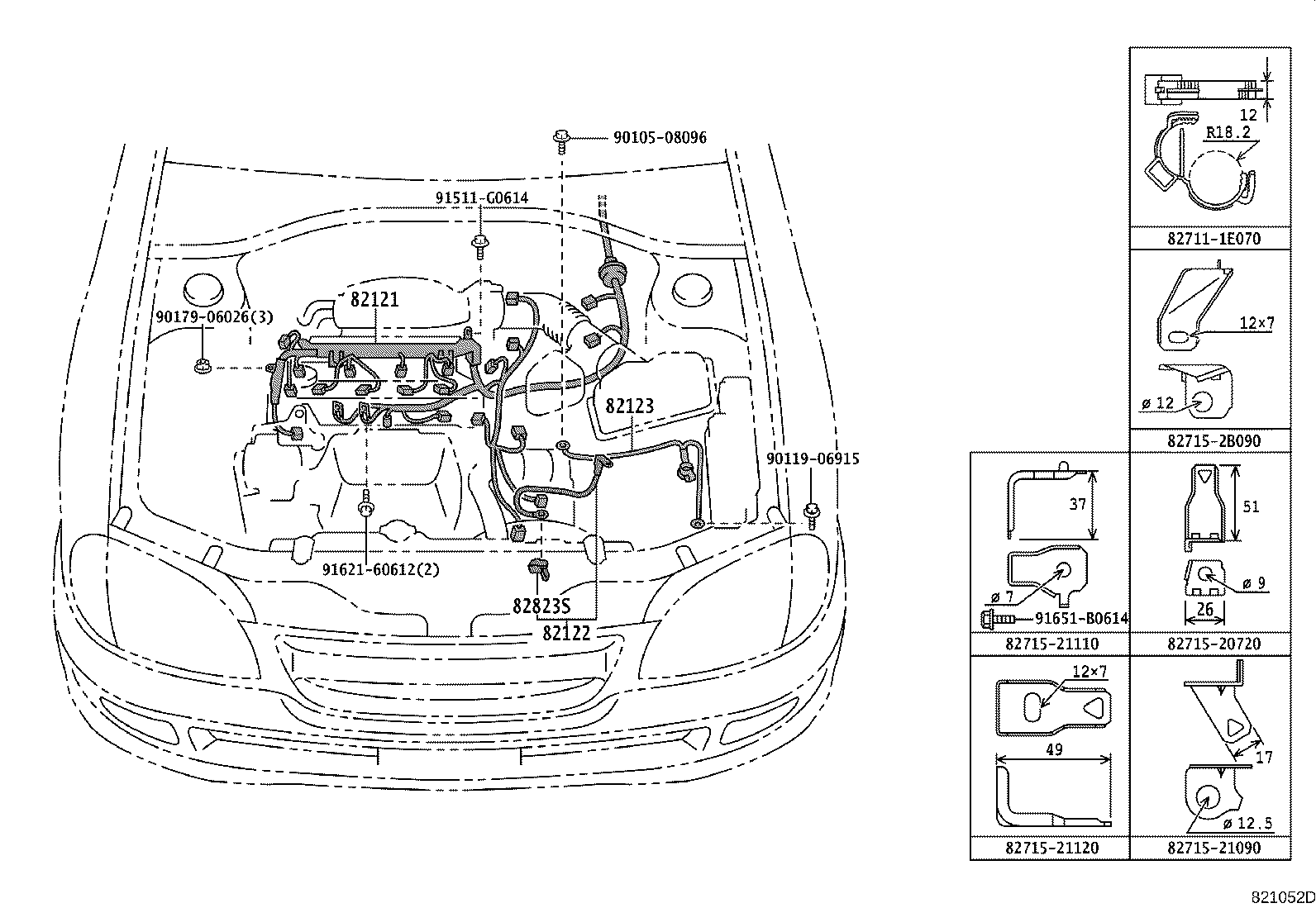

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

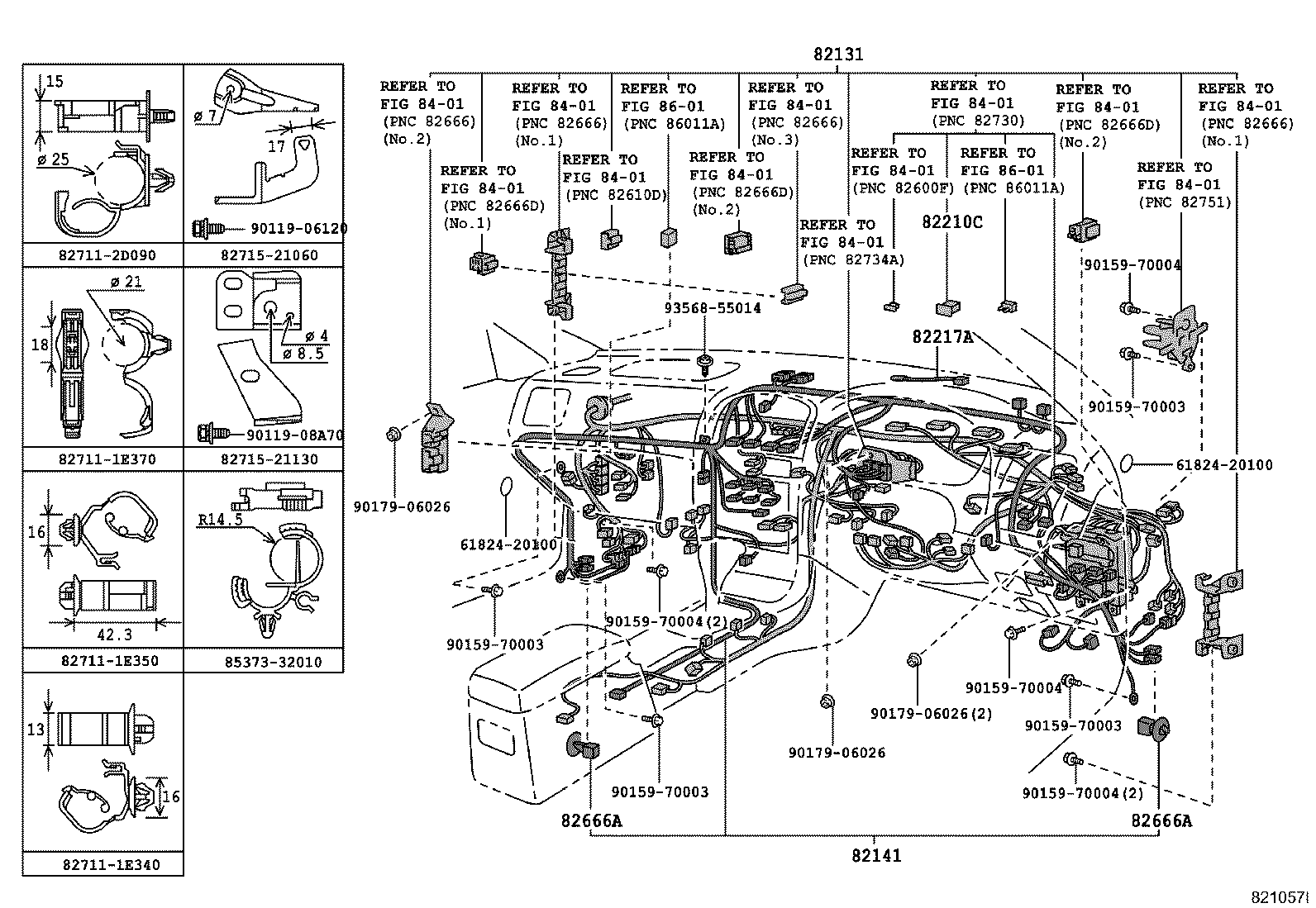

82131 Wire, Cowl
82141 Wire, Instrument Panel

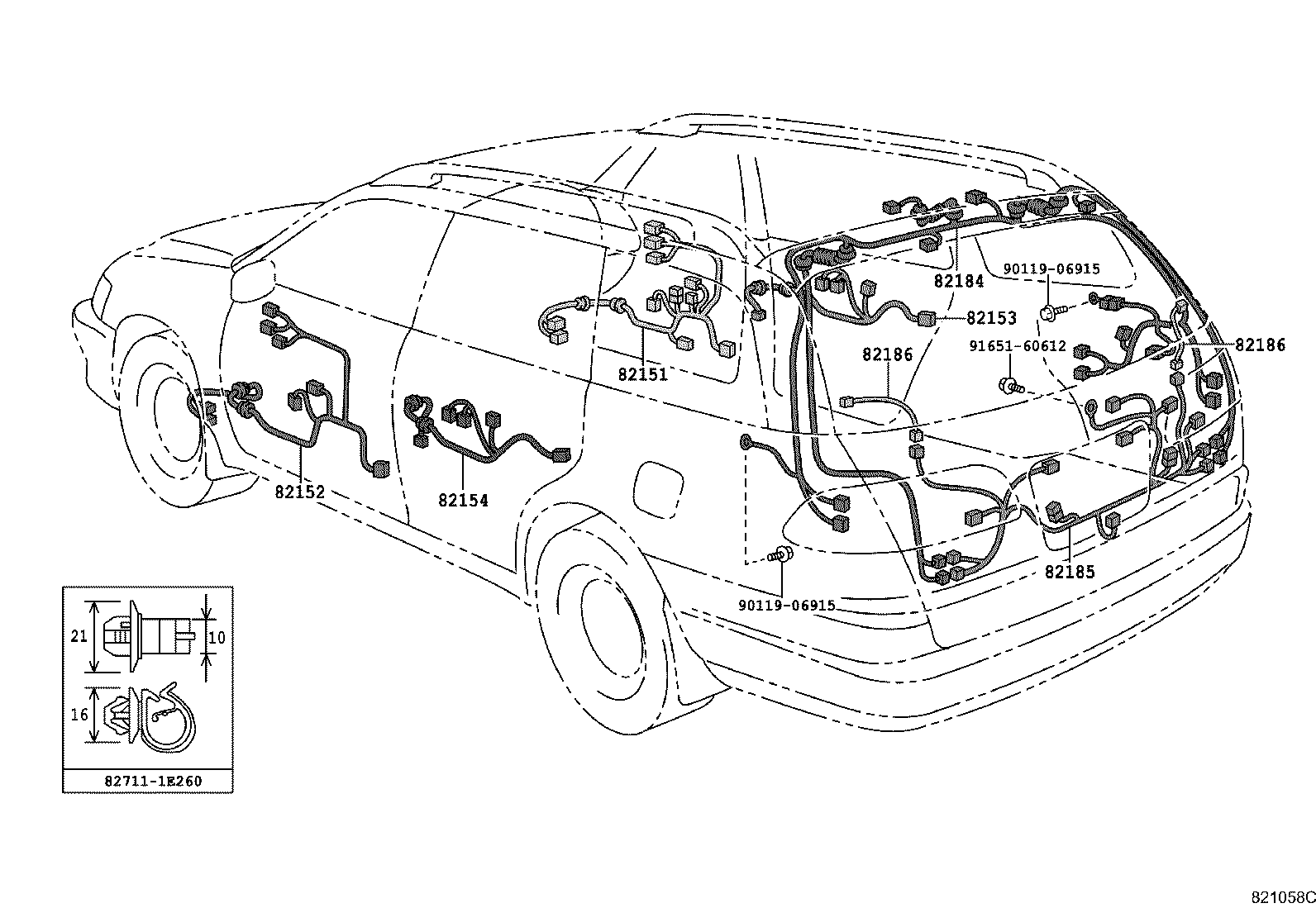

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164C Wire, Floor, NO.4

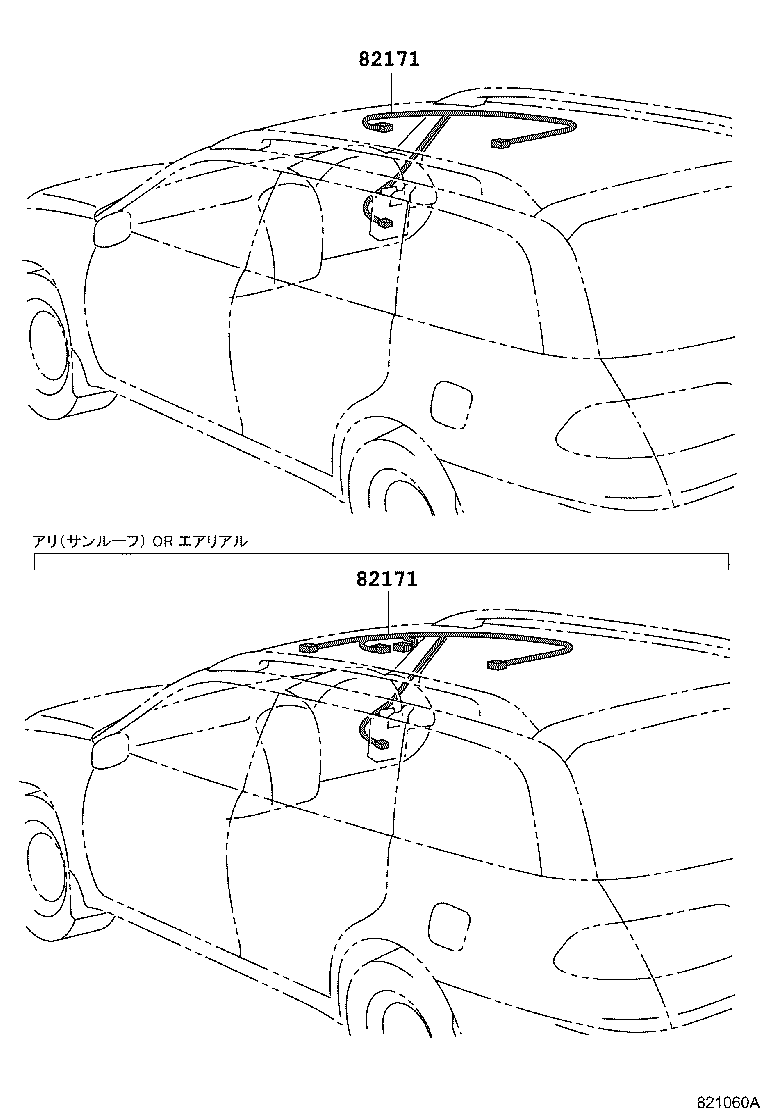

82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82217A Wire, Front Window Defogger
82219 Wire, Thermo Sensor
82221 Wire, Oil Pressure Switch
82345 Diode
82666A Holder, Connector NO.2
82817 Protector, Wiring Harness, NO.1
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
