Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

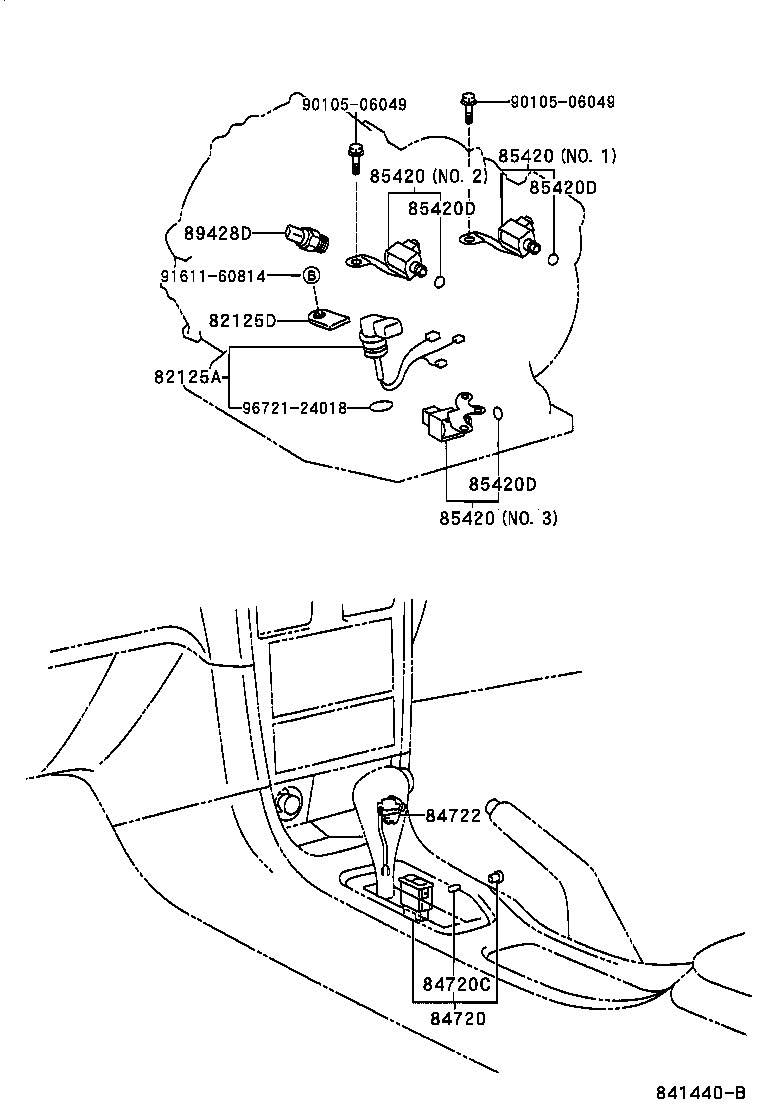

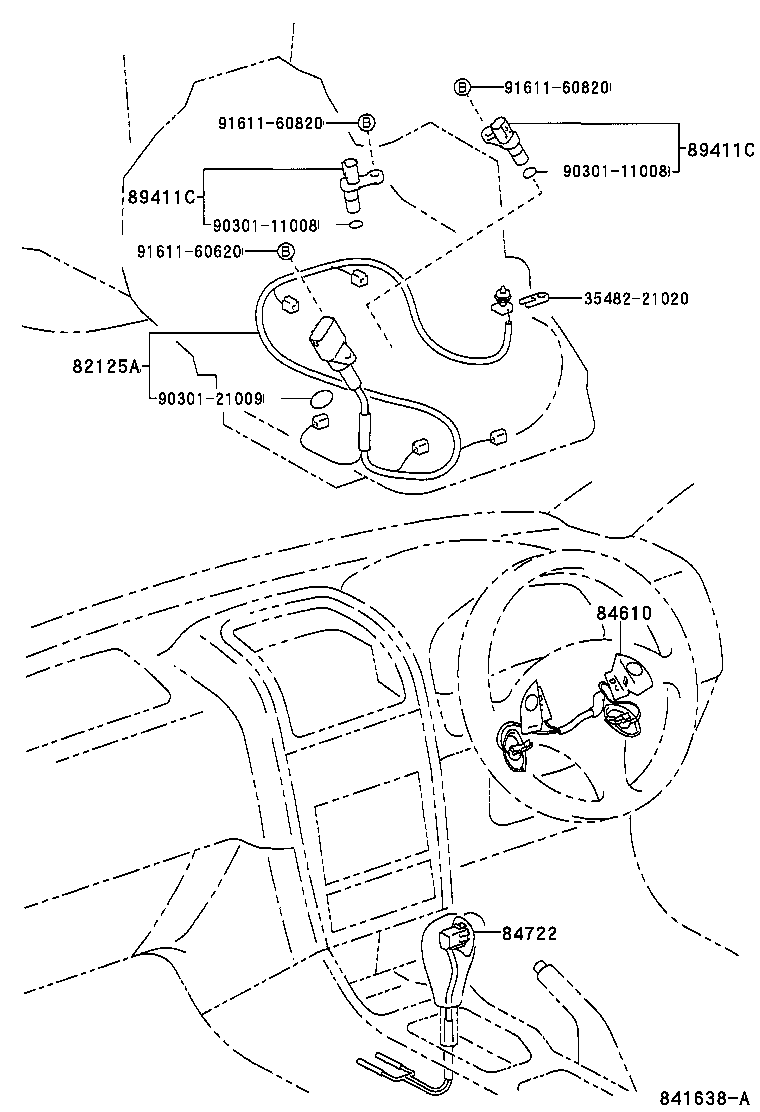

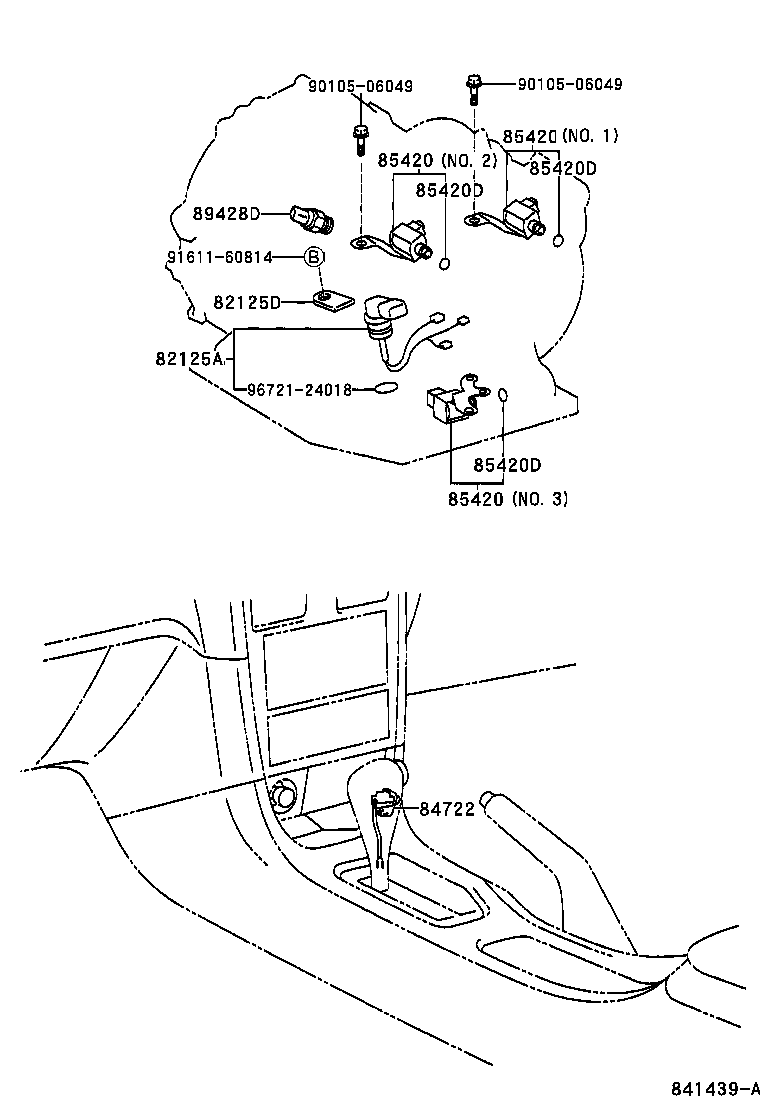

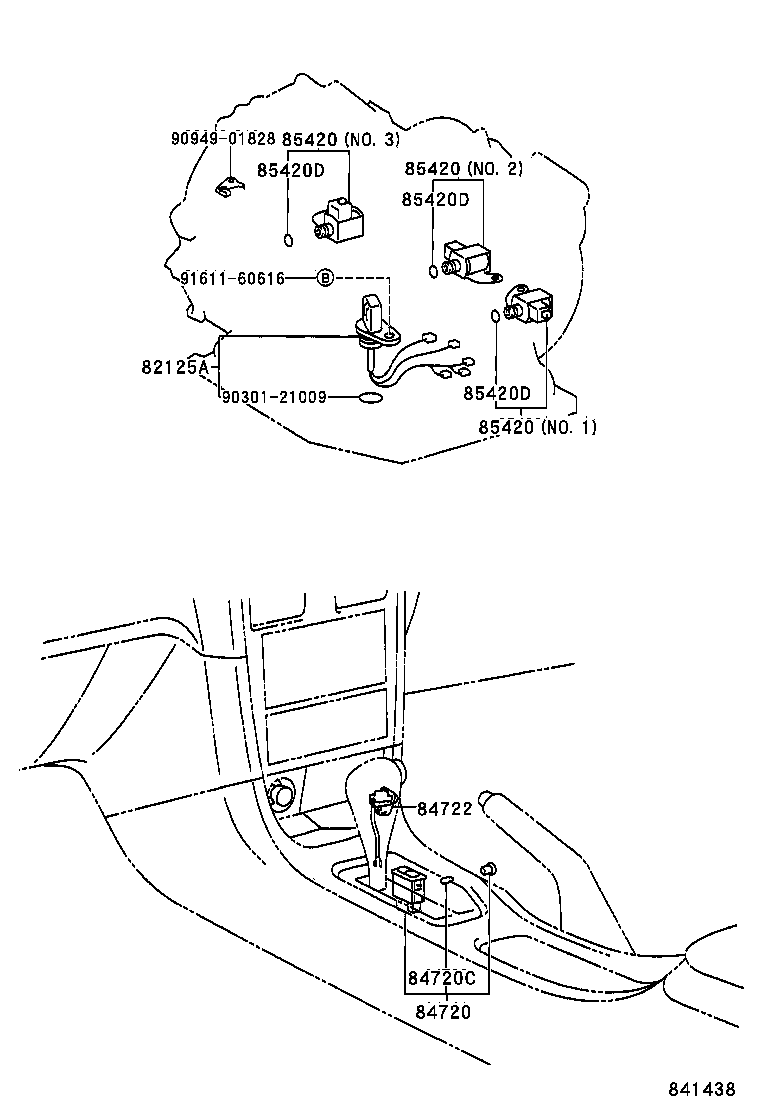

Overdrive & Electronic Controlled Transmission
11 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125D | Plate, Transmission Wire Lock |
| 84610 | Switch Assy, Transmission Shift |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89428D | Switch, Temperature, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
