Toyota Caldina

1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan

Discontinued model Data version 2003-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

18 part groups · 2 illustrations

Illustrations

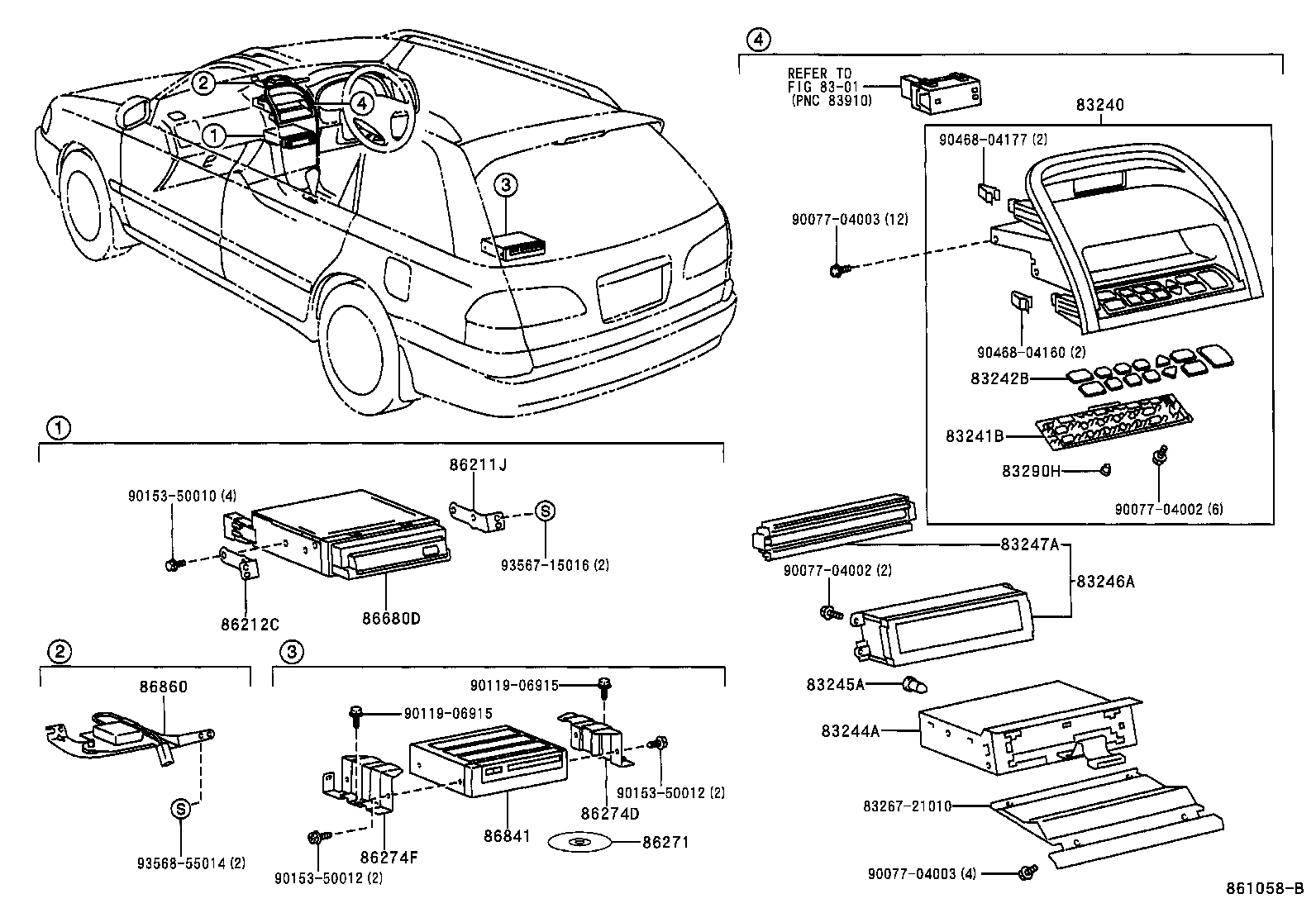

Figure 860497C 860497C 1997-08 → 1999-12 Figure 861058B 861058B 1999-12 → —

Part groups

PNCDescription
83240 Case Assy, Multi Information Display
83241B Switch, Multi Information Display
83242B Knob Set, Multi Information Display
83244A Computer, Multi Information Display
83245A Cover, Multi Information Display, Lower
83246A Panel, Multi Information Display
83247A Lamp, Multi Information Display
83290H Blub, Multi Information Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86680D Display Assy, Television
86807 Disc Kit, Cd-rom
86808 Cord Sub-assy, Navigation Antenna, NO.1
86841 Computer, Navigation
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
