Toyota Caldina
1997-08 → 2002-09 · chassis AT211,CT216,ST21# · catalogue 274140 · Japan
Discontinued model
Data version 2003-04

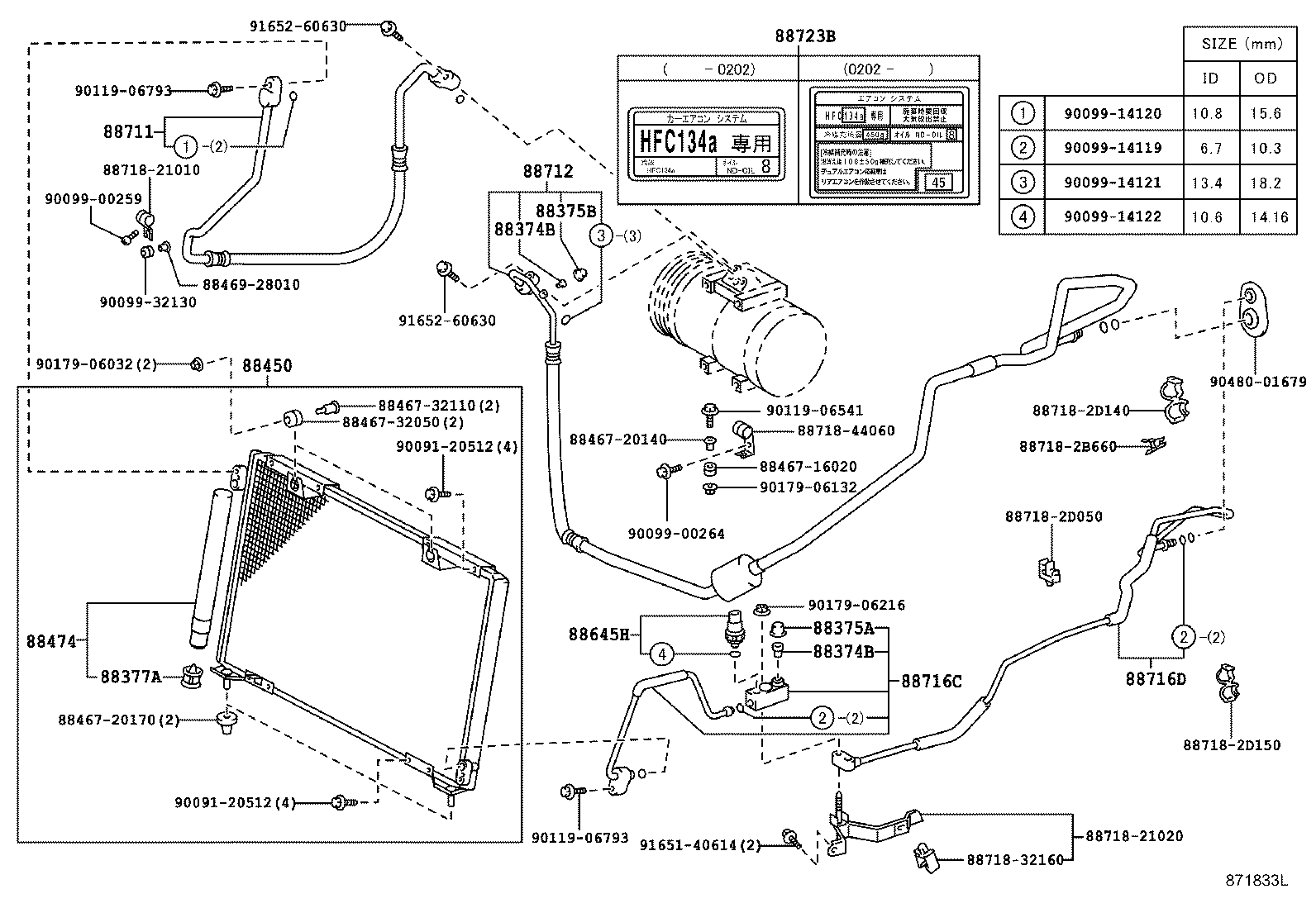

Heating & Air Conditioning - Cooler Piping
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88375B | Cap, Service Valve, NO.1 |
| 88377A | Filter, Refrigerant |
| 88450 | Condenser Assy, W/Receiver |

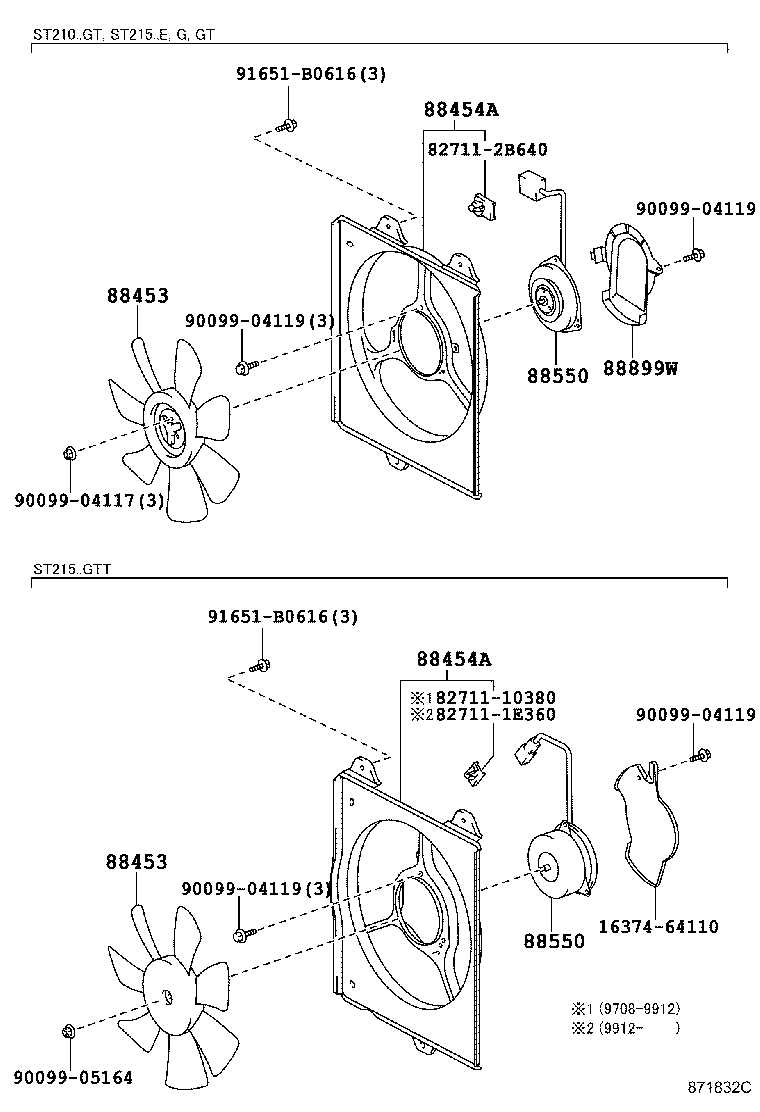

| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88474 | Dryer, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88723B | Label, Cooler Service Caution |
| 88899W | Support Sub-assy, B |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
