Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04

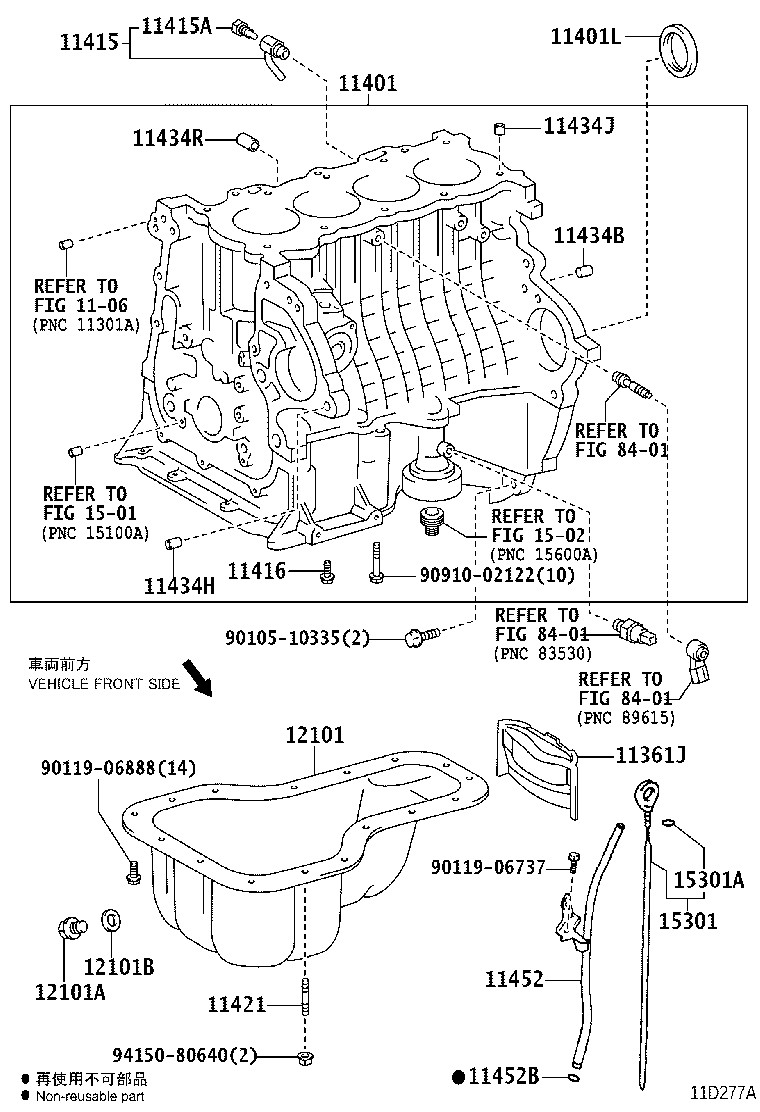

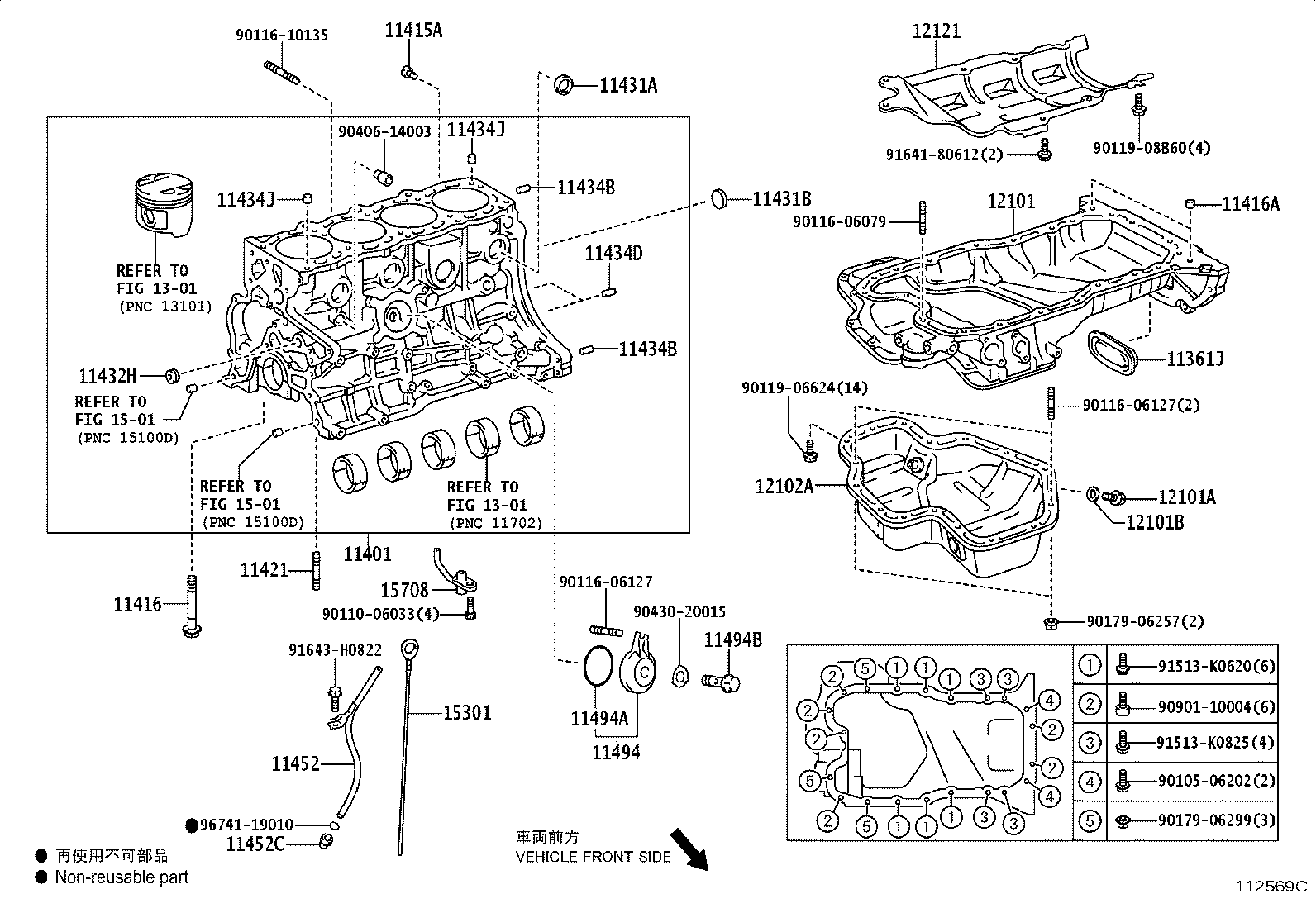

Cylinder Block

38 part groups · 3 illustrations

PNC	Description
11361J	Cover, Flywheel Housing Under
11401	Block Sub-assy, Cylinder
11401L	Seal, Engine Rear Oil
11415	Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A	Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416	Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A	Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11420	Crankcase Assy, Stiffening
11421	Bolt, Stud(FOR OIL PAN)
11431A	Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B	Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432A	Plug, W/Head Taper Screw, NO.1
11432H	Plug, W/Head Taper Screw, NO.5
11432T	Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK)
11432U	Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK)
11434A	Pin, Straight(FOR TIMING GEAR COVER SET)
11434B	Pin, Straight(FOR CLUTCH HOUSING SET)
11434C	Pin, Straight (FOR CYLINDER HEAD SET)
11434D	Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434H	Pin, Ring (FOR TIMING BELT COVER SET)
11434J	Pin, Ring (FOR CYLINDER HEAD SET)
11434R	Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11434Y	Pin, Straight(FOR OIL PAN)
11452	Guide, Oil Level Gage
11452B	Ring, O(FOR OIL LEVEL GAGE GUIDE)
11452C	Union(FOR OIL LEVEL GAGE GUIDE)
11494	Plate, Oil Hole Cover
11494A	Ring, O(FOR OIL HOLE COVER)
11494B	Bolt, Union(FOR OIL HOLE COVER)
12101	Pan Sub-assy, Oil
12101A	Plug(FOR OIL PAN DRAIN)
12101B	Gasket(FOR OIL PAN DRAIN PLUG)
12102A	Pan Sub-assy, Oil, NO.2
12121	Plate, Oil Pan Baffle, NO.1
15301	Gage Sub-assy, Oil Level
15301A	Ring, O(FOR OIL LEVEL GAGE)
15678B	Filter, Oil Control Valve
15708	Nozzle Sub-assy, Oil, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
