Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 3 illustrations

Illustrations

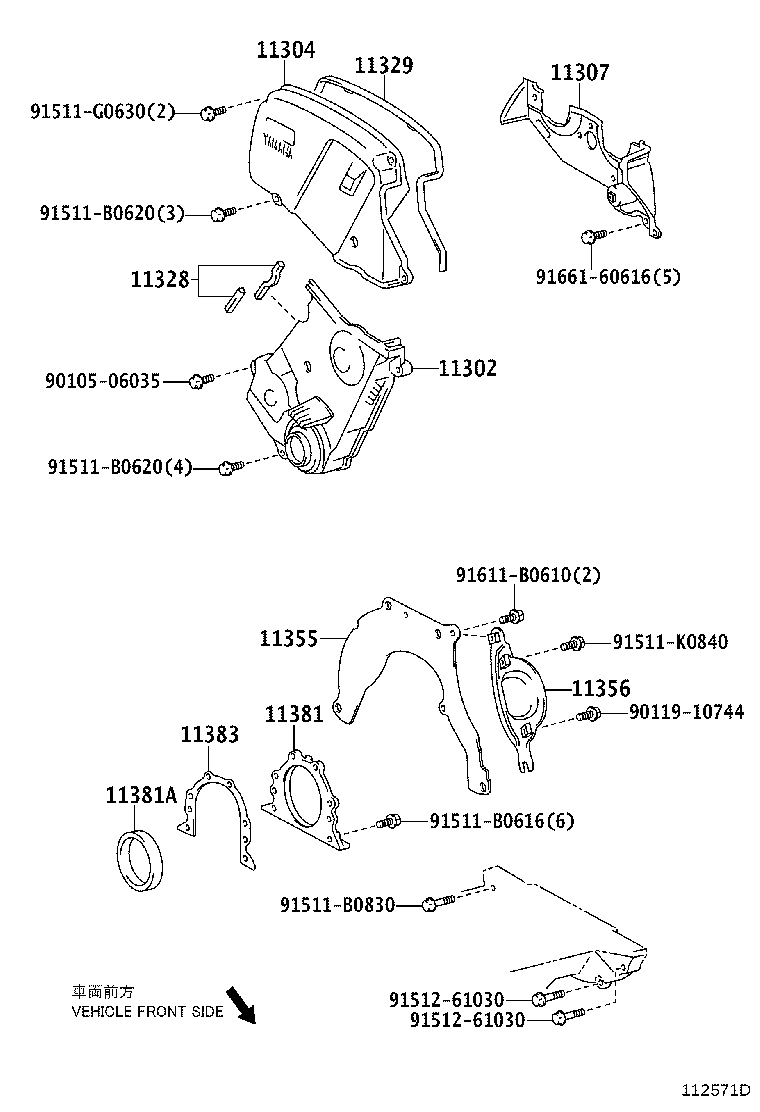

Figure 112543I 112543I 2002-09 → — Figure 112571D 112571D 2002-09 → — Figure 112586C 112586C 2002-09 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11307 Cover, Sub-assy, Timing Belt, NO.3
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
19529A Clamp
19941C Clamp, Cord(FOR CRANK POSITION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
