Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

22 part groups · 4 illustrations

Illustrations

Figure 150741D

150741D 2002-09 → 2005-01

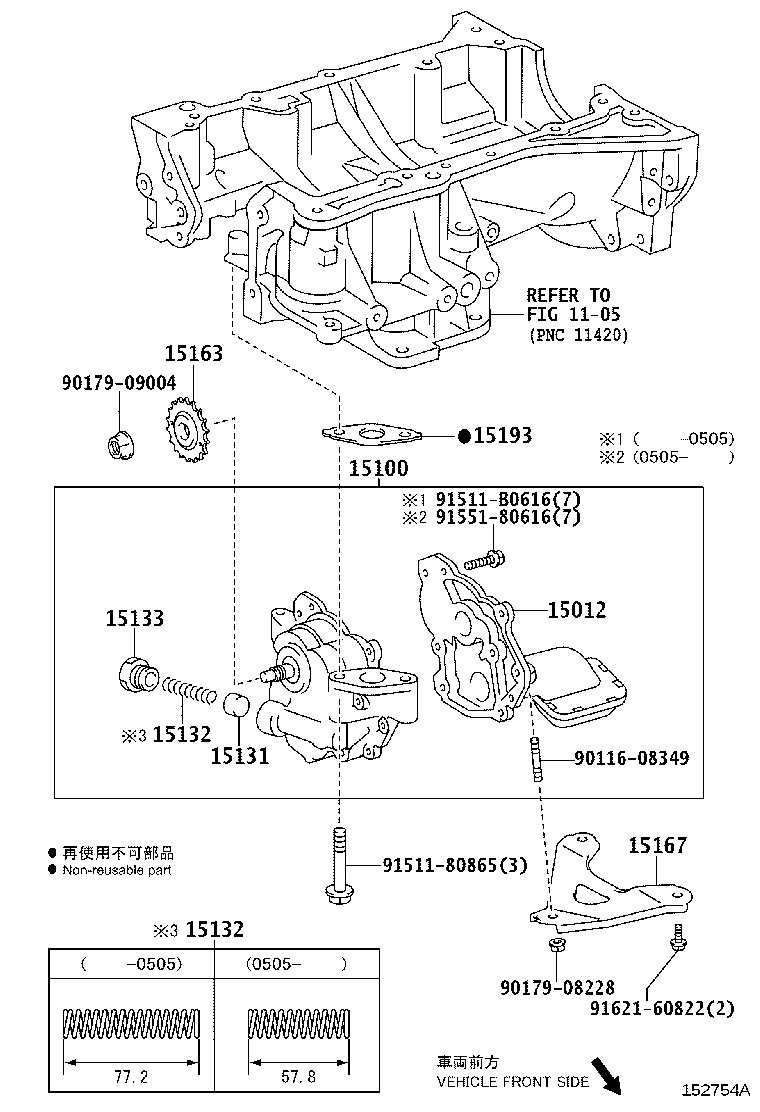

Figure 152754A

152754A 2005-01 → —

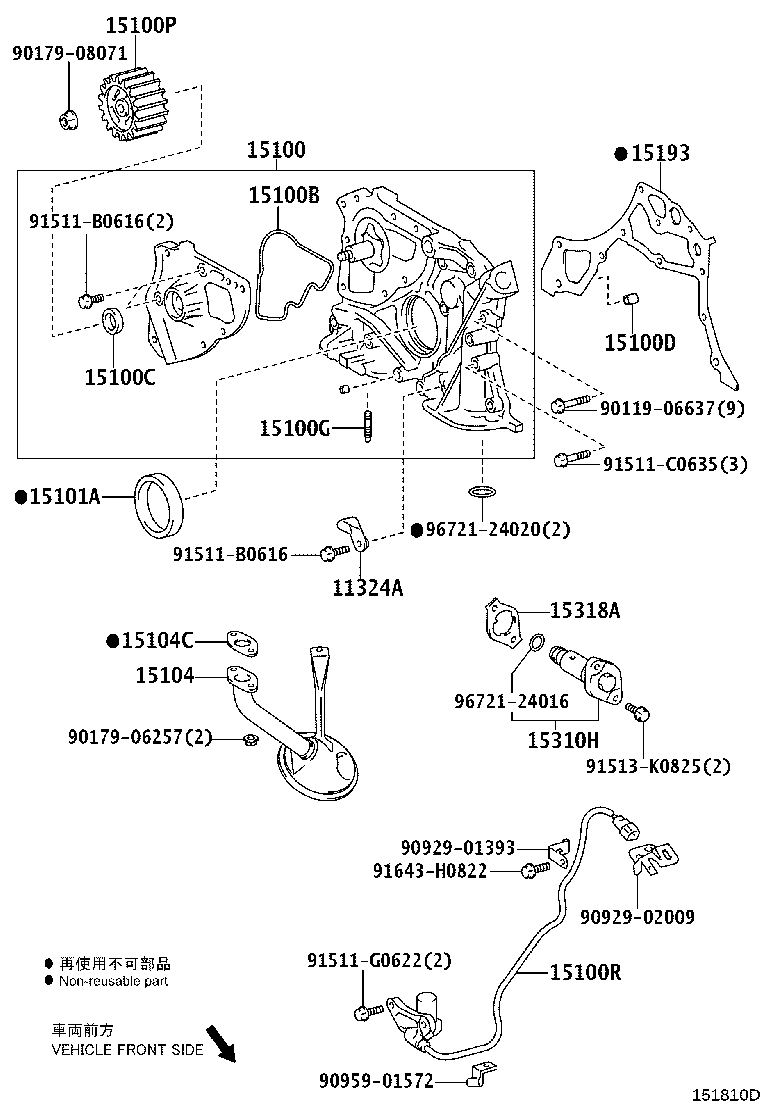

Figure 151810D

151810D 2002-09 → 2007-06

Figure 150660C

150660C 2002-09 → —

Part groups

PNC	Description
11324A	Plate, Timing Belt
15012	Cover Sub-assy, Oil Pump
15100	Pump Assy, Oil
15100A	Pin, Ring(FOR OIL PUMP SET)
15100B	Ring, O(FOR OIL PUMP)
15100C	Seal(FOR OIL PUMP)
15100D	Pin(FOR OIL PUMP SET)
15100G	Bolt,Stud(FOR OIL PUMP)
15100P	Pulley, Oil Pump Drive Shaft
15100R	Sensor, Crank Position
15101A	Seal(FOR CRANKSHAFT)
15104	Strainer Sub-assy, Oil
15104C	Gasket(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15149	Gasket, Oil Strainer Flange
15163	Gear, Oil Pump Drive Shaft
15167	Bracket, Oil Pump
15193	Gasket, Oil Pump
15310H	Regulator Assy, Oil
15318A	Gasket, Oil Regulator Body

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
