Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 3 illustrations

Illustrations

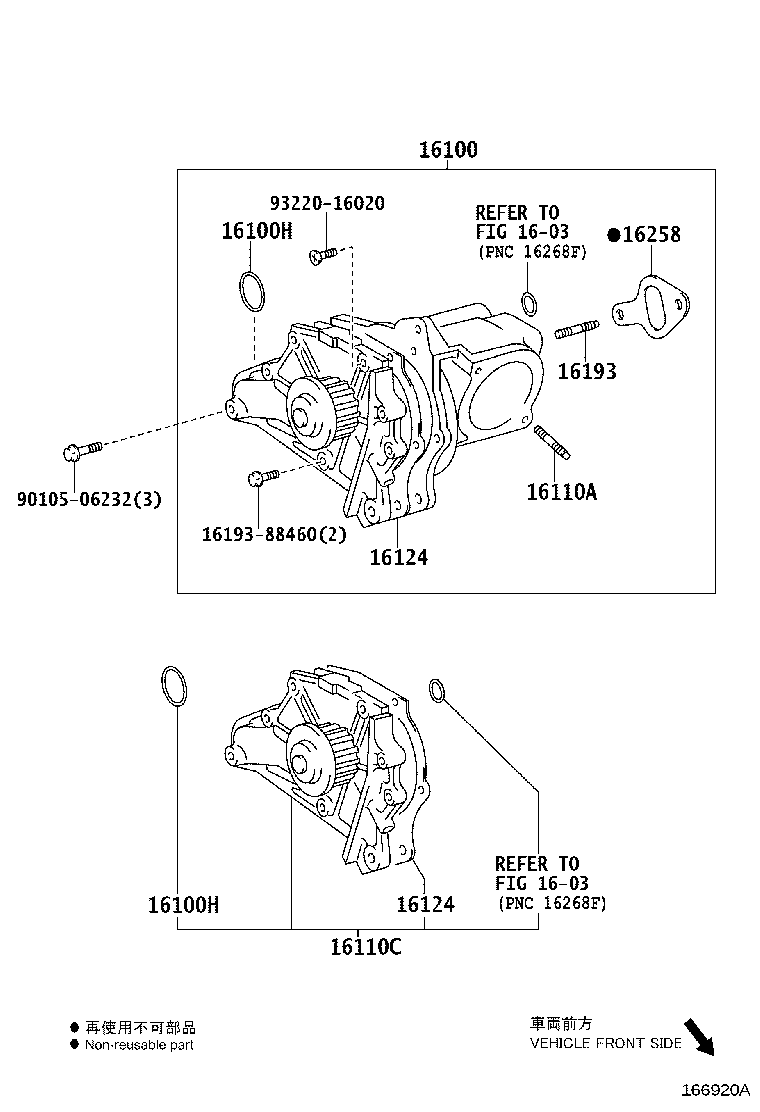

Figure 166915B 166915B 2002-09 → — Figure 166920A 166920A 2002-09 → — Figure 161684D 161684D 2002-09 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16110A Bolt, Stud(FOR WATER OUTLET SETTING)
16110C Pump Assy, Water, W/O Cover
16124 Gasket, Water Pump Cover
16173 Pulley, Water Pump
16193 Bolt, Stud(FOR WATER PUMP COVER)
16258 Gasket(FOR HEATER RETURN)
16620 Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
