Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

21 part groups · 4 illustrations

Illustrations

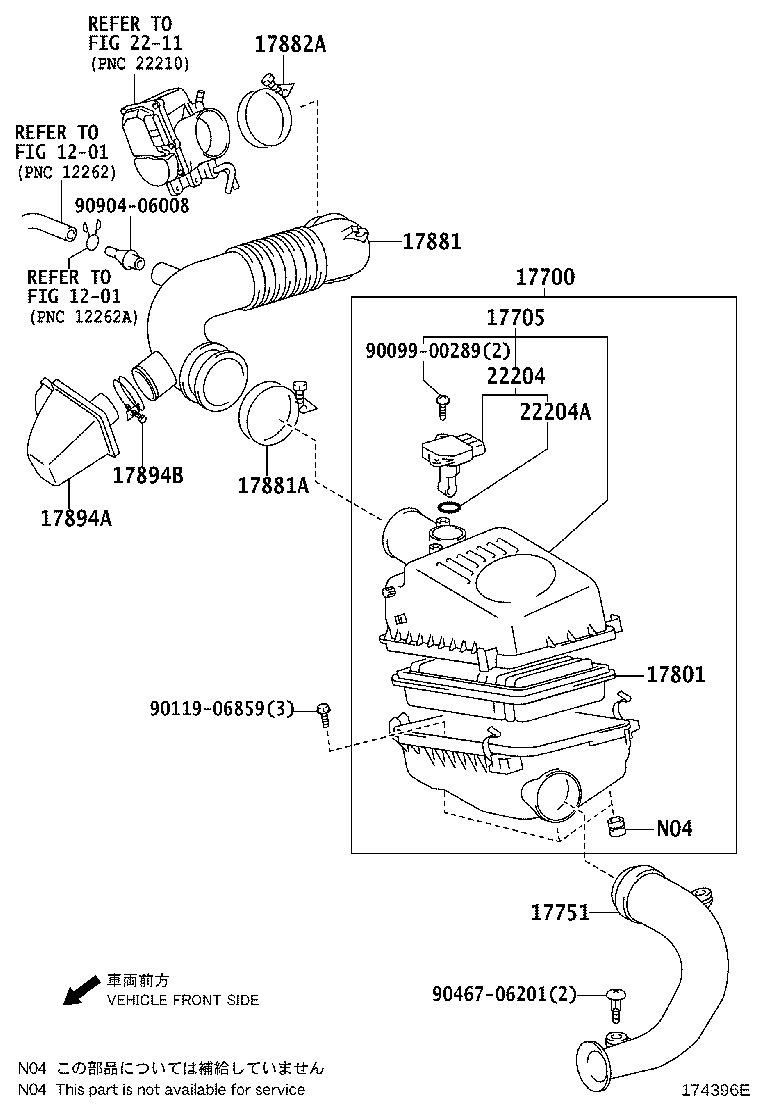

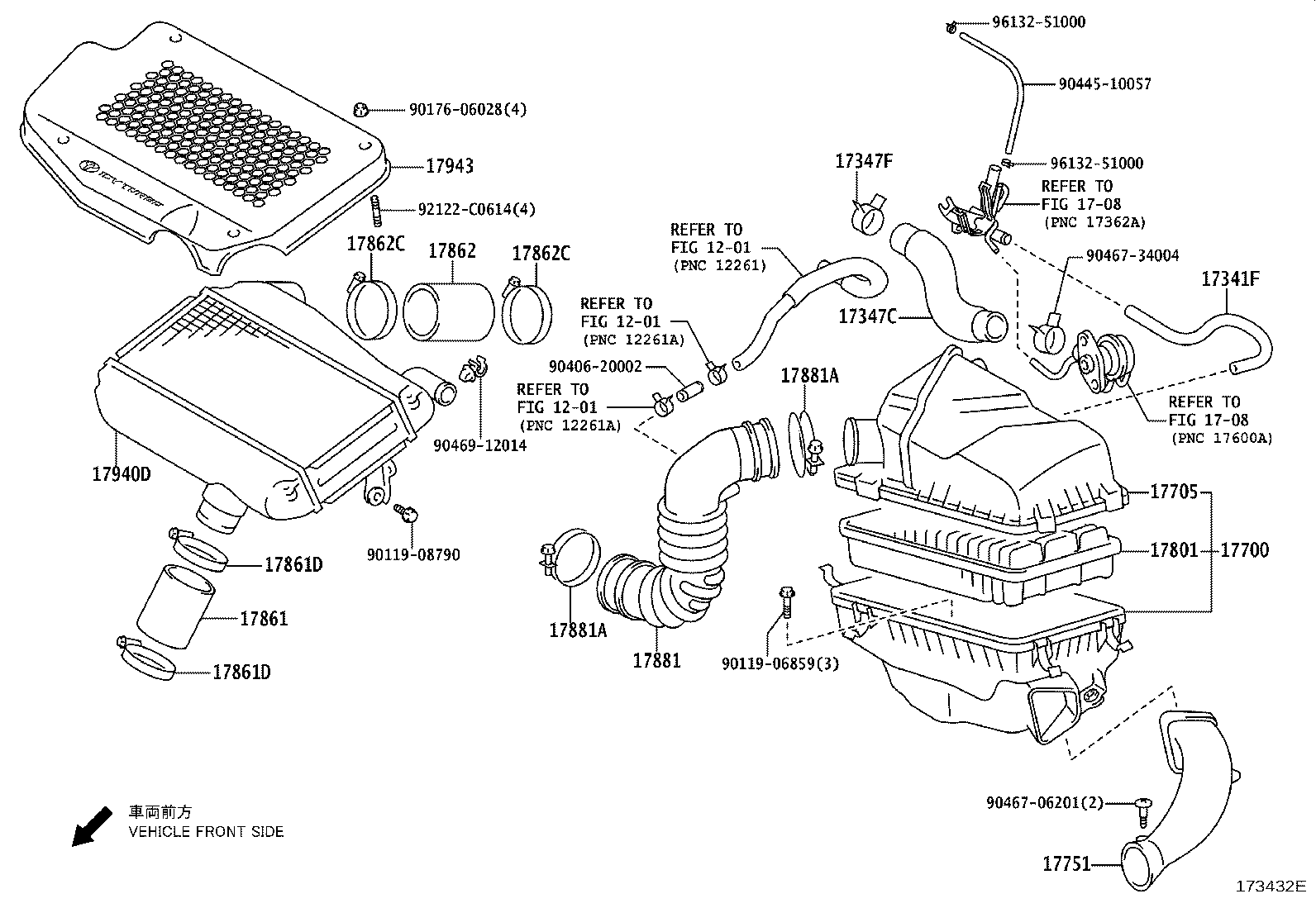

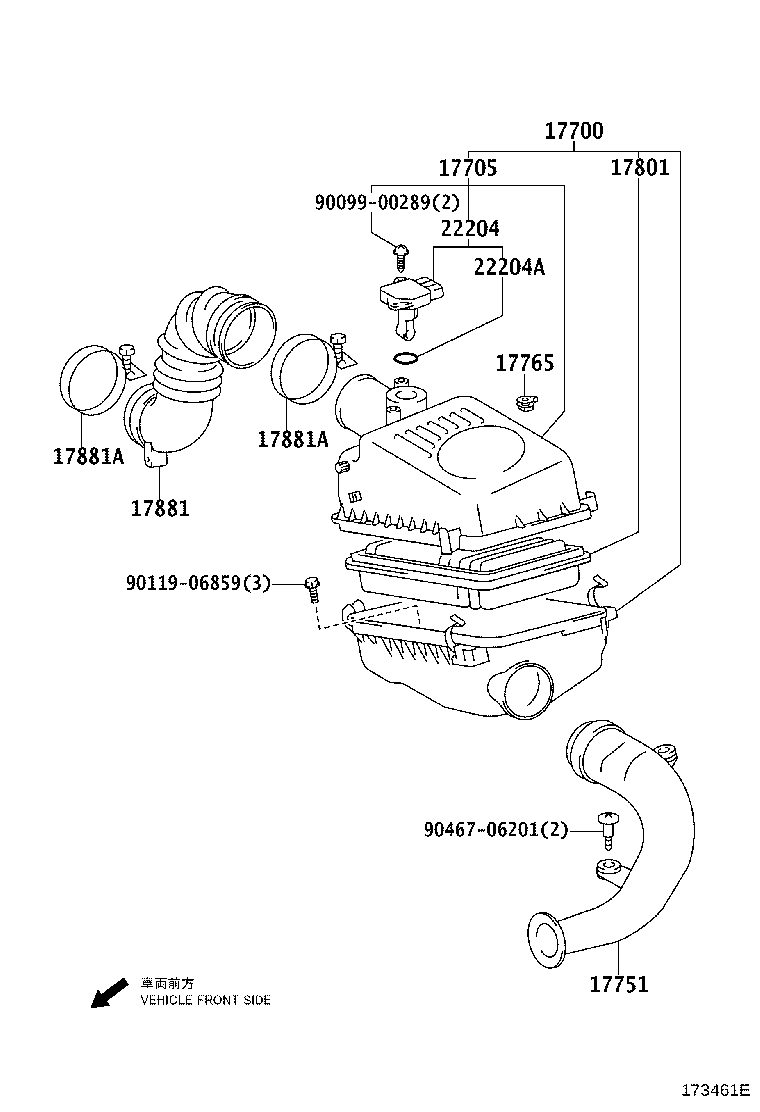

Figure 173425F 173425F 2002-09 → 2005-01 Figure 174396E 174396E 2005-01 → — Figure 173432E 173432E 2002-09 → — Figure 173461E 173461E 2002-09 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17347C Hose, Air, NO.7
17347F Clamp OR Clip(FOR AIR HOSE)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17862 Connector, Intake Air, NO.2
17862C Clamp(FOR INTAKE AIR CONNECTOR NO.2)
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17940D Intercooler Assy
17943 Protector, Intercooler
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
