Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 3 illustrations

Illustrations

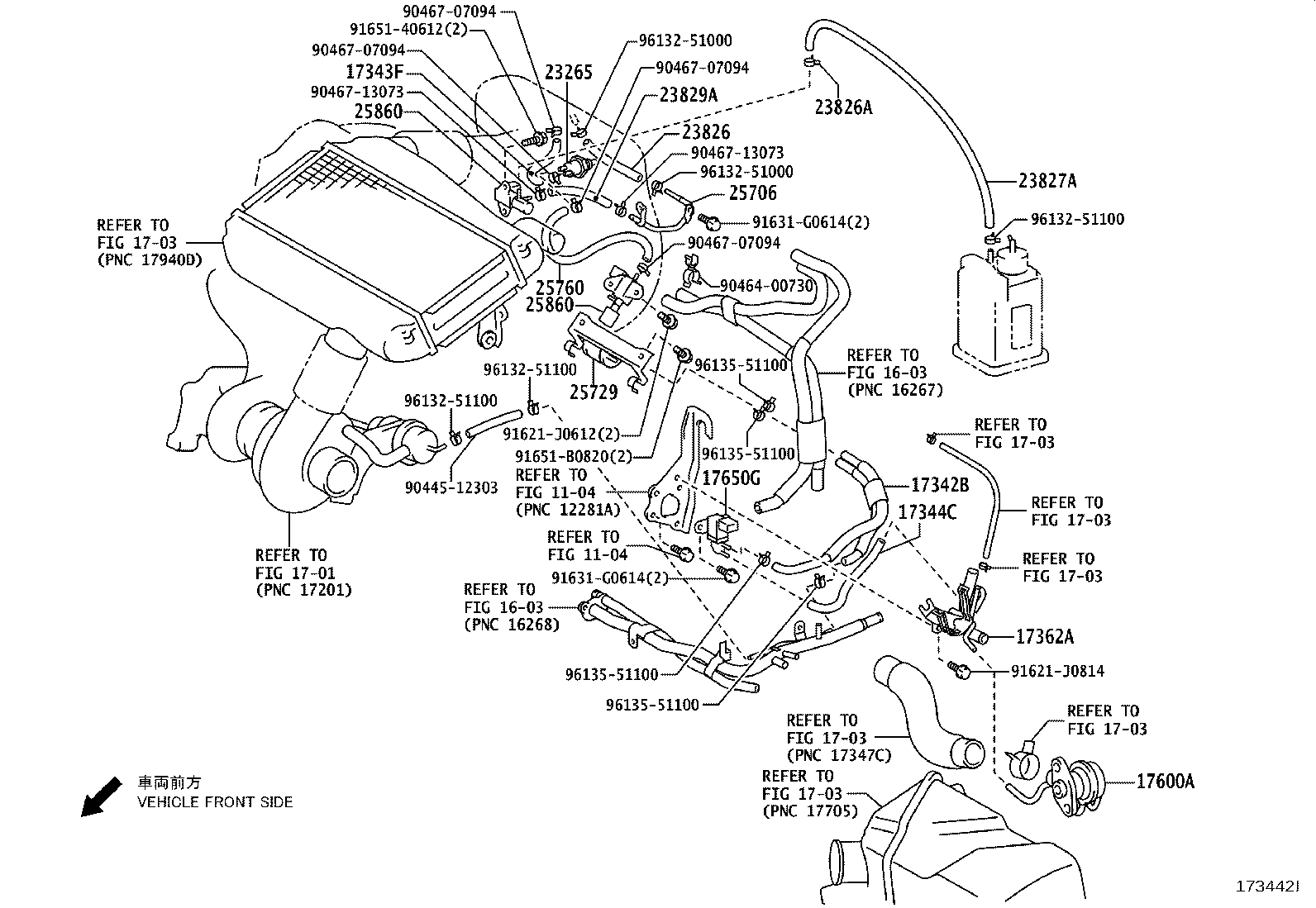

Figure 173426C 173426C 2002-09 → — Figure 173442I 173442I 2002-09 → — Figure 173481B 173481B 2002-09 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17343F Hose, Air, NO.3
17344C Hose, NO.4(FOR IDLE-UP)
17362A Tube, Air, NO.2
17600A Valve Assy, Air By-pass W/Hose
17650G Valve, Duty Vacuum Switching
23265 Filter, Gas, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829 Hose, Fuel Vapor Feed, NO.3
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25729 Tank, Vacuum Surge W/Bracket
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
