Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

9 part groups · 3 illustrations

Illustrations

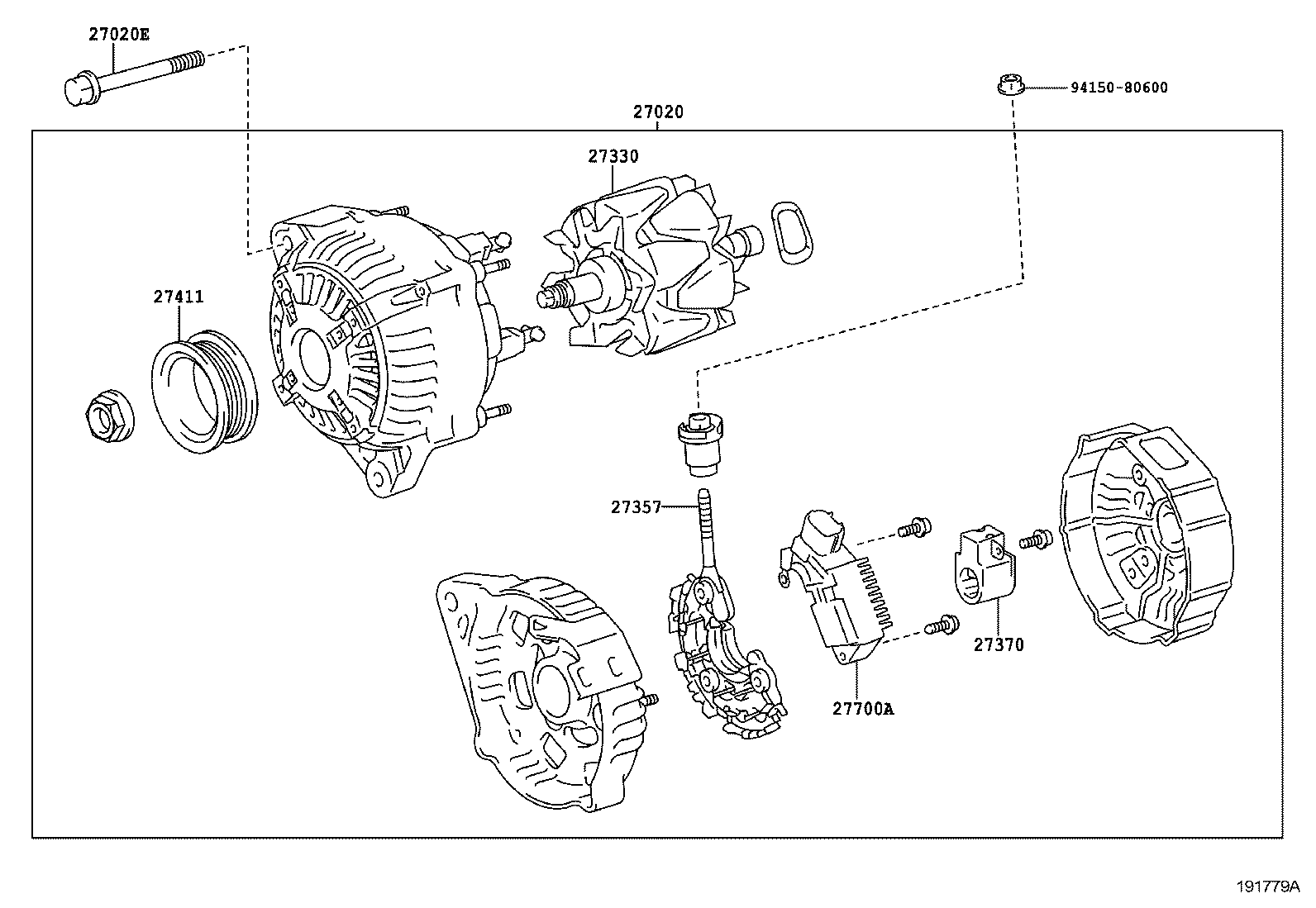

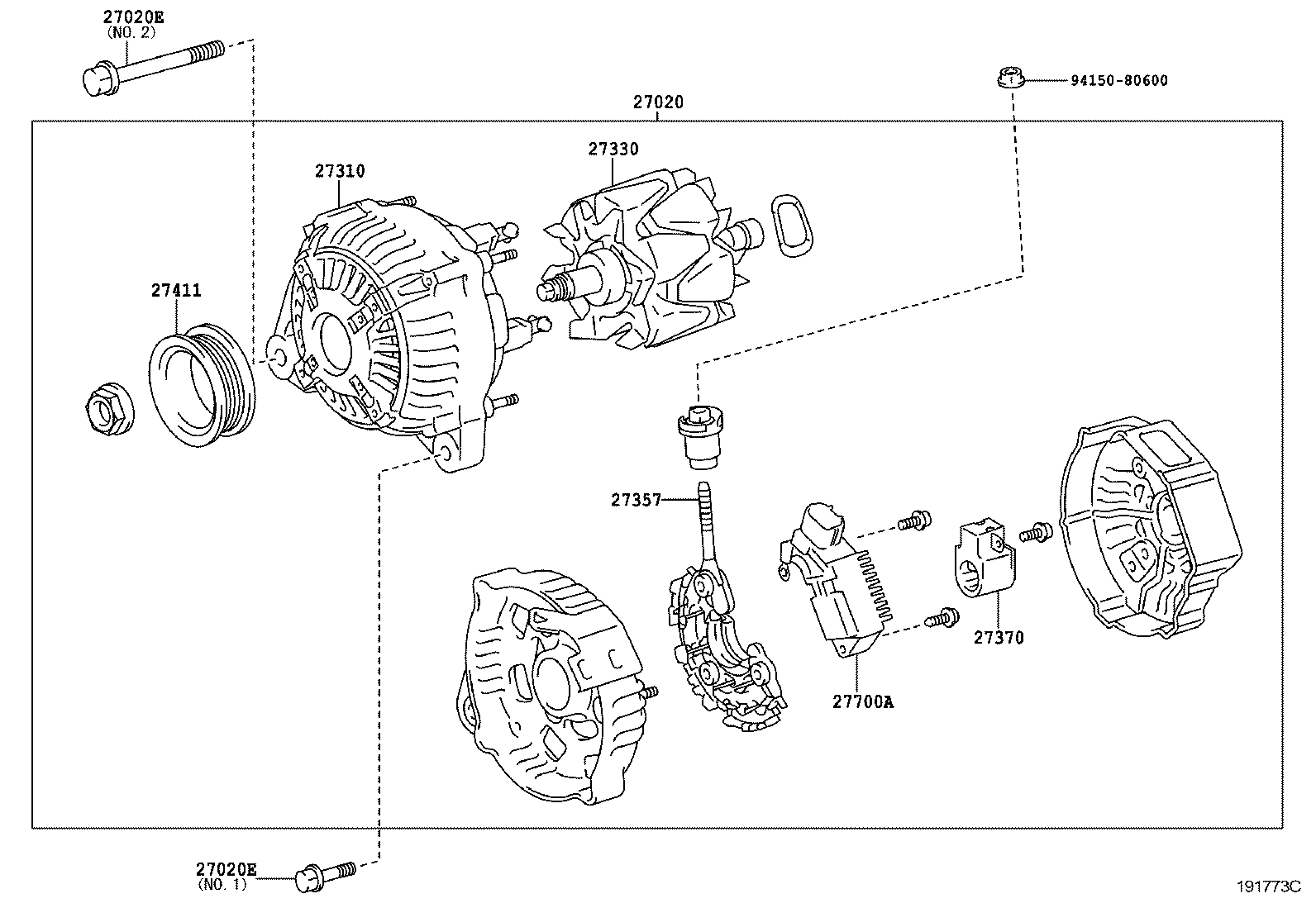

Figure 191772A 191772A 2002-09 → — Figure 191773C 191773C 2002-09 → — Figure 191779A 191779A 2002-09 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27310 Frame Assy, Drive End, Alternator
27330 Rotor Assy, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27411 Pulley, Alternator
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
